Practical Architectures for
Survivable Systems and Networks
(Phase-Two Final Report)
30 June 2000
©Copyright 2000 SRI International,
and freely available for noncommercial reuse
Peter G. Neumann
Computer Science Laboratory
SRI International, Room EL-243
333 Ravenswood Avenue
Menlo Park CA 94025-3493
Telephone: 1-650-859-2375
Fax: 1-650-859-2844

Acknowledgment of Support and Disclaimer: This report is based upon work supported by the U.S. Army Research Laboratory (ARL), under Contract DAKF11-97-C-0020. Any opinions, findings, conclusions, or recommendations expressed herein are those of the author and do not necessarily reflect the views of the U.S. Army Research Laboratory. The Government contact is Anthony Barnes (, 1-732-427-5099.

[NOTE: This report represents a somewhat personal view of some potentially effective approaches toward developing, configuring, and operating highly survivable system and network environments. It is accessible on-line in three forms, the first two for printing, the third for Web browsing in nicely crosslinked html:

Constructive feedback is always welcome. Many thanks. PGN]



Abstract: This report summarizes the analysis of information system survivability. It considers how survivability relates to other requirements such as security, reliability, and performance. It considers a hierarchical layering of requirements, as well as interdependencies among those requirements. It identifies inadequacies in existing commercial systems and the absence of components that hinder the attainment of survivability. It recommends specific architectural structures and other approaches that can help overcome those inadequacies, including research and development directions for the future. It also stresses the importance of system operations, education, and awareness as part of a balanced approach toward attaining survivability.

The field of endeavor addressed in this report is inherently open ended. New research results and new software components are appearing at a rapid pace. For this reason, the report stresses fundamentals, and is intended to be a guide to certain principles and architectural directions whose systematic use can lead to systems that are meaningfully survivable. In that spirit, the report is intended to serve as a coherent resource from which many further resources can be gleaned by following the cited references and URLs.

The report is relatively modest in its intent. It does not try to solve all the problems of how to design, implement, administer, maintain, and use highly survivable systems and networks. Those problems require future research and greater discipline in system development and operations. Nevertheless, the report represents a substantive starting point.

The document can be useful to developers of systems with critical requirements. It can also be useful in connection with anyone wanting to teach or learn the basics of system and network survivability. The Army Research Laboratory and the Software Engineering Institute have sponsored workshops on Information Survivability (InfoSurv). In part as a result of Paul Walczak's efforts at ARL relating to this project, several universities (Maryland, Pennsylvania, Tennessee-Knoxville, Georgia Tech) have had courses using the contents of our interim first-phase report (January 1999). Appendix A characterizes some of the curriculum issues relating to survivability. We have intentionally not tried to spell out specific course materials lecture by lecture, but rather have tried to provide basic directions that such courses might address.

Printable versions of this document contain URLs for many relevant Web resources. The browsable html version may be preferable for Web users, because it contains hot links to those resources.



  • Preface
  • Contents
  • Executive Summary
  • The Problem
  • Goals
  • Approach of the Report
  • Recommendations
  • Architecture and Implementation
  • Conclusions
  • 1 Introduction
  • 1.1 Project Goals
  • 1.2 Fundamental Concepts
  • 1.2.1 Survivability
  • 1.2.2 Attributes of System Survivability
  • 1.2.3 Trustworthiness, Dependability, and Assurance
  • 1.2.4 Generalized Composition
  • 1.2.5 Generalized Dependence
  • 1.2.6 Survivability with Generalized Dependence
  • 1.2.7 Mandatory Policies for Security, Integrity, and Availability
  • 1.2.8 Multilevel Survivability
  • 1.3 Compromisibility and Noncompromisibility
  • 1.4 Defenses Against Compromises
  • 1.5 Sources of Risks
  • 1.6 Some Relevant Case Histories
  • 1.7 Causes and Effects
  • 2 Threats to Survivability
  • 2.1 Threats to Security
  • 2.1.1 Bypasses
  • 2.1.2 Pest Programs
  • 2.1.3 Resource Misuse
  • 2.1.4 Comparison of Attack Modes
  • 2.1.5 Personal-Computer Viruses
  • 2.1.6 Other Attack Methods
  • 2.2 Threats to Reliability
  • 2.3 Threats to Performance
  • 2.4 Perspective on Threats to Survivability
  • 3 Requirements and Their Interdependence
  • 3.1 Survivability and Its Subrequirements
  • 3.1.1 Survivability Concepts
  • 3.1.2 Security
  • 3.1.3 Reliability and Fault Tolerance
  • 3.1.4 Performance
  • 3.2 System Requirements for Survivability
  • 3.3 A System View of Survivability
  • 3.4 Mapping Mission Requirements into Specifics
  • 4 Systemic Inadequacies
  • 4.1 System and Networking Deficiencies
  • 4.2 Deficiencies in the Information Infrastructure
  • 4.3 Other Deficiencies
  • 5 Approaches for Overcoming Deficiencies
  • 5.1 Conceptual Understanding and Requirements
  • 5.2 System and Networking Architectures
  • 5.3 System/Networking Protocols and Components
  • 5.4 Configuration Management
  • 5.5 Information Infrastructure
  • 5.6 System Development Practice
  • 5.7 Software Engineering Practice
  • 5.8 Subsystem Composability
  • 5.9 Formal Methods
  • 5.10 Toward Robust Open-Box Software
  • 5.10.1 Black-Box Software
  • 5.10.2 Open-Box (Source-Available) Software
  • 5.10.3 Use of COTS Software in Critical Systems
  • 5.11 Integrative Paradigms
  • 5.12 Fault Tolerance
  • 5.13 Static System Analysis
  • 5.14 Operational Practice
  • 5.15 Real-time Analysis of Behavior and Response
  • 5.16 Standards
  • 5.17 Research and Development
  • 5.18 Education and Training
  • 5.19 Government Organizations
  • 6 Evaluation Criteria
  • 7 Architectures for Survivability
  • 7.1 Structural Organizing Principles
  • 7.2 Architectural Structures
  • 7.3 Architectural Components
  • 7.3.1 Secure Operating Systems
  • 7.3.2 Encryption and Key Management
  • 7.3.3 Authentication Subsystems
  • 7.3.4 Trusted Paths and Resource Integrity
  • 7.3.5 File Servers
  • 7.3.6 Name Servers
  • 7.3.7 Wrappers
  • 7.3.8 Network Protocols
  • 7.3.9 Network Servers
  • 7.3.10 Firewalls and Routers
  • 7.3.11 Monitoring
  • 7.3.12 Architectural Challenges
  • 7.3.13 Operational Challenges
  • 7.4 The Mobile-Code Architectural Paradigm
  • 7.4.1 Confined Execution Environments
  • 7.4.2 Revocation and Object Currency
  • 7.4.3 Proof-Carrying Code
  • 7.4.4 Architectures Accommodating Untrustworthy Mobile Code
  • 7.5 The Portable-Computing Architectural Paradigm
  • 7.6 Structural Architectures
  • 7.6.1 Conventional Architectures
  • 7.6.2 Multilevel Survivability with Minimized Trustworthiness
  • 7.6.3 End-User System Components
  • 8 Implementing and Configuring for Survivability
  • 8.1 Developing Survivable Systems
  • 8.2 A Strategy for Survivable Architectures
  • 8.3 Baseline Survivable Architectures
  • 9 Conclusions
  • 9.1 Recommendations for the Future
  • 9.2 Research and Development Directions
  • 9.3 Lessons Learned from Past Experience
  • 9.4 Architectural Directions
  • 9.5 Testbed Activities
  • 9.6 Residual Vulnerabilities and Risks
  • 9.7 Applicability to the PCCIP Recommendations
  • 9.8 Future Work
  • 9.9 Final Comments
  • Acknowledgments
  • Appendix A: Curricula for Survivability
  • A.1 Survivability-Relevant Courses
  • A.2 Applicability of Remote Learning and Collaborative Teaching
  • A.3 Summary of Education and Training Needs
  • A.4 The Purpose of Education
  • Appendix B: Jonathan Millen's Research Contributions
  • Appendix C: DoD Attempts at Standardization
  • C.1 The Joint Technical Architecture
  • C.1.1 Goals of JTA Version 5.0
  • C.1.2 Analysis of JTA Version 5.0
  • C.1.3 JTA5.0 Section 6, Information Security
  • C.1.4 Augmenting the Army Architecture Concept
  • C.2 The DoD Goal Security Architecture
  • C.3 Joint Airborne SIGINT Architecture
  • C.4 An Open-Systems Process for DoD
  • Appendix D: Some Noteworthy References
  • References
  • Index
  • Footnotes
  • Executive Summary

    The Problem

    Systems and networks with critical survivability requirements are extremely difficult to specify, develop, procure, operate, and maintain. They tend to be subject to many threats, laden with risks, and difficult to use wisely. By systems, we include operating systems, dedicated application systems, systems of systems, and networks viewed as systems.

    We begin with several observations.


    The above observations motivate a simple statement of the goals of our project and of this report. To surmount these realities, we seek to

    1. Make more explicit the requirements for survivability and its necessary subtended properties such as security, reliability, and performance, and characterize the interactions among the different subrequirements
    2. Identify functionality whose absence currently prevents adequate satisfaction of those requirements and recommend the development of specific infrastructural components that are currently missing or not commercially available
    3. Explore techniques for designing and developing highly survivable systems and networks, despite the presence of untrustworthy subsystems and untrustworthy people -- where untrustworthiness may encompass the lack of reliability, integrity, and correctness of behavior on the part of systems and people
    4. Recommend specific architectural structures and structural architectures that can lead to survivable systems and networks capable of either preventing or tolerating a wide range of threats
    5. Explore operational principles that can enhance survivability
    6. Recommend directions for the future, including research and development

    Approach of the Report

    It is absolutely essential to realize that there are no easy answers for achieving survivable systems and networks. This report does not pretend to be a cookbook. Cookbook approaches are doomed to fail, because of the intrinsic multidimensionality of the survivability problems, the inadequacies of the existing infrastructures, the fact that the underpinnings are continually in flux, and the fact that no one solution or small set of solutions fits all applications. We cannot merely follow tried-and-true recipes, because no foolproof recipes exist. For these reasons, we emphasize here the need for in-depth understanding of the basic issues, the recognition and pervasive adherence to sensible principles, the fundamental importance of insights gleaned from past experience, and the urgency of pursuing significant R&D approaches and incorporating them into practical systems. Thus, we include many references to primary literature sources, with the hopes that diligent readers will pursue them. The successful integration of the best of these concepts is absolutely fundamental to the development, procurement, and use of systems and networks that can fulfill requirements for high survivability.

    To satisfy the goals stated above, we take a strongly system-oriented approach. Survivability of systems and networks is not an intrinsic low-level property of subsystems in the small. Instead, it is an emergent property -- that is, a property that has meaning primarily in the overall context to which it relates. Emergent properties can be defined in terms of the concepts of their own layers of abstraction, but generally not completely in terms of individual components at lower layers. That is, an emergent property is a property that arises as a result of the composition of lower-layer components and that is not otherwise evident. Emergent properties may be positive (such as human safety and system survivability) or negative (such as unforeseen interactions among components -- for example, covert channels that exist only when components are combined). Simply composing a system or network out of its components provides no certainty whatever that the resulting whole will work as desired, even if the components themselves seem to behave properly. One of the most important challenges confronting us is to be able to derive the emergent properties of a system in the large from the properties of its components and from the manner in which they are integrated.

    There is an important body of work devoted to dependable systems (especially in Europe) and to high-assurance systems (especially in the U.S.). These are really aspects of the same thing. A system should be capable of satisfying its requirements, dependably and with appropriate assurance, whatever those requirements are. Survivability is an overarching requirement that implies security, reliability, adequate performance, and many other subrequirements.


    The following recommendations are ordered roughly according to how they appear in the development and operational cycles. Their relative importance is considered at the end of the enumeration.

    1. We must establish generic mission models that can be readily tailored to specific systems, and develop processes whereby those models can be used in evaluating the adequacy of requirements.
    2. We must establish fundamental requirements for survivability and its subtended properties that can be directly applied to system developments and procurements, sufficiently detailed but not overly constraining.
    3. We must define families of system and network architectures that are inherently robust, and demonstrate the implementability of those architectures.
    4. We must develop new network and distributed system protocols appropriate for the development of highly survivable, secure, and reliable information infrastructures.
    5. We must design and implement open-system architectural components that are essential for robust architectures but not yet readily available in the marketplace, which when composed together can satisfy strong requirements for survivability and interoperability.
    6. We must establish a library of demonstrably sound procedures that enable trustworthy systems to be built out of less trustworthy components. This is the concept of generalized dependence, which we explore in this report.
    7. We must establish and consistently use sound cryptographic infrastructures for authentication, certificate authorities, and confidentiality.
    8. We must find ways to encourage commercial system developers to increase the survivability, security, and reliability of their standard products, including encouraging them to embrace more good research and development results.
    9. We must consider, as an alternative to proprietary closed-source software, the development and use of source-available software and nonproprietary interfaces. Although this approach does not necessarily lead to survivable systems all by itself, it has enormous potential when combined with other techniques.
    10. We must provide for mechanisms for trustworthy distribution of trustworthy code -- including robust mobile code.
    11. We must refine and make practical the ongoing R&D efforts for monitoring, analyzing, and responding to system and network anomalies, and generalize them from merely intrusion-detection systems, so that they address a broad range of survivability-related threats, including reliability problems, fault-tolerance coverage failures, and classical network management.
    12. We must be able to develop systems that are more easily configured and managed without placing excessive burdens on system administrators.
    13. We must pursue realistic research and development relating to practical system issues such as composability, maintainability, evolvability, interoperability that are also strongly based theoretically.
    14. We must find ways to disseminate the concepts of this report widely, including influencing the education processes and improved training.

    It is always desirable to indicate relative priorities in which such recommendations need to be addressed, and their relative difficulty. Unfortunately, survivability, security, and reliability are weak-link phenomena that can be compromised in many different ways. Thus, all the above recommendations can have considerable payoffs in efforts to develop survivable systems, for many different reasons -- because of the holistic nature of the desired requirements and the inherent complexity of their realization.

    It is difficult to pinpoint the recommendations that might provide the greatest payoffs -- precisely because of the weak-link phenomena. Besides, searching for easy answers is a common failing, especially in complex situations in which there are no easy answers. However, in general the greatest long-term benefits seem to accrue from up-front efforts, that is, relating to establishing sound requirements, system designs, and architectures, rather than focusing on software development, operations, topical preventive measures, and maintenance. That is why we have chosen the order of recommendations as above, implicitly placing emphasis on the items in that order. Nevertheless, there would be major benefits from almost all the items above.

    In particular, the establishment of mission models (1) and fundamental requirements (2) might have the greatest benefits of all, because it could provide the basis for system developments and procurements of systems. However, past experience with the DoD Trusted Computer Security Evaluation Criteria and system procurements suggests that this is not an easy path, and that even if we had a superb set of requirements, they might be largely ignored.

    Stronger architectures, components, protocols, and cryptographic infrastructures (3, 4, 5, 6, 7) are all potentially important to the development process. Ideally, they need to be motivated by strong requirements. In the absence of such explicit requirements in the past, systems have developed according to a slow migration path that is driven primarily by perceived market considerations, which have not converged on what is needed. Incentivizing main-stream developers (8) and promotion of source-available software and open systems (9,10) are both vital, particularly if the latter inspires greater advancement by the former.

    Real-time analysis of system monitoring and rapid response (11) are essential, but primarily as a last resort in the presence of vulnerable systems. Ideally, greater emphasis on up-front requirements and architectures would diminish the need for real-time analysis -- at least with respect to outsider attacks. However, this is not likely to happen for a long time.

    Building systems that are more easily administered and simplifying the role of system administration (12) would yield great savings in labor and cost, as well as minimizing emergency remediation (especially in combination with more intelligent real-time analysis). However, outsourcing of administrators is a highly riskful proposition. (Recently, system administrators in SRI's Computer Science Laboratory complained to their counterparts at Fort Huachuca relating to a host within the Fort Huachuca domain that was issuing repeated domain name service (DNS) requests to a machine within our CSL network that is not a name server. The human response was in effect, well, it is after 3 in the afternoon on Friday, and our admin efforts are outsourced to a contractor whose availability is uncertain. Sorry.)

    Furthermore, long-term research and development issues must not be ignored (13). Specific directions for R&D are discussed in Section 9.2 of this report.

    When attempting to confront a complex system problem, considerable benefit can result from considering the situation in the large (top-down), rather than attempting to patch together a bunch of existing would-be solutions (bottom-up). The bottom-up approach typically makes unrealistic assumptions about the independence of subproblems. The holistic approach taken here attempts to address the whole system, and then see what can be done to partition the problems while also dealing with the interactions among the components. In some cases, it is advantageous to consider a somewhat more general problem to gain insights that cannot be seen from the more specific problem (especially when the specific problem is not well understood). We believe that such an approach is advantageous in developing complex systems.

    It is clear that systematic use of strong authentication (including avoidance of fixed passwords) could have an enormous impact all by itself on system integrity. Firewalls that are secure and properly administered would help. Highly survivable servers would be a considerable benefit. More precise requirements would have a major influence on system procurements - if those requirements were satisfied. Serious consideration of an open-design policy of extensive early review and the use of source-available software where appropriate may in the long run be essential to overcome the limitations of proprietary closed-source systems that cannot fulfill the desired requirements. Alternative architectures including a secure mobile-code paradigm have considerable promise, particularly in connection with thin-client systems and highly trustworthy servers. But the bottom line here is that the basic computer-communication infrastructure is fundamentally inadequate today.

    Architecture and Implementation

    The use of structure is particularly important in designing, implementing, and maintaining systems and networks. The combination of architectural principles and the use of good software engineering and system engineering practice can be extremely effective. In particular, it is vital to address the full range of survivability-relevant requirements from the outset; it is typically very difficult to make retrofits later. The notion of generalized dependence considered in this report permits us to avoid needing total dependence on the correctness of certain other components -- many of which have unknown trustworthiness, or are inherently suspect. This is the notion of obtaining trustworthiness despite the relative untrustworthiness of certain components. This concept is increasingly important in highly distributed computing environments. Preventing or seriously hindering denial-of-service attacks is a particularly important architectural issue. The mobile-code paradigm offers many potential advantages in such environments, but it also requires some dramatic improvements in the security, reliability, and robustness of certain critical components.


    It is a difficult course that we must follow. It is evidently a never-ending course, for a variety of reasons. As the requirements continue to be better understood, more is demanded. As technical improvements are introduced, new vulnerabilities are typically introduced. As technology continues to offer new functional opportunities, and as systems tend to operate closer to their technological limits, the vulnerabilities, threats, and risks are increased accordingly, requiring much greater care. Operational and administrative challenges are continually increasing. As systems continue to grow in complexity and size, the risks seem to grow accordingly. As a result, ever greater reliance is placed on the omniscience and omnipotence of system administrators. Also, our adversaries are becoming much more agile and are capable of becoming much more aggressive. As a consequence, much greater discipline is required to achieve the necessary goals. This report attempts to characterize what is needed in terms of increased awareness and new approaches for the future.


    1 Introduction

    1. Out of clutter, find simplicity.
    2. From discord, find harmony.
    3. In the middle of difficulty lies opportunity.

    Albert Einstein, three rules of work

    1.1 Project Goals

    The primary goal of this project is to significantly advance the state of the art in obtaining highly survivable systems and networks, whereby distributed systems and networks of systems are considered in their totality as systems of systems, and as networks of networks -- rather than more conventional approaches that focus only on selected properties of certain subsystems or modules in isolation.

    To accomplish that goal in this report, Chapter 2 addresses a broad spectrum of threats to survivability. Chapter 3 considers the overarching survivability requirements necessary to surmount those threats, and also considers the subordinate requirements on which survivability ultimately depends -- including reliability, availability, security (confidentiality, integrity, defense against denials of service and other types of misuse), performance, in the presence of accidental and malicious actions and malfunctions of software and hardware. Chapter 4 then identifies fundamental deficiencies in the technology available today, and Chapter 5 makes recommendations for how to overcome those deficiencies. Subsequent chapters address guidelines for developing and rapidly configuring highly survivable systems and networks, including the presentation of generic classes of architectural structures and some specific types of systems. Appendix A considers how the contents of this report might find their way into an educational curriculum.

    Despite the quoted dictum of Albert Einstein at the beginning of this chapter, we observe that general-purpose systems and networks that must be highly survivable are not likely to be simple -- unless they are seriously trivialized. The nature of the problem is intrinsically complex: experience shows that many vulnerabilities are commonplace, and not easy to avoid; the potential threats are very broadly based; complexity is often beyond the scope of a small and closely knit development team; management is often unaware of the complexities and their implications. Consequently, the approach of this report is to confront the challenge in its full generality, rather than merely to carve out a simply manageable small subset. Remember the following quote, which is also very pithy:

    Everything should be as simple as possible -- but no simpler.
    Albert Einstein 1

    Recognizing the complexity inherent in satisfying any realistic set of survivability requirements, we have chosen to consider the very difficult fully general problem of achieving highly survivable systems and networks subject to the widest spectrum of threats. By tackling the general problem, we believe that much greater insight can be gained and that the resulting approaches can look farther into the future. In this sense, we believe that there is a significant opportunity in the face of the intrinsic difficulties.

    1.2 Fundamental Concepts

    Basic concepts are identified and defined here that are used throughout the report, including survivability, security, reliability, performance, trustworthiness, dependability, assurance, mandatory policies, composition, and dependence. Section 1.3 introduces the notion of compromisibility.

    1.2.1 Survivability

    For the purposes of this report, survivability is the ability of a computer-communication system-based application to satisfy and to continue to satisfy certain critical requirements (e.g., specific requirements for security, reliability, real-time responsiveness, and correctness) in the face of adverse conditions. Survivability must be defined with respect to the set of adversities that are supposed to be withstood. Types of adversities might typically include hardware faults, software flaws, attacks on systems and networks perpetrated by malicious users, and electromagnetic interference.2 Thus, we are seeking systems and networks that can prevent a wide range of systemic failures as well as penetrations and internal misuse, and can also in some sense tolerate additional failures or misuses that cannot be prevented.

    As currently defined in practice, requirements in use today for survivable systems and networks typically fall far short of what is really needed. Even worse, the currently available operating systems and networks fall even farther short. Consequently, before attempting to discuss survivable systems, it is important to establish a comprehensive set of realistic requirements for survivability (as in Chapter 3). It is also desirable to identify fundamental gaps in what is currently available (as in Chapter 4).

    Given a well-defined set of requirements, it is then important to define a family of reusable interoperable baseline system and network architectures that can demonstrably attain those requirements -- with the goals of enhancing the procurement, development, configuration, assurance, evaluation, and operation of systems and networks with critical survivability requirements.

    A preliminary scoping of the general survivability problem was suggested by a 1993 report written for the Army Research Laboratory (ARL), Survivable Computer-Communication Systems: The Problem and Working Group Recommendations [29]. That report outlines a comprehensive multifunctional set of realistic computer-communication survivability requirements and makes related recommendations applicable to U.S. Army and defense systems.3 It assesses the vulnerabilities, threats, and risks associated with applications requiring survivable computer-communication systems. It discusses the requirements, and identifies various obstacles that must be overcome. It presents recommendations on specific directions for future research and development that would significantly aid in the development and operation of systems capable of meeting advanced requirements for survivability. It has proven to be useful to ARL as a baseline tutorial document for bringing Army personnel up to speed on system vulnerabilities and basic concepts of survivability. It remains timely. Some of its recommended research and development efforts have still not been carried out, and are revisited here.

    The current technical approach is strongly motivated by a collection of highly disciplined system-engineering and software-engineering concepts that can add significantly to the generality and reusability of the results, as well as having specific applicability to Army developments. Above all, our approach here stresses the importance of sound system and network architectures that seriously address the necessary survivability requirements. This approach entails several basic concepts that are considered in the following subsections.

    1.2.2 Attributes of System Survivability

    The following three bulleted items consider three types of infrastructures: (1) the critical national infrastructures, (2) information infrastructures such as the Internet, or whatever it may evolve into (a National Information Infrastructure, or a Global Information Infrastructure, or a Solar-System Information Infrastructure, or perhaps even the Intergalactic Information Infrastructure), and (3) underlying computer systems and networking software.

    System attributes that are particularly relevant to the attainment of survivability include the following.

    What is immediately obvious is that close interrelationships exist among the various requirements. For example, consider the various forms of availability. Availability is clearly a security requirement in defending against malicious attacks. It is clearly a reliability requirement in defending against hardware malfunctions, unanticipated software flaws, environmental causes, and acts of God. It is also a performance issue, in that adequate availability is essential to maintaining adequate performance (and conversely, adequate performance can be essential to maintaining adequate availability, as noted above).

    Whereas it is conceptually possible to consider these different manifestations of availability as separate requirements, this is very misleading -- because they are closely coupled in the design and implementation of real systems and networks. As a consequence, we stress the notion of architectures that address these seemingly different requirements in an integrated way that permits the realization of different requirements within a common structure. This is pursued further in Section 3.1.

    1.2.3 Trustworthiness, Dependability, and Assurance

    Fundamental to this report are the notions of trustworthiness, dependability, and assurance.

    Various other attributes are also highly desirable in ensuring dependable survivability.

    These concepts are considered further in Sections 7.1 and 7.2.

    Whereas we have chosen a framework in which survivability depends on security, reliability, and performance attributes (for example), manifestations of survivability, security, and reliability exist at many different layers of abstraction. Although the survivability of an enterprise may depend on the underlying security and reliability, the security and reliability at a particular layer may in turn depend to some extent on the survivability of a lower layer. For example, the survivability of each of the eight critical national infrastructures considered by the PCCIP depends to some extent on the survivability and other attributes of the underlying computer-communication infrastructures. Similarly, the survivability of a given computer-communication infrastructure may typically depend to considerable extent on the survivability of the electric power and telecommunications infrastructures. In part, this is a consequence of the fact that the definitions used here are (necessarily) somewhat overlapping; in part, it is also a recognition of the fact that each abstract layer has its own set of requirements that must be translated into subrequirements at lower layers.

    One of the primary goals of the present work is to identify the ways in which the various properties and their enforcing implementations depend on one another, at various layers of abstraction and across different abstractions at given layers.

    This report in no way attempts to be a definitive self-contained treatise on everything that needs to be known to procurers and developers of highly survivable systems. Rather, it attempts to identify and use constructively some of the fundamental concepts upon which such systems can be produced. Extensive further background on computer system trustworthiness can be found in National Research Council reports, Computers at Risk [72] and the more recent Trust in Cyberspace [345]. (See also [109] for a recent NRC study on research needs.) Two valuable volumes on cryptography's role in trustworthy systems and networks are the National Research Council CRISIS report Cryptography's Role in Securing the Information Society [84] and Bruce Schneier's Applied Cryptography [347]. A realistic assessment of the risks of improperly embedded strong crypto is found in Schneier's subsequent book [348], Secrets and Lies: Digital Security in a Networked World.

    1.2.4 Generalized Composition

    Research efforts have typically considered simple compositions of modules, such as unidirectional serial connections or perhaps call-and-return semantics. (Section 5.8 discusses some of these.) However, the existing research is far from realistic.

    The concept of generalized composition [251] used here includes composition of subsystems with mutual feedback, hierarchical layering in which a collection of modules forms a layer that can be used by higher layers as in the Provably Secure Operating System (PSOS) [102, 246, 247, 260], layering achieved through program modularity [45], and networked connections involving client-server architectures, gateways, unidirectional and bidirectional firewalls and guards, encryption, and other components. Relevant approaches include [371].

    In this project, we consider generalized composition as it relates to the composed subsystems. We believe that this approach to composition is more appropriate to the intended large-scale distributed and networked architectures than the primarily theoretical contemporary work on model composition and policy composition (although that work is logically subsumed under the present approach).

    1.2.5 Generalized Dependence

    In 1974, Parnas [279] characterized a variety of depends upon relations. An important such relation is Parnas's depends upon for its correctness, whereby a given component is said to depend upon another component in the sense that if the latter component does not meet its requirements, then the former may not meet its requirements. Neumann [251] has revisited the notion of dependence, making a distinction between the Parnas relation depends upon for correctness and a generalized sense of dependence in which greater trustworthiness can be achieved despite the presence of less trustworthy components, thereby avoiding having to depend completely on components of unknown or uncertain trustworthiness. To avoid having to say "depends upon in the sense of generalized dependence", we abbreviate that generalized relation as simply depends on.

    The following enumeration gives various paradigms under which trustworthiness can actually be enhanced, providing examples of how the generalized dependence relation depends-on differs from the conventional depends-upon relation. In each of these cases, the resulting trustworthiness tends to be greater than that of the constituent components. The list is surprisingly long, and may help to illustrate the power of the notion of generalized dependence. (Although particular mechanisms may fall into multiple types, these types are intended to represent the diverse nature of mechanisms having the characteristics of generalized dependence.)

    1. The use of error-correcting codes  (e.g., [123]) that can enable correct communications despite certain tolerable patterns of errors (e.g., random, asymmetric as in bit-dropping only, bursty, or otherwise correlated), in block communications or even in variable-length or sequential encoding schemes, as long as any required redundancy does not cause the available channel capacity to be exceeded (following the guidance of Shannon's information theory), and in arithmetic operations (e.g., [268])
    2. The early work of John von Neumann [384] and of Ed Moore and Claude Shannon [222], who showed how reliable subsystems in general (von Neumann) and reliable relay circuits in particular (Moore-Shannon) can be built out of unreliable components -- as long as the probability of failure of each component is not precisely one-half and as long as those probabilities are independent from one another; also relevant is the 1960 paper of Paul Baran [27] on making reliable communications despite unreliable network nodes, which was influential in the early days of the ARPAnet.
    3. Self-synchronizing  techniques that result in rapid resynchronization following nontolerated errors that cause loss of synchronization, including intrinsic resynchronizability of sequentially streamed codes -- by adding explicit framing bits, or adding redundancy to provide implicit synchronization as in comma-free codes, or without having to add any redundancy in certain variable-length and sequential codes [240, 241, 242] (as self-resynchronizing properties of certain variable-length codes [135] and information-lossless [136] sequential encoding systems) -- as well as other self-stabilization techniques (e.g., [97])
    4. Robust synchronization algorithms, such as hierarchically prioritized locking strategies [94], two-phase commitments, nonblocking atomic commitments [315], and fulfillment transactions [205] such as fair-exchange protocols guaranteeing that payment is made if and only if goods have been delivered
    5. Traditional fault-tolerance algorithms and system concepts that can tolerate certain specific types of component or subsystem failures as a result of constructive use of redundancy [18, 80, 145, 186, 206, 225, 389] -- although failures beyond the coverage of the fault tolerance may result in unspecified failure modes
    6. Alternative-computation architectural structures, which can achieve satisfactory but nonequivalent results (with possibly degraded performance), despite failures of hardware and software components and failure modes that exceed planned fault coverage, such as the Newcastle Recovery Blocks approach [17, 18, 134]
    7. Alternative-routing schemes in packet-switched networks, which can attain good performance and eventual communications despite major outages among intermediate nodes and disturbances in communications media (as in the ARPAnet routing protocols)
    8. Byzantine fault-tolerant systems that can withstand Byzantine fault modes [164, 334, 342], whereby successful operation is possible despite the arbitrary and completely unpredictable behavior (maliciously or accidentally) of up to some ratio of its component subsystems (e.g., k out of 3k+1), with no assumptions regarding individual failure modes of the component subsystems
    9. Byzantine network-layer protocols [295]
    10. Encryption applied to an open transmission medium or storage medium that is easily intercepted or monitored, whereby the encrypted form is significantly more inscrutable
    11. Use of integrity checks, such as cryptographic checksums and proof-carrying code [235], both of which can enable the detection of unexpected alterations to systems or data and hinder the tampering of data and programs
    12. Micali's fair public-key cryptographic schemes [209], in which different parties must cooperate with the simultaneous presentation of multiple keys -- allowing cryptographically based operations to require the presence of multiple authorities
    13. Threshold multikey-cryptography schemes, in which at least k out of n keys are required (for conventional symmetric-key decryption, or for authentication, or for escrowed retrieval) -- for example, a Byzantine digital-signature  system [91] and a Byzantine key-escrow system [318] that can function successfully despite the presence of some parties that may be untrustworthy or unavailable, as well as a signature scheme that can function correctly despite the presence of malicious verifiers [296]
    14. Byzantine-style authentication protocols that can work properly despite untrustworthy user workstations, compromised authentication servers, and other questionable components (see Chapter 7)
    15. Constructive use of kernels and "trusted" computing bases to achieve nonsubvertible application properties, such as in SeaView, which demonstrated how a multilevel-secure database management system can be implemented on top of a multilevel-secure kernel -- with absolutely no requirement for multilevel-security trustworthiness in the Oracle database management system. [88, 188, 190] (This is the notion of balanced assurance.)
    16. Multilateral mechanisms enforcing policies of mutual suspicion, with the ability to operate correctly despite a lack of trust among the various parties [351]
    17. Interposition of trustworthy firewalls and guards that mediate between regions of unequal trustworthiness -- for example, ensuring that sensitive information does not leak out and that Trojan horses and other harmful effects do not sneak in, despite the presence of untrustworthy subsystems or mutually suspicious adversaries
    18. Use of run-time checks to prevent or mediate execution in questionable circumstances (e.g., embedded in the base programs or in application programs, as in the cases of bounds checks and consistency checks)
    19. Addition of wrappers (without modifying the source or object code of the wrapped module), to enhance survivability, security, or reliability, or otherwise compensate for deficient components -- such as adding a "trusted path" to an inherently untrustworthy system, enabling monitoring of otherwise unmonitorable functionality, or providing compatibility of wrapped legacy programs with other programs
    20. Object-oriented, domain-enforcement, and access-control techniques that effectively mediate or otherwise modify the intent of certain attempted operations, depending on the execution context [102, 260, 351] -- for example, the confined environment of the Java Virtual Machine [114, 116] and related work on formal specification [87, 112] for the analysis of the security of such environments
    21. Use of real-time analysis techniques such as anomaly and misuse detection to diagnose live threats and respond accordingly, capable of dynamically altering system and network configurations based on perceived threats (e.g., [304, 305])

    Each of these paradigms demonstrates techniques whereby trustworthiness can be enhanced above what can be expected of the constituent subsystems or transmission media. By generalizing the notions of dependence and trustworthiness, and judicious use of some of these techniques, we seek to provide a unifying framework for the development of survivable systems.

    Dependence on components and information of unknown trustworthiness is a particularly serious potential problem. (See Sections 2.1.1 and 2.1.2.)

    Dependable clocks  (Byzantine or otherwise) provide a particularly interesting challenge. Lincoln, Rushby, and others [181] provide an elegant detailed example of generalized dependence. They have analyzed a three-layered model consisting of (1) clock synchronization [332], (2) Byzantine agreement [179, 180], and (3) diagnosis and removal of faulty components [180]. They also exhibit formal verifications for a variety of hybrid algorithms [180] that can greatly increase the coverage of misbehaving components. This three-layered integration of separate models and proofs is of considerable practical interest, as well as illustrative of forefront uses of formal methods.

    An example of generalized dependence relating to clock drift is given by Fetzer and Cristian [104] in developing fault-tolerant hardware clocks out of commercial off-the-shelf (COTS) components, at least one of which is a GPS receiver. A formal analysis of a time-triggered clock synchronization approach is given by [299].

    The basic approach of this project considers within a common framework many different generalized-dependence mechanisms that are capable of enhancing trustworthiness, enabling the resulting functionality to be inherently more trustworthy than otherwise might be warranted by consideration of only its constituent components.

    1.2.6 Survivability with Generalized Dependence

    Ultimately, overall system survivability may depend on (in the sense of generalized dependence noted above) the security, integrity, reliability, availability, and performance characteristics of certain critical portions of the underlying computer-communication infrastructures. In this report, our notion of survivability explicitly includes this context of generalized dependence.

    Compromises from outside, from within, or from below (see Section 1.3 and [250, 251, 267]), whether malicious or not, can subvert survivability unless prevented or ameliorated by the architecture, its implementation, and the operational practice. Unfortunately, compromises from outside (e.g., externally, originating from higher layers of abstraction or from other entities at the same layer of abstraction, or from supposedly security-neutral applications) often can lead to compromises from within (affecting the implementation of a particular mechanism) or from below (subverting a mechanism by tampering with its underlying dependent components). One of the fundamental challenges addressed here is to be able to design, implement, and operate survivable systems despite the presence of components, information, and individuals of unknown trustworthiness -- as well as saboteurs (e.g., cyberterrorism [302]), and thereby to prevent, defend against, or at least detect attempted compromises from outside, within, or below. This is in essence what we mean by survivability -- in the context of generalized dependence on potentially unknown entities. For example, a particularly difficult challenge is to ensure that the embeddings of sound cryptographic algorithms cannot be compromised because of inherent weaknesses in the underlying computer-communication infrastructures (e.g., hardware, microcode, operating systems, database management, and networking) -- as discussed in [249].

    Survivability is an emergent property of the overall systems and networks. That is, it is not definable and analyzable in the small, because it is the consequence of the composition of the subtended functionality; it must be considered in the large. In other words, it is not a property that can be identified with any of the constituent components. Ideally, it should be derivable in terms of properties of the constituent functionality on which it depends, as described in the 1970s work of Robinson and Levitt [322] on the SRI Hierarchical Development Methodology (HDM) as part of the PSOS effort.4 In practice, it may not be so derivable, as in the case of covert channels that arise only because of module composition.

    Stephanie Forrest in her introduction to the 1991 CNLS proceedings [106], Nancy Leveson [173], Heather Hinton [127, 128], Zakinthinos and Lee [394], and D.K. Prasad [306] provide some background on emergent properties; Zakinthinos and Lee define an emergent property as one that its constituent components do not satisfy. Prasad draws on measurement theory and decision analysis [307] to show that such properties are not compositional and also that such properties are not `absolute' -- different stakeholders may have different ideas about the meaning of the property. Her thesis work also presents the method of multi-criteria decision making (in a specific framework) as an approach for the measurement (on a sound theoretical basis) of such properties. Hinton [128] observes that undesirable emergent behavior is often the result of incomplete specification, and can be formally analyzed.

    1.2.7 Mandatory Policies for Security, Integrity, and Availability

    The notions of multilevel security [32, 33, 34, 35, 36], multilevel integrity [42], and multilevel availability [267] characterize hierarchical mandatory policies for confidentiality, integrity, and availability, respectively. In multilevel security (MLS), information is not permitted to flow from one entity to another entity that has been assigned a lower security level. In multilevel integrity (MLI), no entity is permitted to depend upon an entity that has been assigned a lower integrity level. In multilevel availability (MLA), no entity is permitted to depend on an entity that has been assigned a lower availability level.

    Although it has been the subject of considerable research in security policies and kernelized system architectures, and highly touted by the Department of Defense (see Chapter 6), multilevel security has remained very difficult to achieve in realistic systems and networks. This is due to many factors, including inadequacies in the DoD criteria, an unwillingness of commercial system providers to develop systems, and an unwillingness of non-DoD system acquirers to consider such systems. Architectural alternatives are considered in Chapter 7.

    Strict multilevel integrity is thought to be awkward to enforce in practical systems, because high-integrity users and processes often depend on editors, compilers, library routines, device drivers, and so on, that are typically not necessarily trustworthy and therefore are risky to depend upon. However, that is precisely the fundamental integrity problem in most system architectures. The implicit web of trust should force those utility functions to be at least as trustworthy with respect to integrity, because they must all be considered within the perimeter of trustworthiness. The notion of generalized dependence is one way of working within that constraint without either sacrificing the power of the basic concepts or of introducing new vulnerabilities that result from informal deviations from strict interpretations.

    1.2.8 Multilevel Survivability

    In this report, we consider the conceptual use of this kind of mandatory basis for survivability. Strictly speaking, this would lead to a lattice-based mandatory policy for multilevel survivability that directly imitates the MLS, MLI, and MLA policies. For simplicity, we refer to this policy as simply multilevel survivability (MLX). In an oversimplified formulation of the multilevel survivability policy, no system or network entity is allowed to depend on an entity that has been assigned a lower survivability level (unless an explicit generalized-dependence mechanism is established that permits the use of mechanisms of lower trustworthiness, as illustrated in Section 1.2.5). These concepts are considered in this report to include generalized dependence.

    For descriptive purposes, we implicitly assume the possibility of compartments in each of these policies (MLS, MLI, MLA, and MLX), although we describe the policies in terms of levels (without categories). Because of the compartments (familiar to afficianados of MLS and MLI), the ordering on the levels and compartments generates a mathematical lattice in each instance. Thus, when we refer to mandatory policies in this context, we imply lattice-based policies rather than just completely ordered levels (without compartments).

    In the absence of generalized dependence, strict MLX ordering would most likely suffer the same kind of problems that arise in the practical use of strict MLI -- namely, the realization that enormous portions of any given distributed system must be of high integrity and high survivability. The notion of generalized dependence therefore allows the strict partial ordering to be relaxed locally whenever it is possible to achieve greater trustworthiness out of less trustworthy components, as illustrated in Section 1.2.5 -- without relaxing it in the large.

    For readers who shudder at the complexities and inconveniences introduced by multilevel policies, we hasten to add that the MLX property is considered only as a structural organizing concept rather than as an explicit goal of design and implementation. Furthermore, even if MLX were interpreted seriously, there is always a likelihood that the levels and compartments might be set up in such a way that there would be a fundamental conflict among the MLS, MLI, MLA, and MLX constraints that would prevent expected results from happening. Consequently, MLX is introduced only to encourage the intuitive design of systems in which we avoid unnecessary dependence on components that are inherently less survivable (in the sense of generalized dependence).

    This initial discussion represents a first approximation to what is actually needed. In Chapter 7, we address the possible conflicts among the subrequirements of survivability in the context of generalized dependence.

    1.3 Compromisibility and Noncompromisibility

    To illustrate the importance of dependence on properties of underlying abstractions, consider the necessity of depending on a life-critical system for the protection of human safety.5 In such a system, safety ultimately depends upon the confidentiality, integrity, and availability of both the system and its data. It may also depend on information survivability. It may further depend upon component and system reliability, and on real-time performance. It also usually depends upon the correctness of much of the application code. In the sense that each layer in a hierarchical system design depends upon the properties of the lower layers, the way in which trusted computing bases are layered becomes important for developing dependably safe systems -- particularly in those cases in which the generalized depends on relation can be used more appropriately instead of depends upon to accommodate an implementation based on less trustworthy components.

    The same dependence situation is true of secure systems, in which each layer in the abstraction hierarchy (e.g., consisting of a kernel, a trusted computing base for primitive security, databases, application software, and user software) must enforce some set of security properties. The properties may differ from layer to layer, and various trustworthy mechanisms may exist at each layer, but the properties at a particular layer are derivable from lower-layer properties.

    In the security context, many notions of compromise exist. For example, compromise might entail accessing supposedly restricted data, inserting unvalidated code into a trusted environment, altering existing user data or operating-system parameters, causing a denial of service, finding an escape from a highly restricted menu interface, or installing or modifying a rule in a rule-base that results in subversion of an expert system.

    There is an important distinction between having to depend on lower-layer functionality (whether it is trustworthy or not) and having some meaningful assurance that the lower-layer functionality is actually noncompromisible under a wide range of actual threats. Noncompromisibility is particularly important with respect to security, safety, and reliability.

    Potentially, a supposedly sound system could be rendered unsound in any of three basic ways:

    Each of these situations could be caused intentionally, but could also happen accidentally. (For descriptive simplicity, a user may be a person, a process, an agent, a subsystem, another system, or any other computer-related entity.)

    The distinctions among these three modes tend to disappear in systems that are not well structured, in which inside and outside are indistinguishable (as in systems with only one protection state), or in which outside and below are merged (as in flat systems that have no concept of hierarchy). In addition, compromises from outside may subsequently enable compromises from within, and compromises from outside or within may subsequently enable compromises from below. The distinctions are also murky in cases of emergency operations. Furthermore, an egregious process whereby vendors can disable software remotely is discussed in Section 2.4.

    Certain attack modes may occur in any of these forms of compromise. For example, consider the following Trojan-horse perpetrations, which can take place in each form.

    Table 1: Illustrative Compromises
    Layer ofCompromiseCompromiseCompromise
    abstraction from outside:from within:from below:
    Needs exogirding Needs endogirding Needs undergirding
    Outside Acts of God, Chernobyl-like
    environment earthquakes, disasters caused
    lightning, etc. by users or operators
    User Masqueraders Accidental mistakes; Application system outage
    Intentional misuse or service denial
    Application Penetrations of Programming errors Application (e.g., DBMS)
    application service in application code undermined within
    integrity operating systems (OSs)
    Middleware Penetration of Trojan horsing ofSubversion of middleware
    Web and DBMS Web and DBMS from OS or network
    servers servers operations
    Networking Penetration of Trojan horsing of Capture of crypto
    routers, firewalls; network software keys within the OS;
    Denials of service Exploitation of lower
    protocol layers
    Operating Penetrations of OS by Flawed OS software; OS undermined from
    system unauthorized users Trojan-horsed OS; within hardware:
    Tampering by faults exceeding fault
    privileged tolerance; hardware
    processes flaws or sabotage
    Hardware Externally generated Bad hardware design Internal power
    electromagnetic or and implementation; irregularities
    other interference;Hardware Trojan horses;
    External power- Unrecoverable faults;
    utility glitches Internal interference
    Inside Malicious or Internal power supplies,
    environmentaccidental acts tripped breakers,
    UPS/battery failures

    Table 1 summarizes some properties whose nonsatisfaction could potentially compromise system behavior, by compromising confidentiality, integrity, availability, real-time performance, or correctness of application software, either accidentally or intentionally. To illustrate such compromises, the table also indicates possible compromises -- whether they involve modification (tampering) or not -- that can occur from outside, from within, or from below, for each representative layer of abstraction. The distinctions are not always precise: a penetrator may compromise from outside, but once having penetrated, is then in position to compromise from below or from within. Thus, one type of compromise may be used to enable another. For this reason, the table characterizes only the primary modes of compromise. For example, a user entering through a resource access control package such as RACF or CA-TopSecret, or through a superuser mechanism, and gaining apparently legitimate access to the underlying operating system may then be able to undermine both operating-system integrity (compromise from within) and database integrity (compromise from below if through the operating system), even though the original compromise is from outside. Similarly, a software implementation of an encryption algorithm or of a cryptographic check sum used as an integrity seal can be compromised by someone gaining access to the unencrypted information in memory or to the encryption mechanism itself, at a lower layer of abstraction. A user exploiting an Internet Protocol router vulnerability may initially be able to compromise a system from within the logical layer of its networking software, but subsequently may create further compromises from outside or below. The Thompson compiler Trojan horse is a particularly interesting case, because it may not normally be thought of as compromise from below if the compiler is not understood to be something that is depended upon for its correct behavior. Indeed, it is a very bad policy to use an untrustworthy compiler to generate an operating system, and therefore the compiler must be considered "below" (or else the dependence must be considered as a violaton of layered trustworthiness, as in MLX). Indeed, the entire software development process is a huge opportunity for compromising the integrity of the resulting system (intentionally or accidentally).

    From the table, we observe that a system may be inherently compromisible, in a variety of ways. The purpose of system design is not to make the system completely noncompromisible (which is impossible), but rather to provide some assurance that the most likely and most devastating compromises are properly addressed by designs, architectures, development processes, and operational practices, and -- if compromises do occur -- to be able to determine the causes and effects, to limit the negative consequences, and to take appropriate actions. Thus, it is desirable to provide underlying mechanisms that are inherently difficult to compromise, and to build consistently on those mechanisms. On the other hand, in the presence of underlying mechanisms that are inherently compromisible, it may still be possible to use Byzantine-like strategies to make the higher-layer mechanisms less compromisible. However, flaws that permit compromise of the underlying layers are inherently risky unless the effects of such compromises can be strictly contained.

    1.4 Defenses Against Compromises

    Protection against the three forms of compromise noted in Section 1.3 -- compromise from outside, compromise from within, and compromise from below -- are referred to in this report as exogirding,  endogirding, and undergirding, respectively -- that is, providing outside barrier defenses, internal defenses, and defenses that protect underlying mechanisms, respectively.6

    In general, all three types of protection are necessary. Various approaches are considered in Chapters 5, 7, and 8. For the purposes of this chapter, just a few illustrative examples are given here, relating to a few of the layers of abstraction shown in Table 1. As indicated by this summary, some of the techniques are quite different from one case to another, although other techniques are more generically applicable.

    1.5 Sources of Risks

    Some of the many stages of system development and use during which risks may arise are listed below, along with a few examples of what might go wrong (and, in most cases, what has gone wrong in the past). This list summarizes some of the main threats. Section 1.6 gives examples of specific illustrative cases.

    Problems in the system development process involve people at each stage, and are illustrated by the following examples:

    Problems in system operation and use involve people and external factors, and are illustrated by the following examples:

    The last subcategory -- intentional misuse -- represents a particular worrisome area of concern and is considered in Section 2.1.

    1.6 Some Relevant Case Histories

    We consider here just a few illustrative problems that have been encountered in the past, suggesting the rather pervasive nature of the survivability problem -- with many diverse causes and effects.

    The first seven items listed below involved massive outages triggered accidentally by local events, each of which compromised overall system and network survivability. The eighth was triggered by a single human error, but the effects propagated throughout the San Francisco Bay Area. The ninth involved a local outage that was quickly corrected, but whose after-effects continued to propagate for many hours. These cases involved human factors as well as other causes.

    The remaining cases noted here are examples of other types of accidental survivability problems, although less widespread in their resulting effects.

    Next, we consider a few cases attributed to malicious acts.

    References to these and many other similar cases of nonsurvivable systems and networks can be found in Neumann's RISKS book [250] and in the on-line archives of the Risks Forum at, where you can browse and search through RISKS issues. A compendium of short, mostly one-liner, descriptions of cases ([256] is browsable on-line at and in ftp form for compact printing and

    (Other known cases have been reported informally, but not documented publicly.) Some cases of nonsurviving systems are attributable to software flaws introduced by system design, by system software development, or by maintenance, at various points in the system life cycle. Some were due to hardware, others to environmental factors such as electromagnetic radiation, others simply to human foibles.

    Malicious system misuse is a very serious potential problem (especially when it can result in system and network collapse), although most of the penetration efforts recorded to date were attacks on computer systems themselves rather than on critical applications that used computers. Nevertheless, serious security vulnerabilities exist in many mission-critical systems, many of which could result in loss of survivability.

    With all the furor over penetrations of Web sites, denial-of-service attacks, and propagating Trojan horses in e-mail, deeper issues seem lost in the shuffle. In the case of the penetrations and distributed denial-of-service attacks, it is obvious that operating system security and networking robustness are inadequate. In the e-mail cases, the vulnerabilities exploited in the MS Word macro virus in Microsoft Outlook and Outlook Express have been around for a long time and are likely to be around for a long time. Although some palliative fixes are available, the fundamental problems remain. For example, filters deleting e-mail with "Subject: Important Message from ..." are only partially useful, in light of variant versions of Melissa with Subject: lines that are different or even blank. The same problem repeated itself a year later with ILOVEYOU and its subsequent clones. The basic system infrastructure is incapable of adequately protecting itself against all kinds of misuses, and this particular exploit is just another reminder that many folks need to wake up. The situation could have been much worse, but unfortunately many of those who depend on systems that are inherently inadequate do not get the proper messages when the situation is not a terrible disaster. On the other hand, even if we were to have terrible disasters, it apparently would not be enough. Many of the constructive lessons that should have been learned from Robert Tappan Morris's Internet Worm in 1988 and subsequent events are still unlearned. (See my 1997, 1999, and 2000 testimonies for the U.S. House Judiciary Committee at,,, respectively, which discuss the amazing lack of progress from one year to the next. Written answers to Representatives' questions on the 1997 testimony are also on-line:

    One of the major lessons involves the risk of monocultures, that is, putting all your eggs in one basket -- particularly when that basket is inherently vulnerable. A second lesson is that when a potentially dangerous vulnerability is exploited in a relatively harmless way, proactive measures should be taken to avoid much greater damage in the future. The Melissa and ILOVEYOU PC viruses both exploited the scripting capabilities of Microsoft Outlook. The latter case should have been no surprise, but the damage could have been much greater. A third lesson is that we have still not seen enormously destructive PC viruses, and have only begun to find polymorphic pest programs that can transform themselves continually in order to hinder detection.

    1.7 Causes and Effects

    Breakdowns in system survivability are often attributed to either security problems or reliability problems. However, there is an interesting crossover between the two types of problems, whereby causes and effects may be related and in some cases intermixed. The following enumeration suggests this coupling. It illustrates the distinctions and similarities between the two types, and gives a preliminary view of some of the interdependencies.

    In time of crisis, there can be uncertainty over whether a particular survivability problem is related to security or to reliability, availability, and fault tolerance.

    Furthermore, in certain cases it may not be evident whether a particular attack was natural or human related -- and if human, whether accidental or intentional, malicious or otherwise. Indeed, there is long-standing evidence that intruders ("crackers") have had access to the telephone switches, and could have caused results otherwise attributed to system problems. As noted above, the 15 January 1990 AT&T outage may actually have been triggered by intruders, albeit accidentally. There is also an unverified statement made by an FBI agent during a talk at the University of California at Davis to the effect that the 2 July 1997 West Coast power outage involved some maliciously caused events.

    As further examples of the fuzzy crossover between reliability and security - although directed more toward survivability of integrity requirements than toward survivability per se -- there have been numerous cases of suspicious activities involving computers used in elections. In one case in particular, the results of the preliminary test processing were left undeleted, and actually would have caused the wrong winner to be elected, had an anomaly not been detected. Although this error was eventually diagnosed and corrected, the claim was of course made that this was an accident. How do you know it was not intentional?

    The foregoing discussion also applies to performance degradations as well as complete outages. The evident heterogeneity of causes and effects suggests that systems should be developed to anticipate a broader class of threats -- not just to narrowly address threats to security, or to reliability, or to performance, but rather to address the necessary requirements in the same context.

    An obvious conclusion of this discussion is that systems should be designed to be survivable, to withstand both accidental malfunctions and intentionally caused outages or other deviations from desired behavior. Survivability in turn requires a variety of further requirements, for example, relating to security, reliability, and robustness of components, networks, algorithms, implementations, and so on.

    2 Threats to Survivability

    Numerous vulnerabilities, threats, and risks are encountered in attempting to develop, operate, and maintain systems with stringent survivability requirements. All these sources of adversity can result in system and application survivability being undermined. The sections of this chapter consider threats to security, reliability, and performance, respectively. Whereas it is convenient to think of these types of threats as independent of one another, they are in fact related in various ways. However, what is most important is that the totality of threats must be addressed by the system requirements and by the system architectures that presume to address those requirements.

    2.1 Threats to Security

    Security is mostly a superstition.9
    Helen Keller

    Malicious attacks can take many forms, summarized in Table 2 according to a classification scheme shown in Figure 1, based on earlier work of Neumann and Parker [264]. For visual simplicity, the figure is approximated as a simple tree. However, it actually represents a system of descriptors rather than a taxonomy in the usual sense, in that a given misuse may involve multiple techniques within several classes.

    The order of categorization depicted is roughly from the physical world to the hardware to the software, and from unauthorized use to misuse of authority. The first class includes extrinsic misuses that can take place without any access to the computer system. The second class concerns system misuse and typically requires some involvement with computer hardware or software. Two types in this class are eavesdropping and interference (usually electronic or electromagnetic, but optical and other forms are also possible). Another major type of this class involves denial-of-service attacks that can be committed remotely without any need for authorized access. The third class includes masquerading in a variety of forms. The fourth includes the establishment of deferred misuse, for example, the creation and enabling of a Trojan horse (as opposed to subsequent misuse that accompanies the actual execution of the Trojan-horse program -- which may show up in other classes at a later time), or other forms of pest programs discussed below. The fifth class involves bypass of authorization, possibly enabling a user to appear to be authorized -- or not to appear at all (that is, to be invisible to the audit trails). The remaining classes involve active and passive misuse of resources, inaction that might result in misuse, and finally misuse that helps in carrying out additional misuses (such as preparation for an attack on another system or use of a computer in a criminal enterprise).

    The main downward sloping right-hand diagonal line in Figure 1 indicates typical steps and modes of intended use of computer systems. The leftward branches all involve misuse, while the rightward branches represent potentially acceptable use -- until a leftward branch is taken. (Each labeled mode of usage along the main-diagonal intended-usage line is the antithesis of the corresponding leftward misuse branch.) Every leftward branch represents a class of vulnerabilities that must be defended against -- that is, either avoided altogether or else detected and recovered from. The means for prevention, deterrence, avoidance, detection, and recovery typically differ from one branch to the next. (Even inaction may imply misuse, although no abusive act of commission may have occurred.)

    The ordering used in Figure 1 and Table 2 is roughly upside down from the natural layering used in Tables 1 and 4 -- except for the Extrinsic Misuse category, which is at the top. This order helps to maintain the sense of the cumulatively increasing binary-tree choices at each layer and the successful choices down the right-sloping diagonal of Figure 1.

    It must be noted that no taxonomy is perfect. There are always fuzzy boundaries and overlaps. Besides, many actual perpetrations involve multiple types of misuse. No claim is made for this particular representation. However, the categories shown here are useful, recurring frequently in the discussion throughout this report.

    Two classes of misuse techniques are of primary interest here, namely, bypasses of authority (trapdoor exploitations and authorization attacks) and preplanned pest programs such as Trojan horses, PC viruses, and worms, with effects including time bombs, logic bombs, and general havoc. However, several other forms are important in the present context, and these are also discussed.10

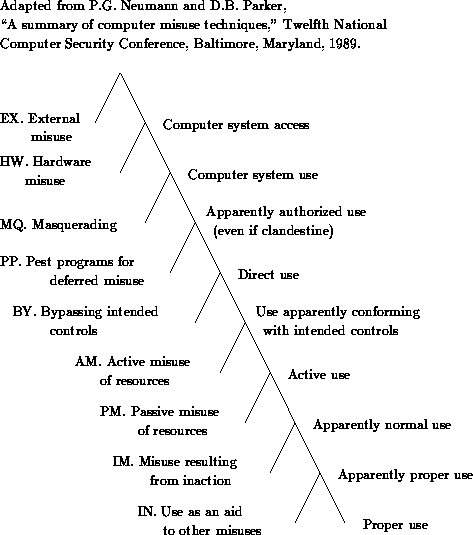

    Figure 1: Classes of Computer Misuse Techniques

    Table 2: Types of Computer Misuse
    Extrinsic misuse (EX)
    1. Visual spying: observation of keystrokes or screens
    2. Misrepresentation: social engineering, deception
    3. Physical scavenging: dumpster-diving for printout
    System misuse (HW)
    4. Logical scavenging: examining discarded or stolen media
    5. Eavesdropping: electronic or other data interception
    6. Interference: electronic or other jamming
    7. Physical attack on, or modification of, equipment or power
    8. Physical removal of equipment and storage media
    9. Remote denials of service without needing system access
    Masquerading (MQ)
    10. Impersonation: false identity external to computer systems
    11. Piggybacking attacks on communication lines, workstations
    12. Playback and spoofing attacks, particularly IP spoofing
    13. Network weaving to mask physical whereabouts or routing
    14. Denials of service with spoofed identity
    Pest programs (PP) -- setting up opportunities for further misuse
    15. Trojan-horse attacks (including letter bombs)
    16. Logic bombs (a form of Trojan horse, including time bombs)
    17. Malevolent worm attacks, acquiring distributed resources
    18. Virus attacks, attaching to programs and replicating
    Bypassing authentication or authorization (BY)
    19. Trapdoor attacks, from any of a variety of sources:
    a. Improper identification and authentication
    b. Improper initialization or allocation
    c. Improper termination or deallocation
    d. Improper run-time validation
    e. Naming flaws, confusions, and aliases
    f. Improper encapsulation: exposed implementation detail
    g. Asynchronous flaws: e.g., time-of-check to time-of-use anomalies
    h. Other logic errors
    20. Authorization attacks, for example, password cracking, token hacking
    Active misuse of authority (AM) (writing, using, with apparent authorization)
    21. Creation, modification, use, service denials (includes false data entry)
    22. Incremental attacks (e.g., salami attacks)
    23. Denials of service requiring authorization
    Passive misuse of authority (PM) (reading, with apparent authorization)
    24. Browsing randomly or searching for particular characteristics
    25. Inference and aggregation (especially in databases), traffic analysis
    26. Covert channel exploitation and other data leakage
    27. Misuse through inaction (IM): willful neglect, errors of omission
    28. Use as an indirect aid for subsequent misuse (IN): off-line preencryptive
    matching, factoring large numbers, autodialer scanning.

    2.1.1 Bypasses

    2.1.2 Pest Programs

    2.1.3 Resource Misuse

    In addition to the foregoing two forms of malicious attacks (bypasses and pest programs), various forms of attack are related to the misuse of conferred or acquired authority. Indeed, these are the most common forms of attack in some environments:

    2.1.4 Comparison of Attack Modes

    Misuse of authority is of considerable concern here because it can be exploited in either the installation or the execution of malicious code, and because it represents a major threat modality. In general, attempts to install and execute malicious code may employ a combination of the methods enumerated above, as well as others external to the computer systems, such as scavenging of discarded materials, visual spying, deception, eavesdropping, theft, hardware tampering, and masquerading attacks -- including playback, spoofing, and piggyback attacks; these are discussed by Neumann and Parker [264]. For example, the Wily Hackers [366, 367] exploited trapdoors, masquerading, Trojan horses to capture passwords, and misuse of (acquired) authority. The Internet Worm [324, 354, 360] attacked four different trapdoors, the debug option of sendmail, gets (used in the implementation of finger), remote logins exploiting .rhost files, and (somewhat gratuitously) a few hundred passwords obtained by selected preencryptive matching attacks. The result was a self-propagating worm with virus-like infection abilities.

    The most basic pest-program problem is the Trojan horse, which contains code that when executed can have malicious effects (or even accidentally devastating effects). The installation of a Trojan horse often employs system vulnerabilities, which permit penetration by either unauthorized or authorized users. Furthermore, when executing, Trojan horses may exploit other vulnerabilities such as trapdoors. In addition, Trojan horses may cause the installation of new trapdoors. Thus, there can be a strong interrelationship between Trojan horses and trapdoors. Time bombs and logic bombs are special cases of Trojan horses. Letter bombs are messages that act as Trojan horses, containing bogus or interpretively executable data.

    A strict-sense virus, as defined by Cohen [74], is a program that alters other programs to include a copy of itself. Viruses often employ Trojan-horse effects, and the Trojan-horse effects often depend on trapdoors that are either already present or that are created for the occasion. There is a lack of clarity in terminology concerning viruses, with two different sets of usage, one for strict-sense viruses, another for personal-computer viruses. What are called viruses in original usage are usually Trojan horses that are self-propagating without any necessity of human intervention (although people may inadvertently facilitate the spread). What are called viruses in the personal-computer world are usually Trojan horses that are propagated by human action. Personal-computer viruses are rampant, and represent a serious long-term problem (Section 2.1.5). On the other hand, strict-sense viruses (which attach themselves to other programs and propagate without human aid) are a rare phenomenon -- none are known to have been perpetrated maliciously, although a few have been created experimentally.

    A worm is a program that is distributed into computational segments that can execute remotely. It may be malicious, or may be used constructively -- for example, to provide extensive multiprocessing, as in the case of the early 1980s experiments by Shoch and Hupp at Xerox PARC [355]. The Internet Worm provides a graphic illustration of how vulnerable some systems are to a variety of attacks. It is interesting that, even though some of those vulnerabilities were fixed or reduced, equally horrible vulnerabilities still remain today. (The argument over whether the Internet Worm was a worm or a virus is an example of a "terminology war"; its resolution depends on which set of definitions is used.)

    Subtle differences in the types of malicious code are relatively unimportant. Rather than try to make fine distinctions, it is much more appropriate to attempt to defend against the malicious code types systematically, employing a common approach that is capable of addressing the underlying problems. The techniques for an integrated approach to combatting malicious code necessarily cover the entire spectrum, except possibly for certain vulnerabilities that can be completely ruled out -- for example, because of operating environment constraints such as all system access being via hard-wired lines to physically controlled terminals. Thus, generic defenses are more effective in the long term than defenses aimed only at particular attacks. Besides, the attack modes tend to shift with the defenses. For these reasons, it is not surprising that many of the defensive techniques in the system evaluation criteria can be helpful in combatting malicious code and trapdoor attacks (although the criteria at the lower levels do not explicitly prevent such attacks). It is also not surprising that in general the set of techniques necessary for preventing malicious code is very closely related to the techniques necessary for avoiding trapdoors. The weak-link nature of the security problem suggests a close coupling between the two types of attack, and that defense against one type can be helpful in defending against the other type.

    Malicious code attacks such as Trojan horses and PC viruses are not adequately covered by the existing system evaluation criteria. The existence of such code would typically never show up in a system design, except possibly for accidental Trojan horses (an exceedingly rare breed). They are addressed primarily implicitly by the criteria and remain a problem even in the most advanced systems (although the threat from external attack can be reduced if those systems are configured and used properly).

    Indeed, differences exist among the different types of malicious code problems, but it is the similarities and the overlaps that are most important. Any successful defense must recognize the differences and the similarities, and accommodate both.

    Bull, Landwehr, McDermott, and Choi [168] have drafted a taxonomy that classifies program security flaws according to the motive (intentional or inadvertent), the time of introduction (during development, maintenance, or operation), and place of introduction (software or hardware). They subdivide intentional flaws into malicious and nonmalicious, and -- continuing on to further substructure -- they provide examples for most of these classifications. However, some distinctions are not made. For example, there is no distinction between the existence of a flaw and its exploitation, where the former may be inadvertent and the latter intentional. Presumably, such problems will be addressed in any subsequent versions of their work.

    There seem to be serious problems with trying to partition cases into malicious and nonmalicious intents, because of considerable commonalities in the real causes and considerable overlap among the consequences. Also, problems arise in trying to distinguish among human-induced effects and system misbehavior.

    It is a slippery slope to attempt to define security problems in terms of misuses of authority. For example, the Internet Worm was able to execute without any explicit misuses of authority. In reality, no authority was exceeded in the execution of the finger daemon, the use of the .rhost files, the sendmail debug option, or the copying of an unprotected encrypted password file! Similarly, many of the denial-of-service attacks do not need any authority.

    2.1.5 Personal-Computer Viruses

    Personal-computer viruses may attack in a variety of ways, including corruption of the boot sector, hard-disk partition tables, or main memory. They may alter or lock up files, crash the system, and cause delays and other denials of service. These PC viruses take advantage of the fact that there is no significant security or system integrity in the system software. In practice, personal-computer virus infection is frequently caused by contaminated diagnostic programs.

    The number of distinct personal-computer virus strains grew from five at the beginning of 1988 to more than a thousand early in 1992, and has continued to grow steadily since then. By 1998 numbers exceeding 10,000 were commonly quoted. The number is now much larger, and still growing at an alarming pace. Many different types of PC viruses and variant forms exist. The growth in the virus `industry' is enormous. In addition, we are beginning to observe stealth viruses that can conceal their existence in a variety of ways and distribute themselves. Particularly dangerous is the emergence of polymorphic viruses, which can mutate over time and become increasingly difficult to detect. Ultimately, the antiviral tools are limited by their inherent incompleteness and by the ridiculously simplistic attitude toward security found in personal-computer operating systems. Serious efforts to develop survivable systems would do well to avoid today's personal-computer operating systems, although the hardware is not intrinsically bad.

    2.1.6 Other Attack Methods

    In addition to the attack methods noted above, several others are worth discussing here in greater detail, namely, the techniques numbered 1 through 14, and 23 in Table 2.

    The remaining forms of attack listed in Table 2 are somewhat more obscure than those noted above. The penultimate case involves misuse through inaction, in which a user, operator, administrator, maintenance person, or perhaps surrogate fails to take an action, either intentionally or accidentally. Such cases may logically be considered as degenerate cases of misuse, but are listed separately because they may have quite different origins.

    The final case in Table 2 involves system use as an indirect aid in carrying out subsequent actions. Familiar examples include performing a dictionary attack on an encrypted password file, attempting to identify dictionary words used as passwords, and possibly using a separate machine to make detection of this activity harder ([223]); factoring of very large numbers, attempting to break a public-key encryption mechanism such as the Rivest-Shamir-Adleman (RSA) algorithm that depends upon a product of two large primes being difficult to factor; and scanning successive phone numbers, attempting to identify modems that might be attacked subsequently.

    Table 3: Illustrative Reliability Threats
    Outside-environmental threats
    Environmental problems (earthquakes, floods, etc.)
    Power utility disturbances
    Electromagnetic and other external interference
    Inappropriate user behavior, unavailability of key persons
    National-infrastructure threats
    Glitches in telecommunications, air-traffic control,
    power distribution, and other infrastructures dependent
    on computer-communication infrastructures
    Middleware and application service threats
    Windows environments: cache management, crashes
    Browser and Web server flaws
    Accidentally corrupted code
    Database-specific threats
    DBMS software flaws
    Internal database synchronization and cache management
    Distributed database consistency
    Improper DBMS software upgrades and maintenance
    Improper database entries and updates
    Network threats
    Faulty network components (hosts, routers, firewalls, etc.)
    Distributed system synchronization
    Traffic blockage and congestion
    Operating-system threats
    OS software design and implementation flaws
    Improper OS configuration
    Improper OS upgrades and maintenance
    Failures of backup and retrieval mechanisms
    Software-development problems
    Faulty system design and implementation
    Poor use of software engineering techniques
    Bad programming practice
    Programming-language threats
    Compiler language inadequacies
    Compiler design and implementation flaws
    Hardware threats
    Flaws in hardware design and implementation
    Undesirable internal hardware state alterations
    Improper hardware maintenance
    Inside-environmental threats
    Internal power disturbances
    Self-generated or other internal interference

    2.2 Threats to Reliability

    Threats to system and network reliability can take many forms. They can arise during requirements definition, system specification, implementation, operation, and maintenance. They can originate from hardware malfunctions, operating-system software flaws, network software flaws, application software problems, operational errors (e.g., in system configuration, management, and maintenance), environmental anomalies, and -- not to be ignored -- human mistakes. Some illustrative types of reliability threats are summarized in Table 3.

    Essentially every one of the types of threats summarized can represent a fundamental threat to overall survivability. Environmental threats can be particularly devastating, especially if equipment and media are seriously damaged. Losses of power and telecommunications are especially critical, particularly if they last for long periods of time and if alternatives are not readily available. Threats to software and hardware reliability can have pervasive effects, although in some cases they may be surmounted.

    2.3 Threats to Performance

    System and network performance can be threatened as a result of many of the threats to reliability and security discussed in Sections 2.2 and 2.1, respectively. In addition to those threats, performance threats exist that do not directly stem from reliability or security. Inadvertent saturation of resources is one major class, perhaps because of runaway programs or inadequate garbage collection. Table 4 notes some of the concepts on which performance may depend.

    2.4 Perspective on Threats to Survivability

    Threats to survivability and its subtended requirements exist pervasively throughout all system application areas; throughout the layers of abstraction related to hardware, software, and people (as discussed in Section 3.3 and elsewhere in this report); and throughout the stages of development and use noted in Section 1.5. In particular, threats are pervasive throughout the services provided by the critical national infrastructures as well as computer-communication infrastructures. These threats provide the motivation for the survivability requirements discussed in Chapter 3.

    Many threats to survivability exist that transcend system development and operation. Once particularly nasty example results from legislation that is beginning to work its way through U.S. state legislatures, namely, the Uniform Computer Information Transactions Act (UCITA). [359] As of June 2000, UCITA has already passed in Virginia and Maryland. UCITA encourages trapdoors that can enable a software developer to disable widely distributed software on demand; such a mechanism might easily be exploitable by outsiders as well as the developers. Besides, the distinction between insiders and outsiders is not clear-cut, as we have already noted. UCITA also permits developers to absolve themselves from liability, discourages source-available software, allows developers to forbid interoperability with proprietary interfaces, legalizes currently outlawed abusive practices, stifles competition, and is generally antithetical to the development of secure survivable systems. (The U.S. 1998 Digital Millennium Copyright Act is also problematical.)

    To give a detailed example of the breadth of threats in just one critical-infrastructure sector, consider the safety-related issues in the national airspace, and the subtended issues of security and reliability. (See for example, Neumann's position statement for the International Conference on Aviation Safety and Security in the 21st Century [253].) Alexander D. Blumenstiel at the Department of Transportation in Cambridge, Massachusetts, has conducted a remarkable set of studies [46, 48, 47, 58, 49, 50, 51, 57, 53, 54, 55, 59, 56] over the past 14 years. In his series of reports, Blumenstiel has analyzed many issues related to system survivability in the national airspace, with special emphasis on computer-communication security and reliability.

    Blumenstiel's early reports (1985-1986) considered the susceptibility of the Advanced Automation System to electronic attack and the electronic security of NAS Plan and other FAA ADP systems. Subsequent reports have continued this study, addressing accreditation (1990, 1991, 1992), certification (1992), air-to-ground communications (1993), air-traffic-control security (1993), and communications, navigation, and surveillance (1994), for example. To our knowledge, this is the most comprehensive set of threat analyses outside of the military establishment,12 and the breadth and depth of the work deserves careful emulation in other sectors.

    To be more specific, Blumenstiel's early reports included a 1986 assessment [58] of vulnerabilities of the Advanced Automation System (AAS) to computer attacks. The AAS was planned at the time as the next-generation system of air-traffic-control computers and controller displays for installation in all air-traffic-control centers. Blumenstiel's study found vulnerabilities to a range of computer attacks in this system and recommended countermeasures. (In 1999, the FAA is finally beginning to upgrade the displays, replacing technology from the mid-1960s.) The FAA specified the countermeasures as a requirement for this system. Blumenstiel also assessed vulnerabilities of the FAA's National Airspace System Data Interchange Network (NADIN), a packet-switched network for interfacility communication of air-traffic-control data [57]. Based on this assessment, Blumenstiel prepared a security management plan for NADIN that has been implemented in the system to protect critical data transmissions. Another study assessed vulnerabilities of the Voice Switching and Control System (VSCS). The VSCS is a computer that controls the switching of air-traffic-control communications (between controllers and flight crews and between controllers on the ground) at all air-traffic-control centers. Another study [51] identified and assessed risks to air traffic from electronic attacks on the entire National Air Space System, including air-traffic-control computers, radars, switching systems, and automated maintenance information. This study prioritized all the systems in terms of vulnerabilities and the potential impact of successful attacks on air traffic, including the potential for crashes and the cost of potential delays, and estimated the overall risk. Blumenstiel also produced the security plans for FAA systems required by Public Law 100-235, authored FAA's requirements for computer security accreditation (and designed and developed software to automate the accreditation reporting process) and sensitive application certification [53, 54, 55]. He authored the NIST Guidelines [52] on FAA AIS security accreditation. He was the principal author of the June 1993 Report to Congress on Air Traffic Control Data and Communications Vulnerabilities and Security [59]. Additional studies under Blumenstiel's direction involved assessments of air-traffic-control telecommunications systems to electronic attacks, and development of the strategic plan to protect such systems.

    With respect to the national airspace, and with respect to the other national infrastructures and the computer-communication infrastructures, it is clear that the threats are pervasive, encompassing both intentional and accidental causes. However, it is certainly unpopular to discuss these threats openly, and thus they tend to be largely downplayed -- if not almost completely ignored.

    In general, it is very difficult for an organization to expend resources on events that have not happened or that are perceived to be very unlikely to occur. The importance of realistic threat and risk analyses is that it becomes much easier to justify the effort and expenditures if a clear demonstration of the risks can be made.

    3 Requirements and Their Interdependence

    Things derive their being and nature by mutual dependence and are nothing in themselves.
    Nagarjuna, second-century Buddhist philosopher

    We next elaborate on the requirements, threats, risks, and recommendations outlined in [29] and discussed in Chapter 1 of this report, in such a way that those requirements could apply broadly to a wide range of survivable system developments and to the procurement of systems with critical requirements for survivability.

    Our approach is rooted in the establishment of a sound basic set of generic requirements for survivability and the explicit determination of how survivability in turn requires other secondary properties. Secondary properties include various aspects of security in preventing willful misuse; reliability, fault tolerance, and resource availability despite accidental failures (with real-time availability when required); certain aspects of functional correctness; ease of use; reconfigurability under duress; and some sense of overall system robustness when faults exceed tolerability. In turn, security requirements include integrity of systems and networking, confidentiality to avoid dissemination of information that could be useful to attackers (especially cryptographic keys and authentication parameters), high availability and prevention of denials of service despite malicious actions, authorization, accountability, rapid detectability of adverse situations, and prevention of other forms of misuse. Reliability requirements include fault tolerance, fault detection and recovery, and responses to unexpected failure modes. Security and reliability have some requirements that are related, such as resistance to electromagnetic and other interference. Furthermore, some of the requirements interact with other requirements, and must be harmonized to ensure that they are not contradictory. Each requirement has manifestations at each layer of abstraction, and corresponding special issues that must be accommodated. Particular layers of abstraction must address relevant properties -- of applications, databases, systems, subsystems, and networking software. Types of adversities to be covered by the requirements must include the full spectrum of applicable potential threats, such as malicious software and hardware attacks, system malfunctions, and electronic interference noted above. All reasonable risks must be anticipated and protected against. Thus, our approach is developing a somewhat canonical requirements framework for survivability that encompasses all the relevant issues, and that demonstrates how the different requirements interrelate.

    Of particular importance are the ways in which some of these requirements interact with one another, and how when systems are developed to satisfy those requirements, the components supposedly addressing different requirements actually interact with one another. Ideally, it is helpful if those interactions are understood ahead of time rather than manifesting themselves much later in the development process, or in system use, as seemingly obscure vulnerabilities, flaws, risks, and in some cases catastrophes.

    For any given application, the specific requirements must be derived from knowledge of the operational environment, the perceived threats, the evaluated risks, many other practical matters such as the expected difficulty and costs necessary to implement those requirements, the available resources in funding and manpower, and considerations of how the peculiarities of the given application are likely to compound the difficulties in development. Mapping the generic requirements onto the detailed specific requirements then remains a vital challenge that must be undertaken before any serious development effort is begun.

    Neumann gave a keynote talk in June 2000 on the role of requirements engineering in developing critical systems, for the 2000 IEEE International Conference on Requirements Engineering, The visual materials are on-line

    3.1 Survivability and Its Subrequirements

    In defining survivability and some of the requirements on which it most depends -- security, reliability, and performance -- we work primarily from the perspective of requirements that can be dependably enforced and applied to enhance the overall system and network survivability.

                              Survivability    [An overarching requirement:
                                   /|\         a collection of
                                  / | \        emergent properties]
                                 /  |  \
                                /   |   \
                               /    |    \
                              /     |     \
                             /      |      \
                            /       |       \
                           /        |        \
                          /         |         \
                         /          |          \
                    Security  Reliability  Performance   [Major subrequirements]
                       /|\         /|\         /|\
                      / | \       / | \       / | \
                     /  |  \     /  |  \     /  |  \
                    /   |   \   /   |   \   /   |   \      [Subtended
                Inte- Conf- Avail  FT Fail  RT  NRT Avail  requirements:
               grity id'ity   *    |\ modes /\  /|\   *      FT=fault tolerance
                 /|   |\      |\   | \   /|   \/     /|\     RT=real-time
                / |   | \     | \  |  \ / | Prior-  / | \    NRT=non-real-time]
               /  #   |  \    |  \     #    ities  /
             MLI No MLS Dis- MLA  \    No         /        [More detailed
             / change | cret- |    \  change     /         requirements]
            /    /|   | ion-  |     \           /
           /    / |   | ary   |      * Unified *
          /    /  |   |   |   |      availability
         X  Sys Data  X       X      requirements
             /|   |\                       [X = Shared components of MLX!!]
            / |   | \                      [* = Reconvergence of availability]
           /  |   |  \                     [# = Reconvergence of data integrity]
    Figure 2: Illustrative Subset of Requirements Hierarchy

    As observed at the beginning of this chapter, numerous properties are necessary for overall survivability, some of which are -- or in some cases merely seem to be -- interdependent. A highly oversimplified but nonetheless illustrative summary of a portion of the subtended requirements hierarchy is given in Figure 2.13 We have somewhat arbitrarily taken security, reliability, and performance as three major requirements that can contribute in rather basic ways to achieving high-level survivability requirements. (Other conceptual arrangements of the hierarchy are also possible. In addition, it is worth noting that the overarching requirement for human safety is evidently at an even higher level than survivability, because human safety typically depends on overall system survivability and other mission-critical properties.)

    In Section 1.2.2 we observe that there are multiple but closely related manifestations of availability. This is depicted graphically in Figure 2 by a common node ("Avail") subtended from both security and reliability, and by a comparable node subtended from performance. (Each node denoted by an asterisk denotes a reconvergence of a common set of requirements across the three major requirements.) Although it is usually desirable to keep these three manifestations of availability separate during a requirements specification and analysis, it is highly advantageous to consider them in an integrated way during system design and implementation. Thus, the specification of the requirements can benefit from an understanding of the ways in which the different manifestations interact with or depend on one another. Furthermore, techniques that contribute to more than one of the major requirements can be implemented more uniformly.

    3.1.1 Survivability Concepts

    As noted at the beginning of Chapter 1, the term survivability denotes the ability of a computer-communication system-based application to continue satisfying certain critical requirements (e.g., requirements for security, reliability, real-time responsiveness, and correctness) in the face of adverse conditions. The scope of adversity may in some cases be precisely defined, but more typically it is not well defined.

    Some of the adversities can be foreseen as likely to occur, with consequences that can be perceived as potentially harmful; these can be enumerated and defined. Other adversities may be foreseen as unlikely, or as not having serious consequences to worry about -- or may not even be anticipated at all. Ideally, appropriate survivability-preserving actions should be taken irrespective of whether the adversity was foreseen or not. Defensive system design and defensive programming practices are necessary to cover otherwise unanticipated events. Although there can clearly be circumstances in which system survival is not possible -- for example, when all communication lines and all power are out -- some reasonable contingency plans should be in place, even if in the last resort it is merely emergency actions by the operations staff. In addition, the blame in cases of complete outages may rest with insufficient foresight in system design.

    Survivability in this sense can be defined only in terms of specific requirements that must be met under incompletely specified circumstances (where those circumstances may possibly be dynamically changing), which will often differ from one type of adversity to another.

    Specific survivability requirements typically vary considerably from one application to another. For example, one set of system requirements might allow degraded performance or other real-time dynamic tradeoffs in times of extreme need (e.g., being able to relax certain security requirements in favor of maintaining real-time requirements when under attack).14 Another set might prioritize the computational tasks and permit degradation according to the established priorities. In general, a system's survivability requirements might specify that the system must withstand attacks (providing integrity and availability aspects of security) and be resistant to hardware malfunctions (providing reliability and hardware fault tolerance), software outages (providing resistance to hardware- or software-induced software crashes), and acts of God (e.g., anticipating the consequences of communications interference, floods, earthquakes, lightning strikes, and power failures) that might otherwise render the system completely or partially inoperative. In this context, survivability appears in the guise of a high-layer system integrity requirement.

    Thus, we adopt the following tentative working definitions:

    System survivability can be defined in terms of an overall application or specific services, or in terms of specific computer-communication systems, subsystems, or networks. Each type of potential adversity may have its own measure of survivability.

    In the definitions above, the term "arbitrary adversities" implies more than merely the ability to withstand "known adversities" or "specified adversities" -- it also implies a characterization of the ability to withstand adversities that were not anticipated such as those that exceed the reliability and security tolerances supposedly covered by the design. In each case, a meaningful assessment of survivability rests not only on what happens when an anticipated adversity occurs, but also on what might happen in response to unanticipated events. This requires some determination of the actual coverage, not just the designed coverage with respect to anticipated faults and threats.

    Continued enforcement of system integrity, system availability, data confidentiality, and data integrity (for example) are typically fundamental aspects of survivability. Whenever specific lower-layer survivability properties are explicitly included among their constituent system security properties, then survivability can also be considered as a security property (and, specifically, an integrity property). However, for present purposes we consider application service survivability as an overarching property to be maintained by the application in its entirety.

    3.1.2 Security

    Intuitively, the natural-language meaning of security implies protection against undesirable events. System security and data security are two types of security. The three most commonly identified properties relating to security are confidentiality, integrity, and availability. There are also other important forms of security, such as the detection of misuse and the prevention of general misuse that does not necessarily violate confidentiality, integrity, or availability, particularly when committed by authorized users.

    With respect to any particular functional layer, the primary attributes of security are summarized as follows:

    Identification and authentication are essential to the enforcement of confidentiality, integrity, availability, and prevention of generalized misuse, as well as to meaningful misuse detection. They may be either explicitly designated as system security requirements or else subjugated to the implementation, but are fundamental in either case.

    Mandatory policies for confidentiality (e.g., multilevel security), integrity, availability, and survivability (MLS, MLI, MLA, and MLX, as introduced in Section 1.2) have the advantage that they cannot be violated by user actions (assuming that the mechanisms are correctly implemented), but have the disadvantage that they may be inflexible for certain kinds of applications. On the other hand, that inflexibility is precisely what makes them powerful organizing architectural concepts.

    Covert channels (out-of-band signaling paths) represent potential losses of confidentiality. They are a problem primarily in multilevel-secure systems, in which it may be possible to signal information through inference channels to lower levels, in violation of the security policy. However, covert channels are often not explicitly addressed by system security policies, and are typically not prevented by conventional security access controls: they bypass conventional controls altogether rather than violating them. Avoidance of covert channels is a problem that must be addressed during system design, implementation, and operation. Detection of covert channel exploitation is a problem that must be addressed during operation (see Proctor and Neumann [310]). Two types of covert channels are recognized: storage channels (which exploit the sharing of resources across multiple security levels using normal system functions in unusual ways), and timing channels (which exploit the time-sensitive behavior of a system, perhaps by observing the real-time behavior of a scheduler). Because most existing systems still have overtly exploitable security flaws, covert channels are often of less interest. However, in highly critical applications, they could be an important source of system compromise, for example, with the aid of a Trojan horse that is modulating the covert channel.15

    A useful paper by Millen [210] summarizes 20 years of modeling and analysis of MLS covert channels. Covert channels can also exist with respect to MLI, MLA, and MLX, but they seem less easy to identify and exploit.

    At each layer of abstraction, each of these concepts may have its own interpretation, in terms of the abstractions at that layer.

    Threats to security are considered in Section 2.1.

    3.1.3 Reliability and Fault Tolerance

    Many requirements for reliability and fault tolerance are appropriate in addressing the various types of threats to reliability summarized in Section 2.2 and Table 3. Most of these reliability requirements can have major implications on system and network survivability, in hardware, system software, network software, and application software. In the absence of serious efforts at generalized dependence, the failure of a component may typically result in the failure of higher-layer components that depend on the failed component.

    Some of the reliability concepts are closely tied together with security concepts. For example, reliably high availability with respect to systems and networks is closely related to the prevention of denials of service. Also, degraded performance modes are closely linked with fault tolerance and responses to detected anomalies.

    In an early (D)ARPA study, 1972-1973 [261], we recommended that fault tolerance can most effectively be used at each hierarchical layer according to the particular needs of each of the specific abstractions at that layer. That approach is still valid today, and is embodied in the architectural directions pursued in this report. A recent article by Nitin Vaidya [378] further pursues a design principle of multilevel recovery schemes in which the most common cases are disposed of most quickly. (Vaidya considers only two levels, but the concept is readily generalized to more levels, or to a continuous spectrum.)

    Numerous examples of survivability failures related to inadequate reliability and fault tolerance are given in Neumann's RISKS book [250], along with a summary of techniques for improving reliability and fault tolerance.

    3.1.4 Performance

    Complete system and network outages are an extreme form of performance degradation, whether caused accidentally or intentionally, through reliability problems or security problems. However, in some cases even relatively small performance degradations can cause unacceptable behavior, particularly in tightly constrained real-time systems. Thus, performance requirements must be closely coupled with those for security and reliability.

    Performance depends on availability in both its security manifestations (e.g., prevention of denials of service) and its reliability manifestations (e.g., fault tolerance and alternative computation modes). This confluence of subrequirements is illustrated in Figure 2 as the reconvergence of what is otherwise depicted as a pure tree structure.

    The reconvergent nodes indicated by an asterisk (*) in the figure could of course be split into separate but essentially identical nodes if the sanctity of the pure tree structure were important. However, it is not important -- and in fact illustrates an important point: apparently different subrequirements that originate from seemingly disjoint requirements are in fact best handled by a common integrated mechanism, rather than treated completely separately. For implementing assured availability, it is true that different techniques may indeed be useful for (1) preventing malicious denials of service, (2) preventing accidental denials of service, (3) preventing failures due to faults that exceed the coverage of fault tolerance, (4) ensuring adequate performance despite intentional acts, (5) ensuring adequate performance despite unintentional acts and system malfunctions, and (6) ensuring adequate performance despite acts of God. On the other hand, by taking a systematic view of these supposedly different aspects of availability, it is likely that many common mechanisms can work synergistically.

    Many other interdependencies also exist. For example, the aspect of integrity relating to prevention of undesired changes (to data, programs, firmware, hardware, communications media, and so on) is fundamental to security, reliability, performance, and of course survivability in the large. Several manifestations of the no-unintended-change requirement are indicated by a sharp (#) (the erstwhile octothorpe in early telephony) in the figure, and discussed further in Section 5.12. Similarly, the confidentiality of sensitive information such as cryptographic keys can undermine many desired system properties.

    Dependencies in requirements are sometimes not recognized until well into design and implementation. For example, extensive requirements for reliability and availability may induce additional risks with respect to security and survivability, such as those that result from replication of common mechanisms that introduce multiple common vulnerabilities, or the use of different mechanisms that introduce different vulnerabilities. Similarly, extensive security mechanisms may have deleterious effects on performance and system usability. To avoid performance degradation, security controls are often disabled.

    3.2 System Requirements for Survivability

    As noted, enterprise survivability is a requirement on the enterprise as a whole. Other such highest-layer application requirements might include preservation of human safety for friendly humans, destruction of unfriendly humans by a tactical system in a hostile environment, and detailed accountability of system and human actions in terms of the application functionality.

    System survivability typically depends on two types of properties, sometimes called liveness properties (implying availability) and functional safety properties (implying functional correctness). Alpern and Schneider [8] have shown that every property can be expressed as a combination of functional safety properties and liveness properties, relative to definitions that have evolved from Lamport [162]. Intuitively, functional safety properties imply that nothing bad happens, while liveness implies that eventually something good happens. Indeed, most application-layer requirements (e.g., survivability and human safety) and system-layer requirements have components of each type.

    We do not need to make a precise distinction here between the two types of properties. However, we do recognize that some of the desired properties have time-dependent aspects -- particularly in highly distributed systems.

    Failure of the system or subsystem to enforce any of a variety of properties can result in a loss of application survivability. Some of those necessary underlying properties on which application survivability may depend are illustrated next. In each case, the term system can equally well imply an entire computer-communication system or a subsystem thereof.

    Some of the necessary properties are largely time independent, although some of them have certain time-dependent attributes. We consider the general properties first and then reconsider those with specific real-time attributes. For simplicity, we include networking and communications issues as an integral part of the system issues, particularly in distributed systems.

    Necessary system security properties:

    Necessary network security properties:

    Although the foregoing system and network security issues all imply attempts to constrain usage by users, operators, system programmers, and administrators, they inevitably depend to some extent on compliant system use by those people. Misuse by apparently authorized individuals is a serious potential problem in many applications.

    Necessary system and network reliability properties:

    It is useful to note that the security and reliability properties have some time-dependent attributes, such as the following.

    Necessary time-dependent security properties:

    Necessary time-dependent reliability properties:

    Necessary performance properties:

    Necessary operational properties:

    One of the major challenges of system development and operation is to understand a priori all the relevant requirements, as well as their implications on lower system layers (including hardware and communications), and to organize the system development accordingly.

    Further issues on which survivability depends include human behavior -- on the part of system designers and implementors, operators, users, and maintainers, for example -- and acts of God. However, these may be anticipated to a considerable extent by suitable system design and operation with respect to security, reliability, and performance considerations.

    In any particular application, certain vulnerabilities may not exist, or some of the threats that could expose those vulnerabilities may not exist, or the risks may be deemed inconsequential. In such cases, the survivability problem may be simplified somewhat. In general, however, it is very dangerous to base simplifications in system design, implementation, or operation on assumptions that may not be valid in practice. Therefore, great care must be taken to provide adequate assurance in any efforts that are permitted to ignore one or more of the foregoing necessary properties.

    3.3 A System View of Survivability

    FunctionalSecurity ReliabilityPerformance
    layer concepts concepts concepts
    Users, Human integrity, Human reliability, Human responsiveness,
    operators, education, training,education, training,ease of use,
    admins, ...user identity human interfaces education, training
    ApplicationApplication Functional correctness,Service availability,
    software integrity and redundancy, real-time performance,
    (SW) confidentiality robustness, recovery functional timeliness
    MiddlewareSW integrity and Functional correctness,Functional timeliness
    (MW: DBMS, confidentiality redundancy, DB backup, of Web, remote DBs,
    DCE, CORBA in DCE, Webware,robustness, recovery and file servers
    Webware) DB access controls
    NetworkingNetware integrity, Netware integrity,Netware throughput and
    (Netware) confidentiality, error correction and guaranteed service,
    availability, fault tolerance alternative routing and
    node nontamperability,in transmission and other infrastructural
    peer authentication, routing, especiallyfactors, especially
    especially wireless in wireless roving bandwidth
    Operating OS integrity, OS integrity, OS integrity,
    system data confidentiality, fault tolerance, guaranteed service,
    (OS) guaranteed service, sound asynchrony, avoidance of deadlocks,
    OS nontamperability, archiving/backup performance optimization,
    OS development and OS development andOS development and
    maintenance, OS maintenance maintenance
    user authentication
    Hardware Access controls, HW fault tolerance,Processor/memory speed,
    (HW) protection domains, instruction retry,communication bandwidths,
    HW nontamperability,error-correcting codes,contention control,
    configuration control,HW correctness, adequate HW configuration,
    protection against protection against protection against
    intentional interference,accidental interference,any interference,
    HW development HW development HW development
    Table 4: Some Survivability Attributes at Different Logical Layers

    Survivability is meaningful primarily as an emergent property of an entire computer and communication system complex, or, more broadly, of a collection of computer-based applications. Survivability also transcends lower-layer policies relating to subsystem reliability, integrity, and the like. Certain aspects of survivability are meaningful with respect to hardware as well.

    Some of the properties on which application survivability typically depends are illustrated in Table 4, under the approximate headings of security, reliability, and performance. These three headings partially overlap, even among the different manifestations at each functional layer. For example, system integrity at any particular layer clearly contributes to security, reliability, and performance at higher layers. Similarly, prevention of malicious and accidental service denials at any layer clearly contributes to security, reliability, and performance at higher layers.

    Human safety is very similar in its dependence on the same properties of the lower-layer functionality. Human safety is also largely an emergent property of the entire system complex, although particular aspects of safety can be considered at lower layers of abstraction. (For example, see [173, 175].)

    Clearly, there are many more detailed properties of lower layers on which the system properties in turn depend. These are not shown explicitly, for reasons of descriptive simplicity.

    3.4 Mapping Mission Requirements into Specifics

    Before attempting to carry out an architecture and its implementation, a vital preliminary step is to map the overall mission requirements into a specific subset of the generic requirements for survivability and its subtended attributes. This is at present a human endeavor, although the existence of computer-aided analysis tools can be contemplated to assist in requirements analysis, and subsequently to assist in determining the sufficiency of the architecture with respect to the chosen requirements.

    The mapping process should take into account expected vulnerabilities, threats, and risks. It should anticipate the needs of the full range of expected applications and capabilities. The needs for each of the following functional capabilities should be anticipated from the outset, rather than discovered later in the development, and specific requirements defined.

    4 Systemic Inadequacies

    Many deficiencies in existing subsystems, systems, and networks seriously hinder the attainment of survivability. We identify those that are fundamental, and recommend specific approaches to overcome those inadequacies.

    In this context, survivability is considered in the broadest possible sense, encompassing measures to handle all realistic threats -- including, for example, hardware malfunctions, software flaws, accidental and malicious misuse, electromagnetic interference, acts of God, and other occurrences that are typically unanticipated. We seek to provide a realistic architectural bridge across the gap that exists between (on one hand) the present status quo of inherently incomplete requirements, criteria, standards, protocols, components, and systems, and (on the other hand) the need for survivable systems and networks that can be rapidly configured out of off-the-shelf commercial products, specifically tailored to particular applications. Unfortunately, many systems that exist today or are foreseen for the near-term future are likely to be inadequate for these purposes.

    This chapter identifies some of these shortcomings, including technological deficiencies (Sections 4.1 and 4.2) and other problems (Section 4.3). Chapter 5 presents recommendations for overcoming those limitations. Chapter 7 continues the identification and analysis of the deficiencies in the context of survivable architectures, and presents specific recommendations for alternative system and network architectures, new system components, fundamental changes in how systems are developed, and guidelines for implementation.

    4.1 System and Networking Deficiencies

    With the almost total dependence of the U.S. Government, critical infrastructures, and the public sector on commercially available off-the-shelf systems, subsystems, and networks, all survivability-critical applications are seriously at risk.

    4.2 Deficiencies in the Information Infrastructure

    The previous section outlines numerous deficiencies in computer systems and in networking software. However, some fundamental problems transcend deficiencies in systems and networking software -- specifically, those relating to the underlying information infrastructure. We are becoming critically dependent on the Internet, and are likely to be even more dependent on whatever succeeds it.

    Unfortunately, the Internet has become an enormous self-perpetuating organism of its own -- with no coherent management, no overall control, and almost no ownership by any national or corporate entities (except in nondemocratic countries). Its existence is almost totally unregulated, and it is run on the fly in a strikingly unprofessional way. Because traffic may be routed arbitrarily through potentially untrustworthy and unreliable nodes, retrying over alternate routes is at present typically the best that can be done when problems are experienced. But that approach is vulnerable to massive denial-of-service attacks. If a vital gateway is down, an entire enterprise may be off the Internet. In general, weaknesses in the infrastructure become weaknesses in the computer systems and networking software. For example, the fundamental deficiencies in networking protocols noted in Section 4.1 affect not just local networks and enterprise-internal networks, but also the Internet; they are likely to haunt any future information infrastructures unless radically superseded. Conversely, weaknesses in computer systems and networking software can result in weaknesses in the information infrastructure -- affecting telecommunications and power distribution as well.

    4.3 Other Deficiencies

    Although entire books can be and have been written about these deficiencies and the resulting risks (e.g., [64, 250]), the emphasis here is on overcoming the deficiencies -- as addressed in the next chapter.

    5 Approaches for Overcoming Deficiencies

    We can't solve problems by using the same kind of thinking we used when we created them.
    Albert Einstein

    Given the deficiencies identified in Chapter 4, we next consider what might be done to overcome them. Various approaches toward prevention, detection, reaction, and iteration are summarized in Table 5 for each of the three primary attributes of survivability noted in Figure 2 and discussed further in this and subsequent chapters. Specific architectural recommendations are considered in Chapter 7 for systems and networks with stringent survivability requirements. Ultimately, the use of robust architectures is absolutely fundamental to the recommendations of this report.

    ApproachRelability SecurityPerformance
    Prevention Robust architecture:Robust architecture:Robust architecture:
    Redundancy: Domain isolation,Spare capacity
    error correction,access controls,
    fault tolerance authorization, tolerance
    Detection Redundancy: Integrity checks,Performance monitoring
    error detection anomaly/misuse detection
    Reaction Forward/backward,Security preserving Reconfiguration
    recovery reconfiguration, tolerance
    Iteration Fault removal Exploratory Redesign,
    off-line patchestradeoffs
    Table 5: Defensive Measures

    5.1 Conceptual Understanding and Requirements

    Perhaps the most important step toward attaining system and network architectures that are capable of meeting advanced survivability requirements is to have a well-defined set of detailed requirements. However, for those requirements to be sensibly matched to the realistic needs, it is important that there be a well-defined and well-understood model of the mission that a specific system is intended to fulfill. In the absence of such a model, it is difficult to assess the adequacy of a given architecture, the dependence on external infrastructures and substructures, and the consequences of systemic breakdowns or attacks on the system.

    Two types of models would be useful -- generic model frameworks that can be tailored to specific needs, and specific models applicable to particular systems.

    5.2 System and Networking Architectures

    Two fundamentally different architectural approaches seem possible -- either increase the security, reliability, and survivability of the most critical components, or else develop system and network architectures that are survivable despite the presence of inherently weak components. In practice, a combination of both approaches is desirable, for several reasons:

    Indeed, component survivability can benefit greatly from component diversity, particularly in the context of architectures that are designed for robustness. In such an architecture, it becomes essential to identify the most critical components, and to concentrate sufficient architectural strengths in those components. The basic challenge is to considerably reduce the extent to which all subsystems must be extensively trustworthy. Identifying the critical components and minimizing the dependence on untrustworthy components are both extremely difficult, and are pursued in this report. As noted in Section 5.1, having a well-defined mission model and detailed requirements is a vital precursor.

    System architectures must address the necessary survivability-relevant requirements, including reliability, fault tolerance, and security -- irrespective of which components are actually trustworthy with respect to which requirements. In addition, these architectures must be flexible enough to support real-time applications and supercomputing requirements, rather than necessitating special-purpose designs. Various architectural alternatives are considered in Chapter 7. An alternative that approaches multilevel survivability (Section 1.2.8) might lead to a sensible system structure that is of interest even in non-MLS systems and networks. However, MLS should be taken not as an attempted universal property of kernels and trusted computing bases (as was attempted with MLS), but rather as a potentially useful architectural driving force in the context of the notion of generalized dependence.

    Perhaps the most fundamental architectural concept involves the isolation of potentially bad activities from whatever functionality must be trustworthy. This is considered in Chapter 7.

    5.3 System/Networking Protocols and Components

    Section 4.1 notes that existing network protocols leave something to be desired with respect to network survivability. However, there is an amazing amount of energy and effort going into protocol development. For background on TCP/IP and related protocols, see the massive collection of Internet draft proposals and subsequently Requests for Comments (RFCs), which collectively represent a goldmine of information on emerging Internet protocols.

    In the interest of dramatically increasing overall network robustness, two new Internet Engineering Task Force (IETF) draft Internet protocols are of particular interest here:

    Among the existing RFCs, several recent ones are worth noting:

    However, all the RFCs and Internet drafts are necessarily the ultimate answers in themselves. Much more remains to be done.

    Of particular importance is the need for robust public-key infrastructures (PKIs) that compatibly provide public-key certificates and validation of the genuineness of the certificate authorities and verification authorities, with sufficiently good performance, to make cryptographically protected interoperability practical. Many commercial distributed PKIs are emerging, and are expected to win out over a few highly unified PKIs. However, compatibility and interoperability are still badly lagging. Certificate authorities are by themselves inherently limited (for example, by issues of trustworthiness). Validation authorities are necessary. In essence, a certificate authority can be issued off-line as needed. A validation authority is invoked on-line per transaction, and can provide stronger revocation, as in the Valicert approach of certificate revocation trees (see

    Existing cryptographic algorithms (especially the AES algorithms) appear to be adequate for the foreseeable future needs. However, we urgently need better cryptographic protocols and greater dependability in their implementations. Flaws have been discovered in various popular protocols (for example, Needham-Schroeder). See a recent report by Abadi and Gordon [2] as part of a series of papers on formalizing cryptographic protocols (they include copious references to earlier work), along with further discussion in Section 5.9.

    Composability of components such as protocol implementations is considered in Section 5.8. However, composability by itself is not enough. Knowing that vulnerabilities abound, a particular concern is that by concentrating trustworthiness around one functionality such as a public-key infrastructure makes that functionality an attractive subject for attack. Even if the mechanisms themselves have adequate integrity and nonspoofability (which is unlikely), they become easy targets for denial-of-service attacks.

    Roving end-user terminals with wireless communications represent huge challenges for networking. Strong noncompromisible end-to-end cryptography is essential; link encryption may also be important, particularly in warding off denial-of-service attacks on the network nodes.

    The DARPA Global Mobile effort -- GloMo
    ( -- is seeking to address some of the basic engineering issues in research and prototype developments, and is also attempting to use Fortezza technology for cryptographic approaches to retrofitting security into the GloMo research environment
    However, achieving secure portable computer communications is a very difficult task, and at present security and to a large extent survivability are not driving requirements in most of the ongoing DARPA GloMo research programs; rather, security (not to mention survivability) seems to be thought of as something that can be added later -- which goes against the teachings of years of experience in system development.

    The components that are most critical for survivability -- and therefore deserving of the most defensive design, development, and maintenance attention -- are typically authentication servers, file servers, network servers, boundary controllers (including access control mechanisms, firewalls, guards), as well as other components that must necessarily be at least partially trusted. From a reliability point of view, file servers and network servers are particularly critical. From a security point of view, authentication servers, boundary controllers, and cryptographic units must receive extra protection. From a system integrity point of view, cryptographically generated integrity seals and proof-carrying code are useful techniques to hinder undetected system modifications.

    5.4 Configuration Management

    Several considerations are necessary to be able to readily configure survivable systems and networks out of subsystems. Architecturally, the subsystems must have appropriate functionality. They must also be compatible with one another, and their interfaces must be easily composable. System and network management facilities are also critical to the maintenance of survivability. In particular, the configuration management system must be both comprehensive and comprehensible enough to permit consistent administrative control.

    Given the nature of the threats and natural failures, it is essential that systems and networks be capable of dynamic reconfiguration, with or without human intervention according to the real-time requirements. This implies that requirements and dynamic policies must address the needs for reconfiguration that maintains whatever functionality must be retained, with appropriate security and reliability. Each potential change carries with it certain implications, such as whether the resulting system configuration will be less survivable or more survivable, and whether it will be easier or more difficult to attack. Anticipating the consequences of each possible reconfiguration is extremely difficult, but should be a part of any mission-critical architecture. Thus, there are design-time tactical and strategic issues that must foresee the run-time tactical and strategic issues. Such considerations will be particularly important whenever information warfare is a vital concern.

    5.5 Information Infrastructure

    The previous sections of this chapter outline improvements that need to be made in computer systems and in networking software. However, Section 4.2 notes that some fundamental problems cannot be solved through better systems and networking software -- specifically, those relating to the underlying information infrastructure (such as the Internet as it exists today). Overcoming the limitations of the Internet is an enormous undertaking, but some drastic measures must be taken immediately to prevent those limitations from becoming significantly worse. The biggest problem of course is that the Internet is an international entity. In May 1996, at a hearing of the U.S. Senate Permanent Subcommittee on Investigations (Senate Committee on Governmental Affairs), in light of testimony on difficulties that exist with being connected to the Internet, Senator Sam Nunn ([377], pages 10-11) asked in essence what would happen if we (the United States) simply cut ourselves off from the rest of the Internet. Perhaps having a national computer-communication infrastructure in addition to the international Internet is in fact a good idea, although it would not solve the problem that the computer systems and networking software are not secure enough, and would defeat the global information interchange purposes of the Internet. But even more fundamentally, if it had gateways and dial-up connections that could be accessible from the rest of the world, it would be very difficult to seal it off. Nevertheless, rigidly controlled private networks are clearly a good idea. (See also [252, 254, 226] for subsequent relevant Senate testimonies.)

    This leads us to one of our most far-reaching conclusions on overcoming the existing deficiencies. It is urgently necessary to supplant the existing TCP/IP/ftp/telnet/udp/smtp set of protocols. Ideally, a fundamentally new set of protocols could be engineered to provide the necessary survivability, security, reliability, and performance (all at once), with robust authentication as a fundamental requirement. Alternatively, a few of the existing protocols might be successfully modified, but we are not encouraged at this point at the likelihood of small incremental improvements. Although IPSEC and IP Version 6 attempt to overcome some of the most glaring weaknesses, they are still not strong enough. In certain less critical cases, it might be possible to use a subset approach, parameterizing the protocols accordingly. However, in the long run, the strategy of replacing the existing fundamentally defective protocols with a new set of survivable and secure protocols might actually be less costly than trying to coexist with those protocols that are clearly not up to the job. In that way, it would be possible to develop highly survivable separate information structures, with perhaps some possibility of trustworthy but highly controlled interoperability with the rest of the world (e.g., the Internet).

    5.6 System Development Practice

    In general, system development practice is truly abysmal and must be improved dramatically. If systems are to be configured primarily out of off-the-shelf components, then development practice is vital to the dependability of those components. However, it is not realistic to expect that operating systems and networking software will improve dramatically. On the other hand, once subsystems have been developed, it is too late to quibble about bad development practice -- particularly if completed systems and networks are to be assembled rather than developed. Furthermore, the best development practice is not very effective if the basic architecture is not suitable.

    A recent thoughtful but somewhat simplistic article by Paul Green [119] is worth noting, entitled "The art of creating reliable software-based systems using off-the-shelf software components." Although the article is concerned primarily with application-system reliability, it presents a few practical guidelines based on Green's 17-year experience at Stratus Computer. For example, if you are a procuring agent, he suggests (we oversimplify for descriptive purposes) that you should select vendors who are committed to reliability, insist on good software engineering practice throughout, make sure your contracts cover the entire life cycle, test in the large and force that process on your contractors, and don't pay off vendors until they deliver what they are required to produce (assuming that you have specified the requirements adequately in the first place).

    5.7 Software Engineering Practice

    Good software engineering practice involves the use of modular design, functional abstraction, well-specified functionality, reusable and interoperable interfaces, information hiding to mask implementation detail, and the use of analysis techniques and tools that greatly reduce the likelihood of flaws and programming errors. Good software engineering practice therefore should also involve the use of high-level programming languages that are intrinsically less susceptible to characteristic errors -- such as missing bounds checks, mismatched types and mismatched pointers, off-by-one errors, and missing exception conditions. As widely used as the C programming language is, it is a continual source of programming errors by skilled programmers as well as novices. Careful documentation is also essential. Potentially, the most powerful techniques may in the long run involve formal methods (Section 5.9), but those techniques are labor intensive and are now becoming much more effective in practice.

    Commercial techniques for software engineering tend to emphasize procedures for controlling and constraining the processes involved in the software development cycle: requirements engineering, specification, implementation, testing, management, quality assurance, and risk management. Testing is inherently incomplete, with the old adage that it demonstrates only the presence of bugs rather than the absence of bugs. Metrics are popular for the development process and for assessing code quality, but are not definitive. Code inspections are also popular, but not conclusive. Assessment of risk management is inherently a risky process (see [250], pages 255-257).

    Many of the commercial software engineering techniques are supported by automated or semiautomated tools. Indeed, the ones that are not supported by mechanical tools are of very limited value. The use of software engineering tools can be advantageous, particularly in detecting the characteristic errors noted above. One of the most useful tools in recent years is the purify program, which detects garbage collection problems resulting from unfreed storage. However, overreliance on such tools can result in serious risks in the absence of human intelligence. Furthermore, overemphasis on the processes rather than on the requirements, the designs, and the implementations themselves can be misleading. Not surprisingly, the Year-2000 Problem is forcing a rethinking of much of the old-style conventional wisdom relating to software engineering. Those who take the challenge seriously are likely to realize the need for radical change in making the so-called software engineering field more of an engineering discipline. (See a provocative article by David Parnas [283] on that subject.)

    Use of the object-oriented paradigm in the system design itself may be beneficial (particularly with respect to system integrity), for example, creating a layered system in which each layer can be looked upon as a strongly typed object manager, as in the PSOS design [102, 260]. That paradigm combines four principles of good software engineering - abstraction,  encapsulation,  inheritance, and polymorphism. Inheritance is the notion that related classes of objects behave similarly, and that subclasses should inherit the proper type behavior of their ancestors; it allows reusability of code across related strongly typed classes. Polymorphism is the notion that a computational resource can accept arguments of different types at different times, and still remain type safe; it permits programming generality and software reuse. (A recent effort to model dynamically typed access controls is given by Tidswell and Potter [373].)

    Ultimately, the choices of which of many development methodologies, testing techniques, and assurance methods are used is not particularly critical. What is most important is that software development managers understand the development process, that designers understand the full implications of their designs, and that implementors respect the integrity of the designs when those designs are adequate but that they also recognize when the designs are faulty. The methods and tools can go only so far. Inevitably, it is the people in the process that matter, and they cannot be automated.

    Software Architecture in Practice [31], a potentially useful recent book from the Carnegie-Mellon University Software Engineering Institute, considers the business cycle and organizational forces behind software architecture. It presents a management-oriented view of some of the problems that we consider here.

    5.8 Subsystem Composability

    Parnas [77, 278, 277, 279, 288, 289, 280, 286, 281, 285, 282, 287] (listed chronologically) and Dijkstra [93, 94, 95] have for many years written extensively on the modular decomposition of system designs. (Various other authors have written more recently on this subject.) Unfortunately, most commercial systems are seriously lacking in their architectural structure.

    The effects of module composition on the corresponding security models have been studied extensively in recent years (e.g., [3, 40, 129, 192, 195, 196, 197, 198, 202, 213, 325, 330, 370, 394, 395]). In many cases, however, seemingly straightforward compositions have unpredicted side effects, in some instances interfering with one another. (A case of supposedly independent cryptographic security protocols interacting unsecurely is given by [153].)

    In other efforts less specifically related to security, there has been considerable research in combining models, theories, equational and other logics, term-rewriting systems, and data structures. However, most of these efforts have considered the simplest forms of composition (particularly those involving serial hookups without feedback) and the effects that result from simple combinations of policies or models; these efforts have often been extremely theoretical -- with not much applicability to real system needs such as the implications of composed implementations.

    When great care has been taken to achieve interoperable modularity, modular composition is relatively straightforward. More commonly, however, composition is not an a priori design consideration, and composability may be very difficult. Ideally, it should be possible to configure a specific system capable of attaining the desired (sub)set of requirements, parametrically tailored to each specific application. Integration of the chosen components should be attainable with minimum effort, with respect to design, implementation, operation, and maintenance. Composition should address the incorporation of less trustworthy components (e.g., as in Byzantine agreement) as well as compromise of trustworthy components. As applicable, common useful middleware components should be identified from which survivable systems can more readily be configured -- in the sense of a virtual survivable trusted computing base that can survive certain threats despite the presence of a less trustworthy underlying operating system. System adaptability under perceived threats may also be useful.

    At the Eighth ACM SIGOPS European Workshop in Sintra, Portugal, in September 1998 (see [24]), a rather awkward debate took place. The stated argument was that the development of robust distributed systems from components is impossible [155]. Although "a marginal majority disagreed" with this proposition, there are strong arguments that emerge from the discussion bearing on why composition is not straightforward in any realistic situations. However, a deeper conclusion that might be drawn from that debate is that we must work much harder to establish criteria under which composition does not compromise robustness, and perhaps even enhances it -- as suggested by the notion of generalized dependence.

    5.9 Formal Methods

    [T]he representation of structure is the most important aspect of programming for purposes of formalization.
    Bob Barton, May 1963 [30]

    Formal methods can play an important role in the attainment of systems and networks that must achieve generalized survivability, in specification, design, and execution. Great improvements in system behavior can be realized when the requirements (such as survivability, security, and reliability) have a formal basis. Similarly, enormous benefits arise whenever design specifications have a formal basis -- especially if they are derived from well-specified requirements rather than the common practice of being established after the fact to represent an ad hoc assembly of already-developed software (sometimes referred to as putting the cart before the horse). Formal design verification then involves formal demonstrations that the specifications are consistent with their requirements, providing no less than required -- and to the extent that the absence of Trojan horses can be demonstrated, nothing unexpected that might be harmful. Verification of designs is difficult for systems that were not designed to be readily analyzed, but can nevertheless be valuable in legacy systems (as in analyses of the risks associated with the Year-2000 problem). Finally, although it is less commonly practiced in software, formal code verification can demonstrate that a given implementation is consistent with its specifications. Formal hardware verification is being used increasingly, and demonstrates the potential effectiveness of formal methods where there are considerable risks (financial or otherwise) of improper design and implementation.

    Various formal methods can be valuable in specifying and analyzing requirements, designs, and implementations, as well as in compositionality. Of particular importance in connection with survivability are techniques that can provide formal relationships between different layers of abstraction -- with respect to requirements and specifications alike. The use of formal methods is recommended in particularly critical applications, and can help move the current highly unpredictable ad hoc development process into a much more predictable formal development process. In the long run, use of such techniques can dramatically decrease the risks of system failure. Contrary to popular myth, judicious use of formal methods can also decrease the overall development and operating costs -- especially when the costs of aborted developments (such as the cancellations of the IRS, FAA, FBI systems noted in Section 4.3) are considered, along with the costs of overruns, delays in delivery, and subsequent maintenance.

    Judicious use of formal methods can have a very high payoff, particularly in requirements, specifications, algorithms, and programs concerned with especially critical functionality -- such as concurrency, synchronization, avoidance of deadlocks and race conditions in the small, and perhaps even network stability and survivability in a larger context, derived on the basis of more detailed analyses of components. There is no substitute for using demonstrably sound algorithms (e.g., [343]).

    Important early work on the effects of composition using hierarchically layered abstractions was part of SRI's Hierarchical Development Methodology effort (see Robinson and Levitt [322]). For some reason, this work is still relatively unknown, although it is vital to formal reasoning about subsystem composition and analysis of emergent properties.

    Of particular importance is the formal analysis of requirements -- for example, determining whether a given set of requirements at a particular layer of abstraction is consistent within itself, whether the different sets of requirements at the lower layer are fundamentally incompatible with one another, and whether the requirements at a lower layer are consistent with the requirements at the upper layer. Once such an analysis is done, then it is also beneficial to determine whether system specifications and implementations are consistent with the relevant requirements. (Formal analysis applied to safety requirements is considered in [126].)

    It must be emphasized that the most valuable uses of formal methods are in finding flaws and inconsistencies, not in attempting to prove that something is completely correct. However, formal methods approaches are not absolute guarantees, because problems can exist outside of their scope of analysis. For example, suppose that a given analysis does not detect any flaws or inconsistencies in a specification or implementation. It is still possible that the requirements are inadequate (e.g., the specifications could fail to prevent a problem not covered by the requirements), or that the analysis methods themselves could be flawed. For these reasons, extensive testing of developed systems is also important - albeit inherently limited.

    Unfortunately, testing is itself inherently incomplete and incapable of discovering many types of problems -- for example, stemming from distributed system interactions and concurrency failures, subtle timing problems, unanticipated hardware failures, and environmental effects. Exhaustive testing over all possible scenarios is basically impossible in any complex system.

    Considering that survivability, security, reliability, and fault tolerance are all weak-link properties, formal methods and nonformal testing are both useful approaches in attempting to find the weak links. Neither is adequate by itself. An interesting nonformal approach to fault injection to detect failure modes is given by Voas and McGraw [382]; similar ad hoc approaches are common with respect to red-team attacks in testing would-be secure systems.

    Formal methods have been used extensively in the past for security   (e.g., [60, 79, 144, 172, 176, 251, 269, 270, 309, 331], fault tolerance   (e.g., [67, 131, 163, 180, 206, 227, 228, 274, 293]), general consistency [101], object-oriented programs (e.g., [4]), composability (as noted in Section 5.8), compiler correctness (e.g., [368]), protocol development (e.g., [132, 154, 358]), hardware verification and computer-aided design [363], and human safety (e.g., [126, 341]) but to our knowledge not for survivability, or for security and fault tolerance in combination. One serious attempt at a broader approach comes from the European dependability community, which tends to consider dependability as an all-embracing quality (as noted in Section 1.2.3). A representative example of that approach is found in the work of Gerard Le Lann [170, 171] relating to "X-critical applications", where X could be any qualifier such as life, mission, environment, business, or asset, although his formal methods have thus far been applied primarily to fault tolerance. See the discussion of the role of formal methods in secure system architectures by Neumann [251].

    The work of Jon Millen under the project is summarized in Appendix B. With particular relevance to the formalization of survivability, he has generalized earlier security-related work of Catherine Meadows [203] to address the configurability of survivable services. Earlier results of his survivability work are given in a published research paper [214] that characterizes reconfiguration as a kind of flow property that can be formally satisfied. Millen's recent survivability measure work [216] extends the system model introduced in the reconfiguration paper [214] to a structural hierarchy. Components of system services are viewed as services with components of their own. With this additional dimension, one can define dependency of a service on a lower-level service, and look for a lattice-valued measure of survivability for comparing services that may be at different levels. The concepts in the measure paper have been simplified dramatically, yet still lead to a max-min formula for the measure that satisfies the intuitively necessary properties. The work also considers uniqueness properties for the measure and other properties of the hierarchical structure, such as criticality of sets of components.

    Other papers were also done by Millen with at least partial ARL support, relating to certificate revocation [211, 217] and reasoning about public-key infrastructures [218]. (Jon Millen is also working under a DARPA contract to formally model and prove properties of network protocols and cryptographic protocols, using SRI's PVS verification system for formal proofs -

    Formal methods are also the basis for methods for belief logics that permit the systematic analysis of cryptographic protocols, stemming from the Burrows-Abadi-Needham BAN logic [66], as well as more recent work by Gong, Needham and Yahalom [115], Meadows [204], Kailar and Gligor [146], Alves-Foss [9], Abadi and Gordon [2], and others. There is considerable other work on formal analysis of cryptographic protocols, including Meadows [204] on key management, Lowe [184] on Needham-Schroeder, and Paulson [291, 292], Mitchell et al. [220], and Lincoln et al. [177] on cryptographic and authentication protocols in general. See also Abadi and Needham's formulation of prudent engineering practice for cryptographic protocols [5]. See also Millen and Ruess [212] for a separation of protocol-independent and protocol-dependent analyses (performed under DARPA contract).

    Bellovin [37] shows how formal verification can be used to constrain the code generation process, which can be particularly important in source-available compilers, where consistency between the semantics of the source code and the semantics of the object code is critical, independent of the compiler.

    See also High-Integrity System Specification and Design, by Jonathan Bowen and Michael Hinchey [61], which applies formal methods to integrity.

    Formal methods can also be used in execution, as in proof-carrying code that can be used to ensure that a critical component has not been tampered with. For example, see George Necula's thesis work [235] and Web site (, including a hands-on demonstration. (An earlier one-page summary of Necula's work in progress is given in [236].)

    Of particular interest in the context of highly survivable systems, formal methods have a potentially vital role in robust source-available software, considered in Section 5.10.

    The SRI Computer Science Laboratory formal methods Web site has assembled an extensive collection of URLs (see representing work within CSL and elsewhere in the world on formal methods.

    5.10 Toward Robust Open-Box Software

    We next consider a challenging alternative to conventional software development.18 Our ultimate goal here is to be able to develop robust systems and applications that are capable of satisfying serious requirements, not merely for security but also for reliability, fault tolerance, human safety, and survivability in the face of the wide range of realistic adversities considered in this report. Also relevant are additional operational requirements such as interoperability, evolvability and maintainability, as well as discipline in the software development process.

    Despite all our past research, development of commercial systems is decidedly suboptimal with respect to meeting stringent requirements.

    To be precise about our terminology, we distinguish here between black-box (that is, closed-box or closed-source) software in which source code is not available, and open-box software (occasionally called clear-box) in which source code is available (although possibly only under certain specified conditions). Black-box software is often considered as advantageous by vendors and believers in security by obscurity. However, black-box software makes it much more difficult for anyone other than the original developers to discover vulnerabilities and provide fixes therefor. Overall, it can be a serious obstacle to having any unbiased confidence in the ability of a system to fulfill its requirements (security, reliability, safety, and so on, as applicable).

    We also distinguish here between proprietary and nonproprietary software. Note that open-box software can come in various proprietary and nonproprietary flavors.

    5.10.1 Black-Box Software

    Dependence on black-box proprietary code and proprietary interfaces can have many disadvantages:

    Windows 2000 (N 5.0) reportedly will have something in excess of 50 million lines of source code (most of that appears to be kernel code), with another 7.5 million lines of associated test code. It is illustrative of each of these factors. Unfortunately, the totality of code on which survivability and security depend is essentially the kernel and operating system plus potentially all the application software that can be loaded at any time. That represents an enormous amount of code that must be trusted (because it is not trustworthy) in any critical application. (Recall the divide-by-zero in an NT application that brought the Yorktown Aegis missile cruiser to a halt, in Section 1.6.)

    Spinellis [361] compares the number of system calls in Windows SDK (1998, 3422 calls) with First Edition Unix (1971, 33 calls), SunOS 5.6 (1997, 190 calls), and Linux 2.0 (1998, 229 calls). The comparison is not flattering to the Windows environment.

    A humorous but subliminally serious assessment of the use of commercial off-the-shelf (COTS) systems is given by David Carney [69].

    5.10.2 Open-Box (Source-Available) Software

    In contrast with proprietary black-box software systems, various forms of open-box software and nonproprietary software offer opportunities to surmount these risks enumerated in the previous section, in various ways.

    The benefits of nonproprietary open-box software include the ability of outside good guys to carry out peer reviews, add new functionality, identify flaws, and fix those flaws rapidly -- for example, through collaborative efforts involving people widely dispersed around the world. Of course, the risks include increased opportunities for evil-doers to discover flaws that can be exploited, or to insert trap doors and Trojan horses into the code.

    The Free Software Foundation (FSF) uses the term free software to imply that the users and redevelopers of the software have certain freedoms that do not arise with proprietary software -- in particular, freedom to copy and freedom to change; however, the cost of the software may or may not be free, so that there are still opportunities for entrepreneurs in developing and maintaining such software. The Free Software Foundation Website at contains software, projects, licensing procedures, and so on. It includes a treatise by Richard Stallman on "Why Free Software is better than Open Source" ( It also defines the FSF General Public License (GPL), which enforces copyright plus copyleft, where copyleft requires that redistribution (with or without change) must not restrict freedom to further copy and change.

    The Open Source Movement has registered the term Open Source as a certification mark. The term is specified by the Open Source Definition (, although there are no restrictions on the use of software subject to that definition. The requirements of the Open Source Definition specify unrestricted redistribution; distributability of source code; permission for derived works; constraints on integrity; nondiscriminatory practices regarding individuals, groups, and fields of endeavor; transitive licensing of rights; context-free licensing; and no adverse effects on associated software. The Open Source Movement Website is, which includes Eric Raymond's "The Cathedral and the Bazaar" and the Open Source Definition. Because of these terminology confusions, we use the term "open-box" to denote source-available code, encompassing both free software and Open-Source software.

    By referring here to nonproprietary open-box software, we encompass the efforts of both the Free Software Movement and the Open Source Movement. Nonproprietary open-box software is increasingly found in the Free Software Movement (such as the Free Software Foundation's GNU system with Linux) and the Open Source Movement. Both of these movements believe in and actively promote unconstrained rights to modification and redistribution of open-box software.

    It is a sad commentary on many commercial and proprietary software developments that some of the most useful, flexible, and robust software components today are nonproprietary open-box software products, often the results of labors of love, and widely available free of charge over the Internet or with minimal encumbrances. (Three examples of nonproprietary open-box software have been particularly valuable in the preparation of this report: the GNU Emacs editor, the LaTeX document system, and Hyperlatex -- which generates html from LaTeX source.)

    Examples of open-box software within the Free and Open-Source software communities include GPL-ed software (e.g., The GNU System with Linux, GNU Emacs, GCC, Gnome 2.0, Ghostview, GNUscape Navigator, gzip, Java packages) and Free VSD; not quite GPL-ed software (Perl); non-GPL free software (Free BSD, X windows, Apache, LaTeX, Mozilla, Netscape JavaScript ...); and Open BSD, Net BSD, Hyperlatex, Eazel's Linux graphical shell, ... ("GNU" is a recursive acronym, representing "GNU is Not Unix".) Other licenses besides GPL include MPL and QPL; more variants are likely to emerge in the future.

    The roles of open-box software in developing highly survivable systems are a recurring theme in the rest of this report, in light of (for example) the Internet, typically flawed operating systems, vulnerable system embeddings of strong cryptography, and the presence of mobile code. An architectural subquestion involves where trustworthiness must be placed to minimize the amount of critical code and to achieve robustness in the presence of the specified adversities, and that question is addressed further in Chapter 7.

    A highly oversimplified question is frequently asked: "Will open-box software really improve system security?" The obvious answer is not by itself, although the potential is considerable. Many other factors must be considered. Indeed, many of the problems of black-box software can also be present in open-box software, and vice versa (for example, flawed designs, the risks of mobile code, a shortage of gifted system administrators, and so on). In the absence of significant discipline and inherently better system architectures, opportunities may be even more widespread for insertion of malicious code in the development process, and for uncontrolled subversions of the operational process.

    In attempting to exploit open-box software, we face a basic conflict between (a) security by obscurity to slow down the adversaries, and (b) openness to allow for more thorough analysis and collaborative improvement of critical systems -- as well as providing a forcing function to inspire improvements in the face of discovered attack scenarios. Examples of analytic tools for evaluating open-box source code include

    Ideally, if a system is meaningfully secure, open specifications and open-box source should not be a significant benefit to attackers, and the defenders might be able to maintain a competitive advantage! For example, this is the principle behind using strong openly published cryptographic algorithms -- for which analysis of algorithms and their implementations is very valuable, and where only the private keys need to be hidden. Other examples of obscurity include tamperproofing and obfuscation. Unfortunately, many existing systems tend to be poorly designed and poorly implemented, with respect to incomplete and inadequately specified requirements. Developers are then at a decided disadvantage, even with black-box systems. Besides, research initiated in a 1956 paper by Ed Moore [221] reminds us that purely external (Gedanken) experiments on black-box systems can often determine internal state details.

    Behavioral system requirements such as safety, reliability, and real-time performance cannot be realistically achieved unless the systems are adequately secure. It is very difficult to build robust applications based on proprietary black-box software that is not sufficiently trustworthy.

    The 1956 papers by John von Neumann [384] and by Moore and Shannon [222] noted in Section 1.2 showed how to construct reliable components out of less reliable components. Later work on correct behavior despite some number of arbitrarily perverse Byzantine faults followed along those lines. In that context, building a fault-tolerant silk purse out of less robust sow's ears is indeed possible in some cases. But constructing more trustworthy secure systems out of less trustworthy subsystems does not seem realistic when the underlying components are compromisible, despite efforts such as wrapper technology and firewall isolation.

    Whenever achieving security by obscurity is not the primary goal, there seem to be strong arguments for open-box software that encourages open review of requirements, designs, specifications, and code. Even when obscurity is deemed necessary, some wider-community open-box approach is desirable. For software and for system applications in which security can be assured by other means and is not compromisible within the application itself, the open-box approach has particularly great appeal. In any event, it is always unwise to rely solely on obscurity.

    So, what else is needed to achieve trustworthy robust systems that are predictably dependable? The first-level answer is the same for open-box systems as well as closed-box systems: serious discipline throughout the development cycle and operational practice, use of good software engineering, rigorous repeated evaluations of systems in their entirety, and enlightened management, for starters.

    A second-level answer involves inherently robust and secure evolvable interoperable architectures that avoid excessive dependence on untrustworthy components. Of course, potential risks can be associated with nonproprietary software as well as proprietary software -- for example, relating to the authenticity of the sources and the trustworthiness of the distribution paths. To combat ordinary code hacking as well as the three forms of compromise noted in Section 1.3, a broad-spectrum combination of techniques is desirable, including (for example) cryptographic checksums, trustworthy software distribution channels, and public-key authentication schemes, which together can overcome some of the uncertainty as to the trustworthiness of any code version that you might be using. One of the primary architectures considered in this report involves thin-client user platforms with minimal operating systems, where trustworthiness is bestowed where it is essential -- typically, in servers, firewalls, code distribution paths, nonspoofable provenance for critical software, cryptographic co-processors, tamperproof embeddings, preventing denial-of-service attacks, run-time detection of malicious code and deviant misuse, and so on. A less feasible alternative in terms of today's technology involves much more trustworthy end-user platforms.

    A third-level answer is that there is still much research yet to be done (such as on realistic compositionality, inherently robust architectures, and open-box business models), as well as more efforts to bring that research into practice. Effective technology transfer seems much more likely to happen in open-box systems.

    Nonproprietary open-box systems are not a panacea. However, they have potential benefits throughout the process of developing and operating critical systems. Impressive beginnings already exist. Nevertheless, much effort remains in providing the necessary development discipline, adequate controls over the integrity of the emerging software, system architectures that can satisfy critical requirements, and well-documented demonstrations of the benefits of open-box systems in the real world. If nothing else, open-box successes may have an inspirational effect on commercial developers, who can rapidly adopt the best of the results. But the possibilities are considerable for coherent community cooperation in the development of nonproprietary open-box software, especially if adequately supported.

    Because some of the serious systemic deficiencies are not likely to be overcome in proprietary systems (Section 4.3), it would be highly advantageous to make more systematic use of nonproprietary software, especially if the source code is openly available, and if it can be made more robust than its proprietary counterparts, and if trustworthy distribution paths can be established and used consistently in a trustworthy manner. Also important is the systematic use of nonproprietary interface standards that have been explicitly created with interoperability in mind.

    Particularly serious potential problems with Trojan horses might be implanted in variant versions of open-box software. A paradigmatic risk is provided by Ken Thompson's C compiler example [372], noted in Section 1.3. In fact, compilers used to produce critical-system code present some special problems. Bellovin's approach to using formal verification [37] is relevant in demonstrating consistency between source code and object code, which is a particularly thorny problem when insiders (such as Ken Thompson!) are able to tinker with the compiler itself.

    It is unfortunate that so few robust open-box security systems exist, particularly because closed-source systems represent a violation of the principle of scrutability (see Section 7.1). In a recent communication, Stallman notes that the GNU Project is working on Free Software for public-key encryption. The GNU Privacy Guard, a free and non-patent-infringing replacement for the non-free program PGP, is already being used. LSH, a free and non-patent-infringing replacement for the non-free program SSH, is in development but not yet ready for use.

    The research literature is full of public-key-based authentication protocols, and an important recent demonstration showed that serious authentication cannot be done without some form of public-key crypto [122]. The Diffie-Hellman public-key cryptographic algorithm [92] is now in the public domain. A few simple schemes for login authentication are freely available, such as S-Key one-time passwords. The MIT Athena Kerberos and Berkeley BSD Unix are further examples where security has been a serious concern, although Kerberos has experienced a variety of security flaws. PGP (Pretty Good Privacy) is becoming more widespread as it becomes seamlessly embedded in e-mail environments, although has had some proprietary underpinnings. Some of those products can also be obtained commercially through organizations that provide operational and maintenance support, such as PGP and Red Hat Linux. Indeed, it is not essential that nonproprietary software be available free of charge, and considerable value can be added by commercial enterprises. What is important is that the software be available for open scrutiny, able to be improved over time as a result of an open collaborative process, and able to be subjected to distributional controls to ensure its integrity.

    We need significant improvements on today's software, both proprietary and otherwise, to overcome myriad risks (see the RISKS archives,, or the Illustrative Risks document, When commercial systems are not adequately robust, we must consider how sound open-box components might be composed into demonstrably robust systems. This requires an international collaborative process, open-ended, long-term, far-sighted, somewhat altruistic, incremental, and with diverse participants from different disciplines and past experiences. It also requires serious attention to the reasons why composition has been so risky in the past (as discussed in the debate [155] noted at the end of Section 5.8). Pervasive adherence to good development practice is also necessary (which suggests better teaching as well). The process needs some discipline, in order to avoid rampant proliferation of incompatible variants. Fortunately, there are already some very substantive efforts to develop, maintain, and support open-box software systems, with significant momentum. If those efforts can succeed in producing demonstrably robust systems, they will also provide an incentive for better commercial systems.

    Overall, we need techniques that augment the robustness of less robust components, public-key authentication, cryptographic integrity seals, good cryptography, trustworthy distribution paths, and trustworthy descriptions of the provenance of individual components and who has modified them. We need detailed evaluations of components and the effects of their composition (with interesting opportunities for formal methods). Many problems must be overcome, including defenses against Trojan horses hidden in systems, compilers and evaluation tools, in hardware, source code, and object code - especially when perpetrated by insiders. We need providers who give real support; warranties on systems today are mostly very weak. We need serious incentives including funding for robust open-box efforts. Despite all the challenges, the potential benefits of robust open-box software are worthy of considerable collaborative effort.

    Plans for the collaborative research and development of trustworthy survivable (e.g., robust, secure, reliable) interoperable nonproprietary open-box software components are beginning to germinate. We must seek an open process that encourages the development of systems and components addressing the essential problems defined in this report, and which might initially be called Pretty Good Survivability (PGS). The intent is that, through long-term open collaborative efforts involving research and development communities and universities, PGS could gradually evolve into Very Good Survivability (VGS). At the moment, VGS seems like a dream, but it seems to be feasible if PGS is suitably motivated. It also seems absolutely essential to the future of highly survivable systems, and should be well worth whatever effort it requires.

    A discussion group for the encouragement of efforts to produce robust nonproprietary open-box software (whether "Open-Source" or "Free") that I formed on 11 November 1998 has had some insightful discussions. (To join, send e-mail to with the one-line content subscribe -- or subscribe [your address] if your desired address is different from your from: address; Majordomo will accept contributions for the group only from your specified to: address.)

    An interesting discussion of whether open-box software can increase security is found in the position papers for a panel session at the 2000 IEEE Symposium on Security and Privacy, with papers by Steve Lipner [183], Gary McGraw [199], Neumann [258], and Fred Schneider [344]. An additional panel position paper written by Brian Witten, Carl Landwehr, and Michael Caloyannides arrived too late for inclusion in the proceedings, but is available on-line: Also on the panel was Eric Raymond, who noted that the combined forces of the open-box movement involve 7000 active projects, 750,000 participants, and 150,000 hard-core developers. That represents a very considerable potential force to be mobilized!

    A fundamental dichotomy seems to exist between systems that must be safe and reliable on one hand, and secure on the other. In the former case, open-box software is extremely desirable to permit extensive analysis. In the latter case, the ingrained predilection tends to promote security by obscurity -- whether or not it is necessary. Highly survivable mission-critical systems clearly deserve greater scrutiny than afforded by closed-source software, but perhaps may not merit completely open-box software where the attackers clearly have the advantage. Ideally, if a system is secure, it should be possible for the design and implementation to be available. However, many of today's systems are so far from adequate that this ideal seems unattainable. Thus, this dichotomy remains very difficult to resolve adequately.

    5.10.3 Use of COTS Software in Critical Systems

    This section summarizes some of the most relevant papers from a recent NATO conference [229] on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS (in addition to the slides presented by Neumann [257], which are included in the proceedings of that conference, and whose conclusion are summarized at the beginning of this section).

    As seen from the excerpts, most of these conference papers reflect fairly skeptical views of developing and configuring mission-critical systems out of conventional mainstream COTS products, with many caveats.

    5.11 Integrative Paradigms

    Reliability, fault tolerance, security, and indeed survivability must be conceptually integral to hardware and software, despite the desire to use off-the-shelf weakware as the basis for critical applications. In principle, mainstream concepts should be used where applicable, although their shortcomings must be overcome. Good software engineering practice should be used in applications as well as system development. The entire process of program development should be systematized wherever possible. Formal methods should be applied to particularly critical algorithms and programs.

    A particularly thorny area involves the need for metrics permitting the definition and analysis of survivability relevant attributes. On one hand, reliability requirements and fault-tolerance mechanisms are nicely amenable to metrics and probabilistic analysis. On the other hand, security and survivability tend to be much less easily characterized using metrics -- with just a few exceptions. One such exception involves work factors regarding the effort to break a given cryptographic algorithm. However, the simplistic application of such metrics is dangerous. For example, the implementation of a given strong cryptographic algorithm may be trivially compromisable from below, from within, or from outside, because of vulnerabilities in the operating system or the application in which the cryptography is embedded. Another example is an attempt to come up with the security of a given operating system. In general, given all the known flaws, the would-be security is typically easily penetrated; furthermore, the likelihood of unknown flaws should make any quantitative measures of security suspect. Nevertheless, the appropriate use of metrics is desirable.

    As described in Section 4.3, the supercomputing field has suffered in the past from a serious case of myopia. Some of the lessons that can be drawn from that experience are directly applicable to the need for highly survivable systems and networks.

    Several potentially useful research directions are also noted below, in Sections 5.17 and 9.2.

    5.12 Fault Tolerance

    This report does not attempt to replicate the vast literature of techniques for fault tolerance. For example, techniques for increasing system reliability in response to hardware faults and communications failures are explored in general in [43, 96, 123, 161, 169, 246, 293, 311, 314, 356]. Failure recovery in the context of Tandem's NonStop Clusters is considered by Zabarsky [393], representing a serious step toward systemic fault tolerance. Some significant recent research of Kulkarni and Arora relates to compositionality properties of fault tolerance [22, 159] and the somewhat canonical decomposition of fault-tolerant designs into detectors and correctors [23].

    Once again demonstrating the desirability of a confluence of requirements and a corresponding confluence of techniques for combatting security and reliability problems along the lines of the reconvergence of availability requirements in Figure 2, consider the requirements for data integrity in the sense of no-unintended-change shown at the nodes designated by a sharp (#) in the figure. Data integrity can be enhanced through cryptographic integrity checks (typically to protect against malicious alterations) or error-correcting coding techniques (typically to protect against accidental garbling). However, an interesting recent special-purpose use of coding for detecting malicious tampering as well as accidental errors in once-writable optical disks is given by Blaum et al. [44], taking advantage of the asymmetry inherent in certain once-writable storage media in which writing can change the state of a bit only in one direction (e.g., from a not previously written zero bit value to a written one bit, but never the reverse). This is another example of a crossover implementation that can simultaneously address different sets of subrequirements stemming from otherwise independent-seeming major requirements. In such cases, considerable benefit can be obtained by recognizing the commonality among otherwise independent subrequirements and then providing a unified treatment in the design and implementation.

    5.13 Static System Analysis

    Many techniques exist for the a priori analysis of system behavior, based on consideration of requirements, design specifications, implementation, and operational procedures. These techniques may be formal (see Section 5.9) or informal. Examples of such techniques are

    In addition, evaluation of the processes that underlie system development may possibly be of interest. Although such process certification does not necessarily say much about a specific development, it may be useful in weeding out the outliers who are completely unqualified -- if the evaluation is itself meaningful:

    5.14 Operational Practice

    Although the primary emphasis of this report is on system and network architectures, operational practice is absolutely critical to survivability. Today's systems and networks place enormous burdens on system administrators and security personnel. Ideally, systems and networks should be designed and implemented to increase the manageability of operations, and the requirements for operations should be included up front, as noted in Section 3.4. Indeed, any cleanliness and controllability inherent in architectures can play a major role in improving the operational practice. The approaches discussed earlier in this chapter and the structural concepts examined in Chapter 7 can help. Also important are monitoring facilities that are accurate, timely, and visually understandable. Thus, including operational requirements among the desired system characteristics is important from the outset.

    An important approach to controlling system and network behavior involves real-time detection and analysis of potentially undesirable deviations from expected behavior, considered in Section 5.15.

    5.15 Real-time Analysis of Behavior and Response

    As noted in Section 4.1, there is a great need for the ability to provide real-time detection and analysis of system and network behavior, with appropriate real-time responses -- from the coordinated perspective of survivability and its subtended requirements. There has been considerable work on this topic for more than a decade.

    SRI has pioneered work on rule-based expert system analysis and statistical analysis, through IDES (Intrusion Detection Expert System [189]) and NIDES (Next-Generation IDES [11, 12, 142, 139]). The current work on EMERALD (Event Monitoring Enabling Responses to Anomalous Live Disturbances) [182, 304, 305] is the current extension of IDES and NIDES to monitor network activity. Overall, we know of no efforts other than EMERALD that are oriented toward the ability to detect problems arising in connection with generalized survivability. (See

    Of course, many other institutions have been developing systems addressing various aspects of the intrusion-detection problem, typically using either rule-based techniques or statistical analyses, but in most cases not both, and usually dealing with users of individual systems or local networks. See Edward Amoroso's new book [10] for an introduction to the field. Many papers are worth reading, including [63, 81, 125, 156, 157, 303, 340]. Bradley [62] considers the effects of disruptive routers. In addition, only a few efforts have addressed fault detection in this context -- for example [140, 193, 208].

    Schneier and Kelsey [349] have developed a cryptographically based step toward the securing of audit logs against tampering and bypassing.

    Another form of real-time analysis involves dynamic network management. Network management should also be integrated with real-time anomaly and misuse detection and real-time reconfiguration as a result of detected problems.

    5.16 Standards

    Standards are important, but can also be extremely counterproductive if poorly conceived or misapplied. Chapter 6 considers the existing and emerging evaluation criteria. Appendix C summarizes some of the Department of Defense efforts to standardize architectures and security services. In particular, Section C.1 considers the attempt to impose standardization through the Joint Technical Architecture (JTA); Section C.2 considers the DoD Goal Security Architecture (DGSA); Section C.3 considers the Joint Airborne SIGINT Architecture (JASA) Standards Handbook (JSH).

    Criteria for security are considered in Section 6, including the U.S. Department of Defense Trusted Computer Security Evaluation Criteria (TCSEC), the European (ITSEC) and Canadian counterparts (CTCPEC), and the new international Common Criteria.

    The British Ministry of Defence has established some rigorous standards for safety-critical systems [375, 376], although it is not clear to what extent they have actually been used.

    International cooperation is inherently a difficult problem, complicated even further in the case of computer system standards and criteria by needs for transborder interoperability, reciprocal evaluations that can be (or indeed, must be) honored in multiple countries, different national needs and perceptions (e.g., on the relevance of multilevel security, and how to achieve it), and so on. There are no easy ways to accomplish such cooperation, but making sure everyone is talking with everyone else is essential.

    As an international nongovernmental organization, the Internet Engineering Task Force (IETF)  ( has been particularly effective in establishing Internet standards, with considerable emphasis on interoperability and change control. (The IETF strongly favors open interfaces, and tolerates proprietary standards only where open standards also exist.) In addition, other standards are emerging from the Open Group
    (, the IEEE  (, the Association for Computing (ACM)
    (, and other organizations. However, the IETF process must work harder to achieve better protocols that encompass more of the survivability issues addressed in this report.

    The certification and licensing of programmers is also being considered in some circles as an approach to standardizing developer skills. See recent position papers by Parnas [284] and Neumann [255] from the 2000 IEEE International Conference on Requirements Engineering.

    5.17 Research and Development

    Historically, research has provided some powerful techniques for increasing survivability, reliability, and security, although much of the potentially most valuable research has not found its way into commercially available personal computer products, and only occasionally into computer systems. Serious research is still needed to address some of the remaining deficiencies.

    In this report (see Section 7.2), we pursue the notion of generalized multilevel survivability (MLX, introduced in Section 1.2) that draws on past experience with multilevel security, multilevel integrity, and multilevel availability. We do this not with the expectation that system developers will rewrite all their systems, but rather with the expectation that the MLX concept might provide some useful architectural insights.

    The mobile-code paradigm is an important topic for future R&D, with respect to security and reliability. (See Section 7.4.)

    Research results also suggest some dramatic changes in high-performance computing, which if properly applied could reverse the rather negative historical perspective noted in Section 4.3. For example, two recent software-based efforts are illustrative of a kind of new thinking that could be very beneficial. Each is a different new paradigm that has considerable potential in the development of high-performance systems.

    Specific recommendations for future research and development are given in Section 9.2. The R&D recommendations of the President's Commission on Critical Infrastructure Protection are summarized in Section 9.7.

    5.18 Education and Training

    Issues such as reliability, security, and system survivability need to become a part of a broader educational curriculum and institutional training programs. The same is true of an understanding of vulnerabilities, threats, and risks. The desired audience includes not just programmers and system developers, but also administrators, legislators, system procurement agents, and even prospective users. However, in the final analysis, education and training cannot be effective unless effective system solutions are available to be learned. Appendix A outlines course curricula for survivability.

    5.19 Government Organizations

    Chapter 7 of the report of the President's Commission on Critical Infrastructure Protection [194] recommends the establishment of some new organizational entities. It is worth reviewing them, because they bear directly on the problems of infrastructure survivability.

    This seems to represent a considerable increase in the institutionalization of an already highly bureaucratic situation, especially in that the PCCIP has focused largely on the so-called critical national infrastructures and seriously underplayed the importance of the computer-communication infrastructures. Very little in the PCCIP report suggests that the survivability, security, availability, or reliability of the computer-communication and information infrastructures would gain significantly from these organizational entities. In addition, there is still no constituency for the non-DoD non-U.S.-Government user public, as has been pointed out on various occasions -- including in the 1990 in the Computers at Risk study [72].

    In the meanwhile, President Clinton has reconstituted the PCCIP concept by creating a Critical Infrastructure Assurance Office (CIAO), and created the office of the National Coordinator for Security, Infrastructure Protection, and Counter-Terrorism, which will be responsible for a broad range of policies and programs related to cyberterrorism. In addition, the FBI is establishing a National Infrastructure Protection Center (NIPC) to counter individuals and organizations that commit computer crimes. (See Presidential Decision Directives PDD 62 on counterterrorism and PDD 63 [73], aimed at reducing the vulnerabilities.)

    Unfortunately, the U.S. Government has had little success in enticing certain major commercial developers to do the right thing -- namely, to significantly increase the survivability, security, and reliability of their systems. That shortcoming may ultimately be the limiting factor -- despite the hopefulness expressed in some of the recommendations of our report.

    Also, unfortunately, the Government seemingly has not had much success in achieving a minimal level of competence in avoiding security risks (as evidenced by Deputy Secretary of Defense John Hamre calling the Cloverdale kids' cookbook attack the "most organized and systematic the Pentagon has seen to date" -- see the Risks Forum, volume 19, issue 60  ( or in dealing with computer systems at all (as evidenced by the huge effort to surmount the Y2K challenge -- see Congressman Stephen Horn's Y2K report card,, which was updated quarterly for several years prior to Y2K and showed slow progress for a long time). It is a huge challenge merely getting competence levels in security up to the levels suggested in Fighting Computer Crime [275].

    Further information on Web sites for some of the above organizations and for the Carnegie-Mellon Software Engineering Institute's Computer Emergency Response Team (CERT) are given in Appendix D (Some Noteworthy References) at the end of this report.

    6 Evaluation Criteria

    The currently existing evaluation criteria frameworks are not yet comprehensively suitable for evaluating highly survivable systems and networks. Even with regard to security by itself, the existing criteria are incomplete and inadequate. In addition, there is almost no experience in evaluating systems having a collection of independent criteria that might contribute to survivability, and the interactions among different criteria subsets are almost unexplored outside of the context of this report. Nevertheless, a good set of security criteria -- if it existed -- would be very valuable.

    This section considers the emerging Common Criteria effort, which is attempting to overcome many of the deficiencies of its precursors, the DoD Trusted Computer Security Evaluation Criteria Rainbow series (e.g., the TCSEC [233], TNI [231], and TDI [232]), the European ITSEC [99], and the Canadian CTCPEC [68].

    The evolving Common Criteria document has been undergoing extensive review, preparatory to being submitted as an ISO standard. See for the latest draft documents and progress toward establishing the Common Criteria. (Version 2.1 was posted 31 January 2000.)

    Any set of requirements, and indeed any generic (abstract) systems architecture, must not overly constrain the implementations of systems intended to satisfy those requirements. This is an inherent danger in the TCSEC, but less so in the other criteria because they are frameworks for evaluation rather than prescriptive requirements. In addition, the ITSEC and CTCPEC effectively distinguish functional requirements from assurance requirements, and that useful distinction has been continued in the Common Criteria.

    There is also a serious danger of underconstraining the resulting systems and networks. For example, the Rainbow series of trusted-system criteria may overconstrain implementations with respect to the bundling of criteria elements at a particular evaluation level (e.g., A1, B3, B2, B1, C2), but also underconstrain the implementations with respect to many other criteria elements that are omitted -- relating to networking, application security, modern authentication (e.g., using one-time tokens instead of fixed reusable passwords), fault tolerance, reliability, real-time performance, interoperability, reusability, software engineering, and the development process, to name just a few. These aspects are absolutely fundamental to the successful procurement and development of suitable systems and networks that can satisfy stringent requirements. Simply adhering to very superficial but allegedly definitive generic requirements and criteria (Orange Book, Red Book, and others), procurement cookbooks, and Chinese menus for system configuration is doomed to failure. In addition, despite the enormous proliferation of the Rainbow series in multitudinous colors, the TCSEC is intrinsically incomplete, for a variety of reasons.19 For example, it deals primarily with confidentiality in centralized systems (failing to keep up with the last decade of progress in distributed systems and networked systems, and not adequately treating integrity and the prevention of Trojan horses and other pest programs). It is monolithic, in that it lumps together functionality and assurance, and within functionality criteria lumps together requirements that are more rationally treated somewhat independently. For example, the notion of fixed passwords does not make much sense in systems that demand high assurance. Cryptography is basically ignored. The TCSEC does not adequately concern applications and systems configured out of other systems, stressing primarily trusted system components. It also typically ignores survivability, reliability, fault tolerance, performance, interoperability, real-time requirements, system engineering and software engineering, system operations, and many other issues that are essential to the development and configuration of survivable systems and networks.

    The desire to be able to configure critical systems out of off-the-shelf components and particularly off-the-shelf software is commendable, but largely a fantasy. Commercially available infrastructure components (operating systems, database management systems, networking software, and application software) are typically not able to fulfill stringent requirements. In some cases extensive customization is required, and is still inadequate. Furthermore, considerable expertise is required to operate and maintain the resulting systems. The concept of turn-key systems satisfying extremely complex critical requirements is unrealistic.

    What is needed in the future is more efforts aimed not at cookbooks but rather at constructive documentation of worked examples providing the following:

    7 Architectures for Survivability

    The appropriate use of structure is still a creative task, and is,
    in our opinion, a central factor in any system designer's responsibility.

    Jim Horning and Brian Randell, 1973 [133]

    Intelligently conceived system structure remains seriously undervalued. The appropriate use of structure was already recognized as a creative task in Multics (e.g., see [75]) in 1965, and its benefits in that system were very considerable in the process of development and subsequent evolution. Reflecting on the Horning-Randell quote above, it is still a vital creative task in the new millennium -- perhaps even more so than before. However, it must be accompanied by thorough understanding of the desired requirements and their implications, as well as detailed engineering to ensure that the implementation does not undermine what the structure has attempted to achieve.

    The emphasis in this report is on architectural structures and structural architectures that are independent of particular system and network designs and independent of specific implementations, but still firmly rooted in the broad set of requirements for survivability. In this way, we avoid getting mired in the distinctions among the Joint Technical Architecture's "technical architectures", "operational architectures", and "systems architectures" (see Appendix Section C.1) -- all of which lack a true sense of architecture - as well as the DoD Goal Security Architecture's abstract, generic, specific, and logical architectures and its so-called security architecture (see Appendix Section C.2).20

    Some of the architectural structures considered here involve relatively untrusted end-user systems combined with ultra-dependable trustworthy servers out of which structural architectures can be conceived, and from which survivable systems and networks can be developed or configured. Of particular interest are architectural structures that include authentication servers, file servers, and network servers, which under generalized dependence can overall provide highly survivable and highly secure systems and networks.

    Some of the short-term candidate architectures can eventually be made more survivable by gradual evolution. Unfortunately, some of the longer-term approaches that could achieve truly high survivability require more revolutionary new directions; they are much more farsighted, and consequently less likely to win popular support among those system developers who are bent on lowest-possible-cost solutions. The recent not-too-surprising discovery by NASA that their "faster, cheaper, better" approach is a resounding failure is a clear illustration of the risks. Faster and cheaper are generally not better when systems are mission critical. (For example, see RISKS-20.84 and .86 for some discussion on the Mars Lander, and Leveson [174] for an analysis of the role of closed-box proprietary software in mission-critical systems.)

    This chapter considers multilevel-secure systems as well as single-level systems. Single-level systems are ubiquitous. Multilevel-secure systems are desired by the Department of Defense, but introduce many problems of their own -- some of which can interfere with the needs for survivability, particularly if not addressed systemically. Ideally, multilevel-secure systems should be configurable with only minimal dependence on multilevel-secure components, rather than requiring pervasive high-assurance MLS throughout every end-user component. Furthermore, the single-level systems should be integrally related to the multilevel systems, rather than completely different families of architectures. If an architecture is properly conceived, a multilevel system should not have to be significantly different from its single-level counterparts. This is a goal that has not previously been pursued, and runs counter to the dictates of the Trusted Computer Security Evaluation Criteria (TCSEC) discussed in Chapter 6. However, it seems highly advisable if MLS systems are ever to become practically achievable. Nevertheless, the inherent incompleteness of MLS requirements must be addressed, in particular with respect to the requirements for integrity and survivability.

    7.1 Structural Organizing Principles

    Several fundamental architectural principles are essential to effective architectural structure, each of which can considerably improve overall survivability. Not surprisingly, these principles have deep roots in the security and software-engineering communities. In particular, see the 1975 paper of Saltzer and Schroeder [337], in which many of the following items are found.

    For a variety of reasons, these organizing principles can contribute to increased system and network survivability -- if they are consistently applied and if they are properly implemented. Note that abstraction, layering, encapsulation, object-oriented approaches, and policy-mechanism separation all can contribute to greater interoperability, reusability, long-term system evolvability, and security. The principles of separation of concerns and least privilege can also substantially improve operational security and reliability.

    These principles can also contribute to improved analysis. In particular, formal methods can be used to analyze requirements, specifications, and implementations. However, such analyses can be greatly simplified by the use of structural concepts -- especially layering, abstraction, encapsulation, policy-mechanism separation, and domain separation. For example, the mappings among layers of formally specified abstractions in SRI's Hierarchical Development Methodology [322] are capable of inducing enormous simplifications in the formal proof process for large systems.

    Approaches that properly address the mobile-code problem demand significant improvements in the information infrastructure. The notion of portable computing is clearly a forcing function on system architectures, and can result in significant improvement of the survivability of the entire system and network complex if consistently reflected in the architecture.

    Ideally, modern software engineering should encompass these organizing principles, although in practice it is frequently not used in a sufficiently disciplined manner to take advantage of them.

    In direct response to the 1990 Computers at Risk report of the National Research Council [72], an effort is proceeding to develop and promulgate a set of Generally Accepted Systems Security Principles (GASSP)  (, and to establish an International Information Security Foundation (I2SF). Many of those principles are relevant to survivability as well, but are clearly not enough by themselves.

    7.2 Architectural Structures

    Several main structuring concepts are of particular interest, each of which has the potential of inducing considerable discipline on architectures employing the structural concepts of Section 7.1, and thereby enhancing survivability. The intent of this section is to summarize various approaches, some of which are competing with one another, others of which may be used in combination. There are clearly tradeoffs that must be considered carefully before embarking on particular architectural directions -- tradeoffs among survivability issues including security, reliability, functionality, performance, and assurance of application behavior.

    What is highly desirable in the long run is the establishment of a family of logical system architectures encompassing the best aspects of those approaches that are really applicable to survivability. For example, we can conceive of systems whose architecture is based on minimizing trustworthiness where possible, using MLS kernels and TCBs in MLS servers where multilevel functionality is essential, using stringent domain separation where multiple users are necessary (but perhaps not in one-user personal computers or in dedicated workstations -- other than the layered isolation of the user from applications, applications from the operating systems, and so on), using dynamic loading of authenticated mobile code from trusted sites, and using explicitly compensating system structures where that approach can have high payoffs. Such an architecture might actually achieve the desired effects of robust MEIIs; however, the goal of achieving MEIIs is derivative; it would be the result of having developed suitable system architectures, and is not meaningfully achievable by itself.

    Multics (Section ArchStruct), PSOS (Section SoftEng), SeaView (Section GenDep), and EMERALD (Section 5.15) are excellent examples of the role of design structure, because developers of each of those systems took great pains to advance the state of the art in constructive structure and good software engineering practice. (See the Noteworthy References cited in Appendix D.)

    7.3 Architectural Components

    7.3.1 Secure Operating Systems

    The vast majority of commercial personal-computer operating systems (notably, those from Microsoft) are a joke when considered with respect to network security and availability. Some of the Unix platforms have matured to the point at which early jokes about "Unix security" being an oxymoron are a less serious concern, although the ability to misconfigure Unix systems is still a critical practical problem.

    In conventional centralized multilevel-secure systems, it is customary to talk about the scope of the security perimeter that encompasses the enforcement of multilevel security -- typically a multilevel-security kernel plus some (often large) amount of trusted code in the TCB. However, such a security perimeter does not encapsulate the security concerns, only a selected few abstracted issues relating to multilevel security. As soon as we consider distributed systems and highly networked environments, the so-called security perimeter typically encompasses major components and functionality (such as compilers, run-time libraries, browsers, bytecode interpreters, servers, and untrustworthy remote sites), and in some cases may actually be essentially unboundable -- especially when it includes the entire Internet, every telephone in the world, and electromagnetic interference from unanticipated sources.

    In all such systems -- whether centralized or distributed -- with any generality of purpose, there is no survivability perimeter in the sense that all critical survivability issues can be circumscribed. Nevertheless, several of the structural architectures considered in Section 7.6 are capable of providing survivable systems and networks in the absence of secure operating systems for end-user systems. However, authentication becomes a very critical issue, as does the need for trustworthy bilateral authenticated paths.

    7.3.2 Encryption and Key Management

    Whoever thinks his problem can be solved using cryptography doesn't understand his problem and also doesn't understand cryptography. Attributed by Roger Needham to Butler Lampson, and attributed by Butler Lampson to Roger Needham.

    Strong cryptographic algorithms and their robust nonsubvertible implementations are absolutely fundamental to the attainment of system security and survivability. Shared-key cryptography (also called secret-key cryptography, and symmetric-key cryptography -- because the same key is used for encryption and decryption) is helpful but in itself not sufficient for achieving confidentiality, integrity, some detection of denials of service, and in preventing various forms of computer misuse. Public-key cryptography (also called asymmetric-key cryptography, because different keys are used) is particularly well suited for key management (key agreement, key distribution), integrity, and authentication.

    Unfortunately, even the best cryptographic algorithms can often be trivially compromised from outside, from within, and from below, in a variety of ways. Although a few widely publicized challenges have resulted in exhaustive searches through the entire key space (DES and RSA are two examples), many cryptographic algorithms or their implementations have been broken without resorting to exhaustion. For example, systems that employ key-recovery and key-escrow techniques have intrinsic trapdoors and are likely to be subject to compromise of one form or another -- by trusted insiders, but also potentially by outsiders. Hardware-implemented cryptography is often considered to be more secure than software-implemented cryptography, but that is not necessarily the case. (For example, see [249].)

    In any event, cryptography and cryptographic keys represent an important example of the potential concentration of high-value targets that should be minimized by the hardware-software design wherever possible.

    The Diffie-Hellman and Rivest-Shamir-Adleman (RSA) asymmetric-key algorithms are extremely important examples of public-key algorithms. (For background, see Schneier's Applied Cryptography [347].)

    Key management presents some very difficult problems. As one example of a desirable approach, the Diffie-Hellman public-key technique [92] provides an elegant means for key agreement without a shared private key ever having to be transmitted. Agreement is reached with each party using its own private key and the other party's public key (or in multikey algorithms, the other parties' public keys), based on partial information shared among the parties from which each can construct the desired shared key for subsequent symmetric-key communications.

    Only through careful and comprehensive study of vulnerabilities such as those noted in Section 4.1 (e.g., see [6, 7, 15, 84, 158, 347]) is it possible to develop algorithms, protocols, and implementations that are significantly less vulnerable to attack and misuse. Perhaps here more than in any other area of security, the ultimate truth is that there are no easy answers when it comes to the nonsubvertibility of cryptographic applications. (See [348] for an extensive debunking of the myth that cryptography is in itself a panacea.)

    In general, there are significant needs for end-to-end encryption between cooperating entities. However, there may also be needs for additional link encryption among internal network nodes to permit proper handling and monitoring of network traffic headers while protecting that information in transit.

    A broad range of standard specifications for public-key cryptography [137] is currently being defined under IEEE auspices. It encompasses public-key cryptography that depends on discrete logarithms, elliptic curves, and integer factorization. In its present advanced draft form, it already appears to be an extraordinarily useful document, and could go a long way toward unifying the cryptographic product marketplace.

    The future of cryptographic applications is always a little uncertain. Algorithms for factoring large prime products and tricks for computing discrete logarithms may emerge. Digital signatures may be compromisable before their intended expiration date. The risks must be clearly recognized, with systems and applications designed accordingly.

    7.3.3 Authentication Subsystems

    One of the most important subsystems that is not easily attainable today in commercially available systems involves a set of highly survivable trustworthy distributed authentication mechanisms that can support a variety of authentication policies, providing nonspoofable authentication despite the presence of potentially untrustworthy components -- such as end-user terminals and workstations, Web servers, intermediate network nodes, and possibly flawed embeddings of cryptographic algorithms. We attempt to characterize some Byzantine-like authentication servers that can operate securely despite such uncertainties, and examine some of the more realistic variants. Thus, there must be multiple authentication servers for higher availability, internal redundancy and cross-checking for reliability, and extensive use of cryptography for confidentiality, integrity, and nonspoofability. An important proposal for a public-key certificate-based Simple Distributed Security Infrastructure (SDSI) is given by Rivest and Lampson [321] along with a Secure Public Key Infrastructure (SPKI)  [98]. See also Abadi's formalization of SDSI's linked local name spaces [1]. There is a long history of work on systemic authentication, going back to Needham and Schroeder [238] beginning in 1978 (with discovery of flaws, fixes, and other advances since then [184, 220]), MIT's Kerberos [39, 219, 239, 364] beginning around 1987, and the Digital Distributed System Security Architecture (DDSSA) [110, 165] around 1990. SDSI and SPKI are an outgrowth of that particular chain of intellectual history from the research community. Somewhat independent work stems from the European work on the SESAME project [276].

    7.3.4 Trusted Paths and Resource Integrity

    An absolutely critical weak link that must be overcome is the absence of an adequate trusted path from the user to the various systems being used, particularly in personal computers but also in workstations. Recent work at the University of Pennsylvania by Arbaugh et al. [19] based on their earlier work on the AEGIS Secure Bootstrap [20] presents an approach that enforces a static integrity property on the firmware and a combination of induction, digital signatures, and modifications to the control transitions from certain major modules such as call and jump instructions. This approach is called Chaining Layered Integrity Checks (CLIC). (See also related work on trustworthy automated recovery [21], which shares many of the same problems with the trusted path.)

    The lack of an adequate trusted path in the reverse direction, from systems to users, also represents a weak link in many systems. User authentication is intended to ensure that a particular user is authentic, but does not guarantee the integrity of the path.

    Closely related to, and in some sense a generalization of, the trusted-path problem is the need for assurance that any resource (data, source code, object code, firmware, and hardware) has not been tampered with or otherwise altered. This problem exists whether we are concerned with firmware in local systems, sensitive (that is, survivability-, security-, or reliability-relevant) components of operating systems, middleware, application software, and -- very critically in networked Web environments -- applets or other executables that come from external sources. This resource-assurance problem is also very important in backup and retrieval, and in reconfiguration. Essentially any out-of-band change to the system or network state is vulnerable to compromise. Workable approaches may use a combination of digital signatures, cryptographic integrity protection, dedicated tamperproof hardware (particularly for cryptographic functions), proof-carrying code, and other forms of dynamic code checking.

    7.3.5 File Servers

    Given appropriate uses of cryptography (Section 7.3.2), systems can be designed in which file servers need not be trustworthy with respect to confidentiality or integrity, although there would still be reliability problems relating to guaranteed availability and security problems relating to preventing denials of service and ensuring that the accessed file servers are authentic. This is true even with multilevel security (e.g., [310]). However, given the possibility of a file server being compromised from within or from below, it is usually desirable to ensure that some basic trustworthiness is provided by the file servers themselves, particularly for integrity and prevention of denials of service.

    7.3.6 Name Servers

    Although name servers are (rather naively) often thought not to be security critical, they are certainly critical with respect to preventing accidental and intentional denials of service and to achieving overall system and network survivability. Inaccessibility of system and network name servers can have devastating effects, and organized attacks on those servers are particularly nasty. Correctness of data is also a serious problem. Name servers can also be instrumental in attacks that use inferences that can be drawn from the information they provide.

    7.3.7 Wrappers

    When certain functionality is not sufficiently trustworthy, it may be useful to encapsulate it within some sort of wrapper that attempts to enhance the trustworthiness of the wrapped component. This is another manifestation of the notion of generalized dependence considered in Section 1.2.5, in trying to make a silk purse out of a sow's ear. However, wrapper technology is always likely to be susceptible to compromise from within and from below, and if not perfectly implemented may also be subject to compromise from outside. Furthermore, there is strong evidence that safety-critical and mission-critical systems cannot be achieved through wrapping flawed COTS systems (for example, see [174, 390]). For further discussion of attempts to use COTS products in critical applications, see the proceedings of the April 2000 Brussels NATO conference [229] on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, summarized in Section 5.10.3 of this report.

    7.3.8 Network Protocols

    As noted in several sections of Chapter 5, we need much better protocols -- more robust, more secure, more highly available, and so on -- with dramatic improvements over existing ones (TCP/IP v6, ftp, telnet, udp, smtp) that are soundly implemented. Robust networking protocols must also be embedded in sound operating systems; otherwise, they are compromisible -- from outside, from within, and from below. It is conceivable that some wrapper technology could provide some short-term help, but given the dramatic increases in bandwidth, it is clear that improved protocols are needed anyway. The needs of survivability must be more actively recognized in ongoing IETF and other protocol efforts.

    7.3.9 Network Servers

    Given appropriate uses of cryptography, new network protocols or assiduous overlays on the existing protocols, and careful implementation on relatively secure platforms, it is in principle possible to develop network servers -- routers, gateways, guards, firewalls, filters, and other interface devices -- that can be adequately trustworthy. Multilevel security requires either extraordinarily trustworthy operating systems on which to mount the network servers, or else multiple single-level servers (e.g., [310]). Network servers must be designed to provide confidentiality, integrity, protection against denials of service, and fault tolerance.

    7.3.10 Firewalls and Routers

    Firewalls are in some sense a special case of a wrapper in which the intent is to wrap an entire network. In that case, the firewall policy is typically to prevent sensitive things from getting out, and to prevent bad things from getting in. Existing firewalls today tend to suffer from being inadequately secure, attempting to enforce policies that are unsound, and being operationally misconfigured. However, in principle, a firewall that is well designed and well configured and whose policies are well conceived can in fact be highly beneficial. The best of the bunch today is probably the Secure Computing Corporation Sidewinder, which permits strong typing to be included in the firewall security policy.

    Unfortunately, today's firewalls and routers are seriously vulnerable to denial-of-service attacks. Consequently, it is clear that any sensible architecture must address their survivability against all the likely threats. In principle, firewalls should be able to seal off internal networks from outside attackers. In practice, firewalls are porous. In practice, firewalls are often configured to allow potentially devastating e-mail to enter and executable Web content to be requested (for example, Microsoft Office attachments, Word Macro viruses, ActiveX, Java, JavaScript, and PostScript). In practice, internal systems depend on outside functionality. In practice, denials of service against the outside routers are problematic. Furthermore, given the porous nature of firewalls, inside routers are also vulnerable. This is a case in which practice does not make perfect.

    Ideally, serious peer-to-peer authentication and both end-to-end and link encryption throughout might be helpful in reducing some of the primary risks of denial-of-service attacks. In practice, no one seems willing to pay the ensuing performance penalties.

    The only sane short-term solution seems to be to seal off internal networks from the Internet via stringent firewall policies that block all threatening incoming traffic that might affect the internal hosts and routers. In the long term, new architectures and network protocols are urgently needed.

    7.3.11 Monitoring

    Section 5.15 suggests the need for real-time analysis of system and network behavior and appropriate timely responses. As one illustrative example of how this might be achieved, we believe that our existing EMERALD (Event Monitoring Enabling Responses to Anomalous Live Disturbances)  environment [182, 266, 304, 305] can be readily generalized to address detection, analysis, and response with respect to significant departures from expected survivability-relevant characteristics, including reliability, fault tolerance, and availability in addition to the current emphasis on security. The primary EMERALD statistical component recognizes anomalous departures from expected normal behavior, whereas the EMERALD signature-based component is rule based and recognizes the presence of potential exploitations of known or suspected vulnerabilities. In addition, a new hybrid Bayesian component takes on some of the advantages of both. The EMERALD resolver passes the results of the analytic engines on to a response coordinator (under development) and to higher-layer instances of EMERALD running with greater scope of awareness. Work is just beginning on a response coordinator that will provide specific real-time advice for defensive actions and other remediation. With only slight extensions, a generalized EMERALD could also mediate conflicts that might arise among the different subtended survivability requirements.

    EMERALD is at present oriented primarily toward detection, analysis, and response related specifically to security misuse of computer networks. Its basic architecture observes good software engineering practice, abstraction, and internal interoperability, and is naturally well suited to this generalization effort -- which we believe will fill a major gap in attaining flexible system architectures for survivability. EMERALD is also participating in the Common Intrusion Detection Framework (CIDF) effort, which will enable considerable interoperability among different analysis systems and reusability of individual components in other environments. In addition to security-related applications, we are contemplating integrating EMERALD with a classical network management facility, which would provide real-time information relating to configuration management, performance management, fault management, security management, and accounting management.

    We refer to EMERALD here primarily to illustrate the potential applicability of real-time monitoring and analysis in the maintenance of survivable systems. EMERALD has the oldest ancestry and the greatest generality of approach (following its predecessors IDES and NIDES). (See for extensive background on our work in this area.) It has also had considerable emphasis devoted to its software engineering. Of particular relevance here is a 1999 paper entitled Experience with EMERALD to Date [266]
    ( and

    The requirements for monitoring must also be considered carefully, as was done in the 1985 document [89] that established the security requirements for IDES implementations. Among security needs, such a system must be able to establish a strong resistance to attack (including spoofing and denials of service) and must protect the sensitivity of the audit data and derived information. Other requirements include generality of approach and applicability to new domains, scalability, flexibility, adaptability, reusability of components, interoperability with other systems, and the ability to operate at differing levels of abstraction of audit data and results. See [266] for a discussion of the importance of good software-engineering practice in the development of monitoring and analysis systems.

    7.3.12 Architectural Challenges

    With reference to the systemic inadequacies outlined in Chapter 4, Table 6 summarizes some of the major hurdles that must be addressed for each component of the previous subsections. The table considers the integrity, confidentiality, availability, and reliability of various functional entities, as illustrative of the challenges. It suggests that we still have a long way to go.

    Table 6: Typical Architectural Limitations
    FunctionalityIntegrityConfidentialityAvailability Reliability
    Application Inability to Inability to Inability to Inability to
    software rely on lower rely on lower rely on lower rely on lower
    layers; lack oflayers; lack oflayers; lack oflayers; lack of
    correctness correctness correctness correctness
    User platforms,Weak security, Weak security, Many crashes,HW/SW
    OSs, middleware,especially when especially when file errors, reliability
    browsers, etc. networked; networked upgrade woes often poor
    OS spoofable
    Networking Flawed designsFlawed designs Weak protocols,Weak protocols,
    and protocolsand code and code code bugscode bugs
    CryptographyPoor embedding,Poor embedding,Mass market Subject to bit
    (for integrity,compromise from key exposures,hindered by errors, key
    authentication,within/below; bypasses; government unavailability,
    encryption) gov't policiesgov't policiescrypto policiessynch problems
    AuthenticationReliance on Reliance on An outage can Inconsistency
    subsystems fixed reusablefixed reusableshut down all among multiple
    passwords passwords dependent usersauthenticators
    Trusted pathsGenerally Generally Denials of Generally
    and resourcenonexistentnonexistentservice nonexistent
    integrity or very weakor very weakproblematicor very weak
    Servers (file,Weak security;Weak security;Outages andHW/SW
    ftp, http, lacking crypto,lacking crypto,service denials,reliability
    e-mail) authenticationauthenticationincompatibilities often poor
    Wrappers Compromise fromCannot hinderService denialsMuch depends
    below/within, insiders on wrappers on wrapper
    even outside may be easy reliability
    Firewalls Compromise fromWeak policies,Service denialsNonreplication
    below/within, weak security on firewalls leads to service
    even outside may be easy outages
    Monitoring, Bypassable,Sensitive Not robust,Algorithms
    analysis, alterable, data may be subject to typically
    response spoofable exposed service denialsincomplete

    In light of the extensive set of limitations in the present technology exhibited in Table 6 (and the table gives only a sampling), we reiterate that survivability and its subtended requirements of security and reliability are fundamentally weak-link problems. The table very simply conveys the message that weak links abound. Although we tend to seek defense in depth, we seem to achieve only weakness in depth. The real challenge is to overcome the limitations suggested by Table 6.

    7.3.13 Operational Challenges

    Survivability clearly depends on many people during the development cycle. However, one of the largest collection of weak links and vulnerabilities emerges only during the operational phase, where survivability depends on operators, administrators, and users. As noted above, administration of cryptography presents enormous risks. We remind our readers once again that although the main emphasis of this report is on architectures, the best architecture of all may be compromisible if it does not properly address the operational aspects. The approach of this report stresses the importance of a total-system orientation, with respect to the entire enterprise as a system of systems, a network of networks, and views networks as systems. This approach recognizes the critical dependence on many people, even when the architecture is specifically designed to tolerate human foibles.

    7.4 The Mobile-Code Architectural Paradigm

    A significant paradigm for controlled execution involves the use of mobile code -- that is, code that can be executed independently of where it is stored.21 The most common case involves portable reusable code acquired from some particular sources (remote or local) and executed locally. From a different perspective, it could involve local code executed elsewhere, or remote code executed at another remote site. Ideally, mobile code should be platform independent, and capable of running anywhere irrespective of how and from where it was obtained. Used in connection with the principles of separation of domains and allocation of least privilege, dynamic linking, and dynamic loading with persistent access controls, this paradigm provides an opportunity for the secure execution of mobile code, and represents a very promising approach for achieving ultrasurvivable systems.

    Of course, you can have major integrity, confidentiality, availability, denial of service, and general survivability risks involved in executing arbitrary code on one of your systems, or even on other systems operating on your behalf. The existence of mobile code whose origin and execution characteristics are typically not well known necessitates the enforcement of strict security controls to prevent Trojan horses and other unanticipated effects. In certain cases, it may be desirable to provide repeated reauthentication and validation, plus revocation and cache deletion as needed. (See Section 7.4.2.) When combined with digital signatures and proof-carrying code to ensure authenticity and provenance, dynamically linked mobile code provides a compelling organizing principle for highly survivable systems.

    In principle, properly implemented environments for executing mobile code can contribute to survivability in various ways:

    A highly survivable overall mobile-code architecture can be aided by a combination of trustworthy servers, encrypted network traffic, digital signatures, proof-carrying code, and other components and concepts discussed in Section 7.3. Three contemporary doctoral theses provide important contributions to the establishment of such an architecture:

    Background on understanding code mobility rather independently of survivability and security issues is given in a useful article by Fuggetta et al. [108] (in a special issue of the IEEE Transactions on Software Engineering on mobility and network-aware computing). Formal methods are also particularly relevant to mobile code, because of the critical dependence on type safety -- for example, the formalization of dynamic and static type checking for mobile code given in [319].

    An extraordinary compilation of articles on various aspects of the mobile-code paradigm has been assembled by Giovanni Vigna, and published by Springer Verlag [381]. This book (which contains copious references) reflects most of the potential problems with mobile code, and suggests numerous approaches to reducing the risks. Considering the enormous potential impact, this book is mandatory reading for anyone trying to use the mobile-code paradigm in supposedly survivable systems. Following is a brief summary of the book.

    7.4.1 Confined Execution Environments

    The notion of a confined execution environment goes back at least as early as Multics. The nested Multics rings of protection were useful for protecting the system against its applications and protecting its applications (e.g., software, data) against their users. However, the rings are also relevant to system survivability; a problem in ring 1 could not bring down the system-critical code in ring 0, but might crash a user process; a problem in ring 2 might abort a user command but would not crash the user process; a problem in an outer ring might typically signal an error return without otherwise affecting running processes.

    Important subsequent research came from Michael Schroeder [351, 353] (his doctoral thesis on domains of protection and mutual suspicion grew out of the Multics  project) and Butler Lampson [166], with later work by Paul Karger [150] on preventing Trojan horses in a conventional access environment (that is, not multilevel secure). Ideally, it should be possible to control execution in such a way that nothing adverse can possibly happen. In practice, of course, the challenges are much more difficult.

    The Java Virtual Machine (JVM) is an example of an execution environment designed to encapsulate the execution of code that can be dynamically obtained and loaded from arbitrary sources, subject to suitable security controls. Together with the Java Development Kit  (JDK) [114, 116], JVM takes a significant step toward limiting bad effects that can take place in execution of an applet obtained from a potentially untrustworthy site. This is an example of a controlled execution domain whose intent is to radically limit what can and cannot be done, irrespective of the source of the applet. Systems designed to support secure and reliable execution of trustworthy mobile code can have an inherent potential stability. However, JVM is not yet a total solution, in that it is defined only in terms of single-user systems; it does not provide protection of one user from another simultaneous user.

    The specific execution environments provided by Java, the Java Virtual Machine, and the Java bytecode have some serious potential security problems, largely attributable to the enormity of the code base and the fact that a very large portion of that code must be considered to be within the effective trusted computing base -- which to a first approximation includes most of the run-time support, the bytecode verifier, the local operating system, the browser software, the servers from which code is obtained, and the networking software. Although this enormous security perimeter could be shrunk somewhat by techniques discussed below, the security perimeter for JVM applet security is very large.

    In concept, many problems can be made worse by the presence of mobile code in heterogeneous networked systems. However, a well-engineered and properly encapsulated virtual machine environment has the potential of overcoming many of the risks that might otherwise arise in the use of arbitrary programming languages and the execution of arbitrary code. We believe that the mobile-code paradigm has enormous potential with respect to survivability (and the potential to withstand forced system crashes, loss of security, accidental outages, and so on), because of the roles it can play in inducing a survivable architectural structure. But that in itself forces us to think about the problems it raises.

    There is of course a conflict between the desire to provide extensive functionality and the need to constrain or confine the functionality to make it secure -- in order to help the overall computer-communication environment be survivable under attacks.

    Of particular relevance here are the analyses of Drew Dean [87] and Dan Wallach [385] of the Java Security Manager (JSM), which is intended to be a security reference monitor that mediates all security-relevant accesses. A reference monitor is supposed to have three fundamental properties: (1) it is always invoked (nonbypassability), (2) it is tamperproof, and (3) it is small enough to be thoroughly analyzed (verifiability). Unfortunately,

    1. The JSM is not always invoked. Programmers must remember to call it. If they do not, the default is that access is granted.
    2. The JSM is not tamperproof. The type system can be compromised, which in turn can undermine the JSM security.
    3. The JSM has no formal basis, and its complexity led to flaws in security policies embedded in JDK 1.0 and Netscape Navigator 2.0's SecurityManager.

    In addition, both Dean and Wallach note that the Java language itself and its implementations do not have any auditing facility, and thus completely fail to satisfy the TCSEC accountability and auditing requirements.

    7.4.2 Revocation and Object Currency

    One of the problems associated with the mobile-code paradigm is that it is a pull mode rather than a push mode of operation. It could be advantageous to have subsequent improvements automatically downloaded, although that also creates potential integrity problems. Furthermore, there are cases in which it may be desirable or even necessary to revoke instantaneously all accesses to existing copies of a particular version of a program or data. However, existing browsers generally prefer locally cached versions to newer versions. The instantaneous revocation problem was investigated in the 1970s in the context of capability-based architectures (e.g., [100, 102, 113, 147, 151, 260]), beginning with David Redell's thesis [316, 317].

    Under Redell's scheme, revocable access requires an extra level of indirection through a designated master capability, so that revocation of all copies of a given object could be effected simply by disabling the given master capability. (We could also contemplate a distributed set of equivalent capabilities that could in a practical sense be disabled simultaneously.) To achieve a similar effect in the context of the WOVOERA mobile-code paradigm without undermining the performance benefits that result from caching, some sort of compromise push-pull mechanism is needed to ensure the currency of a locally cached object. Although instantaneous revocation seems intrinsically incompatible with local caching, various alternatives exist. One approach would be a single currency bit that is updated periodically, and checked whenever access from a cached version is attempted -- forcing deletion of the cached object through dynamic reloading whenever the currency bit has been reset.

    7.4.3 Proof-Carrying Code

    The basic work on proof-carrying code (Section 5.9) comes from George Necula [235]. Each code module carries with it proofs about certain vital properties of the code. The validity of the proofs can be readily verified by a rather simple and relatively fast proof checker. If the proofs indeed involve critical properties, in principle any adverse alterations to the code (malicious or otherwise) are likely to result in the proofs failing.

    7.4.4 Architectures Accommodating Untrustworthy Mobile Code

    The survivable execution of untrustworthy mobile code depends on the successful isolation of the execution, preventing contamination, information leakage, and denials of service. What is needed in system and network architectures involves a combination of language-oriented virtual machines as in JVM [116], sandboxes [114, 191], differential dynamic access controls [386], mediators, trusted paths to the end user, less-permissive bytecode verifiers, cryptography [339], and whatever authentication, digitally signed code, proof-carrying code [235, 236], and other infrastructural constraints may ensure that the risks of mobile code can be controlled. Not surprisingly, many of these requisite mechanisms are desirable for most meaningfully survivable environments, but the desirability of the mobile-code paradigm makes the potential vulnerabilities much more urgent -- and indeed dramatizes the generic problems when interpreted appropriately broadly.

    7.5 The Portable-Computing Architectural Paradigm

    In several previous sections of this report, we have noted the enormous potentials for wireless end-user computing. Particularly in combination with the thin-client user platforms discussed in Section 7.4.4, wireless communications are already beginning to revolutionize the computer-communication technology. However, the potential risks to integrity, confidentiality, and availability are also enormous, and consequently serious architectural and operational approaches are necessary. An aggressive combination of link encryption and end-to-end encryption is only part of the solution. Protection against denials of service is essential. Under normal operations, conventional encrypted communications may be adequate. However, under concentrated attacks, much more must be done. The use of spread-spectrum communications, with multiple paths and redundant bandwidth with error-correction capabilities are desirable, appropriate to the perceived risks. The desirability of highly survivable wireless environments that can also function stand-alone in times of crisis is an important example of the need to integrate and coordinate the requirements for security, reliability, and performance for the systems and networks in the large when confronted with the full range of adversities noted in this report. If the stated requirements and the ensuing system architectures do not anticipate those needs from the outset, adequate satisfaction of the requirements will be unattainable.

    7.6 Structural Architectures

    Toward our stated goal of developing and configuring highly survivable systems and networks, a fundamental challenge is to constructively take advantage of the structuring principles (Section 7.1) and architectural structures (Section 7.2) discussed above.

    This section considers some representative types of architectures, with particular emphasis on selective-trustworthiness architectures that inherently satisfy many of the structuring principles. Note that the mobile-code paradigm (Section 7.4) and the multilevel-survivability paradigm can be compatibly implementable within a single architecture -- and indeed should be, considering the rampant popularity and enormous advantages of mobile code. However, the existence of mobile code forces us to confront problems that otherwise have lurked in the shadows for many years.

    Because multilevel systems are less closely allied with what is commercially available today, and because our multilevel concept draws heavily on single-level components, the single-level concept is considered first. However, realistic multilevel-secure architectures are feasible, given a little common sense in approaching nonconventional architectures.

    7.6.1 Conventional Architectures

    We consider next the relatively simpler case of conventional single-level systems and networks. We attempt to define precisely which components of a structural architecture must be trustworthy with respect to each of the various dimensions of trustworthiness -- for example, integrity, confidentiality, prevention of denial of service and other aspects of availability, guaranteed performance, and reliability. Table 7 summarizes some of the primary architectural needs that can contribute to overall survivability, in response to the identified limitations of Table 6. Throughout Table 7, it is evident that there is a pervasive need for good cryptography, by which is implied strong algorithms whose implementations and system embeddings are properly encapsulated, nonsubvertible, tamperproof, and reliable.

    Table 7: Architectural Needs
    FunctionalityIntegrityConfidentialityAvailability Reliability
    User PC/NC Run-time checks, Access controls;Alternative Constructive
    OS, applicationcryptographic authentication, sources, redundancy,
    code, browsersintegrity seals, trusted paths, system reliable
    accountability good encryption fault tolerancehardware
    Networking Better protocols,Better protocols,More-robustMore-robust
    and protocolssound embeddings sound embeddings defensive defensive
    good encryption, good encryption protocols,protocols,
    tamperproofing embeddingsembeddings
    CryptographyTamperproof andRobust algorithmsDedicatedTrustworthy
    (for integrity,nonsubvertible and protocols, hardware, sources,
    authentication,implementationsnonsubvertible sensible U.S. superimposed
    encryption) implementations crypto policy!error correction
    AuthenticationSpoofproofing, One-time crypto-Alternative Distributed
    subsystems replay prevention,based tokens, fault-tolerantconsistency,
    (e.g., with crypo tokens, in some cases authentication redundancy
    strong crypto)tamperproofing biometrics servers in hardware
    Trusted pathsTrusted path to Trusted path to Dedicated Self-checking,
    and resourceusers and servers,users and servers,connections,fault tolerance,
    integrity integrity as in good encryption alternative dedicated
    user OSs (above) trusted paths circuits
    Servers (file,Superior security,Superior security,MirroredConstructive
    ftp, http, good encryption,good encryption, file servers,redundancy,
    e-mail, etc.)authentication,authentication, robustselfchecking
    better protocols,better protocolsfault-tolerant protocols
    tamperproofing protocols
    Wrappers SpoofproofingSensible Authentication,Robust OSs,
    and Firewalls policies trusted pathswrappers,
    Monitoring,Tamperproofing, Enforcement of Continuity of Selfchecking,
    analysis,nonbypassability,privacy concernsservice, strongfault tolerance,
    response avoidance of (much sensitiveconnectivity,coordinated net-
    overreactions data involved)self-diagnosiswork management

    7.6.2 Multilevel Survivability with Minimized Trustworthiness

    In considering the attainment of system-, network-, and enterprise-wide multilevel survivability (including appropriate MLS, MLI, MLA) without multilevel-secure end-user systems, we draw heavily on past work at SRI [267, 310] and ongoing work at NRL (e.g., [148]).

    The basic strategy is conceptually simple. It mirrors some of the early work on multilevel-secure systems, with several fundamental differences:

    Given this type of architectural structure, a relatively simple informal analysis can determine whether it is at all likely that the architecture can enforce the desired partial orderings dynamically. In other words, are there any gross violations of MLX dependence on less trustworthy subsystems? If so, can generalized dependence in some way adequately overcome the potential violations? Formal methods are not required in the basic stages of defining the architecture, although they could be useful later on in providing implementation assurance.

    Overall, we should not expect that, apart from MLS (which may be fundamental to certain applications), there would be a rigorous enforcement of strict partial ordering among the other attributes of MLX (namely, MLI and MLA) throughout the entire enterprise, and rather that mechanisms invoking generalized dependence can compensate for what would otherwise be violations of partial ordering.

    7.6.3 End-User System Components

    One of our most fundamental issues concerns the extent to which trustworthy systems can be developed despite the presence of end-user systems of varying degrees of untrustworthiness. This issue is very important in single-level systems (Section 7.6.1), and is even more important in the context of multilevel systems with minimized trustworthiness (Section 7.6.2). The following questions relate to end-user access to networked distributed environments that are intended to be highly survivable:

    Thus, we are faced with essential trade-offs. If the local end-user operating systems and their trusted paths cannot be trusted, trustworthiness must not be assumed and the architecture must transfer trustworthiness to selected servers -- where permitted. If the local authentication cannot be trusted, trustworthiness must be transferred to authentication servers. If the local networking software cannot be trusted, then trustworthiness must be transferred to selected network servers. On the other hand, if certain servers are not sufficiently trustworthy with respect to certain dimensions, then again trustworthiness in those dimensions must be transferred to servers that are more trustworthy.

    If multilevel security is to be enforced, a sufficiently single-level secure local end-user system is necessary, nonbypassable local end-user authentication is necessary, multilevel-trustworthy networking is necessary even if local operation is single level (although cryptographic techniques can be used to ensure that if keys are distributed according to MLS requirements, no adverse flows can arise), and the trusted path and local system integrity must be noncompromisible.

    Certain of the dimensions of survivability are more critical than others. For example, system integrity is generally paramount. If system integrity can be subverted, then it is usually easy to subvert confidentiality, availability, and reliability as well. On the other hand, denials of service can often result (whether intentionally perpetrated or accidentally triggered) without first subverting system integrity. Thus, it is advisable to consider each dimension in its own terms to determine the extent of the interdependencies.

    By layering the mechanisms for protection, fault tolerance, and other aspects of survivability, and invoking the notion of generalized dependence, we might hope that a sufficiently survivable system could eventually be attained. However, access to sensitive MLS data should not be permitted whenever the end-user authentication cannot be guaranteed (with reasonable certainty), and also whenever the local end-user operating system can be compromised. Strict dependence on less trustworthy MLI resources should be avoided in any event.

    8 Implementing and Configuring for Survivability

    You cannot make a silk purse out of a sow's ear.
    Another reminder of the old saying, still valid

    The architectural structures analyzed in Chapter 7 can be effectively implemented, and survivable systems can be effectively configured using some commercially available components plus the additional subsystems characterized in Chapter 5 to fill the gaps identified in Chapter 4. Whereas the proverbial silk purse is clearly unattainable from the sow's ear (despite a few system purveyors who would have you believe otherwise), it must be recognized from the outset that substantive risks will remain no matter what we do, because we are living in the real world rather than some idealized fantasy world. The challenge is to minimize those risks by relying on an architecture that is structurally sound, implementations that are robust where they need to be robust, operational practice that does not undermine the given requirements, and real-time analysis tools that can rapidly identify early threats to survivability and respond accordingly.

    8.1 Developing Survivable Systems

    Finally, based on the foregoing discussion, we are ready to put the pieces together. A somewhat simplistic summary of the desired process is as follows:

    1. The mission requirements must first be comprehensively and carefully defined, ideally as a refinement and extension of an established set of detailed generic requirements.
    2. The specific mission requirements must be evaluated for completeness, self-consistency, and accuracy, and some risk analyses done to ensure that those mission requirements are indeed appropriate.
    3. Given the specific requirements, a preliminary sketch of the desired architecture or alternative architectures should be carried out.
    4. The selected detailed architecture should then be fleshed out and documented sufficiently to enable a top-level examination of whether the functional and performance requirements are attainable.
    5. Assuming that a review of the previous items is acceptable, a detailed plan for system evolution should be made, and the detailed system design should be carried out according to that plan.
    6. A detailed implementation and test plan should have been developed in parallel with the system design. The system must now be implemented and tested according to that plan. The implementation plan should address module composability with respect to integration, testing, and configuration management, and system evolution.
    7. Considerable care must be devoted to operational considerations. The best systems in the world may be useless unless their operation is manageable. Aspects of operational practice must be represented in the earlier stages, particularly in establishing requirements and in carrying out system design and implementation. Good operational practice must then be enforced during use, and whatever help can be gained during the development cycle will be very valuable.

    8.2 A Strategy for Survivable Architectures

    A suitable architecture for survivable networks of survivable systems might typically be one that encompasses those of the following desiderata deemed suitable for the given application in the case of dedicated systems, or the full range of expected applications in the case of systems that are more general-purpose.

    Detailed analysis of the candidate architecture is then needed to evaluate the appropriateness of the architecture, and detailed analysis of the feasibility of its successful implementation is needed to determine whether it is worth pursuing the particular architecture further. This is clearly an iterative process whenever the analysis determines inadequacies in the candidate architecture. In some cases, it may be appropriate to pursue alternative candidate architectures or variants thereof in parallel -- at least until most of those alternatives can be discarded in favor of clear winners.

    8.3 Baseline Survivable Architectures

    A suitable baseline family of architectures is now evident from the preceding text of this report.

    Implementing systems that fit this kind of baseline architecture remains a huge challenge for the future. But such a strategy is likely to be the only successful path to the future whenever systems with critical survivability requirements are needed. The exact role that open-box software might play remains to be determined, particularly in obtaining robust components that otherwise do not exist today. Its potential is considerable and must be explored in detail, supported by financial and other incentives.

    Such a strongly partitioned network architecture with strict isolation and very controlled information flow across well-defined and well-administered boundaries is absolutely essential to any private intranets that are used for mission-critical purposes. There is nothing extraordinary about military needs as far as the technology is concerned. Digital commerce shares many of the needs for survivability, and particularly robustness, integrity, and prevention of denials of service. Many businesses have similar needs. In the absence of easy solutions to those needs, everyone is operating at risk. The U.S. Government needs to take a much stronger role in identifying the critical requirements and finding ways to improve procurement and incentives to ensure that those requirements be fulfilled. The first step involves clear recognition of the critical requirements and dramatic improvements in education.

    The emerging Tactical Internet is an ideal environment in which to explore the merits of the highly principled architectural and operational approaches outlined in this report. The Tactical Internet represents a combination of extremely critical requirements, including real-time performance and extraordinarily flexible rapid reconfiguration, in addition to its stringent requirements for security and reliability.

    9 Conclusions

    Learning is not compulsory.
    Neither is survival.

    W. Edwards Deming

    The currently existing popular commercially available computer-communication subsystems are fundamentally inadequate for the development and ready configuration of systems and networks with critical requirements for generalized survivability. Numerous good ideas exist in the research community, but are widely ignored in commercial practice. However, although it is theoretically possible to design dependable systems out of less-dependable subsystems or to design more-dependable critical components, it is in practice almost impossible to achieve any predictable trustworthiness in the presence of the full spectrum of threats considered here -- including incorrect or incomplete requirements, flawed designs, flaky implementations, and noncooperating physical environments offering electromagnetic interference, earthquakes, massive power outages, and so on. Furthermore, the almost unavoidably critical roles of people throughout these systems and networks raise serious operational questions -- especially relating to less-than-perfect individuals who may be dishonest, malicious, incompetent, improperly trained, disinterested, or who might in any way behave differently from how they would be expected to act in an assumed perfect world. These and many other considerations that are naturally subsumed under our notion of generalized survivability make the problems addressed here extremely challenging, important, and timely.

    The challenge here is to do the best we can in the foreseeable future, and to characterize steps that must be taken that will enable us to achieve better systems in the more distant future. There is still a lot to learn about survivability and how to attain it dependably. We hope that this report will be a significant step in that direction.

    Unfortunately, the quest for simplicity and easy answers is pervasive, but very difficult to combat. In this report, we attempt to address the deeper issues realistically and to inspire much greater understanding of those issues.

    9.1 Recommendations for the Future

    Our main recommendations are summarized here, recapitulating the Executive Summary. Specific directions for research and development are discussed in Section 9.2.

    9.2 Research and Development Directions

    Section 5.17 considers the role of research and development. This section outlines some specific R&D directions for the future.

    9.3 Lessons Learned from Past Experience

    [O]ur heads are full of general ideas that we are now trying to turn to some use, but that we hardly ever apply rightly. This is the result of acting in direct opposition to the natural development of the mind by obtaining general ideas first, and particular observations last; it is putting the cart before the horse. ... The mistaken views ... that spring from a false application of general ideas have afterwards to be corrected by long years of experience; and it is seldom that they are wholly corrected. That is why so few men of learning are possessed of common sense, such as is often to be met within people who have had no instruction at all.
    Arthur Schopenhauer, Excerpted from Parerga and Paralipomena, 1851, included in Schopenhauer Selections, edited by DeWitt H. Parker, Scribners, New York, 1928, with minor modernization of the translation by PGN.

    Many lessons can been gleaned from experience with past system developments, both successful and unsuccessful. These experiences can help us to calibrate the appropriateness of the various principles scattered throughout this document.

    The work of Henry Petroski [297, 298] (a civil engineer at Duke University) is noteworthy. Petroski has often observed that we tend to learn very little from our successes and that we generally can learn much more from our failures. Unfortunately, the experiences documented extensively by Neumann [250] suggest that the same mistakes tend to be made over and over again -- particularly in computer-related systems.

    Here are a few conclusions, in part tempered by watching the negative experiences in the on-line Risks Forum, and in part from highlighting the constructive aspects of some past system efforts. If Schopenhauer and Petroski are as fundamentally correct as it appears they are, we must learn more from our experiences, good and bad.

    The following itemization of lessons learned amplifies some overall strategies for achieving highly survivable systems and networks, but is also applicable to less critical environments.

    The relative roles of experiential knowledge and general principles are considered in the context of education in Appendix A.

    9.4 Architectural Directions

    Chapters 7 and 8 provide guidelines, principles, and architectural structures for designing and implementing systems and networks with stringent survivability requirements. Experience tends to support the belief that highly principled and architecturally motivated designs have a much greater likelihood of converging on systems and networks that can successfully meet stringent requirements, and that can evolve gracefully to accommodate changing requirements. In particular, highly structured designs, domain separation, encapsulation, information hiding, cleanly defined interfaces, formal models of composition and interconnectivity, and many other concepts explored in this report can all have very significant payoffs.

    9.5 Testbed Activities

    This report is only part of the picture with respect to what is ultimately needed. Requirements are of little use if they are not explicitly honored in architectures, implementation, evolution, and operation. One important set of activities relating to the establishment of a sound basis for survivable systems and networks involves experimentation with testbeds that can demonstrate the feasibility of the architectures and concepts described in this report. Such an effort is already under way within the Army Research Laboratory Survivable Systems and Networks Laboratory (SSNL), under the direction of Anthony Barnes at Fort Monmouth. Among other things, SSNL is investigating and experimenting with features that can enhance system and network survivability, relating to operating systems, network protocols and networking software, IP security, hardware, routers and servers, and environmental considerations. Specific directions include tactical networks, simulated tactical testing, virtual private networks, and robustifying operating systems. Linux and related systems and network architectures are highly relevant, using nonproprietary protocols and open-box software wherever possible, and creating some new infrastructures as well. Portable computing and mobile code are both of enormous relevance to DoD and particularly the Army. SSNL plans on partnering with NSA, SEI, DISA, Army CECOM, and other organizations, as desirable. The SSNL effort and other activities of this type are urgently needed, and supporting them is highly recommended.

    9.6 Residual Vulnerabilities and Risks

    Despite the best intentions on the part of the architects of systems and networks having strong survivability requirements, many vulnerabilities are still likely to remain. Hardware is always a potential source of system failures (and, potentially, physical attacks), either transient or unsurmountable without physical repair. The software implementation process is fundamentally full of risks. Operationally, knowledgeable system and network administrators are chronically in short supply, and their role in maintaining a stable environment is absolutely critical. In addition, opportunities are rampant for malicious Trojan horses and just plain flaky software -- especially in mobile code and untrusted servers. Penetrations from outside will always be possible in some form or another, and misuse by insiders remains an enormous source of risks in many types of systems. Furthermore, because systems and networks tend not to be people tolerant, users are inevitably a source of risks -- no matter how defensively the user interfaces may appear to be. These expected residual shortcomings must be anticipated. Real-time analysis for misuse and anomaly detection still remains desirable as a last resort, even in the best of systems.

    9.7 Applicability to the PCCIP Recommendations

    The recommendations of Section 9.2 provide a considerable sharpening of some generic recommendations of the report of the President's Commission on Critical Infrastructure Protection [194]. It is interesting to contrast what comes out of the survivability-driven concepts of this report with the funding areas suggested by the Commission:

    1. Information assurance
    2. Intrusion monitoring and detection
    3. Vulnerability assessment and systems analysis
    4. Risk-management decision support
    5. Protection and mitigation
    6. Incident response and recovery

    The recommendations of our report address many research and development aspects of items 1, 2, 3, and 5, while at the same time focusing more broadly on survivability rather than just security. Item 6 is also important, although somewhat peripheral to the focus of our efforts. Because it does not create an architectural forcing function (other than the motherhood idea that we should reduce the number of vulnerabilities that must be reported), we simply assume that emergency response teams will exist in a more effective form than at present.

    Item 4 causes us some concern. Although risk avoidance is in essence what this report is all about, and static risk assessment is important (see Section 5.13), the notion of decision support tools is potentially dangerous. Many of those tools that purport to manage risks actually encourage us to ignore certain risks rather than prevent them. However, those tools are often based on incorrect assumptions, and frequently ignore the interactions or dependencies among different requirements, components, and threat factors. Reliance on support tools to perform risk management is very dangerous in the absence of deep understanding of the risks, their causes, and their consequences. On the other hand, if we had that deep understanding, we might have better systems, and the risks could actually be avoided to a much greater extent -- rather than having to be managed! Nevertheless, an interesting potential attempt to quantify risks and to balance defending against perceived threats with what can be considered acceptable risks is given by Salter et al. [336]. The Software Engineering Institute at Carnegie-Mellon University is working on a taxonomy of risks

    A general discussion of the risks of risk analysis itself can be found in a brief but incisive contribution of Bob Charette ([250], Section 7.10, pages 255-257). For example, overestimating the risks can cause unnecessary effort; underestimating the risks can cause disasters and result in reactive panic on the part of management and affected people; estimates of parameters are always suspect; perhaps most important, there is seldom any real quality control on the risk assessment itself.

    9.8 Future Work

    Our three years of effort on this project represent only a beginning of what is likely to be a long quest. There are many short-term measures that can be taken that would greatly improve the ability of systems and networks to satisfy critical requirements. However, many long-term issues remain to be addressed.

    9.9 Final Comments

    We have outlined many research and development concepts that are highly relevant to the specification, design, development, and operation of highly survivable systems and networks. The architectural directions pursued here integrate those concepts (including generalized dependence and generalized composition) and provide a strong basis for systems that accommodate mobile code, portable user platforms and robust execution platforms, minimal critical dependence on untrustworthy components, and operational environments that are highly reconfigurable and adaptive. However, the problems discussed herein need to be confronted multidimensionally, both technologically and nontechnologically.

    Much work remains to be done to demonstrate the practical applicability of this approach, but we believe that we have broken some new ground. Once again, we note that the architecture and implementation considerations are vital, but that operational aspects are also, as well as improving education and awareness. The state of the art has not improved appreciably, and the risks have actually worsened relative to the threats, vulnerabilities, and increased dependence on flaky technologies. Thus, the basic problems we face are becoming ever more important.

    This is not a case of Just Add Money and Stir. Pervasive understanding is needed of the depths of the problems and the urgent needs for solutions. Although some significant progress can be made in the short term, commitment to long-term advances is essential.

    Although our ARL project has now ended, I hope that efforts can be continued in the spirit outlined here on many of the fronts for which survivability matters most - for example, supporting governmental operations, critical infrastructures, and digital commerce, and enhancing human well-being.

    The words of Albert Einstein again seem pithy, this time in circumscribing the rather modest intent of the author of this report -- despite the enormity of the underlying challenge:

    Finally, I want to emphasize once more that what has been said here in a somewhat categorical form does not claim to mean more than the personal opinion of a man, which is founded upon nothing but his own personal experience, which he has gathered as a student and as a teacher.
    Albert Einstein,  Out of My Later Years, The Philosophical Library, Inc., New York, NY, 1950, p. 37.

    That very humble statement succinctly expresses my sentiments about the evolution of this report over the past three years.


    I am especially grateful to Paul Walczak for his valuable assistance and strong encouragement, and to Tony Barnes for his deep interest in the project and his long-term interactions [29]. Tony almost single-handedly stimulated awareness of information survivability issues within the Army and the DoD in the mid-1990s, and Paul went on from there with extraordinary energy and enthusiasm. When Paul retired shortly before project completion, Tony re-emerged as our official Government contact.

    I am greatly indebted to my SRI colleagues Jonathan K. Millen and Phillip A. Porras for many stimulating discussions over the years. Jon made some notable research contributions on the project. (See Appendix B.) Phil's technical and leadership roles in the EMERALD effort have been truly marvelous and very productive.

    Sami Saydjari joined us at SRI in the last three months of the project, and generously contributed some incisive comments on the final drafts of this report. I had interacted with him over the years during his previous incarnations at NSA and DARPA, and have always greatly appreciated his insights. (Sami spearheaded DARPA's survivability program, including many projects related to anomaly, misuse, and intrusion detection.)

    Drew Dean was a valuable resource during the first phase of the project, when he spent two summers in CSL and kept in touch while working on his Princeton PhD thesis [87]. (I was on his committee.)

    I am totally delighted with Otfried Cheong's  Hyperlatex, which enabled the LaTeX form of this document to be robustly transformed automagically into its almost perfect html equivalent. (The LaTeXsource was also used to generate the .dvi file from which the PostScript and pdf versions of the report were generated, attaining three mobile formats from one source.) Peter Mosses has my perpetual thanks for patiently shepherding me through my initial use of Hyperlatex.

    Hyperlatex is just one wonderful example of Free Software that is copyleft under the Free Software Foundation's General Public License (GPL). Of course, I am also pleased to have used Richard Stallman's GNU Emacs and Les Lamport's LaTeX in the production of this document, as well as Linux, all of which are outstanding examples of open-box software.

    I appreciate the considerable feedback that I have received from members of the Free-Software and Open-Source movements regarding how to greatly increase the robustness of open-box software, including their contributions to the informal robust open-box e-mail distribution list noted in Section 5.10.2.

    Peter G. Neumann, Menlo Park, California, June 2000

    Appendix A: Curricula for Survivability

    Phase Topic Sources
    A Fundamentals of Programming Languages Prerequisite (Type 1)
    or integrated unit (Type 2)
    B Fundamentals of Software Engineering Prerequisite (Type 1)
    or integrated unit (Type 2)
    (see X for possible follow-on)
    C Fundamentals of System Engineering Integrated material (Type 1),
    but not widely taught today
    D Fundamentals of Operating Systems Prerequisite (Type 1)
    or integrated unit (Type 2)
    E Fundamentals of Networking Prerequisite (Type 1)
    or integrated unit (Type 2)
    S Introduction to survivability: concepts,Chapter 1(Type 1 or 2)
    threats, risks, egregious examples
    S Specific Threats Chapter 2 (Type 1 or 2)
    S Survivability Requirements Chapter 3 (Type 1 or 2)
    S Systemic Deficiencies Chapter 4 (Type 1 or 2)
    S Systemic Approaches Chapter 5 (Type 1 or 2)
    S Evaluation Criteria Chapter 6 (Type 1 or 2)
    S System Architectures Chapters 7,8 (Type 1 or 2)
    T Advanced topics in systems, networks, Follow-on (Type 1 or 2);
    databases, architecture, system and Pursue bibliography
    software engineering, etc.
    U Advanced topics in survivability, Follow-on (Type 1 or 2);
    security, encryption, reliability, Pursue bibliography
    fault tolerance, error-correcting
    codes, etc.
    V Use of formal methods for critical Follow-on (Type 1 or 2);
    aspects of survivability Pursue bibliography
    W Management of development, quality Follow-on (Type 1 or 2),
    control, risk assessment, human Pursue bibliography
    factors, robust open-source, etc.
    X Prototype development projects, ideally Follow-on (Type 1 or 2),
    with collaborating teams, especially integrated with B sequence
    robustification of open-source software
    Table H: Survivability Curriculum Components

    It is essential that the essence of this report be moved into the educational and institutional mainstream so that the valuable experiences of the past can be merged effectively with recent advances in computer and network technology, and thus encourage the development of truly survivable systems and networks in the future, and stimulate greatly increased awareness of the issues.

    A.1 Survivability-Relevant Courses

    The following plan for courses that might contribute to an educational program is specifically oriented toward a systems perspective of survivability. Two types of course programs are identified, one on a small scale, the second on a much broader scale. However, the two types are compatible, and the differences are not intrinsic. Relevant curriculum topics are identified in Table H for each type.

    The level of detail and the nature of the material selected should of course be carefully adapted to the academic level and experience of the students (e.g., college undergraduates, university graduate students, industrial employees, reentry individuals being retrained for new careers), and the background, training, and experience of the teaching staff. Many advantages can result from integrating requirements for survivability and its subtended attributes such as reliability, security, and performance, early in a <student's life. However, many of the subtleties of the system development process (e.g., team communication failures and the pervasiveness of system vulnerabilities) and many of the idiosyncrasies of procurement, configuration, and operation do not become meaningful to students until they have gained sufficient experience.

    We make a distinction in the table between familiarity with programming languages and operating systems on one hand, and a deeper understanding of the principles thereof on the other hand. It is not adequate that students have merely been exposed to many different systems and languages. It is vital that they understand the fundamentals of those systems and what is really necessary in the future. Thus, the prerequisites or integrated units shown in the table for "A" through "E" are in the long run not necessarily the standard courses that exist today in their respective areas, but rather courses or units of courses that stress a grasp of the appropriate fundamentals. Nevertheless, exposure to some modern programming languages is highly desirable.

    Ideally, an academic program incorporating survivability should have elements of survivability and its subtended requirements distributed throughout a considerable portion of the basic curriculum. In such an ideal world, those requirements would be addressed in the existing courses designated by "A" through "E" and "T" through "X" in Table H.

    In contrast, survivability is almost never addressed today, and security and reliability are typically specialty subjects, and then only in a few universities. Similarly, software engineering may be taught as a collection of tools, rather than as a coherent set of principles. As a result, from a practical viewpoint, it would be very difficult to achieve a fully integrated approach as an incremental modification to existing course structures. On the other hand, it would be relatively easy to initially introduce a single new course addressing the items denoted by "S" in the table, and then evolve toward the desired goal of a coherent integrated curriculum.

    Thus, our basic recommendation is to start small with the single course focusing on the "S" items most specifically related to survivability, and then over time to encourage faculty members to allow the concepts of survivability to osmose, pervasively working themselves into the broader academic program -- with particular emphasis on the design of operating systems and networking, and the use of programming languages and software engineering techniques to achieve greater survivability. In the process, the material in each course offering may change somewhat, including the material earmarked for the single type-1 course on survivability -- some of which may tend to be distributed among certain prerequisite courses.

    One of the most fruitful areas for student projects involves the robustification of open-source software. The variety of approaches is enormous, the challenges are unlimited, and the opportunities for successful penetration into the real world are very exciting. The best results will find instant use on the Web. Collaborations with others can lead to continual improvements.

    At present, no obvious textbooks can contribute directly to the intended breadth of the outlined survivability curriculum (other than perhaps this report, which in the first phase of the project has been primarily concerned with the fundamentals rather than the details -- which are yet to follow in the second phase). However, there are various books that can be extremely useful in filling in some of the gaps -- for example, addressing security (e.g., [300]), Java security and secure mobile code (e.g., [200] or, when available, [201]), and software engineering (e.g., [301]). Surprisingly, there does not seem to be an appropriately scoped modern book on fault tolerance, although there are some significant journal articles, such as [80] on distributed fault tolerance, and an early book on principles [18] that although out of print is still useful. Far-sighted good principles tend to remain good principles forever, despite changes in technology. However, the understanding and appreciation of those principles is highly dependent on their being illustrated by concrete examples. Furthermore, technological changes often tend to make optimization advice obsolete.

    Many important articles should be mandatory reading for any students seeking a deeper understanding, quite a few of which are cited explicitly in this report. (See the Noteworthy References cited in Appendix D.) However, it is clear that someone needs to write an up-to-date textbook that could be used for the core portion of the proposed survivability curriculum. Perhaps this report will serve as the basis for such a book. On the other hand, books are often obsolete before they are published -- which is why this report has focused primarily on principles and their underlying motivation, as well as why it is important to study the literature.

    Unfortunately, the prevailing mentality among many younger researchers and developers is fairly troglodytic when it comes to earlier works: "If it isn't on the Web today, it never existed in the past." Many extremely important works in the literature tend to be forgotten. (One effort to resuscitate some historically significant efforts is the History of Computer Security Project, which has created CD-ROMs of seminal papers. See for further information.)

    As an outgrowth of the first-phase effort in our ARL project, with the shepherding of Paul Walczak and George Syrmos at the University of Maryland, a one-semester course of Type 1 noted above was taught by Neumann at the University of Maryland in the fall semester of 1999. The course notes are available in a copyleft form on-line
    (, freely available for use elsewhere. The basic outline for the course is as follows:

    1. Introduction and overview
    2. Survivability-related risks
    3. Risks continued, and Threats
    4. Survivability requirements
    5. Deficiencies in existing systems
    6. Overcoming these deficiencies 1
    7. Overcoming these deficiencies 2
    8. Architectures for survivability 1
    9. Architectures for survivability 2
    10. Reliability in perspective
    11. Security in perspective
    12. Architectures for survivability 3
    13. Implementing for survivability
    14. Conclusions

    In part inspired by the Maryland course and by the efforts of Paul Walczak in promoting the phase-one report, related courses were taught by Tony Barnes at the University of Pennsylvania, and by Doug Birdwell and Dave Icove at the University of Tennessee Knoxville, in the fall of 1999. Subsequently, a seminar on this subject was taught by Blaine Burnham at Georgia Tech, in the winter of 2000.

    I must add that the Maryland course notes are to some extent my own personal view of what is important to teach, with considerable emphasis on basics, principles, and experience. Reflecting on my view that this material does not lend itself to a cookbook course, I have intentionally left gaps in the slide versions of some of the lectures (such as security and fault tolerance specifics), as an incentive for any lecturer using these materials to apply his or her own knowledge, and as an incentive for the student to dig into the literature. My own personal experience clearly infused my Maryland lectures. For example, I included some further material on David Huffman's beautiful work on graphical error-correcting codes for larger Hamming distances that is not included in the on-line slides. I would not expect someone else to teach such relatively unknown material, although I had a fascination with it because of its visual simplicity and my personal association with Huffman. Also, Virgil Gligor sat in with me for the 11th class period, Security in Perspective, adding his own very significant personal experience as well. That discussion is captured only briefly in summary. In general, the discussion periods during class time were very productive, because they addressed the specific concerns of the students - which are not easily captured in slides! Overall, I cannot stress often enough how far away the survivability problems are from having cookbook solutions.

    A.2 Applicability of Remote Learning and Collaborative Teaching

    Some universities and other institutions are offering or contemplating courses taught on-line via the Internet, including a few with degree programs. There are many potential benefits, as the multimedia technology improves with respect to audio, video, and sophisticated graphics: teachers can reuse collaboratively prepared course materials; students can schedule their remote studies at their own convenience, and employees can participate in selected subunits for refreshers; society can benefit from an overall increase in literacy -- and perhaps even computer literacy. On-line education inherits many of the advantages and disadvantages of textbooks and conventional teaching, but also introduces some challenges of its own:

    The last of these challenges can be partially countered by including some live lectures or videoteleconferenced lectures, and requiring instructors and teaching assistants to be accessible on a regular basis, at least asynchronously via e-mail. Multicast course communications and judicious use of Web sites may be appropriate for dealing with an entire class. However, the reliability and security weaknesses in the information infrastructures suggest that students will find lots of excuses such as the "Internet ate my e-mail" variant on the old "My dog ate my homework" routine. Interstudent contacts can be aided by chat rooms, with instructors trying to keep the discussions on target. Also, students can be required to work in pairs or teams on projects whose success is more or less self-evident.

    E-education may be better for older or more disciplined students, and for students who do not expect to be entertained. It is useful for stressing fundamentals as well as helping students gain real skills. But only certain types of courses are suitable for on-line offerings -- unfortunately, particularly those courses that emphasize memorization and regurgitation, or that can be easily graded mechanically by evaluation software. Such courses are also highly susceptible to cheating, which can be expected to occur rampantly whenever grades are the primary goal, used as a primary determinant for jobs and promotions. Cheating tends to penalize only the honest students. It also seriously complicates the challenge of meaningful professional certification based primarily on academic records.

    Society may find that distance learning loses many of the deeper advantages of traditional universities -- where smaller classrooms are generally more effective, and where considerable learning typically takes place outside of classrooms. But e-education may also force radical transformations on conventional classrooms. If we are to make the most out of the challenges, the advice of Brynjolfsson and Hitt [65] suggests that new approaches to education will be required, with a "painful and time consuming period of reengineering, restructuring and organization redesign..."

    There is still a lack of experience with, and lack of critical evaluation of, the benefits and risks of such techniques. For example, does electronic education scale well to large numbers of students in other than rote-learning settings? Can a strong support staff including in-person teaching assistants compensate for many of the potential risks? On the whole, there are some significant potential benefits, for certain types of courses. We hope that some of the universities and other institutions already pursuing remote electronic education will evaluate their progress on the basis of actual student experiences (rather than just the perceived benefits to the instructors), and share the results openly. Until then, we vastly prefer in-person teaching coupled with students who are self-motivated -- although there have clearly been some strongly positive experiences with videoteleconferencing.

    If electronic materials are to be used in a survivability syllabus, we recommend starting modestly and then extending the offerings in a careful evolutionary manner.

    A.3 Summary of Education and Training Needs

    The combination of architectural solutions, configuration controls, evaluation tools, and certification of static systems is by itself still inadequate. Ultimately, the demands for meaningfully survivable systems and networks require that considerable emphasis be placed on education and training of people at many different levels -- including high-level definers of high-level requirements, those who refine those requirements into detailed specifications, system designers, software implementers, hardware developers, system administrators, and especially users. The concept of keeping systems simple cannot be successful whenever the requirements are inherently complex (as they usually are). (Once again we recall the quotes from Albert Einstein given in Chapter 1.) Training large numbers of people to be able to cope with enormous complexity is also not likely to be successful. Although the mobile-code paradigm offers some hopes that education and training can be simplified, many vulnerabilities in the underlying infrastructure require human involvement, especially intervention in emergency situations. In short, our dictum throughout this report that "there are no easy answers" also applies to the challenges of education and training. There is no satisfactory substitute for people who are intelligent and experientially trained. But there is also no satisfactory substitute for people-tolerant systems that can be survivable despite human foibles. The design of systems and networks with stringent survivability requirements must always anticipate the entire spectrum of improper human behavior and other threats. We need intolerance-tolerant systems that can still survive when primary techniques for fault tolerance and compromise resistance fail, irrespective of unexpected human and system behavior. But above all we need people with both depth of experience and depth of understanding who can ensure that the established principles are adhered to throughout system development and maintained throughout system operation, maintenance, and use.

    A.4 The Purpose of Education

    We conclude this appendix with yet another succinct quote from Albert Einstein, who serendipitously summarized the primary aim of our intended efforts to bring survivability concepts into mainstream curricula:

    The development of general ability for independent thinking and judgment should always be placed foremost, not the acquisition of special knowledge. If a person masters the fundamentals of his subject and has learned to think and work independently, he will surely find his way and besides will better be able to adapt himself to progress and changes than the person whose training principally consists in the acquiring of detailed knowledge.
    Albert Einstein,  Out of My Later Years, The Philosophical Library, Inc., New York, NY, 1950, p. 36.

    The wisdom of Einstein (embodied in quotations throughout this report) and Schopenhauer (in Section 9.3) emphasizes what should be the deeper purpose of any education relating to such a comprehensive subject as survivable systems and networks. Concerning Schopenhauer's view that experience must motivate the employment of general principles, we must also keep in mind that folks who start out with only experience and no principles also tend to go astray. Our own holistic view on the subject can be summarized as follows:

    Perhaps this report in combination with other materials noted on the following page -- for example, [250] -- can provide a useful starting place.

    Appendix B: Jonathan Millen's Research Contributions

    Following is an enumeration of papers written at least in part under the present ARL contract by Jon Millen. The first two represent fundamental research on understanding some of the formalisms underlying survivability. The remaining three papers are important contributions to modeling of public-key infrastructures and digital certificates.

    Local Reconfiguration Policies [214]

    Survivable systems are modeled abstractly as collections of services supported by any of a set of configurations of components. Reconfiguration to restore services as a result of component failure is viewed as a kind of "flow" analogous to information flow. The paper applies Meadows's  theorem [203] on dataset aggregates to characterize the maximum safe flow policy. For reconfiguration, safety means that services are preserved and that reconfiguration rules may be stated and applied locally, with respect to just the failed components.

    A system is viewed as a collection of components configured to provide a set of user services. Electronic mail, for example, in a local-area network, requires a workstation, the cable and associated interface devices, a gateway to the Internet service, and so on. Components are not simply hardware devices, but functional combinations of hardware and software.

    To study fault tolerance and reconfiguration, attention is focused on the fact that different sets of components can support the same service. Then, if some components fail, they can be replaced by others in a different configuration.

    A service is characterized by the set of alternative configurations that can support it. A service configuration assigns components to support a service. A service configuration is not fully defined by the set of components it employs - two different configurations can use the same set of components. (An example is the use of "I" and "V" to support Roman numerals "IV" or "VI".)

    At any given time, a system is in some state where a set of services is being supported simultaneously by the set of currently available components. Different subsets of these components are configured to support the various services in a way that respects the ability or inability of a component to be shared by more than one service.

    Services are given a survivability ordering: one service is no more survivable than another if every service set that supports the first also supports the second.

    Survivability Measure [216]

    An as yet unpublished paper updating the earlier paper "Local Reconfiguration Policies" [214] (itself updating [215]) is ftp-able in PostScript form: It includes new work at the end of the ARL project.

    Efficient Fault-Tolerant Certificate Revocation [211]

    This paper considers scalable certificate revocation in a public-key infrastructure. It introduces depender graphs, a new class of graphs that support efficient and fault-tolerant revocation. Nodes of a depender graph are participants that agree to forward revocation information to other participants. The depender graphs are k-redundant, so that revocations are provably guaranteed to be received by all nonfailed participants even if up to k-1 participants have failed. A protocol is given for constructing k-redundant depender graphs, with two desirable properties. First, it is load balanced, in that no participant need have too many dependers. Second, it is localized, in that it avoids the need for any participant to maintain the global state of the depender graph. The paper also gives a localized protocol for restructuring the graph in the event of permanent failures.

    Certificate Revocation the Responsible Way [217]

    Public-key certificates are managed by a combination of the informal web of trust and the use of servers maintained by organizations. Prompt and reliable distribution of revocation notices is an essential ingredient for security in a public-key infrastructure. Current schemes based on certificate revocation lists on key servers are inadequate. An approach based on distributing revocation notices to "dependers" on each certificate, with cascading forwarding, is suggested. Research is necessary to investigate architectural issues, particularly reliability and response time analysis.

    Reasoning about Trust and Insurance in a Public Key Infrastructure [218]

    In the real world, insurance is used to mitigate financial risk to individuals in many settings. Similarly, it has been suggested that insurance can be used in distributed systems, and in particular, in authentication procedures, to mitigate individuals' risks there. This paper further explores the use of insurance for public-key certificates and other kinds of statements. It also describes an application using threshold cryptography in which insured keys would also have an auditor involved in any transaction using the key, allowing the insurer better control over its liability. It provides a formal yet simple insurance logic that can be used to deduce the amount of insurance associated with statements based on the insurance associated with related statements. Using the logic, it shows how trust relationships and insurance can work together to provide confidence.

    Appendix C: DoD Attempts at Standardization

    The more you know, the less you understand.
    Lao Tze, Tao Te Ching

    The material in this appendix is included primarily as an illustration of the difficulties in establishing architectural standards for systems and networks.

    Several efforts have been made to provide some standardization for systems, the first three driven by the organizations under the U.S. Department of Defense, the fourth resulting from a nongovernmental task group that is explicitly targeted at advising the DoD.

    C.1 The Joint Technical Architecture

    We focus initially on the Army Joint Technical Architecture (JTA), Version 5.0 [90] and the extent to which it is relevant to the development and configuration of systems and networks with stringent survivability requirements. Irrespective of its possible benefits in constraining systems, we consider the JTA to be seriously deficient, and discuss the reasons therefor here.22

    C.1.1 Goals of JTA Version 5.0

    The three main goals of the Army Joint Technical Architecture (JTA) are very worthy: (1) provide a foundation for seamless interoperability among a very wide range of systems; (2) provide guidelines and standards for system development and acquisition that can dramatically reduce cost, development time, and fielding time; and (3) influence the direction of commercial technology development and R&D investment to make it more directly applicable. The intent of our present effort as described in this report is completely in line with those three goals.

    To engage in a meaningful evaluation of the JTA, we must refer to the specific definitions of the three types of "architecture" defined therein.

    The ellipses in these quoted definitions denote our elimination of references to the "war-fighter" -- because the scope of the JTA is explicitly intended to apply "to all systems that produce, use, or exchange information electronically" (JTA5.0, Section 1.1.3), including systems of other Armed Services. In the spirit of trying to use commercial systems wherever possible, it is vital that those systems be adequate for defense purposes rather than requiring extensively customized special-purpose systems.

    The concept of the technical architecture must be understood within the overall problem of developing, configuring, and operating compliant systems - a process that is by no means a cookbook type of activity. By itself, the JTA is merely a set of guidelines, with no assurance of completeness or adequacy. Many of the requisite standards are not even established or sufficiently well defined, particularly with respect to survivability, security, reliability, and fault tolerance. Furthermore, highly survivable systems cannot be merely composed out of existing components, as noted in Chapter 4; the existing computer-communication infrastructures are still fundamentally flawed with respect to their ability to address many of the essential requirements. Consequently, our report is considered to be an essential additional set of guidelines, techniques, and principles for the development and procurement of highly survivable systems. We believe that our approach is generally consistent with the intent of all three of the technical, operational, and systems architectures.

    C.1.2 Analysis of JTA Version 5.0

    The following recommendations are taken almost verbatim from an earlier assessment [259] of various ATA Version 4 drafts, written by Peter Neumann and Peter Boucher of SRI's Computer Science Lab. Those recommendations still seem timely, and in many ways anticipate our present study. We hope that our analysis may become obsolete as a result of subsequent improvements to the JTA that might occur during our project. Further changes to the JTA are increasingly essential, despite the fact that there have been almost no improvements in the JTA (apart from its renaming) in the past two years.

    Ultimately, any system development and its operation depend on (among other things) (1) the availability of an accurate, flexible, realistic, and essentially complete set of functional requirements, (2) the existence of a conceptual architecture that can demonstrably satisfy those requirements, (3) a development process that can tolerate changes to the requirements and architecture during development, (4) competent personnel on the Government side, and (5) development personnel who provide a mixture of abilities including pervasive understanding of the requirements, appropriate technical skills, diligence, conscientiousness, responsibility, and a good practical sense regarding the development process. Without those constituent elements, the notions of a technical architecture, a systems architecture, and an operational architecture are of limited merit.

    One of the biggest problems in the past has been that the initial requirements were improperly and incompletely stated and that the effects of subsequent changes could not be properly managed. This problem must be adequately addressed in the very near future.

    The JTA Version 5.0 definition of a systems architecture suggests that a systems architecture is a physical implementation. That is in general a very unsound practice. A systems architecture should never exist only as a physical implementation, and is most desirably preceded by a conceptual logical architecture. More specifically, a physical implementation represents a system build, not an architecture. That definition violates basic principles of generality, abstraction, and reusability, and puts the cart before the horse. What is needed is a true systems architecture, namely, a logical realization of the functional requirements that can be readily converted into a physical implementation, but that does not overly constrain the physical implementation. There is always a serious danger of trying to use software solutions where hardware is essential, or of using inappropriate hardware where simple software approaches would suffice. A logical architecture must not be locked into irrevocable decisions that a few years later become totally obsolete.

    Open architectures are essential. We strongly recommend recognition of the need for logical architectures in which there is considerable emphasis on servers (e.g., file servers, network servers, and authentication servers) and in which trustworthiness can be focused where it is most needed rather than distributed broadly. (See [267] and [310] for examples of how this can be done. Also, see [249] for a discussion of what trustworthiness can be accomplished if the cryptography is implemented in software instead of hardware, and some of the pitfalls of trying to rely on inadequately trustworthy infrastructure.)

    Not sufficiently evident in the suite of three types of "architectures" is the notion of a generic, system-implementation-independent, reusable, abstract, architectural structure that could be implemented on different platforms to satisfy possibly related but different requirements, without prematurely constraining design decisions. Although in some sense an intent of the JTA approach, it is not sufficiently well motivated within the framework of the three JTA "architectures".

    C.1.3 JTA5.0 Section 6, Information Security

    Chapter 6 of the JTA Version 5.0 is largely the same chapter that was rather belatedly incorporated into the ATA Version 4 to address information security, and is relatively unchanged despite the passage of two years -- although references have been added to the more recent DoD Goal Security Architecture (DGSA) intended for use with future systems. (See Section C.2 for discussion of the DGSA.) Unfortunately, the JTA has not been upgraded to adequately address its earlier deficiencies, and almost completely ignores survivability issues and survivability-related requirements other than security. This seems seriously shortsighted.

    The following comments are essentially the same as those registered in January 1996 with respect to the drafts of ATA Version 4. It appears that only a few of our earlier comments were actually addressed, and thus the relevant comments from [259] are repeated here -- updated to encompass survivability issues.

    Much greater guidance on how to interpret these standards and protocols needs to be included. Such guidance is absolutely essential to making the JTA approach practical.

    It is still not clear how survivability policy, threats, vulnerabilities, and acceptable risks are intended to fit into the three "architectures". Presumably they are beyond the scope of the JTA, and must be addressed in the operational and systems architectures. But it seems to be impossible for the JTA to fulfill its intended purpose unless those concepts are explicitly accounted for. The process of establishing and accommodating the policy, threats, vulnerabilities, and acceptable risks must somehow be made explicit.

    Some additional pointers to relevant standards and guidelines are nevertheless needed here. For example, a reference to NCSC-TG-007 ("A Guide to Understanding Design Documentation in Trusted Systems," Version-1, 2 October 1988, or any successor) might be useful for policy. CSC-STD-003-85 ("Guidance for Applying the Trusted Computer System Evaluation Criteria in Specific Environments" -- the Yellow Book) provides useful guidance for applying the NCSC security criteria, as does AR 380-19, Appendix B. Procedural, personnel, and physical security are also considered in AR 380-19. However, AR 380-19 is a bare-bones minimum, and itself is too hidebound by the TCSEC. For example, the password policy is somewhere out of the dark ages, and reflects none of the risks of passwords passing over an unencrypted network or otherwise vulnerable to capture, irrespective of how they are created. Relevant COMSEC policy standards would also be relevant here. Risk standards are mentioned only in passing, but should be referenced explicitly.

    In JTA5.0 Section, the Orange Book (5200.28-STD) is mandated. (It is not even the best thing available, but at least some of its serious flaws and shortcomings should be recognized.) It would seem to be appropriate to mention the Yellow Book (CSC-STD-003-85, noted above) and at least acknowledge its limitations as well. Unfortunately, this is an example of why the mere mention of such references is inadequate -- we are not dealing with a cookbook process. Also, what about NCSC-TG-009 (Computer Security Subsystem Interpretation)? What about the Common Criteria as an emerging standard, which when instantiated with at least Orange-Book-equivalent requirements represents a significant improvement [although it still leaves much room for incompletely specified criteria]?

    In JTA5.0 Section, the Fortezza material should be revisited.

    In JTA5.0 Section, given the controversy and confusion relating to the Trusted Network Interpretation, it is not clear what is mandated. In addition, the TNI Interpretation document (NCSC-TG-011) should be mentioned.

    Although it has been improved a little since the Version 4.x drafts, Table 6-1 (Protocols and Security Standards) could still become a much more useful table. The left-hand column still amorphously lumps together application, presentation, and session layers, transport and network layers, and in a second grouping datalink and physical layers. The middle column lists a few rather generic protocols. The right-hand column lists rather haphazardly a collection of security-related standards and protocols, with no relation to the middle column, whether the standards and protocols are actually adequate for any intended purposes (and if so, which), and no indication of whether any meaningfully secure implementations actually exist. (For many of these, the existing protocols and their implementations are seriously flawed.)

    It would be useful to have a separate table (updated regularly) providing some guidance as to the state of the art, and enumerating current or anticipated implementations that are relevant. This table does not seem to fall naturally into any of the three "architectures", too specific for the JTA, too general for the systems architecture, and not appropriate for the operational architecture. The need for it suggests a new class of "architecture" documents, perhaps somewhat akin to the "interpretation" documents within the TCSEC rainbow series, such as the TCSEC [233], TNI [231], and TDI [232] and the corresponding interpretation documents for the TCSEC [234] and TNI [230]. Such an interpretation document could also include guidance on how to go from requirements ("operational architecture") to a generic architecture to the systems architecture, compliant with the JTA, and might also include some guidelines on system and software engineering. A guidance document would be extremely valuable, whether it is a part of the JTA document or otherwise.

    JTA5.0 Section 6.4 is still very weak in comparison with the rest of the document. The fact that no standards are yet mandated is not encouraging for those relying solely on the JTA for their understanding of how to proceed.

    JTA5.0 Section 6.5 is also weak. For example, much greater guidance is necessary relating to the security, complexity, and usefulness of user interfaces. In general, sophisticated user interfaces are very complex, difficult to use, and full of security flaws. This entire section has not been upgraded in the past two years, despite significant changes. The emerging standards for personal authentication in Section are unrealistic. Zero-knowledge schemes are the tip of a very large iceberg for personal authentication, and everything else relating to cryptographically based one-time token authentication schemes, biometrics, and other approaches is lost in the shuffle by the mentioning only zero knowledge. Incidentally, this is an area in which the implicit inclusion of the basic TCSEC [233] (DoD 5200.28-STD) as a mandatory standard is misleading, because that document gives the distinct impression that fixed reusable passwords are perfectly adequate! Fixed passwords are in general a disaster waiting to happen, especially in highly distributed environments with components of unknown trustworthiness.

    C.1.4 Augmenting the Army Architecture Concept

    To give some examples of what is needed to bridge the gaps among the technical architectures of JTA Version 5.0, operational architectures, and systems architectures, several steps need to be taken.

    In this section and in Chapter 6 on criteria, we paint a rather negative picture of the difficulties that have arisen repeatedly in procuring, developing, operating, using, and maintaining a wide variety of possibly unrelated systems and their networked interconnections. (See [250] for an elaboration and analysis of some of the risks involved.) On the other hand, the Technical Architecture document does represent a possibly useful step toward that goal if supplemented with other approaches. It must not be seen as a magic carpet on which we can fly into the future. We believe that the JTA and indeed the concept of the three Army "architectures" could be much more effective if the contents of our report are taken seriously.

    C.2 The DoD Goal Security Architecture

    The DoD Goal Security Architecture (DGSA), Volume 6 of the Technical Architecture Framework for Information Management (TAFIM) is intended to represent abstract and generic system architectures. The DGSA and the DGSA Transition Plan for bringing the DGSA into reality are both considered to be living documents, and therefore the reader is encouraged to check the on-line sources for the latest version ( Unfortunately, the evolution of these documents has been relatively slow.

    The DGSA recognizes, among other things, (1) the importance of different security policies, (2) the reality that users and resources may have different security attributes, (3) the essential nature of distributed processing and networking, and (4) the need for communications to take place over potentially untrustworthy networks. It may be a useful step forward, but the proof of the pudding is in the eating and its potential utility is not yet realized.

    A recent examination of the DGSA is given by Feustel and Mayfield [105], who remark that "Perhaps the DGSA document can best be viewed as a conceptual framework for discussing a security policy and its implementation." However, the DGSA leaves completely open which security policies are to be invoked. See also Lowman and Mosier [185], investigating the use of DGSA as a possible methodology for system development -- and giving two illustrative systems so described.

    According to the DGSA document, an abstract architecture grows out of the requirements; it defines principles and fundamental concepts, and functions that satisfy those requirements. A generic architecture adds specificity to the components and security mechanisms. A logical architecture applies a generic architecture to a set of hypothetical requirements. Finally, a specific architecture applies the logical architecture to real requirements, fleshes out the design to enable implementation, and addresses specific components, interfaces, standards, performance, and cost.

    For discussion purposes, the overview of the TAFIM volumes gives this summary of the TAFIM Volume 6: The DGSA "addresses security requirements commonly found within DoD organizations' missions or derived as a result of examining mission threats. Further, the DGSA provides a general statement about a common collection of security services and mechanisms that an information system might offer through its generic components. The DGSA also specifies principles, concepts, functions, and services that target security capabilities to guide system architects in developing their specific architectures. The generic security architecture provides an initial allocation of security services and functions and begins to define the types of components and security mechanisms that are available to implement security services. In addition, examples are provided of how to use the DGSA in developing mission-level technical architectures."

    Although security policy is left unspecified in the DGSA, the requirements are focused on security and do not address other important aspects of survivability. In principle, that should not be an obstacle if the DGSA is sufficiently general to encompass survivability requirements as well. The extent to which this will be possible remains to be seen. In any case, in Chapter 7 we address architectural structures that could enhance the realization of the generalized survivability requirements outlined in Chapter 3.

    C.3 Joint Airborne SIGINT Architecture

    The Joint Airborne SIGINT Architecture (JASA) Standards Handbook [121] (JSH) includes Chapter 7 (Security Services) and Annex 10 (Information Security and Information Systems Security Engineering). The handbook's Chapter 7 and Annex 10 appear to carry on the cookbook characteristics of the JTA and DGSA; they attempt to elaborate on the JTA and the Unified Cryptologic Architecture (UCA), which summarizes the primary cryptographic standards. Although such an enumeration of standards is certainly necessary, it leaves much unspecified and does not address the issue of compatibility; in particular, it leaves as an exercise to the reader how to achieve compatibility among incompatible approaches. It also exhibits a remarkable fascination with a secure single sign-on (SSSO) despite the reality that many of the components along the way typically cannot be trusted. This seems to be a monstrous oversimplification, and is dangerous because it is likely to encourage simplistic solutions that are not adequately secure. The handbook does recognize the need for SSSO approaches that can overcome the difficulties arising from multiple authentications (e.g., having to remember different account IDs and passwords), but the risks of trusting untrustworthy components and the serious risks of fixed passwords themselves are not adequately considered. (See Section of the 30 June 1998 draft of the JASA Standards Handbook, Version 3.0.)

    C.4 An Open-Systems Process for DoD

    The final study report [271] of the Open Systems Task Force (OSTF) is concerned primarily with the role that open systems might play in Department of Defense computer-communication systems. The report focuses on the requirements of an open-systems process for DoD, and characterizes the advantages of this approach. The study group consists of a distinguished group of nongovernment people, sponsored by the Defense Science Board.

    A very compelling statement is included in the Executive Summary of the OSTF: "In fact, the Task Force argues that major DoD priorities cannot be achieved without a massive infusion of Open System attributes through an organized Open Systems Process. Some sort of Open Systems Process must become the DoD mindset and core competency."

    We make a distinction here between the open-system concept (which implies primarily that heterogeneously different systems can in some sense interoperate) and the open-box concept discussed in Section 5.10 (which additionally implies that the source code and interfaces are publicly available in some meaningful sense). Many of the arguments for the open-system approach recommended by the OSTF report are also relevant as motivation for pursuing the intrinsically open-box approach recommended in this report. However, the open-box approach is in our opinion much more compelling and much more far-reaching. In any event, we strongly urge the DoD to encourage both efforts.

    Appendix D: Some Noteworthy References

    Because this report addresses some of the most fundamental limitations of commercially available systems and what must be done to overcome those limitations, research is of critical importance to survivability -- both the incorporation of ongoing research and the conduct of new research that can help to fill in the gaps. As a consequence, considerable emphasis is placed on research references in the following bibliography. Although new additions to the literature are continually emerging, we have attempted to focus on the primary references, and particularly those that might illuminate a highly principled approach to survivability.

    We cite here a few references that have been particularly influential in this project, and that we consider to be of historical significance in understanding the importance of architectural structure and its implications. Although the following subset of references is largely concerned with security, it also provides many valuable insights with respect to achieving survivability:

    To illustrate the frequency and diversity of announced vulnerabilities, following is a list of the CERT Advisories in the past year, with initial date of release. (Please check the CERT Web site for the latest revisions subsequent to the date noted below.) There are also quarterly CERT Summaries.

    * CERT Advisory CA-99.08, 16 Jul 1999:
    * CERT Advisory CA-99.09, 19 Jul 1999:
    Array Services default configuration
    * CERT Advisory CA-99.10, 30 Jul 1999:
    Insecure Default Configuration on RaQ2 Servers
    * CERT Advisory CA-99.11, 13 Sep 1999:
    Four Vulnerabilities in the Common Desktop Environment
    * CERT Advisory CA-99.12, 16 Sep 1999:
    Buffer Overflow in amd
    * CERT Advisory CA-99.13, 19 Oct 1999:
    Multiple Vulnerabilities in WU-FTPD
    * CERT Advisory CA-99-14, 10 Nov 1999:
    Multiple Vulnerabilities in BIND
    * CERT Advisory CA-99.15, 13 Dec 1999:
    Buffer Overflows in SSH Daemon and RSAREF2 Library
    * CERT Advisory CA-99.16, 14 Dec 1999:
    Buffer Overflow in Sun Solstice AdminSuite Daemon sadmind
    * CERT Advisory CA-99-17, 28 Dec 1999:
    Denial-of-Service Tools
    * CERT Advisory CA-2000-01, 3 Jan 2000:
    Denial-of-Service Developments
    * CERT Advisory CA-2000-02, 2 Feb 2000:
    Malicious HTML Tags Embedded in Client Web Requests
    * CERT Advisory CA-2000-03, 26 April 2000:
    Continuing Compromises of DNS servers
    * CERT Advisory CA-2000-04, 4 May 2000:
    Love Letter Worm
    * CERT Advisory CA-2000-05, 12 May 2000:
    Netscape Navigator Improperly Validates SSL Sessions
    * CERT Advisory CA-2000-06, 17 May 2000:
    Multiple Buffer Overflows in Kerberos Authenticated Services
    * CERT Advisory CA-2000-07, 24 May 2000:
    Microsoft Office 2000: UA ActiveX Control Incorrectly Marked
    "Safe for Scripting"
    * CERT Advisory CA-2000-08, 26 May 2000:
    Inconsistent Warning Messages in Netscape Navigator
    * CERT Advisory CA-2000-09, 30 May 2000:
    Flaw in PGP 5.0 Key Generation
    * CERT Advisory CA-2000-10, 6 June 2000:
    Inconsistent Warning Messages in Internet Explorer
    * CERT Advisory CA-2000-11, 9 June 2000:
    MIT Kerberos Vulnerable to Denial-of-Service Attacks
    * CERT Advisory CA-2000-12, 19 June 2000:
    HHCtrl ActiveX Control Allows Local Files to be Executed


    M. Abadi. On SDSI's linked local name spaces. In Proceedings of the 10th IEEE Computer Security Foundations Workshop, pages 98-108, Rockport, Massachusetts, June 1997.
    M. Abadi and A.D. Gordon. A calculus for cryptographic protocols: The Spi calculus. Technical report, Digital Equipment Corporation, SRC Research Report 149, Palo Alto, California, January 1998.
    M. Abadi and L. Lamport. Composing specifications. In J.W. de Bakker, W.-P. de Roever, and G. Rozenberg, editors, Stepwise Refinement of Distributed Systems: Models, Formalisms, Correctness, pages 1-41, REX Workshop, Mook, The Netherlands, May-June 1989. Springer-Verlag, Berlin, Lecture Notes in Computer Science Vol. 230.
    M. Abadi and K.R.M. Leino. A logic of object-oriented programs. Technical report, Compaq Systems Research Center, SRC Research Report 161, Palo Alto, California, September 1998.
    M. Abadi and R. Needham. Prudent engineering practice for cryptographic protocols. IEEE Transactions on Software Engineering, 22(1):6-15, January 1996.
    H. Abelson, R. Anderson, S.M. Bellovin, J. Benaloh, M. Blaze, W. Diffie, J. Gilmore, P.G. Neumann, R.L. Rivest, J.I. Schiller, and B. Schneier. The risks of key recovery, key escrow, and trusted third-party encryption. World Wide Web Journal (Web Security: A Matter of Trust), 2(3):241-257, Summer 1997. This report was first distributed via the Internet on May 27, 1997.
    H. Abelson, R. Anderson, S.M. Bellovin, J. Benaloh, M. Blaze, W. Diffie, J. Gilmore, P.G. Neumann, R.L. Rivest, J.I. Schiller, and B. Schneier. The risks of key recovery, key escrow, and trusted third-party encryption., June 1998. This is a reissue of the May 27, 1997 report, with a new preface evaluating what happened in the intervening year.
    B. Alpern and F.B. Schneider. Defining liveness. Information Processing Letters, 21(4):181-185, October 1985.
    J. Alves-Foss. The use of belief logics in the presence of causal consistency attacks. In Proceedings of the Nineteenth National Computer Security Conference, pages 406-417, Baltimore, Maryland, 6-10 October 1997. NIST/NCSC.
    E. Amoroso. Intrusion Detection: An Introduction to Internet Surveillance, Correlation, Trace Back, Traps, and Response. Intrusion.Net Books, 1999.
    D. Anderson, T. Frivold, and A. Valdes. Next-generation Intrusion-Detection Expert System (NIDES). Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, SRI-CSL-95-07, May 1995.
    D. Anderson, T. Lunt, H. Javitz, A. Tamaru, and A. Valdes. Safeguard final report: Detecting unusual program behavior using the NIDES statistical component. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, 2 December 1993.
    J.P. Anderson. Computer security technology planning study. Technical Report ESD-TR-73-51, U.S. Air Force Electronic Systems Division, October 1972. (Two volumes).
    M. Anderson, C. North, J. Griffin, J. Yesberg, and K. Yiu. Starlight: Interactive link. In Proceedings of the Twelfth Annual Computer Security Applications Conference, pages 55-63, San Diego, California, December 1996. IEEE Computer Society.
    R. Anderson and M. Kuhn. Low cost attacks on tamper resistant devices. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Security Protocols, Proceedings of 5th International Workshop, pages 125-136, Paris, France, April 1997.
    R.H. Anderson. A "minimum essential information infrastructure" (MEII) for U.S. defense systems: Meaningful? feasible? useful? In Position Papers for the 1998 Information Survivability Workshop -- ISW '98, pages 11-14, Orlando, Florida, 28-30 October 1998. IEEE.
    T. Anderson and J.C. Knight. A framework for software fault tolerance in real-time systems. IEEE Transactions on Software Engineering, SE-9(3):355-364, May 1983.
    T. Anderson and P.A. Lee. Fault-Tolerance: Principles and Practice. Prentice-Hall International, Englewood Cliffs, New Jersey, 1981.
    W.A. Arbaugh, J.R. Davin, D.J. Farber, and J.M. Smith. Security for private intranets. IEEE Computer, 31(9):48-55, 1998. Special issue on broadband networking security.
    W.A. Arbaugh, D.J. Farber, and J.M. Smith. A secure and reliable bootstrap architecture. In Proceedings of the 1997 Symposium on Security and Privacy, pages 65-71, Oakland, California, May 1997. IEEE Computer Society.
    W.A. Arbaugh, A.D. Keromytis, D.J. Farber, and J.M. Smith. Automated recovery in a secure bootstrap process. In Proceedings of the 1998 Network and Distributed System Security Symposium, San Diego, California, March 1998. Internet Society.
    A. Arora and S.S. Kulkarni. Component based design of multitolerance. IEEE Transactions on Software Engineering, 24(1):63-78, January 1998.
    A. Arora and S.S. Kulkarni. Detectors and correctors: A theory of fault-tolerance components. In Proceedings of the Eighteenth International Conference on Distributed Computing Systems. IEEE Computer Society, May 1998.
    J. Bacon. Report on the Eighth ACM SIGOPS European Workshop, System Support for Composing Distributed Applications. Operating Systems Review, 33(1):6-17, January 1999.
    D. Balfanz, D. Dean, and M. Spreitzer. A security infrastructure for distributed Java applications. In Proceedings of the 2000 Symposium on Security and Privacy, pages 15-26, Oakland, California, May 2000. IEEE Computer Society.
    F. Bao, R.H. Deng, Y. Han, A. Jeng, A.D. Narasimhalu, and T. Ngair. Breaking public key cryptosystems on tamper resistant devices in the presence of transient faults. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Security Protocols, Proceedings of 5th International Workshop, pages 115--123, Paris, France, April 1997.
    P. Baran. Reliable digital communications systems using unreliable network repeater nodes. Technical Report P-1995, The RAND Corporaton, May 27 1960.
    J. Bararello and W. Kasian. United States Army Commercial Off-The-Shelf (COTS) experience: The promises and realities. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    A. Barnes, A. Hollway, and P.G. Neumann. Survivable computer-communication systems: The problem and working group recommendations. VAL-CE-TR-92-22 (revision 1). Technical report, U.S. Army Research Laboratory, AMSRL-SL-E, White Sands Missile Range, NM 88002-5513, May 1993. For Official Use Only.
    R.S. Barton. A critical review of the state of the programming art. In Proceedings of the Spring Joint Computer Conference, volume 23, pages 169-177, Montvale, New Jersey, May 1963. AFIPS Press.
    L. Bass, P. Clements, and R. Kazman. Software Architecture in Practice. Addison-Wesley, Reading, Massachusetts, 1998.
    D.E. Bell and L.J. La Padula. Secure computer systems : A mathematical model. Technical Report MTR-2547 Vol. II, Mitre Corporation, Bedford, Massachusetts, May 1973.
    D.E. Bell and L.J. La Padula. Secure computer systems : A refinement of the mathematical model. Technical Report MTR-2547 Vol. III, Mitre Corporation, Bedford, Massachusetts, December 1973.
    D.E. Bell and L.J. La Padula. Secure computer systems : Mathematical foundations. Technical Report MTR-2547 Vol. I, Mitre Corporation, Bedford, Massachusetts, March 1973.
    D.E. Bell and L.J. La Padula. Secure computer systems: Mathematical foundations and model. Technical Report M74-244, The Mitre Corporation, Bedford, Massachusetts, May 1973.
    D.E. Bell and L.J. La Padula. Secure computer system: Unified exposition and Multics interpretation. Technical Report ESD-TR-75-306, The Mitre Corporation, Bedford Massachusetts, March 1976.
    S.M. Bellovin. Verifiably Correct Code Generation Using Predicate Transformers. PhD thesis, Department of Computer Science, University of North Carolina at Chapel Hill, December 1982.
    S.M. Bellovin. Probable plaintext cryptanalysis of the IP protocols. In Proceedings of the Symposium on Network and Distributed System Security, pages 52-59. Internet Society, February 1997.
    S.M. Bellovin and M. Merritt. Limitations of the Kerberos authentication system. In USENIX Conference Proceedings, Winter '91, January 1991. A version of this paper appeared in Computer Communications Review, October 1990.
    L.A. Benzinger, G.W. Dinolt, and M.G. Yatabe. Final report: A distributed system multiple security policy model. Technical report, Loral Western Development Laboratories, report WDL-TR00777, San Jose, California, October 1994.
    S. Berkovits, J.D. Guttman, and V. Swarup. Authentication for mobile agents. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 114-136, 1998.
    K.J. Biba. Integrity considerations for secure computer systems. Technical Report MTR 3153, The Mitre Corporation, Bedford, Massachusetts, June 1975. Also available from USAF Electronic Systems Division, Bedford, Massachusetts, as ESD-TR-76-372, April 1977.
    K.P. Birman and T.A. Joseph. Reliable communication in the presence of failures. ACM Transactions on Computer Systems, 5(1):47-76, February 1987.
    M. Blaum, J. Bruck, K. Rubin, and W. Lenth. A coding approach for detection of tampering in write-once optical disks. IEEE Transactions on Computers, C-47(1):120-125, January 1998.
    M. Blume. Hierarchical Modularity and Intermodule Optimization. PhD thesis, Computer Science Department, Princeton University, November 1997.
    A.D. Blumenstiel. Security assessment considerations for ADL ADP systems. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1985.
    A.D. Blumenstiel. FAA computer security candidate countermeasures for electronic penetration of ADP systems. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1986.
    A.D. Blumenstiel. Potential consequences of and countermeasures for advanced automation system electronic penetration. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1986.
    A.D. Blumenstiel. Guidelines for National Airspace System electronic security. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1987.
    A.D. Blumenstiel. Federal Aviation Administration computer security plans. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, produced by Science Resources Associates, Cambridge, Massachusetts, 1988.
    A.D. Blumenstiel. National Airspace System electronic security. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1988.
    A.D. Blumenstiel. Federal Aviation Administration AIS security accreditation guidelines. Technical report, National Institute on Standards and Technology, Gaithersburg, Maryland, 1990.
    A.D. Blumenstiel. Federal Aviation Administration AIS security accreditation application design. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1991.
    A.D. Blumenstiel. Federal Aviation Administration AIS security accreditation program instructions. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1992.
    A.D. Blumenstiel. Federal Aviation Administration sensitive application security accreditation guideline. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1992.
    A.D. Blumenstiel. Briefing on electronic security in the Communications, Navigation and Surveillance (CNS) environment. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1994.
    A.D. Blumenstiel and J. Itz. National Airspace System Data Interchange Network electronic security. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1988.
    A.D. Blumenstiel and P.E. Manning. Advanced Automation System vulnerabilities to electronic attack. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, July 1986.
    A.D. Blumenstiel et al. Federal Aviation Administration report to Congress on air traffic control data and communications vulnerabilities and security. Technical report, U.S. Department of Transportation/RSPA/Volpe Center, Cambridge, Massachusetts, 1993.
    A. Boswell. Specification and validation of a security policy model. IEEE Transactions on Software Engineering, 21(2):63-69, February 1995. Special section on Formal Methods Europe '93.
    J.P. Bowen and M.G. Hinchey. High-Integrity System Specification and Design. Springer Verlag, Berlin, 1999.
    K.A. Bradley, B. Mukherjee, R.A. Olsson, and N. Puketza. Detecting disruptive routers: A distributed network monitoring approach. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    J. Brentano, S.R. Snapp, G.V. Dias, T.L. Goan, L.T. Heberlein, C.H. Ho, K.N. Levitt, and B. Mukherjee. An architecture for a distributed intrusion detection system. In Fourteenth Department of Energy Computer Security Group Conference, pages 25-45 in section 17, Concord, California, May 1991. Department of Energy.
    F.P. Brooks. The Mythical Man-Month: Essays on Software Engineering. Addison-Wesley, Reading, Massachusetts, Second edition, 1995.
    E. Brynjolfsson and L.M. Hitt. Beyond the productivity paradox. Communications of the ACM, 41(8):11-12, August 1998.
    M. Burrows, M. Abadi, and R. Needham. A logic of authentication. ACM Transactions on Computer Systems, 8(1):18-36, February 1990.
    R.W. Butler. A survey of provably correct fault-tolerant clock synchronization techniques. Technical Report TM-100553, NASA Langley Research Center, February 1988.
    Canadian Systems Security Centre, Communications Security Establishment, Government of Canada. Canadian Trusted Computer Product Evaluation Criteria, Version 3.0e, January 1993.
    D.J. Carney. Quotations from Chairman David: A Little Red Book of truths to enlighten and guide on the long march toward the COTS revolution. Technical report, Carnegie-Mellon University Software Engineering Institute, Pittsburgh, Pennsylvania, 1998.
    R. Charpentier and M. Salois. MaliCOTS: detecting malicious code in COTS software. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    D.M. Chess. Security issues in mobile code systems. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 1-14, 1998.
    D.D. Clark et al. Computers at Risk: Safe Computing in the Information Age. National Research Council, National Academy Press, 2101 Constitution Ave., Washington, D.C. 20418, 5 December 1990. Final report of the System Security Study Committee.
    W.J. Clinton. The Clinton Administration's Policy on Critical Infrastructure Protection: Presidential Decision Directive 63. Technical report, U.S. Government White Paper, 22 May 1998.
    F. Cohen. Computer viruses. In Seventh DoD/NBS Computer Security Initiative Conference, pages 240-263. National Bureau of Standards, Gaithersburg, Maryland, 24-26 September 1984. Reprinted in Rein Turn (ed.), Advances in Computer System Security, Vol. 3, Artech House, Dedham, Massachusetts, 1988.
    F.J. Corbató. On building systems that will fail (1990 Turing Award Lecture, with a following interview by Karen Frenkel). Communications of the ACM, 34(9):72-90, September 1991.
    F.J. Corbató, J. Saltzer, and C.T. Clingen. Multics - the first seven years. In Proceedings of the Spring Joint Computer Conference, volume 40, Montvale, New Jersey, 1972. AFIPS Press.
    P.J. Courtois, F. Heymans, and D.L. Parnas. Concurrent control with readers and writers. Communications of the ACM, 14(10):667-668, October 1971.
    C. Cowan and C. Pu. Survivability from a sow's ear: The retrofit security requirement. In Position Papers for the 1998 Information Survivability Workshop -- ISW '98, pages 43-47, Orlando, Florida, 28-30 October 1998. IEEE.
    D. Craigen and K. Summerskill (eds.). Formal Methods for Trustworthy Computer Systems (FM'89), A Workshop on the Assessment of Formal Methods for Trustworthy Computer Systems. Springer-Verlag, Berlin, 1990. 23-27 July 1989, Nova Scotia, Canada.
    F. Cristian. Understanding fault-tolerant distributed systems. Communications of the ACM, 34(2):56-78, February 1991.
    M. Crosbie and E.H. Spafford. Active defense of a computer system using autonomous agents. Technical report, Department of Computer Sciences, CSD-TR-95-008, Purdue University, West Lafayette, Indiana, 1995.
    R.C. Daley and J.B. Dennis. Virtual memory, processes, and sharing in Multics. Communications of the ACM, 11(5), May 1968.
    R.C. Daley and P.G. Neumann. A general-purpose file system for secondary storage. In AFIPS Conference Proceedings, Fall Joint Computer Conference, pages 213-229. Spartan Books, November 1965.
    K.W. Dam and H.S. Lin, editors. Cryptography's Role In Securing the Information Society. National Research Council, National Academy Press, 2101 Constitution Ave., Washington, D.C. 20418, 1996. Final report of the Cryptographic Policy Study Committee, ISBN 0-309-05475-3.
    J.A. Davidson. Asymmetric isolation. In Proceedings of the Twelfth Annual Computer Security Applications Conference, pages 44-54, San Diego, California, December 1996. IEEE Computer Society.
    F. De Paoli, A.L. Dos Santos, and R.A. Kemmerer. Web browsers and security. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 235-256, 1998.
    R.D. Dean. Formal Aspects of Mobile Code Security. PhD thesis, Computer Science Department, Princeton University, January 1999.
    D.E. Denning, S.G. Akl, M. Heckman, T.F. Lunt, M. Morgenstern, P.G. Neumann, and R.R. Schell. Views for multilevel database security. IEEE Transactions on Software Engineering, 13(2), February 1987.
    D.E. Denning and P.G. Neumann. Requirements and model for IDES: A real-time intrusion-detection expert system. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, August 1985.
    Department of the Army. Joint Technical Architecture, version 5.0. Technical report, Office of the Secretary of the Army, September 1997.
    Y. Desmedt, Y. Frankel, and M. Yung. Multi-receiver/multi-sender network security: Efficient authenticated multicast/feedback. In Proceedings of IEEE INFOCOM. IEEE, 1992.
    W. Diffie and M.E. Hellman. New directions in cryptography. IEEE Transactions on Information Theory, 22(5), November 1976.
    E.W. Dijkstra. Co-operating sequential processes. In Programming Languages, F. Genuys (editor), pages 43-112. Academic Press, 1968.
    E.W. Dijkstra. The structure of the THE multiprogramming system. Communications of the ACM, 11(5), May 1968.
    E.W. Dijkstra. A Discipline of Programming. Prentice-Hall, Englewood Cliffs, New Jersey, 1976.
    J.E. Dobson and B. Randell. Building reliable secure computing systems out of unreliable unsecure components. In Proceedings of the 1986 Symposium on Security and Privacy, pages 187-193, Oakland, California, April 1986. IEEE Computer Society.
    S. Dolev. Self-Stabilization. MIT Press, Cambridge, Massachusetts, 2000.
    C.M. Ellison et al. SPKI certificate theory. Technical report, Internet Engineering Task Force, September 1999.
    European Communities Commission. Information Technology Security Evaluation Criteria (ITSEC), Provisional Harmonised Criteria (of France, Germany, the Netherlands, and the United Kingdom), June 1991. Version 1.2. Available from the Office for Official Publications of the European Communities, L-2985 Luxembourg, item CD-71-91-502-EN-C. Also available from UK CLEF, CESG Room 2/0805, Fiddlers Green Lane, Cheltenham UK GLOS GL52 5AJ, or GSA/GISA, Am Nippenkreuz 19, D 5300 Bonn 2, Germany.
    R.S. Fabry. Capability-based addressing. Communications of the ACM, 17(7):403-412, July 1974.
    M. Feather. Rapid application of lightweight formal methods for consistency analyses. IEEE Transactions on Software Engineering, 24(11):949-959, November 1998.
    R.J. Feiertag and P.G. Neumann. The foundations of a provably secure operating system (PSOS). In Proceedings of the National Computer Conference, pages 329-334. AFIPS Press, 1979.
    E.W. Felten, D. Balfanz, D. Dean, and D.S. Wallach. Web spoofing: An Internet con game. In Proceedings of the Nineteenth National Computer Security Conference, pages 95-103, Baltimore, Maryland, 6-10 October 1997. NIST/NCSC.
    C. Fetzer and F. Cristian. Building fault-tolerant hardware clocks from COTS components. In Proceedings of the 1999 Conference on Dependable Computing for Critical Applications, pages 59-78, San Jose, California, January 1998.
    E.A. Feustel and T. Mayfield. The DGSA: Unmet information security challenges for operating system designers. Operating Systems Review, 32(1):3-22, January 1998.
    S. Forrest, editor. Emergent Computation, MIT Press, Cambridge, Massachusetts, 1991. Proceedings of the Ninth Annual CNLS Conference.
    Electronic Frontier Foundation. Cracking DES: Secrets of Encryption Research, Wiretap Politics & Chip Design. O'Reilly and Associates, Sebastopol, California, 1998. See also the Risks Forum, volume 19, number 87, 17 July 1998.
    A. Fuggetta, G.P. Picco, and G. Vigna. Understanding code mobility. IEEE Transactions on Software Engineering, 24(5):342-361, May 1998.
    S.H. Fuller and D.G. Messerschmitt, editors. Making It Better: Expanding Information Technology Research To Meet Society's Needs. National Research Council, National Academy Press, 2101 Constitution Ave., Washington, D.C. 20418, May 2000. Final report of the National Research Council Committee.
    M. Gasser, A. Goldstein, C. Kaufman, and B. Lampson. The Digital distributed system security architecture. In Proceedings of the Twelfth National Computer Security Conference, pages 305-319, Baltimore, Maryland, 10-13 October 1989. NIST/NCSC.
    V.D. Gligor, S.I. Gavrila, and D. Ferraiolo. On the formal definition of separation-of-duty policies and their composition. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    A. Goldberg. A specification of Java loading and bytecode verification. In Fifth ACM Conference on Computer and Communications Security, pages 49-58, San Francisco, California, November 1998. ACM SIGSAC.
    L. Gong. A secure identity-based capability system. In Proceedings of the 1989 Symposium on Research in Security and Privacy, pages 56-63, Oakland, California, May 1989. IEEE Computer Society.
    L. Gong, M. Mueller, H. Prafullchandra, and R. Schemers. Going beyond the sandbox: An overview of the new security architecture in the Java Development Kit 1.2. In Proceedings of the USENIX Symposium on Internet Technologies and Systems, Monterey, California, December 1997.
    L. Gong, R. Needham, and R. Yahalom. Reasoning about belief in cryptographic protocols. In Proceedings of the 1990 Symposium on Research in Security and Privacy, pages 234-248, Oakland, California, May 1990. IEEE Computer Society.
    L. Gong and R. Schemers. Implementing protection domains in the Java Development Kit 1.2. In Proceedings of the Internet Society Symposium on Network and Distributed System Security, San Diego, California, March 1998.
    L. Gong and R. Schemers. Signing, sealing, and guarding Java objects. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 206-216, 1998.
    R.S. Gray, D. Kotz, G. Cybenko, and D. Rus. D'agents: Security in a multiple-language, mobile-agent system. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 154-187, 1998.
    P. Green. The art of creating reliable software-based systems using off-the-shelf software components. In Proceedings of the Sixteenth International Symposium on Reliable Distributed Systems, pages 118-120, Durham, North Carolina, 22-24 October 1997. IEEE Computer Society.
    I. Greenberg, P. Boucher, R. Clark, E.D. Jensen, T.F. Lunt, P.G. Neumann, and D. Wells. The multilevel secure real-time distributed operating system study. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, June 1992. Issued as Rome Laboratory report RL-TR-93-101, Rome Laboratory C3AB, Griffiss AFB NY 13441-5700. Contact Emilie Siarkiewicz, Internet: SiarkiewiczE@CS.RL.AF.MIL, phone 315-330-3241. For Official Use Only.
    JASA Standards Working Group. Joint airborne SIGINT architecture. Technical report, TASC, 131 National Business Parkway, Annapolis Junction, MD 20701, June-July 1998. Draft, Version 3; contact Paul L. Washington, Jr., 1-301-483-6000, ext. 2017,
    S. Halevi and H. Krawczyk. Public-key cryptography and password protocols. In Fifth ACM Conference on Computer and Communications Security, pages 122-131, San Francisco, California, November 1998. ACM SIGSAC.
    R.W. Hamming. Error detecting and error correcting codes. Bell System Technical Journal, 29:147-60, 1950.
    J.R. Heath, P.J. Kuekes, and R.S. Williams. A defect tolerant architecture for chemically assembled computers: The lessons of Teramac for the aspiring nanotechnologist. Technical report, UCLA, 1997.
    T.L Heberlein, B. Mukherjee, and K.N. Levitt. A method to detect intrusive activity in a networked environment. In Proceedings of the Fourteenth National Computer Security Conference, pages 362-371, Washington, D.C., 1-4 October 1991. NIST/NCSC.
    C. Heitmeyer, J. Kirby, Jr., B. Labaw, M. Archer, and R. Bharadwaj. Using abstraction and model checking to detect safety violations in requirements specifications. IEEE Transactions on Software Engineering, 24(11):927-948, November 1998.
    H.M. Hinton. Composable Safety and Progress Properties. PhD thesis, University of Toronto, 1995.
    H.M. Hinton. Under-specification, composition, and emergent properties. In Proceedings of the 1997 New Security Paradigms Workshop, pages 83-93, Langdale, Cumbria, United Kingdom, September 1997. ACM SIGSAC.
    H.M. Hinton. Composing partially-specified systems. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    F. Hohl. Time limited blackbox security: Protecting mobile agents from malicious hosts. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 92-113, 1998.
    C.M. Holloway, editor. Third NASA Langley Formal Methods Workshop, Hampton, Virginia, May 10-12 1995. NASA Langley Research Center. NASA Conference Publication 10176, June 1995.
    G.J. Holzmann. Design and Validation of Computer Protocols. Prentice-Hall, Englewood Cliffs, New Jersey, 1991.
    J. Horning and B. Randell. Process structuring. ACM Computing Surveys, 5(1), March 1973.
    J.J. Horning, H.C. Lauer, P.M. Melliar-Smith, and B. Randell. A program structure for error detection and recovery. In Operating Systems, Proceedings of an International Symposium, Notes in Computer Science 16, pages 171-187. Springer-Verlag, Berlin, 1974.
    D.A. Huffman. A method for the construction of minimum redundancy codes. Proceedings of the IRE, 40, 1952.
    D.A. Huffman. Canonical forms for information-lossless finite-state machines. IRE Transactions on Circuit Theory (special supplement) and IRE Transactions on Information Theory (special supplement), CT-6 and IT-5:41-59, May 1959. A slightly revised version appeared in E.F. Moore, Ed., Sequential Machines: Selected Papers, Addison-Wesley, Reading, Massachusetts.
    IEEE. Standard specifications for public key cryptography. Technical report, IEEE Standards Department, 445 Hoes Lane, P.O. Box 1331, Piscataway, NJ 08855-1331, 2000 and ongoing.
    R. Jagannathan and C. Dodd. GLU programmer's guide v0.9. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, November 1994. CSL Technical Report CSL-94-06.
    R. Jagannathan, T.F. Lunt, D. Anderson, C. Dodd, F. Gilham, C. Jalali, H.S. Javitz, P.G. Neumann, A. Tamaru, and A. Valdes. System Design Document: Next-generation Intrusion-Detection Expert System (NIDES). Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, 9 March 1993.
    G. Jakobson and M.D. Weissman. Alarm correlation. IEEE Network, pages 52-59, November 1993.
    S. Jantsch. Risks by using COTS products and commercial ICT services. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    H.S. Javitz and A. Valdes. The NIDES statistical component description and justification. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, March 1994.
    E.D. Jensen, J.A. Test, R.D. Reynolds, E. Burke, and J.G. Hanko. Alpha release 2 design summary report. Technical report 88120, Kendall Square Research Corporation, Cambridge, Massachusetts, September 1988.
    D.R. Johnson, F.F. Saydjari, and J.P. Van Tassel. MISSI security policy: A formal approach. Technical report, NSA R2SPO-TR001-95, 18 August 1995.
    M.F. Kaashoek and A.S. Tanenbaum. Fault tolerance using group communication. ACM SIGOPS Operating System Review, 25(2):71-74, April 1991.
    R. Kailar and V.D. Gligor. On the evolution of beliefs in authentication protocols. In Proceedings of the IEEE Computer Security Foundations Workshop IV, Franconia, New Hampshire, June 1991.
    R.Y. Kain and C.E. Landwehr. On access checking in capability-based systems. In Proceedings of the 1986 IEEE Symposium on Security and Privacy, April 1986.
    M.H. Kang, J.N. Froscher, and I.S. Moskowitz. An architecture for multilevel secure interoperability. In Proceedings of the Thirteenth Annual Computer Security Applications Conference, pages 194-204, San Diego, California, December 1997. IEEE Computer Society.
    M.H. Kang, I. Moskowitz, B. Montrose, and J. Parsonese. A case study of two NRL pump prototypes. In Proceedings of the Twelfth Annual Computer Security Applications Conference, pages 32-43, San Diego, California, December 1996. IEEE Computer Society.
    P.A. Karger. Limiting the damage potential of discretionary Trojan horses. In Proceedings of the 1987 Symposium on Security and Privacy, pages 32-37, Oakland, California, April 1987. IEEE Computer Society.
    P.A. Karger. Improving Security and Performance for Capability Systems. PhD thesis, Computer Laboratory, University of Cambridge, Cambridge, England, October 1988. Technical Report No. 149.
    G. Karjoth, D.B. Lange, and M. Oshima. A security model for aglets. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 188-205, 1998.
    J. Kelsey, B. Schneier, and D. Wagner. Protocol interactions and the chosen protocol attacks. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Security Protocols, Proceedings of 5th International Workshop, pages 91-104, Paris, France, April 1997.
    R.A. Kemmerer. Analyzing encryption protocols using formal verification techniques. IEEE Journal on Selected Areas in Communications, 7(4):448-457, May 1989.
    T. Kindberg. Debate: This house believes the development of robust distributed systems from components to be impossible. Operating Systems Review, 33(1):15-17, January 1999. The description of this debate appeared in "Report on the Eighth ACM SIGOPS European Workshop," System Support for Composing Distributed Applications, loc.cit., pp. 6-17.
    S. Kliger, S. Yemini, Y. Yemini, D. Ohsie, and S. Stolfo. A coding approach to event correlation. In Proceedings of the Fourth International Symposium on Integrated Network Management (IFIP/IEEE), Santa Barbara, CA, May 1995, pages 266-277. Chapman & Hall, London, England, 1995.
    C. Ko. Execution Monitoring of Security-Critical Programs in a Distributed System: A Specification-Based Approach. PhD thesis, Computer Science Department, University of California at Davis, 1996.
    P.C. Kocher. Timing attacks on implementations of Diffie-Hellman, RSA, DSS, and other systems. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Advances in Cryptology, Proceedings of Crypto '96, pages 104-113, Santa Barbara, California, August 1996.
    S.S. Kulkarni and A. Arora. Compositional design of multitolerant repetitive Byzantine agreement. Proceedings of the Seventeenth International Conference on Foundations of Software Technology and Theoretical Computer Science, Kharagpur, India, pages 169-183, December 1997.
    M.D. Ladue. When Java was one: Threats from hostile byte code. In Proceedings of the Nineteenth National Computer Security Conference, pages 104-115, Baltimore, Maryland, 6-10 October 1997. NIST/NCSC.
    L. Lamport. The implementation of reliable distributed multiprocess systems. Computer Networks, 2:95-114, 1978.
    L. Lamport. A simple approach to specifying concurrent program systems. Communications of the ACM, 32(1):32-45, January 1989.
    L. Lamport, W.H. Kautz, P.G. Neumann, R.L. Schwartz, and P.M. Melliar-Smith. Formal techniques for fault tolerance in distributed data processing. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, April 1981. For Rome Air Development Center.
    L. Lamport, R. Shostak, and M. Pease. The Byzantine generals problem. ACM TOPLAS, 4(3):382-401, July 1982.
    B. Lampson, M. Abadi, M. Burrows, and E. Wobber. Authentication in distributed systems: Theory and practice. ACM Operating Systems Review, 25(5):165-182, October 1991. Proceedings of the Thirteenth ACM Symposium on Operating Systems Principles.
    B.W. Lampson. A note on the confinement problem. Communications of the ACM, 16(10):613-615, October 1973.
    B.W. Lampson. Redundancy and robustness in memory protection. In Information Processing 74 (Proceedings of the IFIP Congress 1974), volume Hardware II, pages 128-132. North-Holland, Amsterdam, 1974.
    C.E. Landwehr, A.R. Bull, J.P. McDermott, and W.S. Choi. A taxonomy of computer program security flaws, with examples. Technical report, Center for Secure Information Technology, Information Technology Division, Naval Research Laboratory, Washington, D.C., November 1993.
    J.-C. Laprie. Dependable computing and fault tolerance: Concepts and terminology. In Digest of Papers, FTCS 15, pages 2-11, Ann Arbor, Michigan, June 1985. IEEE Computer Society.
    G. Le Lann. Predictability in critical systems. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Formal Techniques in Real-Time and Fault-Tolerant Systems, Lyngby, Denmark, September 1998.
    G. Le Lann. Proof-based system engineering and embedded systems. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Embedded Systems, 1998.
    W. Legato. Formal methods: Changing directions. In Proceedings of the Eighteenth National Computer Security Conference, Baltimore, Maryland, 10-13 October 1995. NIST/NCSC.
    N.G. Leveson. Safeware: System Safety and Computers. Addison-Wesley, Reading, Massachusetts, 1995.
    N.G. Leveson. Using COTS components in safety-critical systems. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    N.G. Leveson and M.P.E. Heimdahl. New approaches to critical-system survivability. In Position Papers for the 1998 Information Survivability Workshop -- ISW '98, pages 111-114, Orlando, Florida, 28-30 October 1998. IEEE.
    K.N. Levitt, S. Crocker, and D. Craigen, editors. VERkshop III: Verification workshop. ACM SIGSOFT Software Engineering Notes, 10(4):1-136, August 1985.
    P. Lincoln, J. Mitchell, M. Mitchell, and A. Scedrov. A probabilistic poly-time framework for protocol analysis. In Fifth ACM Conference on Computer and Communications Security, pages 112-121, San Francisco, California, November 1998. ACM SIGSAC.
    P.D. Lincoln, N. Marti-Oliet, and J. Meseguer. Specification, transformation, and programming of concurrent systems in rewriting logic. Technical Report SRI-CSL-94-11, Computer Science Laboratory, SRI International, Menlo Park, California, May 1994.
    P.D. Lincoln and J.M. Rushby. A formally verified algorithm for interactive consistency under a hybrid fault model. In Fault Tolerant Computing Symposium 23, pages 402-411, 1993.
    P.D. Lincoln and J.M. Rushby. Formally verified algorithms for diagnosis of manifest, symmetric, link, and Byzantine faults. Technical Report SRI-CSL-95-14, Computer Science Laboratory, SRI International, Menlo Park, California, October 1995.
    P.D. Lincoln, J.M. Rushby, N. Suri, and C. Walter. Hybrid fault algorithms. In Proceedings of the Third NASA Langley Formal Methods Workshop, May 10-12, 1995, pages 193-209. NASA Langley Research Center, June 1995.
    U. Lindqvist and P.A. Porras. Detecting computer and network misuse through the Production-Based Expert System Toolset (P-BEST). In Proceedings of the 1999 Symposium on Security and Privacy, Oakland, California, May 1999. IEEE Computer Society.
    S.B. Lipner. Security and source code access: Issues and realities. In Proceedings of the 2000 Symposium on Security and Privacy, pages 124-125, Oakland, California, May 2000. IEEE Computer Society.
    G. Lowe. Breaking and fixing the Needham-Schroeder public-key protocol: A comparison of two approaches. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1055, 2nd International Workshop on Tools and Algorithms for the Construction and Analysis of Systems, pages 147-166, 1998.
    T. Lowman and D. Mosier. Applying the DoD Goal Security Architecture as a methodology for the development of system and enterprise security architectures. In Proceedings of the Thirteenth Annual Computer Security Applications Conference, pages 183-193, San Diego, California, December 1997. IEEE Computer Society.
    M. Lubaszewski and B. Courtois. A reliable fail-safe system. IEEE Transactions on Computers, C-47(2):236-241, February 1998.
    T.F. Lunt. Aggregation and inference: Facts and fallacies. In Proceedings of the 1989 IEEE Symposium on Research in Security and Privacy, May 1989.
    T.F. Lunt, R.R. Schell, W.R. Shockley, M. Heckman, and D. Warren. A near-term design for the SeaView multilevel database system. In Proceedings of the 1988 Symposium on Security and Privacy, pages 234-244, Oakland, California, April 1988. IEEE Computer Society.
    T.F. Lunt, A. Tamaru, F. Gilham, R. Jagannathan, C. Jalali, P.G. Neumann, H.S. Javitz, and A. Valdes. A Real-Time Intrusion-Detection Expert System (IDES). Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, 28 February 1992.
    T.F. Lunt and R.A. Whitehurst. The SeaView formal top level specifications and proofs. Final report, Computer Science Laboratory, SRI International, Menlo Park, California, January/February 1989. Volumes 3A and 3B of "Secure Distributed Data Views," SRI Project 1143.
    D. Malkhi, M.K. Reiter, and A.D. Rubin. Secure execution of Java applets using a remote playground. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    A.P. Maneki. Algebraic properties of system composition in the Loral, Ulysses and McLean trace models. In Proceedings of the 8th IEEE Computer Security Foundations Workshop, Kenmare, County Kerry, Ireland, June 1995.
    M. Mansouri-Samani and M. Sloman. Monitoring distributed systems. IEEE Network, pages 20-30, November 1993.
    T. Marsh (ed.). Critical Foundations: Protecting America's Infrastructures. Technical report, President's Commission on Critical Infrastructure Protection, October 1997.
    D. McCullough. Specifications for multi-level security and a hook-up property. In Proceedings of the 1987 Symposium on Security and Privacy, pages 161-166, Oakland, California, April 1987. IEEE Computer Society.
    D. McCullough. Noninterference and composability of security properties. In Proceedings of the 1988 Symposium on Security and Privacy, pages 177-186, Oakland, California, April 1988. IEEE Computer Society.
    D. McCullough. Ulysses security properties modeling environment: The theory of security. Technical report, Odyssey Research Associates, Ithaca, New York, July 1988.
    D. McCullough. A hookup theorem for multilevel security. IEEE Transactions on Software Engineering, 16(6), June 1990.
    G. McGraw. Will openish source really improve security? In Proceedings of the 2000 Symposium on Security and Privacy, pages 128-129, Oakland, California, May 2000. IEEE Computer Society.
    G. McGraw and E.W. Felten. Java Security: Hostile Applets, Holes, and Antidotes. John Wiley and Sons, New York, 1997.
    G. McGraw and E.W. Felten. Securing Java: Getting Down to Business with Mobile Code. John Wiley and Sons, New York, 1999. This is the second edition of [200].
    J. McLean. A general theory of composition for trace sets closed under selective interleaving functions. In Proceedings of the 1994 Symposium on Research in Security and Privacy, pages 79-93, Oakland, California, May 1994. IEEE Computer Society.
    C. Meadows. Extending the brewer-nash model to a multilevel context. In Proceedings of the 1990 Symposium on Research in Security and Privacy, pages 95-102, Oakland, California, May 1990. IEEE Computer Society.
    C. Meadows. A system for the specification and analysis of key management protocols. In Proceedings of the 1991 Symposium on Research in Security and Privacy, Oakland, California, May 1991. IEEE Computer Society.
    P.M. Melliar-Smith and L.E. Moser. Surviving network partitioning. Computer, 31(3):62-68, March 1998.
    P.M. Melliar-Smith and R.L. Schwartz. Formal specification and verification of SIFT: A fault-tolerant flight control system. IEEE Transactions on Computers, C-31(7):616-630, July 1982.
    J. Meseguer. A logical theory of concurrent objects and its realization in the Maude language. In Research Directions on Concurrent Object-Oriented Programming. MIT Press, Cambridge, Massachusetts, 1993.
    K. Meyer, M. Erlinger, J. Betser, C. Sunshine, G. Goldszmidt, and Y. Yemini. Decentralizing control and intelligence in network management. In Proceedings of the Fourth International Symposium on Integrated Network Management (IFIP/IEEE), Santa Barbara, California, May 1995, pages 4-16. Chapman & Hall, London, England, 1995.
    S. Micali. Fair public-key cryptosystems. In Advances in Cryptology: Proceedings of CRYPTO '92 (E.F. Brickell, editor), pages 512-517. Springer-Verlag, Berlin, LCNS 740, 1992.
    J. Millen. 20 years of covert channel modeling and analysis. In Proceedings of the 1999 Symposium on Security and Privacy, pages 113-114, Oakland, California, May 1999. IEEE Computer Society.
    J. Millen. Efficient fault-tolerant certificate revocation. In Seventh ACM Conference on Computer and Communications Security. ACM SIGSAC, 2000. Submitted.
    J. Millen and H. Ruess. Protocol-independent secrecy. In Proceedings of the 2000 Symposium on Security and Privacy, pages 110-119, Oakland, California, May 2000. IEEE Computer Society.
    J.K. Millen. Hookup security for synchronous machines. In Proceedings of the IEEE Computer Security Foundations Workshop VII, pages 2-10, Franconia, New Hampshire, June 1994. IEEE Computer Society.
    J.K. Millen. Local reconfiguration policies. In Proceedings of the 1999 Symposium on Security and Privacy, pages 48-56, Oakland, California, May 1999. IEEE Computer Society.
    J.K. Millen. Survivability measure. Technical report, SRI International Computer Science Laboratory, Menlo Park, California, January 1999.
    J.K. Millen. Survivability measure. Technical report, SRI International Computer Science Laboratory, Menlo Park, California, June 2000.
    J.K. Millen and R. Wright. Certificate revocation the responsible way. In Proceedings of a workshop on Computer Security, Dependability, and Assurance (CSDA '98): From Needs to Solutions workshop, 1998.
    J.K. Millen and R. Wright. Reasoning about trust and insurance in a public-key infrastructure. In Proceedings of the Computer Security Foundations Workshop, Cambridge, England, July 2000.
    S. Miller, B. Neuman, J. Schiller, and J. Saltzer. Kerberos authentication and authorization system. Technical report, MIT Project Athena Technical Plan Section E.2.1, 21 December 1987.
    J.C. Mitchell, M. Mitchell, and U. Stern. Automated analysis of cryptographic protocols using murphi. In Proceedings of the 1997 Symposium on Security and Privacy, pages 141-151, Oakland, California, May 1997. IEEE Computer Society.
    E.F. Moore. Gedanken experiments on sequential machines. In Automata Studies, Annals of Mathematical Studies, 34, Princeton University Press, 1956, pages 129-153, 1956. C.E. Shannon and J. McCarthy, editors.
    E.F. Moore and C.E. Shannon. Reliable circuits using less reliable relays. Journal of the Franklin Institute, 262:191-208, 281-297, September, October 1956.
    R. Morris and K. Thompson. Password security: A case history. Communications of the ACM, 22(11):594-597, November 1979.
    R.T. Morris. Computer science technical report 117. Technical report, AT&T Bell Laboratories, Murray Hill, New Jersey, 25 February 1985.
    L. Moser, P.M. Melliar-Smith, and R. Schwartz. Design verification of SIFT. Contractor Report 4097, NASA Langley Research Center, Hampton, VA, September 1987.
    Mudge et al. Testimony of L0pht Heavy Industries. In Weak Computer Security in Government: Is the Public at Risk? Hearing, Senate Hearing 105-609, ISBN 0-16-057456-0, pages 71-91, Washington, D.C., 19 May 1998. U.S. Government Printing Office. Oral testimony is on pages 22-41.
    NASA Langley Research Center. Formal Methods Specification and Verification, Volume I. NASA, June 1995.
    NASA Langley Research Center. Formal Methods Specification and Verification, Volume II. NASA, Fall 1995.
    NATO. Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000.
    NCSC. Trusted Network Interpretation Environments Guideline. National Computer Security Center, 1 August 1990. NCSC-TG-011 Version-1.
    NCSC. Trusted Network Interpretation (TNI). National Computer Security Center, 31 July 1987. NCSC-TG-005 Version-1, Red Book.
    NCSC. Trusted Database Management System Interpretation of the Trusted Computer System Evaluation Criteria (TDI). National Computer Security Center, April 1991. NCSC-TG-021, Version-2, Lavender Book.
    NCSC. Department of Defense Trusted Computer System Evaluation Criteria (TCSEC). National Computer Security Center, December 1985. DOD-5200.28-STD, Orange Book.
    NCSC. Guidance for Applying the Trusted Computer System Evaluation Criteria in Specific Environments. National Computer Security Center, June 1985. CSC-STD-003-85, Yellow Book.
    G.C. Necula. Compiling with Proofs. PhD thesis, Computer Science Department, Carnegie-Mellon University, 1998.
    G.C. Necula and P. Lee. Research on proof-carrying code for untrusted-code security. In Proceedings of the 1997 Symposium on Security and Privacy, page 204, Oakland, California, May 1997. IEEE Computer Society.
    G.C. Necula and P. Lee. Safe, untrusted agents using proof-carrying code. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 61-91, 1998.
    R.M. Needham and M.D. Schroeder. Using encryption for authentication and authorization systems. Communications of the ACM, 21(12):993-999, December 1978.
    B.C. Neuman and T. Ts'o. Kerberos: An authentication service for computer networks. IEEE Communications, 32(9):33-38, September 1994.
    P.G. Neumann. Efficient error-limiting variable-length codes. IRE Transactions on Information Theory, IT-8:292-304, July 1962.
    P.G. Neumann. On a class of efficient error-limiting variable-length codes. IRE Transactions on Information Theory, IT-8:S260-266, September 1962.
    P.G. Neumann. Error-limiting coding using information-lossless sequential machines. IEEE Transactions on Information Theory, IT-10:108-115, April 1964.
    P.G. Neumann. The role of motherhood in the pop art of system programming. In Proceedings of the ACM Second Symposium on Operating Systems Principles, Princeton New Jersey, pages 13-18. ACM, October 1969.
    P.G. Neumann. System design for computer networks. In Computer-Communication Networks (Chapter 2), pages 29-81. Prentice-Hall, 1971. N. Abramson and F.F. Kuo (eds.).
    P.G. Neumann. Computer security evaluation. In AFIPS Conference Proceedings, NCC, pages 1087-1095. AFIPS Press, January 1978. Reprinted in Rein Turn (ed.), Advances in Computer Security, Artech House, Dedham, Massachusetts, 1981.
    P.G. Neumann. On hierarchical design of computer systems for critical applications. IEEE Transactions on Software Engineering, SE-12(9), September 1986. Reprinted in Rein Turn (ed.), Advances in Computer System Security, Vol. 3, Artech House, Dedham, Massachusetts, 1988.
    P.G. Neumann. On the design of dependable computer systems for critical applications. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, October 1990. CSL Technical Report CSL-90-10.
    P.G. Neumann. Rainbows and arrows: How the security criteria address computer misuse. In Proceedings of the Thirteenth National Computer Security Conference, pages 414-422, Washington, D.C., 1-4 October 1990. NIST/NCSC.
    P.G. Neumann. Can systems be trustworthy with software-implemented crypto? Technical report, Final Report, Project 6402, SRI International, Menlo Park, California, October 1994. For Official Use Only, NOFORN.
    P.G. Neumann. Computer-Related Risks. ACM Press, New York, and Addison-Wesley, Reading, Massachusetts, 1994. ISBN 0-201-55805-X.
    P.G. Neumann. Architectures and formal representations for secure systems. Technical report, Final Report, Project 6401, SRI International, Menlo Park, California, October 1995. CSL report 96-05.
    P.G. Neumann. Security risks in the emerging infrastructure. Security in Cyberspace, Hearings, S. Hrg. 104-701, pages 350-363, June 1996. ISBN 0-16-053913-7. Written testimony for the U.S. Senate Permanent Subcommittee on Investigations of the Senate Committee on Governmental Affairs. Oral testimony is on pages 106-111;
    P.G. Neumann. Computer security in aviation: Vulnerabilities, threats, and risks. In International Conference on Aviation Safety and Security in the 21st Century, White House Commission on Safety and Security, and George Washington University, January 13-15 1997.
    P.G. Neumann. Computer-related infrastructure risks for federal agencies. In Weak Computer Security in Government: Is the Public at Risk? Hearing, Senate Hearing 105-609, ISBN 0-16-057456-0, pages 52-70, Washington, D.C., 19 May 1998. U.S. Government Printing Office.; Oral testimony is on pages 5-22.
    P.G. Neumann. Certitude and rectitude. In Proceedings of the 2000 International Conference on Requirements Engineering, page 153, Schaumberg, Illinois, June 2000. IEEE Computer Society.
    P.G. Neumann. Illustrative risks to the public in the use of computer systems and related technology, index to RISKS cases. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, 2000. The most recent version is available on-line at,, and in html form for browsing at
    P.G. Neumann. The potentials of open-box source code in developing robust systems. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    P.G. Neumann. Robust nonproprietary software. In Proceedings of the 2000 Symposium on Security and Privacy, pages 122-123, Oakland, California, May 2000. IEEE Computer Society. and
    P.G. Neumann and P. Boucher. An evaluation of the security aspects of the Army Technical Architecture (ATA) document drafts. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, 2 January 1996. Final report, SRI Project 7104-200, for U.S. Army CECOM, Fort Monmouth, New Jersey.
    P.G. Neumann, R.S. Boyer, R.J. Feiertag, K.N. Levitt, and L. Robinson. A Provably Secure Operating System: The system, its applications, and proofs. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, May 1980. 2nd ed., Report CSL-116.
    P.G. Neumann, J. Goldberg, K.N. Levitt, and J.H. Wensley. A study of fault-tolerant computing. Final report for ARPA, AD 766 974, Stanford Research Institute, Menlo Park, CA, July 1973.
    P.G. Neumann and L. Lamport. Highly dependable distributed systems. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, June 1983. Final Report, Contract No. DAEA18-81-G-0062, for U.S. Army CECOM.
    P.G. Neumann and D.B. Parker. A Study of Computer Abuse - Volume Two: Information Exploitation Database. SRI International, Menlo Park, California, 31 July 1989. Final report for SRI Project 6812, U.S. Government.
    P.G. Neumann and D.B. Parker. A summary of computer misuse techniques. In Proceedings of the Twelfth National Computer Security Conference, pages 396-407, Baltimore, Maryland, 10-13 October 1989. NIST/NCSC.
    P.G. Neumann and D.B. Parker. A Study of Computer Abuse - Volume One: Computer Abuse Techniques. SRI International, Menlo Park, California, Revised, 2 March 1990. Final report for SRI Project 6812, U.S. Government.
    P.G. Neumann and P.A. Porras. Experience with EMERALD to date. In Proceedings of the First USENIX Workshop on Intrusion Detection and Network Monitoring, pages 73-80, Santa Clara, California, April 1999. USENIX.
    P.G. Neumann, N.E. Proctor, and T.F. Lunt. Preventing security misuse in distributed systems. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, June 1992. Issued as Rome Laboratory report RL-TR-92-152, Rome Laboratory C3AB, Griffiss AFB NY 13441-5700. Contact Emilie Siarkiewicz, Internet: SiarkiewiczE@CS.RL.AF.MIL, phone 315-330-3241. For Official Use Only.
    P.G. Neumann and T.R.N. Rao. Error correction codes for byte-organized arithmetic processors. IEEE Transactions on Computers, C-24(3):226-232, March 1975.
    P.G. Neumann, editor. VERkshop I: Verification Workshop. ACM SIGSOFT Software Engineering Notes, 5(3):4-47, July 1980.
    P.G. Neumann, editor. VERkshop II: Verification Workshop. ACM SIGSOFT Software Engineering Notes, 6(3):1-63, July 1981.
    W.L. O'Hern, Jr., task force chairman. An open systems process for DoD. Technical report, Open Systems Task Force, Defense Science Board, October 1998.
    E.I. Organick. The Multics System: An Examination of Its Structure. MIT Press, Cambridge, Massachusetts, 1972.
    J.K. Ousterhout, J.Y. Levy, and B.B. Welch. The Safe-Tcl security model. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 217-234, 1998.
    S. Owre, J. Rushby, N. Shankar, and F. von Henke. Formal verification for fault-tolerant architectures: Prolegomena to the design of PVS. IEEE Transactions on Software Engineering, 21(2):107-125, February 1995. Special section on Formal Methods Europe '93.
    D.B. Parker. Fighting Computer Crime. John Wiley & Sons, New York, 1998.
    T.A. Parker. A secure European system for applications in a multi-vendor environment (The SESAME Project). In Proceedings of the Fourteenth National Computer Security Conference, pages 505-513, Washington, D.C., 1-4 October 1991. NIST/NCSC.
    D.L. Parnas. On the criteria to be used in decomposing systems into modules. Communications of the ACM, 15(12), December 1972.
    D.L. Parnas. A technique for software module specification with examples. Communications of the ACM, 15(5), May 1972.
    D.L. Parnas. On a "buzzword": Hierarchical structure. In Information Processing 74 (Proceedings of the IFIP Congress 1974), volume Software, pages 336-339. North-Holland, Amsterdam, 1974.
    D.L. Parnas. The influence of software structure on reliability. In Proceedings of the International Conference on Reliable Software, pages 358-362, April 1975. Reprinted with improvements in R. Yeh, Current Trends in Programming Methodology I, Prentice-Hall, 1977, 111-119.
    D.L. Parnas. On the design and development of program families. IEEE Transactions on Software Engineering, SE-2(1):1-9, March 1976.
    D.L. Parnas. Mathematical descriptions and specification of software. In Proceedings of the IFIP World Congress 1994, Volume I, pages 354-359. IFIP, August 1994.
    D.L. Parnas. Software engineering: An unconsummated marriage. Communications of the ACM, 40(9):128, September 1997. Inside Risks column.
    D.L. Parnas. Two positions on licensing. In Proceedings of the 2000 International Conference on Requirements Engineering, pages 154-155, Schaumberg, Illinois, June 2000. IEEE Computer Society.
    D.L. Parnas, P.C. Clements, and D.M. Weiss. The modular structure of complex systems. IEEE Transactions on Software Engineering, SE-11(3):259-266, March 1985.
    D.L. Parnas and G. Handzel. More on specification techniques for software modules. Technical report, Fachbereich Informatik, Technische Hochschule Darmstadt, Research Report BS I 75/1, Germany, April 1975.
    D.L. Parnas, J. Madey, and M. Iglewski. Precise documentation of well-structured programs. IEEE Transactions on Software Engineering, 20(12):948-976, December 1994.
    D.L. Parnas and W.R. Price. The design of the virtual memory aspects of a virtual machine. In Proceedings of the ACM SIGARCH-SIGOPS Workshop on Virtual Computer Systems. ACM, March 1973.
    D.L. Parnas and D.L. Siewiorek. Use of the concept of transparency in the design of hierarchically structured systems. Communications of the ACM, 18(7):401-408, July 1975.
    J. Paul. Bugs in the program. Technical report, Report by the Subcommittee on Investigations and Oversight of the Committee on Science, Space and Technology, U.S. House of Representatives, 1990.
    L. Paulson. Mechanized proofs for a recursive authentication protocol. In 10th IEEE Computer Security Foundations Workshop, pages 84-95. IEEE Computer Society, 1997.
    L. Paulson. Proving properties of security protocols by induction. In 10th IEEE Computer Security Foundations Workshop, pages 70-83. IEEE Computer Society, 1997.
    M. Pease, R. Shostak, and L. Lamport. Reaching agreement in the presence of faults. Journal of the ACM, 27(2):228-234, April 1980.
    N. Peeling and R. Taylor. Standards - myths, delusions and opportunities. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    R. Perlman. Network Layer Protocols with Byzantine Robustness. PhD thesis, MIT, Cambridge, Massachusetts, 1988.
    H. Petersen and M. Michels. On signature schemes with threshold verification detecting malicious verifiers. In Springer-Verlag, Berlin, Lecture Notes in Computer Science, Security Protocols, Proceedings of 5th International Workshop, pages 67-77, Paris, France, April 1997.
    H. Petroski. To Engineer is Human: The Role of Failure in Successful Design. St. Martin's Press, New York, 1985.
    H. Petroski. Design Paradigms: Case Histories of Error and Judgment in Engineering. Cambridge University Press, Cambridge, England, 1994.
    H. Pfeifer, D. Schwier, and F.W. von Henke. Formal verification for time-triggered clock synchronization. In Proceedings of the 1999 Conference on Dependable Computing for Critical Applications, pages 193-212, San Jose, California, January 1998.
    C.P. Pfleeger. Security in Computing. Prentice-Hall, Englewood Cliffs, New Jersey, 1996. Second edition.
    S.L. Pfleeger. Software Engineering: Theory and Practice. Prentice-Hall, Englewood Cliffs, New Jersey, 1998.
    M. Pollitt. Cyberterrorism: Fact or fancy? In Proceedings of the Nineteenth National Computer Security Conference, pages 285-289, Baltimore, Maryland, 6-10 October 1997. NIST/NCSC.
    P.A. Porras. STAT: A State Transition Analysis Tool for intrusion detection. Master's thesis, Computer Science Department, University of California, Santa Barbara, July 1992.
    P.A. Porras and P.G. Neumann. EMERALD: Event Monitoring Enabling Responses to Anomalous Live Disturbances. In Proceedings of the Nineteenth National Computer Security Conference, pages 353-365, Baltimore, Maryland, 22-25 October 1997. NIST/NCSC.
    P.A. Porras and A. Valdes. Live traffic analysis of TCP/IP gateways. In Proceedings of the Symposium on Network and Distributed System Security. Internet Society, March 1998.
    D. Prasad. Dependable Systems Integration Using the Theories of Measurement and Decision Analysis. PhD thesis, Department of Computer Science, University of York, August 1998.
    D. Prasad and J. McDermid. Dependability evaluation using a multi-criteria decision analysis procedure. In To appear, 1999.
    N.E. Proctor. The restricted access processor: An example of formal verification. In Proceedings of the 1985 Symposium on Security and Privacy, pages 49-55, Oakland, CA, April 1985. IEEE Computer Society.
    N.E. Proctor. SeaView formal specifications. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, April 1991.
    N.E. Proctor and P.G. Neumann. Architectural implications of covert channels. In Proceedings of the Fifteenth National Computer Security Conference, pages 28-43, Baltimore, Maryland, 13-16 October 1992.
    B. Randell. System design and structuring. Computer Journal, 29(4):300-306, 1986.
    B. Randell and J.E. Dobson. Reliability and security issues in distributed computing systems. In Proceedings of the Fifth Symposium on Reliability in Distributed Software and Database Systems, Los Angeles, California, January 1986.
    B. Randell, J.-C. Laprie, H. Kopetz, and B. Littlewood, editors. Predictably Dependable Computing Systems. Basic Research Series. Springer-Verlag, Berlin, 1995.
    T.R.N. Rao. Error-Control Coding for Computer Systems. Prentice-Hall, Englewood Cliffs, New Jersey, 1989.
    M. Raynal. A case study of agreement problems in distributed systems: Non-blocking atomic commitment. In Proceedings of the 1997 High-Assurance Systems Engineering Workshop, pages 209-214, Washington, D.C., August 1997. IEEE Computer Society.
    D.D. Redell. Naming and Protection in Extendible Operating Systems. PhD thesis, University of California, 1974.
    D.D. Redell and R.S. Fabry. Selective revocation of capabilities. In Proceedings of the International Workshop on Protection in Operating Systems, pages 197-209, August 1974.
    M. Reiter and K. Birman. How to securely replicate services. ACM Transactions on Programming Languages and Systems, 16(3):986-1009, May 1994.
    J. Riely and M. Hennessy. Trust and partial typing in open systems of mobile agents. Technical report, University of Sussex, July 1998.
    J. Riordan and B. Schneier. Environmental key generation toward clueless agents. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 15-24, 1998.
    R. Rivest and B. Lampson. SDSI - a simple distributed security infrastructure. Technical report, MIT Laboratory for Computer Science, 2000. Version 2.0 is available on-line along with other documentation and source code.
    L. Robinson and K.N. Levitt. Proof techniques for hierarchically structured programs. Communications of the ACM, 20(4):271-283, April 1977.
    L. Robinson, K.N. Levitt, and B.A. Silverberg. The HDM Handbook. Computer Science Laboratory, SRI International, Menlo Park, California, June 1979. Three Volumes.
    J.A. Rochlis and M.W. Eichin. With microscope and tweezers: The Worm from MIT's perspective. Communications of the ACM, 32(6):689-698, June 1989.
    A.W. Roscoe and L. Wulf. Composing and decomposing systems under security properties. In Proceedings of the 8th IEEE Computer Security Foundations Workshop, Kenmare, County Kerry, Ireland, June 1995.
    J.S. Rothfuss and J.W. Parrett. Go ahead, visit those Websites, you can't get hurt ... can you? In Proceedings of the Nineteenth National Computer Security Conference, pages 80-94, Baltimore, Maryland, 6-10 October 1997. NIST/NCSC.
    R. Rowlingson. The convergence of military and civil approaches to information security. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    J.M. Rushby. A trusted computing base for embedded systems. In Proceedings of the Seventh DoD/NBS Computer Security Initiative Conference, pages 294-311, Gaithersburg, Maryland, September 1984.
    J.M. Rushby. Networks are systems. In Proceedings of the Department of Defense Computer Security Center Invitational Workshop on Network Security, pages 7-24 to 7-37, New Orleans, Louisiana, March 1985. publ. by Department of Defense Computer Security Center.
    J.M. Rushby. Composing trustworthy systems. Technical report, Computer Science Laboratory, SRI International, Menlo Park, California, July 1991.
    J.M. Rushby. Noninterference, transitivity, and channel-control security policies. Technical Report SRI-CSL-92-2, Computer Science Laboratory, SRI International, Menlo Park, California, December 1992.
    J.M. Rushby. A formally verified algorithm for clock synchronization under a hybrid fault model. In Proceedings of the Thirteenth Conference on Principles of Distributed Computing, pages 304-313, Los Angeles, California, August 1994. ACM.
    J.M. Rushby and B. Randell. A distributed secure system. Computer, 16(7):55-67, July 1983.
    J.M. Rushby and F. von Henke. Formal verification of the interactive convergence clock synchronization algorithm using EHDM. Technical Report SRI-CSL-89-3, Computer Science Laboratory, SRI International, Menlo Park, California, February 1989. Also available as NASA Contractor Report 4239.
    M. Salois and R. Charpentier. Dynamic detection of malicious code in COTS software. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    C. Salter, O.S. Saydjari, B. Schneier, and J. Wallner. Toward a secure system engineering methodology. In New Security Paradigms Workshop, September 1998.
    J.H. Saltzer and M.D. Schroeder. The protection of information in computer systems. Proceedings of the IEEE, 63(9):1278-1308, September 1975.
    T. Sander and C.F. Tschudin. Protecting mobile agents against malicious hosts. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 44-60, 1998.
    T. Sander and C.F. Tschudin. Towards mobile cryptography. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    S. Saniford-Chen and L.T. Heberlein. Holding intruders accountable on the Internet. In Proceedings of the 1995 Symposium on Security and Privacy, Oakland, California, May 1995. IEEE Computer Society.
    D. Santel, C. Trautmann, and W. Liu. The integration of a formal safety analysis into the software engineering process: An example from the pacemaker industry. In Proceedings of the Symposium on the Engineering of Computer-Based Medical Systems, pages 152-154, Minneapolis, Minnesota, June 1988. IEEE Computer Society.
    F.B. Schneider. Understanding protocols for Byzantine clock synchronization. Technical Report 87-859, Department of Computer Science, Cornell University, Ithaca, New York, August 1987.
    F.B. Schneider. On Concurrent Programming. Springer Verlag, New York, 1997.
    F.B. Schneider. Open source in security: Visiting the bizarre. In Proceedings of the 2000 Symposium on Security and Privacy, pages 126-127, Oakland, California, May 2000. IEEE Computer Society.
    F.B. Schneider and M. Blumenthal, editor. Trust in Cyberspace. National Research Council, National Academy Press, 2101 Constitution Ave., Washington, D.C. 20418, 1998. Final report of the National Research Council Committee on Information Trustworthiness.
    N. Schneidewind. The ruthless pursuit of the truth about COTS. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    B. Schneier. Applied Cryptography: Protocols, Algorithms, and Source Code in C: Second Edition. John Wiley and Sons, New York, 1996.
    B. Schneier. Secrets and Lies: Digital Security in a Networked World. John Wiley and Sons, New York, 2000.
    B. Schneier and J. Kelsey. Cryptographic support for secure logs on untrusted machines. In Proceedings of the Seventh USENIX Security Symposium, pages 53-62. USENIX, January 1998.
    B. Schneier and Mudge. Cryptanalysis of Microsoft's Point-to-Point Tunneling Protocol (PPTP). In Fifth ACM Conference on Computer and Communications Security, pages 132-141, San Francisco, California, November 1998. ACM SIGSAC.
    M.D. Schroeder. Cooperation of mutually suspicious subsystems in a computer utility. Technical report, Ph.D. Thesis, M.I.T., Cambridge, Massachusetts, September 1972.
    M.D. Schroeder, D.D. Clark, and J.H. Saltzer. The Multics kernel design project. In Proceedings of the Sixth Symposium on Operating System Principles, November 1977. ACM Operating Systems Review 11(5).
    M.D. Schroeder and J.H. Saltzer. A hardware architecture for implementing protection risks. Communications of the ACM, 15(3), March 1972.
    D. Seeley. Password cracking: A game of wits. Communications of the ACM, 32(6):700-703, June 1989.
    J.F. Shoch and J.A. Hupp. The "Worm" programs - early experience with a distributed computation. Communications of the ACM, 25(3):172-180, March 1982. Reprinted in Denning (ed.), Computers Under Attack.
    S.K. Shrivastava and F. Panzieri. The design of a reliable remote procedure call mechanism. IEEE Transactions on Computers, C-31(7):692-687, July 1982.
    O. Sibert, P.A. Porras, and R. Lindell. An analysis of the Intel 80x86 security architecture and implementations. IEEE Transactions on Software Engineering, SE-22(4), May 1996.
    D. Sidhu, A. Chung, and T.P. Blumer. Experience with formal methods in protocol development. ACM SIGCOMM Computer Communication Review, 21(2):81-101, April 1991.
    B. Simons. Shrink-wrapping our rights. Communications of the ACM, 43(8), August 2000.
    E.H. Spafford. The Internet Worm: crisis and aftermath. Communications of the ACM, 32(6):678-687, June 1989.
    D. Spinellis. Software reliability: Modern challenges. In Proceedings of ESREL 99, Tenth European Conference on Safety and Reliablity, pages 589-592, Munich-Garching, Germany, September 1999. Summarized in the Risks Forum, volume 20, number 64, 4 November 1998 and ACM SIGSOFT Software Engineering Notes 25, 2, 17-18, March 2000.
    SRI-CSL. Ehdm Specification and Verification System Version 4.1: Preliminary Definition of the EHDM Specification Language. Computer Science Laboratory, SRI International, Menlo Park, California, 6 September 1988.
    M. Srivas and A. Camilleri, editors. Formal Methods in Computer-Aided Design. Springer-Verlag, Berlin, Lecture Notes in Computer Science, Vol. 1166, 1996.
    J.G. Steiner, C. Neuman, and J.I. Schiller. Kerberos: An authentication service for open network systems. In Proceedings of the USENIX Winter Conference, pages 191-202, February 1988.
    D.E. Stevenson. Validation and verification methodologies for large scale simulations: There are no silver hammers, either. IEEE Computational Science and Engineering, 1998.
    C. Stoll. Stalking the Wily Hacker. Communications of the ACM, 31(5):484-497, May 1988.
    C. Stoll. The Cuckoo's Egg: Tracking a Spy Through the Maze of Computer Espionage. Doubleday, New York, 1989.
    D.W.J. Stringer-Calvert. Mechanical Verification of Compiler Correctness. PhD thesis, Department of Computer Science, University of York, 1998.
    K. Sullivan, J.C. Knight, X. Du, and S. Geist. Information survivability control systems. In Proceedings of the 1999 International Conference on Software Engineering (ICSE), 1999.
    D.I. Sutherland. A model of information flow. In Proceedings of the Ninth National Computer Security Conference, pages 175-183, September 1986.
    R. Thomas and R. Feiertag. Addressing survivability in the composable replaceable security services infrastructre. In Position Papers for the 1998 Information Survivability Workshop -- ISW '98, pages 159-162, Orlando, Florida, 28-30 October 1998. IEEE.
    K. Thompson. Reflections on trusting trust. Communications of the ACM, 27(8):761-763, August 1984.
    J.E. Tidswell and J.M. Potter. A dynamically typed access control model. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1438, Information Security and Privacy, Third Australasian Conference, ACISP'98, Brisbane, Australia, pages 308-319, June 1998.
    J.T. Trostle. Timing attacks against trusted path. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    UK-MoD. Interim Defence Standard 00-55, The Procurement of Safety-Critical Software in Defence Equipment. U.K. Ministry of Defence, 5 April 1991. DefStan 00-55; Part 1, Issue 1: Requirements; Part 2, Issue 1: Guidance.
    UK-MoD. Interim Defence Standard 00-56, Hazard Analysis and Safety Classification of the Computer and Programmable Electronic System Elements of Defence Equipment. U.K. Ministry of Defence, 5 April 1991. DefStan 00-56.
    US-Senate. Security in Cyberspace. U.S. Senate Permanent Subcommittee on Investigations of the Senate Committee on Governmental Affairs, Hearings, S. Hrg. 104-701, June 1996. ISBN 0-16-053913-7.
    N.H. Vaidya. A case for two-level recovery schemes. IEEE Transactions on Computers, 47(6):656-666, June 1998.
    M. Vidger and J. Dean. Maintaining COTS-based systems. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    G. Vigna. Cryptographic traces for mobile agents. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 137-153, 1998.
    G. Vigna, ed. Mobile Agents and Security. Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, 1998.
    J.M. Voas and G. McGraw. Software Fault Injection: Inoculating Programs Against Errors. John Wiley and Sons, New York, 1998.
    D. Volpano and G. Smith. Language issues in mobile program security. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1419, Mobile Agents and Security, pages 25-43, 1998.
    J. von Neumann. Probabilistic logics and the synthesis of reliable organisms from unreliable components. In Automata Studies, pages 43-98, Princeton University, Princeton, New Jersey, 1956.
    D.S. Wallach. A New Approach to Mobile Code Security. PhD thesis, Computer Science Department, Princeton University, January 1999.
    D.S. Wallach and E.W. Felten. Understanding Java stack inspection. In Proceedings of the 1998 Symposium on Security and Privacy, Oakland, California, May 1998. IEEE Computer Society.
    W.H. Ware. Security controls for computer systems. Technical report, RAND report for the Defense Science Board, 1970. Now on-line at
    W.H. Ware. A retrospective of the criteria movement. In Proceedings of the Eighteenth National Information Systems Security Conference, pages 582-588, Baltimore, Maryland, 10-13 October 1995. NIST/NCSC.
    J.H. Wensley et al. Design study of software-implemented fault-tolerance (SIFT) computer. NASA contractor report 3011, Computer Science Laboratory, SRI International, Menlo Park, California, June 1982.
    I. White. Wrapping the COTS dilemma. In Proceedings of the NATO Conference on Commercial Off-The-Shelf Products in Defence Applications: The Ruthless Pursuit of COTS, Brussels, Belgium, April 2000. NATO.
    I.S. Winkler. Position paper. In Position Papers for the 1998 Information Survivability Workshop -- ISW '98, pages 189-191, Orlando, Florida, 28-30 October 1998. IEEE.
    W.D. Young and J. McHugh. Coding for a believable specification to implementation mapping. In Proceedings of the 1987 Symposium on Security and Privacy, pages 140-148, Oakland, California, April 1987. IEEE Computer Society.
    J. Zabarsky. Failure recovery for distributed processes in single system image clusters. In Springer-Verlag, Berlin, Lecture Notes in Computer Science 1388, Parallel and Distributed Processing, pages 564-583, Berlin, Germany, April 1998.
    A. Zakinthinos and E.S. Lee. The composability of non-interference. In Proceedings of the 8th IEEE Computer Security Foundations Workshop, Kenmare, County Kerry, Ireland, June 1995.
    A. Zakinthinos and E.S. Lee. Composing secure systems that have emergent properties. In Proceedings of the 11th IEEE Computer Security Foundations Workshop, pages 117-122, Rockport, Massachusetts, June 1998.


    A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
    Accountability!in design
    Alternative routing
    Anderson, James
    Architecture!abstract (DGSA)
    Architecture!generic (DGSA)
    Architecture!logical (DGSA)
    Architecture!operational (JTA)
    Architecture!portable computing
    Architecture!selective trustworthiness
    Architecture!selective trustworthiness
    Architecture!systems (JTA)
    Architecture!technical (JTA)
    Authentication!avoiding fixed passwords
    Authentication!in TCSEC
    Authentication!single sign-on
    Availability!multilevel (MLA)
    BAN Logic
    Barnes, Anthony
    Barnes, Anthony!course
    Barnes, Anthony!survivability study
    Barton, R.S.!representation of structure
    Black Hawk!interference
    Black-box software
    Blumenstiel, Alexander D.
    Brooks, Frederick P.!Mythical Man Month
    Brooks, Frederick P.!throw one away
    Buffer overflow analyzer
    Byzantine!authentication protocols
    Byzantine!authentication servers
    Byzantine!digital signature
    Byzantine!key escrow
    Capability Maturity Model
    Carnegie-Mellon Institute for Survivable
    Systems (CMISS)

    Causes of risks
    CERT!Coordination Center
    Certification!of development personnel
    Certification!of development processes
    Chaining Layered Integrity Checks
    Cheong, Otfried!Hyperlatex
    Common Criteria
    Common Intrusion Detection
    Framework (CIDF)

    Community Open Source Program Office (COSPO)!Switched Workstation
    Compromisibility!from below
    Compromisibility!from outside
    Compromisibility!from within
    Computer Emergency Response Team (CERT)
    Computer Emergency Response Team (CERT)!advisories
    Computers at Risk
    Computers at Risk
    Configuration!management of
    Control systems
    Copyleft!course notes
    Copyleft!course notes
    Copyleft!for software
    Covert channels!avoidance
    Covert channels!avoidance
    Covert channels!emergent
    Covert channels!emergent
    Covert channels!in trusted paths
    Covert channels!storage
    Covert channels!timing
    Cowan, Crispin
    Criteria!Common Criteria
    Critical Infrastructure Assurance Office (CIAO)
    Cryptography!cracking DES
    Cryptography!fair public-key
    Cryptography!hardware implemented
    Cryptography!in software
    Cryptography!in systems and networks
    Cryptography!key management
    Cryptography!software implemented
    Cryptography!threshold schemes
    CTSS security exposure
    Dean, Drew
    Dean, Drew!hashing weaknesses
    Dean, Drew!Java Security Manager (JSM)
    Dean, Drew!PhD thesis
    Deep Crack
    Defenses!against compromise
    Deming, W. Edwards
    Denials of service
    Denials of service!architecture
    Denials of service!DARPA workshop
    Denials of service!distributed
    Denials of service!PANIX
    Denials of service!prevention
    Denials of service!prevention
    Denials of service!prevention
    Denials of service!syn flooding
    Denials of service!WebCom
    Dependence!compromisibility of
    Dependence!strict!avoidance of
    Detection!of compromise
    Detection!of misuse
    Detection!of misuse!in real time
    Diffie-Hellman!public-key cryptography
    Diffie-Hellman!public-key cryptography
    Digital Millennium Copyright Act (DMCA)
    Dijkstra, Edsger W.!early work
    Dijkstra, Edsger W.!THE system
    Distributed Crack
    Distributed Data Protocol (DDP)
    Diversity!in architecture
    Diversity!in design
    Diversity!in design
    Domain!isolation in Multics
    Domain!name servers
    Education and training
    Effects of risks
    Einstein, Albert!disclaimer
    Einstein, Albert!education and experience
    Einstein, Albert!problem solving
    Einstein, Albert!rules of work
    Einstein, Albert!simplicity
    Einstein, Albert!wisdom
    Electromagnetic interference!Black Hawk
    Electromagnetic interference!House testimony
    Electromagnetic interference!Patriot
    Electromagnetic interference!Predator
    Electromagnetic interference!Tomahawk case?
    EMERALD!use of structure
    Emergent properties
    Emergent properties!human safety
    Emergent properties!in HDM
    Emergent properties!survivability
    Emergent properties!undesirable behavior and
    incomplete specification

    Error-correcting codes
    Fault injection!cryptanalysis
    Fault injection!software testing
    Fault tolerance
    Fault tolerance!requirements
    Fault tolerance!techniques
    Formal methods!for authentication
    Formal methods!for cryptographic protocols
    Formal methods!for dependability
    Formal methods!for design
    Formal methods!for fault tolerance
    Formal methods!for security
    Formal methods!for specification
    Formal methods!for survivability
    Formal methods!for synchronization
    Free software
    Free Software Foundation
    Free Software Foundation!General Public License (GPL)
    Free Software Foundation!General Public License (GPL)
    General Public License (GPL)
    Girding against compromise
    Hamre, John
    Hierarchical Development
    Methodology (HDM)

    Hierarchical Development
    Methodology (HDM)

    Hierarchical Development
    Methodology (HDM)!emergent properties

    Hierarchical Development
    Methodology (HDM)!Extended HDM (EHDM)

    Hierarchical Development
    Methodology (HDM)!hierarchical composition

    Hierarchy!absence of
    Hierarchy!of abstraction
    Hierarchy!of abstraction
    Hierarchy!of directories
    Hierarchy!of locking protocols
    Hierarchy!of survivability requirements
    Hierarchy!PSOS layering
    Hollway, Andrew
    Horning, James!structure
    Horning, James!structure
    Human safety!as an emergent property
    IEEE standards
    IETF standards
    Integrity!checks for
    Integrity!multilevel (MLI)
    Integrity!of bootloading
    Integrity!of resources
    Internet Engineering Task Force (IETF)
    Internet Key Exchange (IKE)
    Internet Protocol (IP)
    Internet Protocol (IP)!IPSEC
    Internet Protocol (IP)!IPSEC
    Internet Protocol (IP)!security architecture
    Internet Protocol (IP)!Security Document Roadmap
    Internet Protocol (IP)!Version 6
    Internet Protocol (IP)!Version 6
    Internet Security Association and Key Management Protocol (ISAKMP)
    Internet Worm
    Internet Worm
    Internet Worm!dictionary attack on passwords
    Internet Worm!exploits missing bounds check
    Internet Worm!illustration of vulnerabilities
    Internet Worm!no explicit authority required
    Java!Development Kit (JDK)
    Java!Security Manager (JSM)
    Java!Virtual Machine (JVM)
    Joint Airborne SIGINT
    Architecture (JASA)

    Joint Technical Architecture (JTA)
    Karger, Paul!discretionary access controls
    Keller, Helen
    Key management
    Kocher, Paul!differential power analysis on crypto
    Kocher, Paul!timing attacks on
    cryptographic implementations
    Lampson, Butler W.
    Lampson, Butler W.!confinement
    Lampson, Butler W.!confinement
    Lampson, Butler W.!cryptography
    Lampson, Butler W.!SDSI
    Lao Tze
    Least common mechanism
    Least privilege
    Lincoln, Patrick A.!Byzantine clocks
    Loading!of resources
    Meadows, Catherine
    Meadows, Catherine
    Meincke, Charles!survivability study
    Millen, Jonathan
    Millen, Jonathan!research contributions
    Millen, Jonathan!survivability research
    Millen, Jonathan!survivability research
    Misuse detection
    Mobile code
    Mobile code
    Mobile code!dynamic linking and loading
    Mobile code!security architecture
    Mobile code!security controls
    Mobile code!security risks
    Morris, Bob!dictionary attacks
    Morris, Robert Tappan
    MSL, Multiple single-level
    Multics!kernel redesign for MLS
    Multics!use of structure
    Multilevel!availability (MLA)
    Multilevel!integrity (MLI)
    Multilevel!integrity (MLI)
    Multilevel!security (MLS)
    Multilevel!security (MLS)
    Multilevel!survivability (MLX)
    Multilevel!survivability (MLX)
    Multilevel!survivability (MLX)
    Mutual suspicion
    National Infrastructure Protection Center (NIPC)
    National Research Council reports!Computers at Risk
    National Research Council reports!Cryptography's Role in Securing the Information Society
    National Research Council reports!Trust in Cyberspace
    National Research Laboratory!MSL efforts
    Necula, George!PhD thesis
    Needham, Roger!cryptography
    Neumann, Peter G.!House Judiciary Committee testimonies
    Neumann, Peter G.!Senate testimonies
    Newcastle!Distributed Secure System (DSS)
    OAKLEY Key Determination Protocol
    Object-oriented paradigm
    Object-oriented paradigm
    Object-oriented paradigm!abstraction
    Object-oriented paradigm!encapsulation
    Object-oriented paradigm!inheritance
    Object-oriented paradigm!polymorphism
    Open Group
    Open Source Program Office COSPO
    Open Source software
    Open Systems Task Force (OSTF)
    Open-box software
    Open-box software!examples
    Open-box software!motivation
    Open-box software!risks
    Open-box software!robust
    Operational practice
    Operational practice!analysis
    Operational practice!controllability
    Operational practice!requirements
    Operational practice!role in survivability
    Outsourcing!system administration
    Outsourcing!system administration
    Parnas, David L.!early papers
    Parnas, David L.!engineering discipline
    Parnas, David L.!information hiding
    Parnas, David L.!uses relation
    Passwords!AR 380-19 policy
    Passwords!capture by Trojan horse
    Passwords!CTSS exposure
    Passwords!denial-of-service attack
    Passwords!dictionary attack
    Passwords!dictionary attack
    Passwords!JTA5.0 policy
    Passwords!preencryptive analysis
    Patriot!clock drift
    Patriot!EMI problems
    PCCIP!infrastructure survivability
    PCCIP!organizational entities
    PCCIP!research recommendations
    Pentium Floating Divide flaw
    Performance!acceptable degradation
    Performance!as a subrequirement
    Performance!dependence on
    Perimeter!of survivability
    Perimeter!of trustworthiness
    Perimeter!of trustworthiness
    Porras, Phillip
    portable computing
    Portable computing!architecture
    Predator!EMI problems
    President's Commission on Critical Infrastructure Protection (PCCIP)
    President's Commission on Critical Infrastructure Protection (PCCIP)
    Prevention!of compromise
    Prevention!of misuse
    Principles!for security
    Principles!least common mechanism
    Principles!least privilege
    Principles!of cryptographic protocols
    Proctor, Norman!avoiding covert channels
    Proctor, Norman!avoiding covert channels
    Proctor, Norman!avoiding covert channels
    Proctor, Norman!avoiding covert channels
    Proof-carrying code
    Proof-carrying code
    Proof-carrying code
    Proof-carrying code
    Proof-carrying code
    Proof-carrying code
    Proprietary code
    Proprietary code!problems
    Protocols!ARPAnet routing
    Protocols!for networks
    Protocols!IP Version 6
    Protocols!IP vulnerabilities
    Protocols!need for survivability
    Protocols!need for survivability
    Protocols!need for survivability
    Protocols!unsecure interactions among
    PSOS!hierarchical layering
    PSOS!object orientation
    PSOS!use of structure
    Public-key infrastructure (PKI)
    Rainbow books: TCSEC
    Randell, Brian!Newcastle DSS
    Randell, Brian!reliability and security
    Randell, Brian!structure
    Randell, Brian!structure
    Read-only memory
    Reconfiguration!anticipating the consequences
    Reconfiguration!as a flow property
    Recovery blocks
    Recovery blocks
    Recovery!ARPAnet collapse
    Recovery!AT&T SS7
    Recovery!design goal
    Reliability!as a subrequirement
    Reliability!out of unreliable components
    Remediation!Y2K code
    Requirements!for availability
    Requirements!for performance
    Requirements!for performance
    Requirements!for reliability
    Requirements!for reliability
    Requirements!for security
    Requirements!for security
    Requirements!for survivability
    Research and development
    Research and development!directions
    Resource bootloading
    Reverse engineering!protection against
    Revocation!of mobile code
    Revocation!of mobile code
    Rings of protection
    Risks Forum
    Risks Forum
    Risks Forum
    Risks Forum
    Risks!absence of intelligence
    Risks!in development
    Risks!in key recovery
    Risks!in uses of cryptography
    Risks!involving survivability
    Risks!mobile code
    Risks!need for understanding
    Risks!of RF interference
    Rivest, Ron!SDSI
    Rivest-Shamir-Adleman (RSA)
    Run-time checks
    Rushby, John M.!isolation kernel
    Rushby, John M.!Newcastle DSS
    Saltzer, J.H.
    Saydjari, Sami
    Schopenhauer, Arthur!generality vs. experience
    Schopenhauer, Arthur!generality vs. experience
    Schroeder, Michael D.
    Schroeder, Michael D.!PhD thesis
    Schroeder, Michael D.!protection
    SeaView!use of structure
    Secure Public Key Infrastructure (SPKI)
    Security!as a subrequirement
    Security!attack modes
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!by obscurity
    Security!multilevel databases
    Security!multilevel MLS)
    Separation!of domains
    Separation!of duties
    Separation!of policy and mechanism
    Separation!of roles
    Separation!of roles
    Silk-purse sow's-ear metaphor
    Simple Control Transmission Protocol (SCTP)
    Simple Distributed Security Infrastructure (SDSI)
    Simple Maude
    Software engineering
    Software!fault injection
    Software!Open Source
    Starlight Interactive Link
    Structure!organizing principles
    Survivability!as an emergent property
    Survivability!as an emergent property
    Survivability!as an emergent property
    Survivability!as an overall system property
    Survivability!case histories of outages
    Survivability!course notes
    Survivability!course notes
    Survivability!multilevel (MLX)
    Survivability!multilevel (MLX)
    Survivability!with generalized dependence
    Syllabus for survivability
    Synchronization!formal methods
    System development!failures
    System development!practice
    Tao Te Ching
    TCB!for MLS
    TCSEC!centralized view
    Thompson, Ken!C compiler Trojan horse
    Thompson, Ken!C compiler Trojan horse
    Thompson, Ken!C compiler Trojan horse
    Thompson, Ken!dictionary attacks
    Threats!to performance
    Threats!to reliability
    Threats!to security
    Threats!to survivability
    Tolerance!of compromise
    Tolerance!of faults
    Tolerance!of human foibles
    Trojan horses
    Trust in Cyberspace
    Trusted Computer Security Evaluation Criteria (see TCSEC)
    Trusted Computer Security Evaluation Criteria (see TCSEC)
    Trusted Computing Base (see TCB)
    Trusted path!absence of
    Trusted path!for backup and retrieval
    Trusted path!for bootloading
    Trusted path!for reconfiguration
    Trusted path!realization
    Trusted path!requirements
    Trustworthiness!of backup
    Unified Cryptologic Architecture (UCA)
    Uniform Computer Information Transactions Act (UCITA)
    Validation authorities
    Vigna, Giovanni
    Wagner, David
    Walczak, Paul
    Wallach, Dan S.!JSM
    Wallach, Dan S.!PhD thesis
    Ware, Willis
    Wireless!Global Mobile
    Wireless!portable computing
    Wireless!thin-client systems
    Write-once, run-anywhere (WORA)
    Write-once, verify-once,
    encapsulate, run-anywhere


    See for some background on this quote.
    As is often done for reliability, survivability could alternatively be defined as a probabilistic measure of how well the given requirements are satisfied. However, quantitative measures tend to be very misleading -- especially when based on incorrect or unfounded assumptions. This is particularly true when considering security, where the widespread dissemination of a newly discovered vulnerability would radically change the perceived probabilities! Thus, we prefer an unquantified definition.
    The working group, chaired by Charles Meincke (AMSRL-SL-EI), included Anthony Barnes (AMSRL-SL-EI), Andrew Hollway!surivivability study (deceased, VAL FIO), Robert Hein (CECOM SWD), Bernard Newman (CECOM C3), John Preusse (CECOM C3), Barry Salis (CECOM C3 Systems), Phillip Dykstra (BRL/SECAD), Beth Manahan (ATZH-TH), Thomas Reardon (USAISC HQ), Joseph Stevenson (USAISC HQ), Laura Vaglia (SAA, INSCOM), Jeni Wilson-Galleher (AMC HQ), Dennis Steinauer (NIST), Marianne Swanson (NIST), and Peter Neumann -- who did most of the writing. Organizational designations are given as of the date of the report's publication in 1993.
    HDM dealt with emergent properties without so naming them.
    This section is adapted from [251].
    In this usage, "undergirding" has its natural-language meaning; "exogirding" takes on the primary meaning of "girding", to avoid confusion with its other meanings; "endogirding" is introduced as an intermediate concept -- neither outside nor below, but rather internal.
    The cause of this abort is still unknown to me. If you know the results of the final analysis, please let me know.
    "Saboteur Tried To Black Out Australia" in The Australian, 23 November 1987, Sydney, Australia, p.1, 2nd edition, reprinted in ACM Software Engineering Notes, vol. 13, no. 1, January 1988, pp. 15-16.
    Belief or practice resulting from ignorance, fear of the unknown, or trust in magic or chance (Webster). Security by obscurity certainly seems consistent with Helen Keller's view when applied to information security!
    The following description is adapted from Neumann and Parker [264], and in turn evolved from some earlier classifications discussed by Neumann [245]. An extensive discussion of each misuse class is presented by Neumann and Parker [265], along with examples of each class. They also present an analysis of more than two hundred cases [263].
    A race condition is a situation in which the outcome is dependent upon internal timing considerations. A race condition is critical if something else depending upon that outcome may be affected by its nondeterminism, and is noncritical otherwise.
    For further information, contact Alex Blumenstiel at 1-617-494-2391 ( or Darryl Robbins, FAA Office of Civil Aviation Security Operations, Internal and AIS Branch.
    This is a primitive rendering of the figure, which will be displayed more elegantly later.
    This approach was taken in the Secure Alpha effort [120], an SRI project that redesigned a real-time system (Jensen's ARCHONS project [143]) to include multilevel security and to permit dynamic tradeoffs to ensure performance.
    Although implications of covert channels in multilevel-secure systems have been downplayed in this report, system and network architectures that systemically seek to avoid covert channels (e.g., see Proctor and Neumann [310]) may have significant benefits for other requirements as well, because the partioning required can contribute to increased survivability.
    Mudge is part of a White-Hat Hacker group known as L0pht, now part of @Stake. L0pht's 1998 Senate oral testimony [226] claimed that it is possible to bring down the entire Internet in about 30 minutes.
    See pages 219-221 of [250] for cases in which simulation models were themselves seriously faulty. See also a terse but incisive summary of problems with large-scale simulations by D.E. Stevenson [365].
    This section incorporates material from a panel position paper by Neumann [258], written for the IEEE Symposium on Security and Privacy, May 2000.
    Several critiques by Neumann [248] and Willis Ware [388] are still worth considering, because many of the flaws in the TCSEC are still reflected in evaluated systems today; furthermore, some of the problems with the TCSEC can be replicated by protection profiles in the Common Criteria.
    The last definition of "architecture" in the Random House Dictionary is simply "the structure of anything." Although our terms "architectural structure" and "structural architecture" may seem to be tautologies outside the context of this report, they are intended to emphasize the desired fundamental role of structure, and to avoid confusion resulting from the massively misplaced overloading of the word "architecture" that arises in the JTA and DGSA.
    In 1971, Neumann [244] suggested a framework in which execution could take place with the assemblage of inputs, programs, state information, and outputs, each from a multiplicity of different sites. For example, execution could take place on various sites, possibly in simultaneous distributed programs dynamically allocated as resources are made available, with widely scattered data sources, and results disseminated as appropriate.
    We include this analysis here primarily because our earlier analysis [259] requested by the Army CECOM at the end of 1995 needs to surface openly. That analysis is symptomatic of deeper issues that are absolutely fundamental to survivability.
