Experience with EMERALD to DATE
Peter G. Neumann and Phillip A. Porras
Computer Science Laboratory
SRI International, Menlo Park CA 94025-3493
Neumann@CSL.sri.com and Porras@CSL.sri.com
1-650-859-2375 and 1-650-859-3232
1st USENIX Workshop on Intrusion Detection and Network Monitoring
Santa Clara, California, 11-12 April 1999, pages 73--80
After summarizing the EMERALD architecture and the evolutionary process from
which EMERALD has evolved, this paper focuses on our experience to date in
designing, implementing, and applying EMERALD to various types of anomalies
and misuse. The discussion addresses the fundamental importance of good
software engineering practice and the importance of the system architecture
- in attaining detectability, interoperability, general applicability, and
future evolvability. It also considers the importance of correlation among
distributed and hierarchical instances of EMERALD, and needs for additional
detection and analysis components.
EMERALD (Event Monitoring Enabling Responses to Anomalous Live
Disturbances) [6, 8, 9] is an
environment for anomaly and misuse detection and subsequent analysis of the
behavior of systems and networks. EMERALD is being developed under
DARPA/ITO Contract number F30602-96-C-0294 and applied under DARPA/ISO
Contract number F30602-98-C-0059. EMERALD has farsighted goals for
real-time detection, analysis, and response for a broad range of threats
other than just security.
Anomaly detection involves the recognition of deviations from expected
normal behavior, whereas misuse detection involves the detection of various
types of misuse. The term ``intrusion detection" is often used to encompass
both, but unfortunately suggests only the detection of intrusions
rather than the broader scope of EMERALD.
EMERALD targets both external and internal threat agents that attempt to
misuse system or network resources. It is an advanced highly
software-engineered environment that combines signature-based and
statistical analysis components with a resolver that interprets analysis
results, all of which can be used iteratively and hierarchically. Its
modules are designed to be independently useful, dynamically deployable,
easily configurable, reusable, and broadly interoperable. Its design scales
well to very large enterprises. The objectives include achieving innovative
analytic abilities, rapid integration into current network environments, and
much greater flexibility of surveillance whenever network configurations
EMERALD employs a building-block architectural strategy using independently
tunable distributed surveillance monitors that can detect and respond to
malicious activity on local targets, and can interoperate to form an

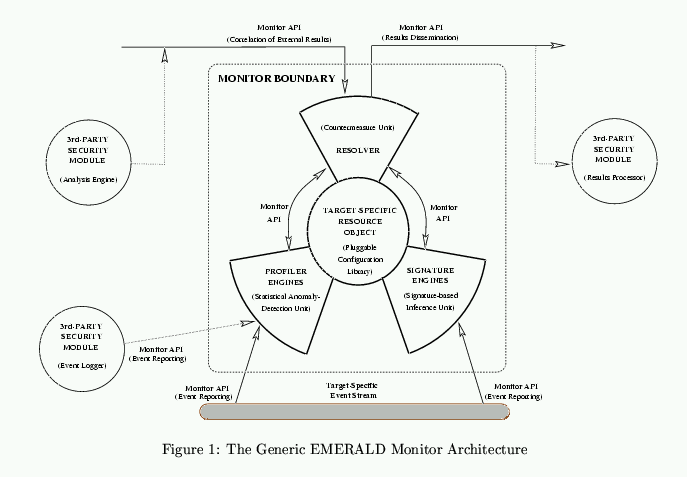

analysis hierarchy. The basic architectural structure is shown in
Figure 1. The figure shows the three main types of existing
analysis units (profiler engines, signature engines, and resolver)
surrounding the target-specific resource objects. It also shows the
possible integration of third-party modules, including inputs derived from
other sources, and outputs sent to other analysis platforms or
administrators and emergency response centers. This architecture is
explained in the following text.
A key aspect of this approach is the introduction of EMERALD monitors. An
EMERALD monitor is dynamically deployed within an administrative domain to
provide localized real-time analysis of infrastructure (e.g., routers or
gateways) and service (privileged subsystems with network interfaces). An
EMERALD monitor may interact with its environment passively (reading
activity logs or network packets) or actively (via probing that supplements
normal event gathering). As monitors produce analytical results, they are
able to disseminate these results asynchronously to other client monitors.
Client monitors may operate at the domain layer, correlating results from
service-layer monitors, or at the enterprise layer, correlating results
produced across domains.
Under the EMERALD framework, a layered analysis hierarchy may be formed to
support the recognition of more global threats to interdomain connectivity,
including coordinated attempts to infiltrate or destroy connectivity across
Equally important, EMERALD does not require the adoption of this analysis
hierarchy. Monitors themselves stand alone as self-contained analysis
modules, with a well-defined interface for sharing and receiving event data
and analytical results among other third-party security services. An
EMERALD monitor is capable of performing both signature analysis and
statistical profile-based anomaly detection on a target event stream. In
addition, each monitor includes an instance of the EMERALD resolver, a
countermeasure decision engine capable of fusing the alerts from its
associated analysis engines and invoking response handlers to counter
malicious activity. The statistical subsystem tracks subject activity via
one of four types of statistical variables called measures: categorical
(e.g., discrete types), continuous (e.g., numerical quantities), traffic
intensity (e.g., volume over time), and event distribution (e.g., a
meta-measure of other measures) . EMERALD's signature
analysis subsystem employs a variant of the P-BEST (Production-Based Expert
System Tool) expert system  that allows
administrators to instantiate a rule set customized to detect known
``problem activity" occurring on the analysis target. Results from both the
statistical and signature engines are then forwarded to the monitor's
resolver - which acts as the coordinator of the monitor's external
reporting system and the implementor of the monitor's response policy.
Fundamental to EMERALD's design is the abstraction of analysis semantics
from the monitor's code base. Under the EMERALD monitor architecture, all
analysis-target-specific information is contained within each resource
object, specifying items from a pluggable configuration library. The
resource object encapsulates all the analysis semantics necessary to
instantiate a single service monitor, which can then be distributed to an
appropriate observation point in the network. Resource-object elements
customize the monitor for the analysis target, containing data and methods,
such as the event collection methods, analytical module parameters, valid
response methods, response policy, and subscription list of external modules
with which the monitor exchanges alarm information. This enables a spectrum
of configurations from lightweight distributed monitors to heavy-duty
centralized analysis platforms.
In a given environment, service monitors may be independently distributed to
analyze the activity of multiple network services (e.g., FTP, SMTP, HTTP) or
network element (router, firewall). Resource objects are being developed
for each analysis target. As each EMERALD monitor is deployed to its
target, it is instantiated with an appropriate resource object (e.g., an FTP
resource object for FTP monitoring, and a BSM resource object for BSM
Solaris kernel analysis). The monitor code base itself is analysis
target-independent. As EMERALD monitors are redeployed from one target to
another, the only thing that is modified is the content of the resource
See the paper by Lindqvist and Porras  for
discussion of the analysis of FTP (which currently exists for SunOS,
FreeBSD, and Linux) and BSM (on Solaris). In particular, that paper gives
specific examples of rules for failed authentication, buffer overflows, and
SYN flooding attacks.
Resource objects lend themselves to the key project objectives of
reusability and fast integration to new environments. The project is
developing a library populated with resource objects that have been built to
analyze various service and network elements. Installers of EMERALD will be
given our monitor code base, which they do not have to touch. They can then
download appropriate resource objects associated with their analysis
targets, modify them as desired, and instantiate the monitors with the
downloaded resource objects.
The project is also working toward new techniques in alarm correlation and
management of analytic services. The concept of composable surveillance
will allow EMERALD to aggregate analyses from independent monitors in an
effort to isolate commonalities or trends in alarm sequences that may
indicate a more global threat. Such aggregate analyses are classified under
four general categories: commonality detection, multiperspective
reinforcement, alarm interrelationships, and sequential trends.
Briefly, commonality detection involves the search for common alarm
indicators produced across independent event analyses. In such cases, the
results from one monitor's analyses may occur under a threshold that
warrants individual response, but in combination with results from other
monitors may warrant a global response. This approach can address low-rate
distributed attacks and cooperative attacks, as well as widespread
contamination effects. Multiperspective analysis refers to efforts to
independently analyze the same target from multiple perspectives (e.g., an
analysis of a Web server's audit logs in conjunction with Web network
traffic). Alarm interelationships refer to EMERALD's ability to have a
monitor model an interrelationship (cause and effect) between the occurrence
of alarms across independent analysis targets. For example, an alarm
regarding activity observed on one host or domain may give rise to a warning
indicator for a different threat against a second host or domain. Last,
sequential trends in alarms seek to detect patterns in alarms raised within
or across domains. These patterns of aggressive activity may warrant a more
global response to counteract than can be achieved by a local service
The EMERALD project represents an effort to combine research from
distributed high-volume event correlation with over a decade of
intrusion-detection research and engineering experience. It represents a
comprehensive attempt to develop an architecture that inherits
well-developed analytical techniques for detecting intrusions, and casts
them in a framework that is highly reusable, interoperable, and scalable in
large network infrastructures. Its inherent generality and flexibility in
terms of what is being monitored and how the analytical tools can be
customized for the task suggest that EMERALD can be readily extended for
monitoring other forms of malicious and nonmalicious ``problem activities"
within a variety of closed and networked environments.
This section summarizes our experience in the EMERALD development thus far.
EMERALD has drawn on our earlier experience in developing and using IDES
(Intrusion Detection Expert System ) and its successor
NIDES (Next-Generation IDES [1, 2, 3, 4].
Particularly for those people who are not aware of our earlier work, we
summarize a few conclusions.
From IDES, we attained considerable flexibility and runtime efficiency in
the use of P-BEST ),
which we have now adapted into EMERALD's
pluggable analysis-engine framework as a self-sufficient component.
The P-BEST approach proved to be very useful, and rules are relatively
easy to write. P-BEST was adapted by Alan Whitehurst from its previous
incarnation in MIDAS . IDES also gave us the second
generation of our statistical algorithms, begun in 1983 in an earlier
- From the NIDES development , several observations
influenced the EMERALD effort. (1) Much of the available audit data (e.g.,
from C2 Unix and BSM) was not naturally well suited for our analytical
purposes, and different sources of data would have been desirable. Greater
abstraction would have been useful. (2) Although we did experiment with
some higher-level audit data (from database management systems in relatively
closed environments), attempting to detect misuse was less fruitful because
the security policies of the DBMSs generally permitted what was
closer to acceptable behavior. (3) We recognized that the NIDES
statistical detection system as then configured would not scale well to
distributed and networked environments, for two reasons. First, the
measures needed to be treated in their entirety, rather than subsetted - as
would be desirable for lightweight instances. Second, the results were not
in a form that could be used recursively at a higher-layer instance. (4) We
recognized the importance of the administrator interface, and observed that
its complexities are unavoidable if flexibility in detection and response is
required. However, we initially spent too much effort on developing our own
GUI tools, until we decided to rely on some newly developed generic tools.
In retrospect, we believe we would have progressed faster if we had had more
emphasis on software engineering and on in-house applications.
- From the NIDES Safeguard effort , we observed that
profiling functionality proved to be more effective than profiling
individual users. That approach resulted in far fewer profiles, each of
which tended to be much more stable. The resulting false-positive and
false-negative rates were reduced considerably. We concluded that
statistical analyses could be very effective in dealing with systems and
subsystems such as servers and routers. (As a consequence, EMERALD
subsequently broadened the statistics algorithms to improve handling of
network protocols, by having a master profile of client usage against
which a single service can be compared. For example, anonymous FTP sessions
can simultaneously be profiled against the master profile for anonymous
These observations have had a significant impact on the EMERALD architecture
and its implementation, particularly in moving to a distributed
and networked target environment.
The underlying generic analysis-engine infrastructure uniformly wraps the
signature analysis, statistical engine, resolver, and any future engines
we might wish to integrate. The infrastructure provides the common EMERALD
API, event-queue management, error-reporting services, secondary storage
management (primarily for the statistical component), and internal
configuration control. The statistical and P-BEST components are integrated
as libraries. The infrastructure was assembled first for the EMERALD
statistics component (estat), but proved its generality when we attempt to
integrate P-BEST as the EMERALD expert system (eXpert). The integration of
P-BEST inference engines required some linkage code to bind with the
underlying EMERALD libraries, and is now automatically generated as part of
the compilation process.
After more than two years developing EMERALD, our experience thus far is
summarized as follows.
- Generality of approach.
We have attempted to solve some difficult problems rather generally,
and have typically avoided optimizing our approach to any domain-specific
the decoupling of generic and target-specific concepts simplifies
reusability of components and extensibility, and enhances
integration with other data sources, analysis engines, and
response capabilities. The hierarchically iterative nature permits
analyses with broader scope across networks and distributed systems.
Although the advantages of such a farsighted
approach may not be evident until EMERALD is more widely used and extended
to new application areas, we firmly believe that this approach can be very
instructive to us and to other groups, from the perspective of
research and development potential - and can have major long-term
advantages. (Platform-specific optimizations are of course possible,
if they are deemed necessary.)
- Software engineering. We believe that our strong emphasis on good
software engineering practice in EMERALD has already had substantial
payoffs, particularly in enabling us to rapidly incorporate different
analytic engines into the generic framework. (The modularization and
integration of the
P-BEST expert system component is discussed below.) This emphasis
clearly improves the general evolvability of the system, and also has
significant benefits with respect to interoperability - within EMERALD,
with independently developed analysis engines, with analysis data from
arbitrary sources, and in terms of the distribution of analysis results.
The software-engineering emphasis also helps facilitate
the iterative use of EMERALD analytic
engines by making the layered instances of the system symmetric. These
benefits remain to be demonstrated explicitly with extensive and
well-documented experiments, but our expectations are very high. A
fuller justification of the extent to which this software engineering
approach is actually paying off requires a more detailed description of
the architecture, which is beyond the scope of this workshop paper;
however, such a description is high on our priority list for the future.
- Scope of applicability. We believe that our attention to software
engineering simplifies the broadening of EMERALD's domains of
applicability - for example, detecting, analyzing, and responding to
potential threats to survivability, reliability, fault tolerance, and
network management stability. There is nothing intrinsic in the
EMERALD architecture and implementation that would limit its applicability.
The application to requirements other than security is
basically a matter of writing or modifying
the relevant resource objects and configuring the system appropriately,
and is not expected to require major changes to the existing analysis
- Relative merits of various paradigms. It should be no surprise to
those in the intrusion-detection community that signature-based analysis is
good at detecting and identifying well-defined known scenarios, but very
limited in detecting hitherto unknown attacks (except for those that happen
to trigger existing rules serendipitously). On the other hand, statistical
profile-based analysis can be effective in detecting unknown attacks and
providing early warnings on strangely deviant behaviors; however, the
statistical approach does not naturally contribute to an automated
identification and diagnosis of the nature of an attack or other type of
deviation that it has never identified before. Although inferences can be
drawn about the nature of an anomaly, based on the statistical measures that
were triggered, further reasoning is typically necessary to identify the
nature of the anomaly - for example, is it an attack in progress, or a
serious threat to system survivability.
Precisely because it is aimed at detecting potentially unforeseen threats
rather than very specific scenarios that can be easily detected by
signature-based analyses, the statistical component can be expected to turn
up false positives. In the EMERALD framework, this is not necessarily a
problem. We believe it is much more effective for the resolver to discard
statistical anomalies that it deems nonserious rather than try to reduce the
false positives in the statistical component itself (which requires greater
knowledge of the potential threats - which is what can otherwise be
avoided). Furthermore, once new attacks and threats are identified, it is
desirable to add new rules to the expert-system rule base.
Overall, we believe that each type of analysis (such as the expert system,
the statistical component, the resolver, or any additional analysis engines)
will have its own areas of greatest effectiveness, but that no one
paradigm can cover all types of threats. Therefore we endorse a pluralistic
approach. Inference and reasoning engines, Bayesian analysis, and other
paradigms may also be applicable to detection, identification, and
resolution of the nature of anomalies and attacks.
- Local, hierarchical, and distributed correlation. One of the
most far-reaching observations relates to the
importance of being able to correlate local results from different
target platforms at the same or different layers of abstraction,
and also to correlate results relating to different aspects of system
behavior. The inherent layered iterative nature of the EMERALD
architecture is significant in this respect, because the same
analytic component can be used at different layers of abstraction.
We are just now beginning to conduct some experiments to demonstrate the
power of this approach. In so doing, we are extending the existing
EMERALD resolver to interpret the results of different analytic engines
and to recommend responses appropriate to the specific layer of
abstraction. Further analytic engines may also be required at various
layers of abstraction, such as some reasoning tools.
- Importance of further research, prototype development, and
experimentation. EMERALD continues to explore advanced
concepts, as did IDES and NIDES. Although most of the necessary
analysis infrastructure is now in place, R&D advances are still
required for EMERALD relating to inference necessary to enhance
correlation in the analysis of and response to coordinated attacks
and interdependent anomalies in distributed environments,
and in generalizations of applicability beyond security.
These are ongoing efforts.
- Interoperability. The Common Intrusion Detection Framework (CIDF) and
the ongoing IETF standardization effort are important. Both are expected
to increase the interoperability within and among different analysis and
response systems. EMERALD is very much in line with these efforts, and
compatibility is not expected to be a problem.
CIDF interface definitions are based on an
architectural decomposition that is aligned closely to that of EMERALD's
monitor design. In particular,
EMERALD's target-specific event-generation components are equivalent
in function to CIDF E-boxes;
EMERALD's statistical and signature analysis engines are equivalent
in function to CIDF A-boxes;
EMERALD's resolver is equivalent in function to a CIDF R-box.
In hierarchical composition, an EMERALD service layer monitor is capable
of passing alerts to a domain monitor. The service layer
monitor can operate as a CIDF E-box, and the domain monitor can operate
as a CIDF A-box. CIDF working documents are available online
With respect specifically to the integration of P-BEST into
EMERALD , our experience has strongly reinforced our
- The software engineering quality of the EMERALD monitor architecture
was put to a test when a summer visitor previously unfamiliar with the
system joined us to integrate the signature analysis engine into the generic
monitor framework. The statistical anomaly detection engine had been
developed in concert with the EMERALD API, and the NIDES expert-system-based
signature engine was the first additional component to use the API. The
revision and integration procedure went very rapidly (about a man-week), and
minor problems that were discovered and solved were due to constraints in
the expert-system tool rather than in the EMERALD API. This supports our
claim that the EMERALD API is well suited for integration of various kinds
of third-party modules into the monitor architecture. Although this is not
an exciting gotcha, it was important to the development effort.
- The data-driven nature of the EMERALD monitors makes the intermonitor
and intramonitor message-passing a central function of the API. The
programmer is provided with a set of abstract data types, including a set of
methods to handle messages and fields within messages. An example of a
powerful feature of the EMERALD message format is the possibility of
defining a message field as an array of message fields. This allows the
programmer to effectively encapsulate one EMERALD message inside another.
In the signature-analysis engine, this capability is used to include the
original event record(s) in every alert message sent to the resolver, in
addition to the information provided by the triggered rules. This also
allows a hierarchy of analysis units (including resolvers) to be able to
pass along any or all information produced earlier.
The generality of the API with respect to the abstract data types is also
reflected by the ease with which we were able to write a code-generation
utility for the interface code that connects the expert system to the
monitor. This utility is used when redirecting the signature-analysis
engine to a completely new event stream, using the information in the
resource object to fit the engine to the analysis target. The purpose of the
utility is to relieve the creator of a resource object from the inner
workings of the monitor. The API design made it easy to isolate the
target-dependent code and let it be machine-generated.
Overall, the progress to date in developing and using EMERALD has been very
promising. However, considerable further effort is needed to demonstrate
the effectiveness of the software engineering approach and the power of the
- The software engineering practice used in EMERALD's modular design and
the attention devoted to well-defined interfaces and information hiding in
the sense of David Parnas have proven very valuable in EMERALD's development
thus far, and will be even more valuable to the ability to interoperate with
components developed elsewhere, to its long-term evolvability, and to
subsequent generalizations of EMERALD beyond security applications to
address human safety, enterprise survivability, reliability, real-time
performance, and other critical attributes.
- Hierarchical and distributed correlation is necessary in analyzing
highly distributed environments, because of the inability to recognize
global patterns from isolated local events. However, additional analysis
techniques are likely to be required.
- The iterative nature of EMERALD instantiations will enable lightweight
detection components to specialize in particular areas of concern, for
different event spaces and at different layers of abstraction.
A few general conclusions are also noted in an attempt to put the
EMERALD experience in perspective.
- Commercial intrusion-detection systems have concentrated mostly on
string matching and other forms of signature identification to detect
classes of outsider attacks. To date, primarily the easy parts of the
problem have been addressed by the commercial community.
- Research advances in the community at large seem to have slowed,
along with the increased emphasis on detecting known types of
outsider attacks. Detecting, identifying, and responding to hitherto
unknown attacks and anomalies remain as very challenging problems, including
highly coordinated attacks, subtle forms of misuse by insiders, and
anomalous network behavior resulting from malfunctions and outages.
Providing global rather than local analysis is still a very important
research area that is relatively uncharted. Generalizations beyond known
security attacks are also challenging.
http://www.csl.sri.com/intrusion.html for background and online
versions of papers and
reports [2, 4, 6, 8, 9].
See also Web pages for Porras and Neumann
We are indebted to Martin Fong, Ulf Lindqvist, Keith Skinner, and Al Valdes,
all of whom have contributed significantly to the EMERALD development. We
are also grateful to those people whose work on the development of IDES and
NIDES has influenced EMERALD, including quite notably Teresa Lunt. Charles
Antonelli made some very helpful suggestions on the paper, and served as our
official workshop shepherd.
D. Anderson, T. Frivold, and A. Valdes.
Next-generation Intrusion-Detection Expert System (NIDES).
Technical report, Computer Science Laboratory, SRI International,
Menlo Park, California, SRI-CSL-95-07, May 1995.
D. Anderson, T. Lunt, H. Javitz, A. Tamaru, and A. Valdes.
Safeguard final report: Detecting unusual program behavior using the
NIDES statistical component.
Technical report, Computer Science Laboratory, SRI International,
Menlo Park, California, 2 December 1993.
R. Jagannathan, T.F. Lunt, D. Anderson, C. Dodd, F. Gilham, C. Jalali, H.S.
Javitz, P.G. Neumann, A. Tamaru, and A. Valdes.
System Design Document: Next-generation Intrusion-Detection
Expert System (NIDES).
Technical report, Computer Science Laboratory, SRI International,
Menlo Park, California, 9 March 1993.
H.S. Javitz and A. Valdes.
The NIDES statistical component description and justification.
Technical report, Computer Science Laboratory, SRI International,
Menlo Park, California, March 1994.
H.S. Javitz, A. Valdes, D.E. Denning, and P.G. Neumann.
Analytical techniques development for a statistical
intrusion-detection system (SIDS) based on accounting records.
Technical report, SRI International, Menlo Park, California, July
U. Lindqvist and P.A. Porras.
Detecting computer and network misuse through the Production-Based
Expert System Toolset (P-BEST).
In Proceedings of the 1999 Symposium on Security and Privacy,
Oakland, California, May 1999. IEEE Computer Society.
T.F. Lunt, A. Tamaru, F. Gilham, R. Jagannathan, C. Jalali, P.G. Neumann, H.S.
Javitz, and A. Valdes.
A Real-Time Intrusion-Detection Expert System (IDES).
Technical report, Computer Science Laboratory, SRI International,
Menlo Park, California, 28 February 1992.
P.A. Porras and P.G. Neumann.
EMERALD: Event Monitoring Enabling Responses to Anomalous Live
In Proceedings of the Nineteenth National Computer Security
Conference, pages 353-365, Baltimore, Maryland, 22-25 October 1997.
P.A. Porras and A. Valdes.
Live traffic analysis of TCP/IP gateways.
In Proceedings of the Symposium on Network and Distributed
System Security. Internet Society, March 1998.
M.M. Sebring, E. Shellhouse, M.E. Hanna, and R.A. Whitehurst.
Expert system in intrusion detection: A case study.
In Eleventh National Computer Security Conference, Baltimore,
Maryland, October 1988.
