CDRL A001 Final Report December 28, 2004
Final ReportPrincipled Assuredly Trustworthy
Composable Architectures
Submitted by:
Peter G. Neumann, Principal Investigator
Principal Scientist, Computer Science Laboratory
SRI International EL-243, 333 Ravenswood Ave
Menlo Park, California 94025-3493, USA
Neumann@csl.sri.com; http://www.csl.sri.com/neumann
Phone: 1-650-859-2375; Fax: 1-650-859-2844
Prepared for:
Contracting Officer, Code D4121
SPAWAR Systems Center
San Diego, California
Approved:
Patrick Lincoln, Director
Computer Science Laboratory
William Mark, Vice President
Information and Computing Sciences Division
This report is available on-line for browsing
http://www.csl.sri.com/neumann/chats4.html
and also for printing or displaying
http://www.csl.sri.com/neumann/chats4.pdf
http://www.csl.sri.com/neumann/chats4.ps
This document is the final report
for Task 1 of SRI Project 11459,
Architectural Frameworks for Composable Survivability and Security, under
DARPA Contract No. N66001-01-C-8040 as part of DARPA's Composable
High-Assurance Trustworthy Systems (CHATS) program.
Douglas Maughan was the DARPA Program Manager
through the first two years of the project. He has been succeeded
by Tim Gibson. Acknowledgments are given at the end of the body of this report.
However, the author would like to give special mention to the significant
contributions of Drew Dean and Virgil
Gligor. This report contains no proprietary or sensitive information.
Its contents may be freely disseminated.
All product and company names mentioned in this report are trademarks of their
respective holders.
This report presents the results of our DARPA CHATS project. We
characterize problems in and approaches to attaining computer system and
network architectures. The overall goal is to be better able to develop and
more rapidly configure highly trustworthy systems and networks able to
satisfy critical requirements (including security, reliability,
survivability, performance, and other vital
characteristics). We consider ways to enable effective systems to be
predictably composed
out of interoperable subsystems, to
provide the required trustworthiness -- with reasonably high assurance that
the critical requirements will be met under the specified operational
conditions, and (we hope) that do something sensible outside of that range
of operational conditions. This work thus spans the entire set of goals of
the DARPA CHATS program -- trustworthiness, composability, and assurance
-- and much more.
By trustworthiness,
we mean simply worthy of being trusted to
fulfill whatever critical requirements may be needed for a particular
component, subsystem, system, network, application, mission, enterprise, or
other entity. Trustworthiness requirements might typically involve (for
example) attributes of security, reliability, performance, and survivability
under a wide range of potential adversities. Measures of trustworthiness
are meaningful only to the extent that (a) the requirements are sufficiently
complete and well defined, and (b) can be accurately evaluated.
This report should be particularly valuable to system developers who have
the need and/or the desire to build systems and networks that are
significantly better than today's conventional mass-market and custom
software. The conclusions of the report can also be useful to government
organizations that fund research and development efforts, and to procurers
of systems that must be trustworthy.
In this report, we confront an extremely difficult problem -- namely, how
to attain demonstrably trustworthy systems and networks that must operate
under stringent requirements for security, reliability, survivability, and
other critical attributes, and that must be able to evolve gracefully and
predictably over time -- despite
changes in requirements, hardware, communications technologies, and
radically new applications. In particular, we seek to establish a sound
basis for the creation of trustworthy systems and networks that can be
easily composed out of subsystems and components, with
predictably high assurance, and also do
something sensible when forced to operate predictably outside of the
expected normal range of operational conditions. Toward this end, we
examine a set of principles for achieving trustworthiness, consider
constraints that might enhance composability, pursue architectures and trustworthy subsystems that are inherently likely
to result in trustworthy systems and networks, define constraints on administrative practices that reduce operational risks, and seek approaches
that can significantly increase assurance. The approach is intended
to be theoretically sound as well as practical and realistic. We also
outline directions for new research and development that could significantly
improve the future for high-assurance trustworthy systems.
With respect to the future of trustworthy systems and networks, perhaps the
most important recommendations involve the urgent establishment and use of
soundly based, highly disciplined, and principle-driven architectures,
as well as development practices that systematically encompass
trustworthiness and assurance as integral parts of what must become coherent
development processes and sound subsequent operational practices. Only
then can we have any realistic assurances that our computer-communication
infrastructures -- and indeed our critical national infrastructures --
will be able to behave as needed, in times of crisis as well as in normal
operation. The challenges do not have easy turn-the-crank solutions.
Addressing them requires considerable skills, understanding, experience,
education, and enlightened management. Success can be greatly increased in
many ways, including the availability of reliable hardware components,
robust and resilient network architectures and systems, consistent use of
good software engineering practices, careful attention to human-oriented
interface design, well-conceived and sensibly used programming languages,
compilers that are capable of enhancing the trustworthiness of source code,
techniques for increasing interoperability among heterogeneous distributed
systems and subsystems, methods and tools for analysis and assurance, design
and development of systems that are inherently easier to administer and
that provide better support for operational personnel, and many other
factors. The absence or relative inadequacy with respect to each of these
factors today represents a potential weak link in a process that is
currently riddled with too many weak links. On the other hand, much greater
emphasis on these factors can result in substantially greater
trustworthiness, with predictable results.
The approach taken here is strongly motivated by historical perspectives
of promising research efforts and extensive development experience (both
positive and negative) relating to the development of trustworthy systems.
It is also motivated by the practical needs and limitations of commercial
developments as well as some initial successes in inserting significantly
greater discipline into the open-source world. It provides useful
guidelines for disciplined system developments and future research.
This report cannot be everything for everyone, although it should have some
appeal to a relatively broad range of readers. As a consequence of the
inherent complexity associated with the challenges of developing and
operating trustworthy systems and networks, we urge readers with experience
in software development to read this report thoroughly, to see what
resonates nicely with their experience. However, to the inexperienced
developer or to the experienced developer who believes in seat-of-the-pants
software creation, we offer a few words of caution. Many of the individual
concepts should be well known to many of you. However, if you are looking
for easy answers, you may be disappointed; indeed, each chapter should in
turn convince you that there are no easy answers. On the other hand, if you
are looking for some practical advice on how to develop systems that are
substantially more trustworthy than what is commercially available today,
you may find many encouraging directions to pursue.
Although there are some novel concepts in this report, our main thrust
involves various approaches that can make better use of what we have learned
over the past many years in the research community and that can be used to
better advantage in production systems. Many of the lessons relating to
serious trustworthiness can be drawn from past research and prototype
development. However, those lessons have been largely ignored in commercial
development communities, and perhaps have also been insufficiently observed
by the developers of source-available software. There are many directions
herein -- both new and old -- for fruitful research and development that
can help to fill in the gaps.
We believe that observance of the approaches described here would greatly
improve the present situation. The opportunities for this within the
open-source community are considerable, although they are also applicable to
closed-source proprietary systems (despite various caveats).
The outline of this report is as follows.
In the context of this report, the term
"trustworthy" is used in a broad sense that is
meaningful with respect to any given set of requirements, policies,
properties, or other definitional entities. It represents the extent to
which those requirements are likely to be satisfied, under specified
conditions. That is, trustworthiness means worthy of being trusted to
satisfy the given expectations. For example, typical requirements might
relate to attributes of security, reliability, performance, and
survivability under a wide range of potential adversities. Each of these
attributes has expectations that are specific to each layer of abstraction
(and differing from one layer to another) -- for example, with respect to
hardware, operating systems, applications, systems, networks, and enterprise
layers.
Note that these concepts are sometimes interrelated. Achieving
survivability in turn requires security, reliability, and some measures of
guaranteed performance (among other requirements). Human safety typically
does as well. Many of these properties are meaningful in different ways at
various layers of abstraction. At the highest layers, they tend to be
emergent properties of systems in the large, or
indeed entire enterprises -- that is, they are meaningful only in terms of
the entire system complex rather than as lower-layer properties.
The concept of trustworthiness is essentially indistinguishable from
what is termed dependability [24, 25, 26, 202, 309],
particularly within the IEEE and European communities.
In its very early days, dependability was focused primarily on hardware
faults, subsequently extended to software faults, and then generalized to a
notion of faults that includes security threats. In that framework,
dependability's generalized notions of fault
prevention, fault tolerance,
fault removal, and fault
forecasting (the last of which has some of the
elements of assurance) seem to encompass everything that trustworthiness
does, albeit with occasionally different terminology. However, a recent
paper, Basic Concepts and Taxonomy of Dependable and Secure Computing, by
Avizienis, Laprie, Randell, Landwehr [26] (which is a
gold mine for serious researchers) attempts to distinguish security as a
specifically identifiable subset of dependability, rather than more
generally treating it as one of various sets of
application-relevant requirements subsumed
under trustworthiness, as we do in this report. (Their new reformulation of
security encompasses primarily confidentiality, integrity, and availability
-- which in this report are only part of the necessary trustworthiness aspects
that are required for security -- although it also alludes to other
attributes of security. However, any differences between their paper and
this report are largely academic -- we are each approaching the same
basic problems.)
We make a careful distinction throughout this report
between trust and trustworthiness. Trustworthiness
implies that something is worthy of being trusted. Trust
merely implies that you trust something
whether it is trustworthy or not, perhaps
because you have no alternative, or because you are naive, or perhaps
because you do not even realize that trustworthiness is necessary, or
because of some other reason.
We generally eschew the terms trust
and trusted unless we specifically mean trust rather than
trustworthiness. (The slogan on an old T-shirt worn around the
National Security Agency was "In trust we trust.")
A prophetic definition long ago due to Leslie Lamport
can be paraphrased in the context of this report
as follows: a distributed system is a system in which you have to
trust components whose mere existence may be unknown to you. This
is increasingly a problem on the World Wide Web, which is today's ultimate
distributed system.
There are many R&D directions that we believe are important for the short-
and long-term futures -- for the computer and network communities at large,
for DARPA developers, and for system and network developers generally. (We
outline some recommendations for future R&D in Chapter 9.) The
basis of our project is the exploration and exploitation of a few of the
potentially most timely and significant research and development directions.
Throughout the history of efforts to develop trustworthy systems and
networks, there is an unfortunate shortage of observable long-term progress
relating specifically to the multitude of requirements for security.
(See, for example, an interview with Richard Clarke [149] in
the IEEE Security and Privacy.) Blame can be widely distributed among
governments, industries, and users -- both personal and corporate.
Significant research and development results are typically soon forgotten or
else deprecated in practice. Systems have come and gone, programming
languages have come and (sometimes) gone, and certain specific systemic
vulnerabilities have come and gone. However, many generic classes of
vulnerabilities seem to persist forever -- such as buffer overflows, race
conditions, off-by-one errors, mismatched types, divide-by-zero crashes, and
unchecked procedure-call arguments, to name just a few. Overall, it is
primarily only the principles that have remained inviolable -- at least in
principle -- despite their having been widely ignored in practice. It is
time to change that unfortunate situation, and honor the principles.
There is an unfortunate shortage of fundamental books that provide useful
background for the material discussed in this report. Two recent books by
Matt Bishop,
Computer Security: Art and Science [47] and
Introduction to Computer Security [48], are worthy of
particular note -- the former for its rather comprehensive and somewhat
rigorous computer-science-based treatment of security, and the latter for
its less formal approach that should be more accessible to others who are
not computer scientists. Chuck Pfleeger's
Security in Computing [303],
Ross Anderson's Security
Engineering [14], and Morrie Gasser's
Building a Secure
Computer System [127] are also worthy sources. A recent book
by Ian Sommerville [359] provides extensive background on
software engineering.
A paper [266] summarizing our conclusions as of early 2003
is part of the DISCEX3 proceedings, from the April 2003 DARPA Information
Survivability Conference and Exposition.
Enormous benefits can result from basing requirements, architectures,
implementations, and operational practices on well-defined and
well-understood generally accepted principles.
In this chapter, we itemize, review, and interpret various design and
development principles that if properly observed can advance composability,
trustworthiness, assurance, and other attributes of systems and networks,
within the context of the CHATS effort. We consider the relative
applicability of those principles, as well as some of the problems they may
introduce.
A fundamental hypothesis motivating this report is that achieving
assurable trustworthiness requires much greater observance of certain
underlying principles. We assert that careful attention to such
principles can greatly facilitate the following efforts.
The benefits of disciplined
and principled
system development cannot be overestimated, especially in the early stages
of the development cycle. Principled design and software development can
stave off many problems later on in implementation, maintenance, and
operation. Huge potential cost savings can result from diligently observing
relevant principles throughout the development cycle and maintaining
discipline. But the primary concept involved is that of disciplined
development; there are many methodologies that provide some kind of
discipline, and all of those can be useful in some cases.
In concept, most of the principles discussed here are fairly well known and
understood by system cognoscenti. However, their relevance is often not
generally appreciated by people with little development or operational
experience. Not wishing to preach to the choir, we do not dwell on
elaborating the principles themselves, which have been extensively covered
elsewhere (see Section 2.3). Instead, we concentrate on the
importance and applicability of these principles in the development of
systems with critical requirements -- and especially secure systems and
networks. The clear implication is that disciplined understanding and
observance of the most effective of these principles can have enormous
benefits to developers and system administrators, and also can aid user
communities. However, we also explore various potential conflicts within
and among these principles, and emphasize that those conflicts must be
thoroughly understood and respected. System development is intrinsically
complicated in the face of critical requirements. For example, it is
important to find ways to manage that complexity, rather than to mistakenly
believe that intrinsic complexity is avoidable by pretending to practice
"simplicity".
As noted above, trustworthiness is a concept that encompasses
being worthy of trust with respect to whatever critical requirements
are in effect, often relating to security, reliability, guarantees
of real-time performance and resource availability, survivability
in spite of a wide range of adversities, and so on. Trustworthiness
depends on hardware, software, communications media, power supplies,
physical environments,
and ultimately people in many capacities -- requirements specifiers,
designers, implementers, users, operators, maintenance personnel,
administrators, and so on.
There are numerous examples of untrustworthy systems, networks,
computer-related applications, and people. We indicate the extensive
diversity of cases reported in the past with just a few tidbits relevant to
each of various categories. See Computer-Related
Risks [260] and the Illustrative Risks
index [267] for numerous further examples and references
involving many different types of system applications. (In the Illustrative
Risks document, descriptors indicate relevance to loss of life, system
survivability, various aspects of security, privacy, development problems,
human interface confusions, and so on.) Some of
these examples are revisited in Section 6.9, in considering how
principled architectures and assurance-based risk reduction might have
avoided the particular problems.
Many systems actually have critical requirements that span multiple areas
such as security, reliability, safety, and survivability. Although the
cases listed above generally result from a problem in primarily one of these
areas, there are many cases in which a maliciously induced security problem
could alternatively have resulted from an accidentally triggered reliability
problem, or -- similarly -- where a reliability/availability failure
could also have been triggered intentionally. (For example, see Chapter 4
of [260].)
One such application area with critical multidisciplinary requirements has
become of particular interest since the 2000 November election, resulting
from the emerging desire for completely electronic voting
systems that ideally should have stringent
requirements for system integrity, voter privacy, and accountability, and
-- perhaps most important -- the impossibility of uncontrolled human
intervention during elections. Some of today's major existing
all-electronic systems permit unmonitored human intervention (to recover
from election-day glitches and to "fix" problems -- including during the
voting and vote-counting procedures!), with no meaningful accountability.
Some systems even routinely undergo code changes after the software
has been certified! Thus, we are confronted with all-electronic paperless
voting systems that have no independent audit record of what has happened in
the system internals, with no real assurance that your vote was correctly
recorded and counted, with no alternative recount, no systemic way of
determining the presence of internal errors and fraud, and no evidence in
case of protests. The design specs and code are almost always proprietary,
and the system has typically been certified against very weak voluntary
standards that do not adequately detect fraud and internal accidents, with
evaluations that are commissioned and paid for by the vendors. In contrast,
gambling machines are regulated with extreme care (for example, by the
Nevada Gaming Commission), and held to extremely high standards.
For a partial enumeration of recorded cases of voting-system irregularities
over the past more than twenty years, see the online html version
of [267], clicking on Election Problems,
or see the corresponding section in the .pdf and .ps versions.
Section 5.2.2 reconsiders some of the above cases as well as
others in which problems arose specifically because of problems involving
the human interfaces.
Developing and operating complex systems and networks with critical
requirements demands a different kind of thinking from that used in routine
programming. We begin here by considering various sets of principles, their
applicability, and their limitations.
We first consider the historically significant Saltzer-Schroeder principles,
followed by several other approaches.
The ten basic security principles formulated by Saltzer and
Schroeder [334] in 1975 are all still relevant today, in
a wide range of circumstances. In essence, these principles are summarized
with a CHATS-relevant paraphrased explanation, as follows:
Remember that these are principles, not hard-and-fast rules. By no means
should they be interpreted as ironclad, especially in light of some of their
potential mutual contradictions that require development tradeoffs. (See
Section 2.6.)
The Saltzer-Schroeder principles grew directly out of the Multics
experience (e.g., [277]), discussed
further at the end of this section. Each of these principles has taken on
almost mythic proportions among the security elite, and to some extent
buzzword cult status among many fringe parties. Therefore, perhaps it is
not necessary to explain each principle in detail -- although there is
considerable depth of discussion underlying each principle. Careful reading
of the Saltzer-Schroeder paper [334] is recommended if
it is not already a part of your library.
Matt Bishop's
security
books [47, 48] are also useful in this regard, placing the
principles in a more general context. In addition, Chapter 6 of Matt
Curtin's book [89] on "developing trust" -- by which he might
really hope to be "developing trustworthiness" -- provides some useful
further discussion of these principles.
There are two fundamental caveats regarding these principles. First, each
principle by itself may be useful in some cases and not in others. The
second is that when taken in combinations, groups of principles are not
necessarily all reinforcing; indeed, they may seem to be mutually in
conflict. Consequently, any sensible development must consider appropriate
use of each principle in the context of the overall effort. Examples of a
principle being both good and bad -- as well as examples of interprinciple
interference -- are scattered through the following discussion. Various
caveats are considered in the penultimate section.
Table 1 examines the applicability of each of the
Saltzer-Schroeder principles to the CHATS goals of composability,
trustworthiness, and assurance (particularly with respect to security,
reliability, and other survivability-relevant requirements).
In particular, complete mediation, separation of privileges, and allocation
of least privilege are enormously helpful to composability and
trustworthiness. Open design can contribute significantly to composability,
when subjected to internal review and external criticism. However, there is
considerable debate about the importance of open design with respect to
trustworthiness, with some people still clinging tenaciously to the notion
that security by obscurity is sensible -- despite risks of many flaws being
so obvious as to be easily detected externally, even without reverse
engineering. Indeed, the recent emergence of very good
decompilers for C and Java, along with the likelihood of similar
reverse engineering tools for other languages, both suggest that such
attacks are becoming steadily more practical.
Overall, the assumption of design secrecy and the supposed
unavailability of source code is often not a deterrent, especially with
ever-increasing skills among black-box system analysts. However, there are
of course cases in which security by obscurity is unavoidable -- as in the
hiding of private and secret cryptographic keys, even where the
cryptographic algorithms and implementations are public.
Fundamental to trustworthiness is the extent to which systems and networks
can avoid being compromised
by malicious or accidental human behavior and by
events such as hardware malfunctions and so-called acts of God.
In [264], we consider compromise from outside, compromise
from within, and compromise from below,
with fairly intuitive meanings.
These notions appear throughout this report.
There are other cases in theory where weak links
can be avoided (e.g., zero-knowledge
protocols that can establish a shared key without any part of the protocol
requiring secrecy), although in practice they may be undermined by
compromises from below
(e.g., involving trusted and supposedly trustworthy
insiders subverting the underlying operating systems) or from outside
(e.g.,
involving penetrations of the operating systems and masquerading as
legitimate users). For a fascinating collection of papers on
vulnerabilities and ways to exploit
weak links, see Ross Anderson's website:
From its beginning, the Multics
development was strongly motivated by a set
of principles -- some of which were originally stated by Ted Glaser
and Peter Neumann in the first section of the very first edition of the Multics
Programmers' Manual in 1965.
(See http://multicians.org.)
It was also driven by extremely disciplined
development.
For example, with almost no
exceptions, no coding effort was begun until a written specification
had been approved by the Multics advisory board;
also with almost no exceptions, all of the code was written in a
subset of PL/I just sufficient for the initial needs of Multics,
for which the first compiler (early PL, or EPL) had been developed
by Doug McIlroy and Bob Morris.
In addition to the Saltzer-Schroeder
principles, further insights on principles and discipline relating to
Multics can be found in a paper by Fernando
Corbató, Saltzer, and Charlie Clingen [85] and in
Corbató's Turing lecture [84].
Another view of principled system development was given by Neumann in
1969 [255], relating to what is often dismissed as merely
"motherhood" -- but which in reality is both very profound and difficult
to observe in practice. The motherhood principles under consideration in
that paper (alternatively, you might consider them just as desirable system
attributes) included automatedness, availability, convenience,
debuggability, documentedness, efficiency,
evolvability, flexibility, forgivingness, generality, maintainability,
modularity, monitorability, portability, reliability,
simplicity, and uniformity. Some of those attributes indirectly affect
security and trustworthiness, whereas others affect the acceptability,
utility, and future life of the systems in question. Considerable
discussion in [255] was also devoted to (1) the risks of local
optimization and the need
for a more global awareness of less obvious downstream costs of development
(e.g., writing code for bad -- or nonexistent -- specifications, and
having to debug really bad code), operation, and maintenance (see
Section 7.1 of this report); and (2) the benefits of higher-level
implementation languages (which prior to Multics were rarely used for the
development of operating systems [84, 85]).
In later work and more recently in [264], Neumann considered
some extensions of the Saltzer-Schroeder principles. Although most of
those principles might seem more or less obvious, they are of course full of
interpretations and hidden issues. We summarize an extended set of
principles here, particularly as they might be interpreted in the CHATS
context.
Table 2 summarizes the utility of the extended-set
principles with respect to the three goals of the CHATS program acronym, as
in Table 1.
For example, authorization is of limited use without
authentication, whenever
identity is important. Similarly, authentication may be of questionable
use without authorization. In
some cases, authorization requires fine-grained access controls. Least
privilege requires some sort of separation of roles, duties, and domains.
Separation of duties is difficult to achieve if there is no separation of
roles. Separation of roles, duties, and domains each must rely on a
supporting architecture.
The comprehensive accountability principle is particularly
intricate, as it depends critically on many other principles being invoked.
For example, accountability is inherently incomplete without authentication
and authorization. In many cases,
monitoring may be in conflict with privacy
requirements and other social considerations [101],
unless extremely stringent controls are enforceable.
Separation of duties and least privilege are particularly important here.
All accountability procedures are subject to security attacks, and
are typically prone to covert channels as well. Furthermore, the procedures
themselves must be carefully monitored. Who monitors the monitors?
(Quis auditiet ipsos audites?)
Also of interest here is the 1993 set of principles (or perhaps
metaprinciples?) of secure design [56], which emerged from an NSA
ISSO INFOSEC Systems Engineering study on rules of system composition.
The study
was presented not as a finished effort, but rather as something that needed
to stand the test of practice. Although there is some overlap with the
previously noted principles, the NSA principles are enumerated here as they
were originally documented. Some of these principles are equivalent to
"the system should satisfy certain security requirements" -- but they are
nevertheless relevant. Others might sound like motherhood. Overall, they
represent some collective wisdom -- even if they are fairly abstract
and incompletely defined.
Considerable discussion of these metaprinciples is warranted. For example,
"Every component in a system must operate in a security environment that is
a subset of its specified environment" implies iteratively that maximum
trust is required throughout design and implementation of the other
components, which is a gross violation of our notion of minimization of what
must be trustworthy. It would be preferable to require that each component
check that the environment in which it executes is a subset of its specified
environment -- which is closely related to Schroeder's
notion of mutual suspicion [343],
noted further down the list.
"A system is only as strong as its weakest link" is generally a meaningful
statement. However, some weak links may be more devastating than others, so
this statement is overly simplistic. In combination with least privilege,
separation of domains, and some of the other principles noted previously,
the effects of a particular weak link might be contained or controlled. But
then, you might say, the weak link was not really a weak link. However, to
a first approximation, as we noted above, weak links should be avoided where
possible, and restricted in their effects otherwise, through sound
architecture and sound implementation practice.
The 1990 report of the National Research Council study group that produced
Computers at Risk [83] included a recommendation that a
serious effort be made to develop and promulgate a set of Generally Accepted
Systems Security Principles (GASSP). That led to the creation of the International
Information Security Foundation (I2SF). A draft of its GASSP
document [279] is available online. A successor effort is
under way, after a long pause.
The proposed GASSP consists of three layers of abstraction, nine Pervasive
Principles (relating to confidentiality, integrity, and availability), a set
of 14 Broad Functional Principles, and a set of Detailed Principles (yet to
be developed, because the largely volunteer project ran out of steam, in
what Jim Horning refers to as a last gassp!).
The GASSP effort thus far actually represents a very worthy beginning, and
one more approach for those interested in future efforts. The top two
layers of the GASSP principle hierarchy are summarized here as follows.
The GASSP document gives a table showing the relationships between the 14
Broad Functional Principles and the 9 Pervasive Principles. That table
is reproduced here as Table 3.
Any enumeration of relevant principles must note the historical evolution of
evaluation criteria over the past decades -- from the 1985 DoD Trusted
Computer System Evaluation Criteria
(TCSEC, a.k.a. The Orange
Book [249]) and the ensuing Rainbow Books, to the 1990 Canadian
Trusted Computer Product Evaluation Criteria (CTCPEC, [64]),
and
the 1991 Information Technology Security Evaluation Criteria
(ITSEC, [116]).
These efforts have resulted in an international
effort to produce the Common Criteria
framework (ISO 15408 [172]),
which represents the current state of the art in that particular
evolutionary process. (Applicability to multilevel security is also
addressed within the Common Criteria framework, although it is much more
deeply embedded in the higher-assurance levels of the TCSEC.)
A seemingly radical approach to software development is found in the Extreme
Programming (XP) movement [33].
(Its use of "XP" considerably predates Microsoft's.) Although XP appears to
run counter to most conventional programming practices, it is indeed highly
disciplined.
XP might be thought of as very small chief programmer teams
somewhat in the spirit of a Harlan Mills'
Clean-Room
approach, although it has no traces of formalism and is termed a
lightweight methodology. It involves considerable emphasis on
disciplined planning throughout (documented user stories, scheduling of
relatively frequent small releases, extensive iteration planning, and
quickly fixing XP whenever necessary), designing and redesigning throughout
(with simplicity as a driving force, the selection of a system metaphor, and
continual iteration), coding and recoding as needed (paired programmers
working closely together, continual close coordination with the customer,
adherence to agreed-upon standards, only one programmer pair may integrate
at one time, frequent integration, deferred optimization,
and no overtime pay),
and testing repeatedly throughout (code must pass unit tests before release,
tests must be created for each bug found, acceptance tests are run often,
and the results are published).
In essence, Extreme Programming seeks to have something running at the end
of each period (e.g., each week) by deferring less important concepts until
later. There is a stated desire to let business folks decide which features
to implement, based on the experience with the ongoing development.
Questions of how to address architecture in the large seem not to be
adequately addressed within Extreme Programming (although these questions
are absolutely fundamental to the approach that we are taking in this
report, but perhaps are considered extraneous to XP). The concept of
deferring architectural design until later in the process may work well in
small systems (where dynamic changes tend to be relatively local), but can
seriously complicate development of highly complex systems. Perhaps if
coupled with principled architectures recommended here, Extreme Programming
could be effective for larger development efforts. See the Web site noted
in [33] for considerable background on the XP movement, including a
remarkably lucid Frequently Asked Questions document contrasting XP with
several other approaches (UML, RUP,
CMM, Scrum, and FDD -- although this is a little like comparing apples and
oranges). Wikipedia also has a useful analysis of socalled agile or
lightweight methodologies, with relevant references
(http://en.wikipedia.org/wiki/Agile_software_development
).
There are too many other design and development methodologies to enumerate
here, ranging from very simple to quite elaborate. In some sense, it does
not matter which methodology is adopted, as long as it provides some
structure and discipline, and is relatively
compatible with the abilities of the particular design and development team.
For example, Dick Karpinski hands out a business
card containing his favorite, Tom Gilb's Project Management Rules: (1) Manage critical goals by defining
direct measures and specific targets; (2) Assure accuracy and quality with
systematic project document inspections; (3) Control major risks by limiting
the size of each testable delivery. These are nice goals, but depend on the
skills and experience of the developers -- with only subjective evaluation
criteria. Harlan Mills' "Clean-Room"
technology has some elements of formalism that are of interest with respect
to increasing assurance, although not specifically oriented toward security.
In general, good development practice is a necessary prerequisite for
trustworthy systems, as are means for evaluating that practice.
Some characteristic sources of security flaws in system design and
implementation are noted in [260], elaborating on earlier
formulations and refinements (e.g., [5, 271]). There
are various techniques for avoiding those flaws, including sound
architectures, defensively oriented programming languages, defensively
oriented compilers, better runtime environments, and generally better
software engineering practice.
Useful techniques for detecting some of these vulnerabilities include
defensive programming language design, compiler checks, and formal methods
analyzing consistency of programs with specifications. Of particular
interest is the use of static checking. Such an approach may be formally
based, as in the use of model checking by Hao Chen,
Dave Wagner, and Drew Dean
(in the MOPS system, developed in part under our CHATS project). (See
Appendix A.) Alternatively, there are numerous approaches that do
not use formal methods, ranging in sophistication from lint to LCLint (Evans) to Extended Static Checking (Nelson, Reino, et al.,
DEC/Compaq SRC). Note that ESC is completely formally based, including
use of a theorem prover; indeed, it is a formal method that has some utility
even in the absence of formal software specifications.
Jim Horning notes that even
partial specifications increase the power of the latter two, and provide a
relatively gentle way to incorporate additional formalism into development.
Strong type checking and model checking tend to expose various flaws, some
of which are likely to be consequential to security and reliability. For
example, purify and similar tools are useful in catching
memory leaks, array-bound violations, and related memory problems. These
and other analytic techniques can be very helpful in improving design
soundness and code quality -- as long as they are not relied on by
themselves as silver bullets.
All of the principles have some bearing on avoiding these classes
of vulnerabilities.
Several of these concepts in combination -- notably
modularity, abstraction,
encapsulation,
device independence where advantageous,
information hiding, complete mediation, separation of policy and mechanism,
separation of privilege, least privilege, and least common mechanism -- are
relevant to the notion of virtual interfaces and virtual machines. The
basic notion of virtualization is that it can mask many of the underlying
details, and makes it possible to change the implementation without changing
the interface. In this respect, several of these attributes are found in
the object-oriented paradigm.
Several examples of virtual mechanisms and virtualized interfaces are worth
noting. Virtual memory masks physical memory
locations and paging. A virtual machine masks the
representation of process state information and processor multiplexing.
Virtualized input-output masks device
multiplexing, device dependence, formatting, and timing. Virtual
multiprocessing masks the scheduling of tasks
within a collection of seemingly simultaneous processes. The Multics
operating system [277] provides early illustrations of virtual memory and virtual
secondary storage management (with demand paging hidden from the programs),
virtualized input-output (with symbolic stream names and device independence
where commonalities exist), and virtual multiprogramming (with scheduling
typically hidden from the programming interfaces). The GLU
environment [177] is an elegant illustration of virtual multiprocessing. GLU allows
programs to be distributed dynamically among different processing resources
without explicitly programmed processor allocation, based on precompiling of
embedded guidance in the programs.
In general, the task of providing some meaningful assurances that a system is
likely to do what is expected of it can be enhanced by any techniques that
simplify or narrow the analysis -- for example, by increasing the
discipline applied to system architecture,
software design, specifications, code style, and configuration
management. Most of the cited
principles tend to do exactly that -- if they are applied wisely.
Techniques for increasing assurance are considered in greater detail in
Chapter 6, including the potential roles of formal methods.
As we noted above, the principles referred to here may be in conflict with
one another if each is applied independently; in certain cases, the
principles are not composable. In general, each principle must be applied
in the context of the overall development. Ideally, greater effort might be
useful to reformulate the principles to make them more readily composable,
or at least to make their potential tradeoffs or incompatibilities more
explicit.
There are also various potentially harmful considerations that must be
considered -- for example, overuse, underuse, or misapplication of these
principles, and certain limitations inherent in the principles themselves.
Merely paying lipservice to a principle is clearly a bad idea; principles
must be sensibly applied to the extent that they are appropriate to the
given purpose. Similarly, all of the criteria-based methodologies have many
systemic limitations (e.g., [257, 372]); for example,
formulaic application of evaluation criteria is always subject to
incompleteness and misinterpretation of requirements, oversimplification in
analysis, and sloppy evaluations. However, when carefully applied, such
methodologies can be useful and add discipline to the development process.
Thus, we stress here the importance of fully understanding the given
requirements and of creating an overall architecture that is appropriate for
realizing those requirements, before trying to conduct any assessments of
compliance with principles or criteria. And then, the assessments must be
taken for what they are worth -- just one piece of the puzzle -- rather
than overendowed as definitive results out of context. Overall, there is
absolutely no substitute for human intelligence, experience, and foresight.
The Saltzer-Schroeder principle of keeping things simple
is one of the most
popular and commonly cited. However, it can be extremely misleading when
espoused (as it commonly is) in reference to systems with critical
requirements for security, reliability,
survivability, real-time performance, and high assurance -- especially when
all of these requirements are necessary within the same system environment.
Simplicity is a very important concept in principle (in the small), but
complexity is often unavoidable in practice (in the large). For example,
serious attempts to achieve fault-tolerant behavior often result in roughly
doubling the size of the overall subsystem or even the entire system. As a
result, the principle of simplicity should really be one of managing
complexity rather than trying to eliminate
it, particularly where complexity is in fact inherent in the combination of
requirements. Keeping things simple is indeed a conceptually wonderful
principle, but often not achievable in reality. Nevertheless, unnecessary complexity should of course be avoided. The back-side of the
Einstein quote at the beginning of Section 2.1 is indeed both
profound and relevant, yet often
overlooked in the overzealous quest for perceived
simplicity.
An extremely effective approach to dealing with intrinsic complexity is
through a combination of the principles discussed here, particularly
abstraction, modularity, encapsulation, and careful hierarchical separation that
architecturally does not result in serious performance penalties, well
conceived virtualized interfaces that greatly facilitate implementation
evolution without requiring changes to the interfaces or that enable design
evolution with minimal disruption, and far-sighted
optimization. In particular, hierarchical
abstraction can result in relative
simplicity at the interfaces of each abstraction and each layer, in relative
simplicity of the interconnections, and perhaps even relative simplicity in
the implementation of each module. By keeping the components and their
interconnections conceptually simple, it is possible to achieve conceptual
simplicity of the overall system or networks of systems despite inherent
complexity.
Furthermore, simplicity can sometimes be achieved through
design generality, recognizing that several seemingly different problems can
be solved symmetrically at the same time, rather than creating different
(and perhaps incompatible) solutions. Such approaches are considered further
in Chapter 4.
Note that such solutions might appear
to be a violation of the principle of least common mechanism, but not when
the common mechanism is fundamental -- as in the use of a single uniform
naming convention or the use of a uniform addressing mode that transcends
different subtypes of typed objects. In general, it is riskful to have
multiple procedures managing the same data structure for the same purposes.
However, it can be very beneficial to separate reading from writing -- as
in the case of one process that updates and another process that uses the
data. It can also be beneficial to reuse the same code on different data
structures, although strong typing is then important.
Of considerable interest here is David Musser's notion of Generic
Programming, or programming with concepts. His Web site defines a concept as "a family of abstractions that are all related by a common set
of requirements. A large part of the activity of generic programming,
particularly in the design of generic software components, consists of
concept development -- identifying sets of requirements that are general
enough to be met by a large family of abstractions but still restrictive
enough that programs can be written that work efficiently with all members
of the family. The importance of the C++ Standard Template Library, STL,
lies more in its concepts than in the actual code or the details of its
interfaces."
(http://www.cs.rpi.edu/ musser/gp/)
One of our primary goals in this project is to make system interfaces
conceptually simple while masking complexity so that the complexities of the design process and the
implementation itself can be hidden by the interfaces. This may in fact
increase the complexity of the design process, the architecture, and the
implementation. However, the resulting system complexity need be no greater
than that required to satisfy the critical requirements such as those for
security, reliability, and survivability. It is essential that tendencies
toward bloatware be strongly resisted. (They seem to arise largely from the
desire for bells and whistles -- extra features -- and fancy graphics,
but also from a lack of enlightened management of program development.)
A networking example of the constructive use of highly principled
hierarchical abstraction is given by the protocol layers of
TCP/IP (e.g., [169]). An
operating system example is given by the capability-based Provably Secure
Operating System
(PSOS) [120, 268, 269]) in which
the functionality at each of more than a dozen layers was specified formally
in only a few pages each, with at least the bottom seven layers intended to be
implemented in hardware. The underlying addressing is based on a capability
mechanism (layer 0) that uniformly encompasses and protects objects of
arbitrary types -- including files, directories, processes, and other
system- and user-defined types. The PSOS design is particularly noteworthy
because a single capability-based operation at layer 12 (user processes)
could be executed as a single machine instruction at layer 6 (system
processes), with no iterative interpretation required unless there were
missing pages or unlinked files that require operating system intervention
(e.g., for dynamic linking of symbolic names, à la Multics). To many
people, hierarchical layering instantly brings to mind inefficiency.
However, the PSOS architecture is an example in which the hierarchical
design could be implemented extremely efficiently -- because of the power
of the capability mechanism, strong typing, and abstraction, and its
intended hardware implementation.
We note that formalism for its own sake is generally counterproductive.
Formal methods are not likely to reduce the overall cost of software
development, but can be helpful in decreasing the cost of software quality
and assurance. They can be very effective in carefully chosen applications,
such as evaluation of requirements, specifications, critical algorithms, and
particularly critical code. Once again, we should be optimizing not just
the cost of writing and debugging code, but rather optimizing more broadly
over the life cycle.
There are many other common pitfalls that can result from the unprincipled
use of principles. Blind acceptance of a set of principles without
understanding their implications is clearly inappropriate. (Blind rejection
of principles is also observed occasionally, particularly among people who
establish firm requirements with no understanding of whether those
requirements are realistically implementable -- and among strong-willed
developers with a serious lack of foresight.)
Lack of discipline
is clearly inappropriate in design and development. For
example, we have noted elsewhere [264, 265] that the
open-source paradigm by itself is not likely to produce secure, reliable,
survivable systems in the absence of considerable discipline throughout
development, operation, and maintenance. However, with such discipline,
there can be many benefits. (See also [126] on the many meanings
of open source, as well as a Newcastle Dependable Interdisciplinary
Research Collaboration (DIRC) final report [125] on
dependability issues in open source, part of ongoing work.)
Any principle can typically be carried too far. For example, excessive
abstraction can result in
overmodularization, with enormous overhead
resulting from intermodule communication and nonlocal control flow.
On the other hand, conceptual abstraction through modularization that
provides appropriate isolation and separation can sometimes be collapsed
(e.g., for efficiency reasons) in the implementation -- as long as the
essential isolation and protection boundaries are not undermined. Thus,
modularity should be considered where it is advantageous,
but not merely for its own sake.
Application of each principle is typically somewhat context dependent, and
in particular dependent on specific architectures. In general,
principles should always be applied relative to the integrity of the
architecture.
One of the severest risks in system development involves local optimization
with respect to components or individual functions, rather than global
optimization over the entire architecture, its implementation, and its
operational characteristics. Radically different conclusions can be reached
depending on whether or not you consider the long-term complexities and
costs introduced by bad design, sloppy implementation, increased maintenance
necessitated by hundreds of patches, incompatibilities between upgrades,
noninteroperability among different components with or without upgrades, and
general lack of foresight. Furthermore, unwise optimization (whether local or
global) must not collapse abstraction boundaries that are essential for
security or reliability -- perhaps in the name of improved performance. As
one example, real-time checks (such as bounds checks, type checking,
and argument validation generally)
should be kept close to the operations involved, for obvious reasons.
This topic is pursued further in Sections 7.1, 7.2,
and 7.3. As another example, the Risks Forum archives include
several cases in which multiple alternative communication paths
were specified, but were implemented in the same or parallel conduits --
which were then all wiped out by a single backhoe!
Perhaps most insidious is the a priori lack of attention to critical
requirements,
such as any that might involve the motherhood attributes noted
in [255] and listed above. Particularly in dealing with
security, reliability, and survivability in the face of arbitrary
adversities, there are few if any easy answers. But if those requirements
are not dealt with from the beginning of a development, they can be
extremely difficult to retrofit later. One particularly appealing
survivability requirement would be that systems
and networks should be able to reboot, reconfigure, and revalidate their
soundness following arbitrary outages, without human intervention. That
requirement has numerous architectural implications that are considered in
Chapter 4.
Once again, everything should be made as simple as possible, but no
simpler.
Careful adherence to principles that are deemed effective is likely to help
achieve that goal.
What would be extremely desirable in our quest for trustworthy systems and
networks is theory that is practical and practice that is sufficiently
theoretical. Thoughtful and judiciously applied
adherence to sensible principles appropriate for a particular
development can greatly enhance the security, reliability, and overall
survivability of the resulting systems and networks. These principles can
also contribute greatly to operational interoperability, maintainability,
operational flexibility, long-term evolvability, higher assurance, and many
other desirable characteristics.
To illustrate some of these concepts, we have given a few examples of
systems and system components whose design and implementation are strongly
principled. The omission of other examples does not in any way imply that
they are less relevant. We have also given some examples of just a few of
the potential difficulties in trying to apply these principles.
What are generally called "best practices" are often rather
lowest-common-denominator techniques that have found their way into
practice, rather than what might otherwise be the best practices that
would be useful. Furthermore, the supposedly best practices can be
manhandled or womanhandled by very good programmers, and bad programming
languages can still be used wisely. Unfortunately, spaghetti code is
seemingly always on the menu, and bloatware tends to win out over elegance.
Overall, there are no easy answers. However, having sensible system and
network architectures is generally a good starting point, as discussed in
Chapter 4, where we specifically consider classes of system and
network architectures that are consistent with the principles noted here,
and that are highly likely to be effective in fulfilling the CHATS goals.
In particular, we seek to approach inherently complex problems
architecturally, structuring the solutions to those problems as conceptually
simple compositions of relatively simple components, with emphasis on the
predictable behavior of the resulting systems and
networks -- which is the essence of
Chapter 3.
One of the biggest obstacles to software development -- and particularly
system integration -- is the difficulty of predictably composing
subsystems out of modules, systems out of subsystems, and networks
of systems out of systems and networking technology.
In this chapter, we outline some of the obstacles to achieving facile
composability as well as some of the approaches that can contribute to the
development of significantly greater composability in systems with critical
requirements.
The basic challenge confronting us is to be able to develop, configure, and
operate systems and networks of systems with high levels of trustworthiness
with respect to critical requirements for security, reliability, fault
tolerance, survivability, performance, and other behavioral criteria,
without too seriously sacrificing the desired functionality. As noted in
Chapter 1, both compatibility and interoperability are important.
Inherently high assurance that those systems will perform dependably as
expected is also extremely desirable. These attributes can be greatly aided
by taking pains to constrain architectures and the software development
process.
To these ends, one of the most fundamental problems involves assuring the
ability to compose subsystems to form dependable systems and to compose
component systems to form dependable networks
-- without violating the desired requirements, and without diminishing
the resulting trustworthiness.
Composability problems are very old, relative to the
youth of the computer field. They exist throughout the life cycle, involving
composability (and noncomposability) of requirements, policies,
specifications, protocols, hardware subsystems, and software components
(with respect to their source code, compilers, object code, and runtime
libraries), as well as arising in system and network reconfiguration,
upgrades, and maintenance (for example). Analogous problems also arise with
respect to the compositionality of assurance measures
(including formal methods and component testing) and their evaluations,
and even more so to the evolution of evaluations over time as systems change.
Ultimately, the degree to which composability is attainable depends strongly
on the system and network architectures, but is also influenced by many
other factors. Unfortunately,
many seemingly sound compositions can actually compromise
the desired overall requirements, as noted in Section 3.2.
Various approaches to decomposing systems into components are examined in
Section 3.3, whereas how to enhance composability is considered
in Section 3.4. Of additional interest is the concept of combining
subsystems in ways that can actually increase the resulting
trustworthiness. This is explored in Sections 3.5 and
3.6, along with the relevance of concepts of software
engineering discipline, programming-language constructs, structural
compatibility,
execution interoperability,
and development tools -- all of
which can considerably improve the likelihood of achieving seamless
composability.
We include many references here and intentionally try to balance important
early efforts that deserve not to be forgotten with more recent efforts that
continue toward the ultimately desired research and development results.
Seamless composability implies that a
composition will have the desired beneficial properties, with no
uncontrollable or unpredictable side effects. That is, the composed system
will do exactly what it is expected to do -- no more and no less.
(More and less can both create potentially serious problems.)
In practice, many pitfalls are relevant to the composition of subsystems
into systems -- often involving unanticipated effects (colloquially, "side
effects") that impede the ideal goal of unencumbered composition and
interoperability among the subsystems:
In common usage, there is considerable confusion surrounding the relative
roles of composability, intercompatibility, and interoperability (see
Chapter 1). In that
it is easy to conceive of examples in which composability implies neither
intercompatibility nor interoperability, or in which neither
intercompatibility nor interoperability implies composability, we avoid any
attempts to taxonomize these three concepts. By avoiding the semantic
distinctions, we focus primarily on seeking a strong sense of composability,
recognizing that interoperability and intercompatibility may impose further
constraints. From a practical point of view, what matters most is that the
resulting composed systems and networks must satisfy their desired
requirements. If that is the case, then we can simply say that the
compositions satisfy whatever requirements exist for composability,
interoperability, and intercompatibility.
Given a conceptual understanding of a set of system requirements, or even a
detailed set of requirements, one of the most important architectural
problems is to establish a workable structure of the system that can evolve
into a successful implementation. The
architectural decomposition of a network into subnetworks, a system into
subsystems, or a subsystem into components, can benefit greatly from the
principles enumerated in Chapter 2. In particular, modularity
together with encapsulation, hierarchical layering, constructive uses of
redundancy, and separation of concerns are examples of design principles
that can pervasively affect the decomposability of a system design -- and
thereby the modular composability.
The work of Edsger Dijkstra (for
example, [105, 107]) and David Parnas (for
example, [281, 283, 284, 290, 295]
has contributed significantly to the
constructive structural decomposition of system architectures and system
designs. In
addition,
Parnas [86, 282, 285, 287, 291, 292, 293, 294, 296, 297]
provided definitive advances toward the formal specifications
and analysis of real and complex systems, beginning in the early 1970s.

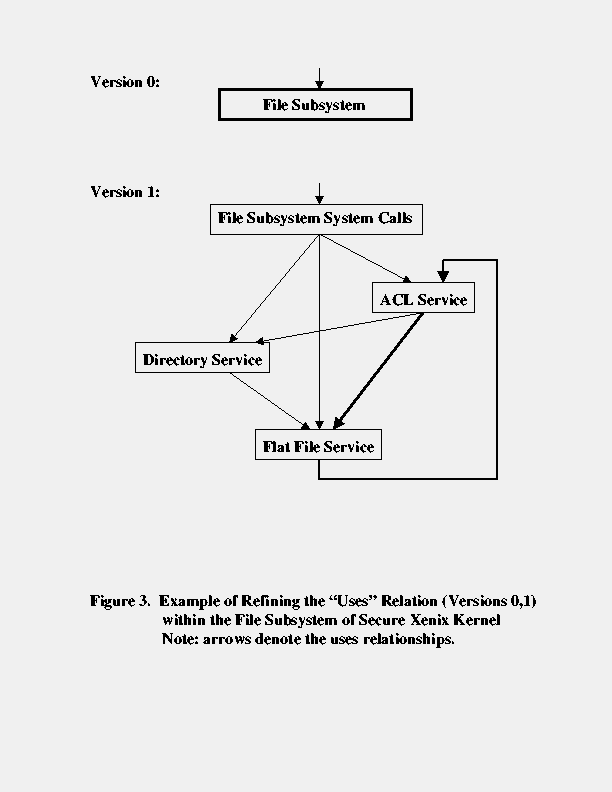

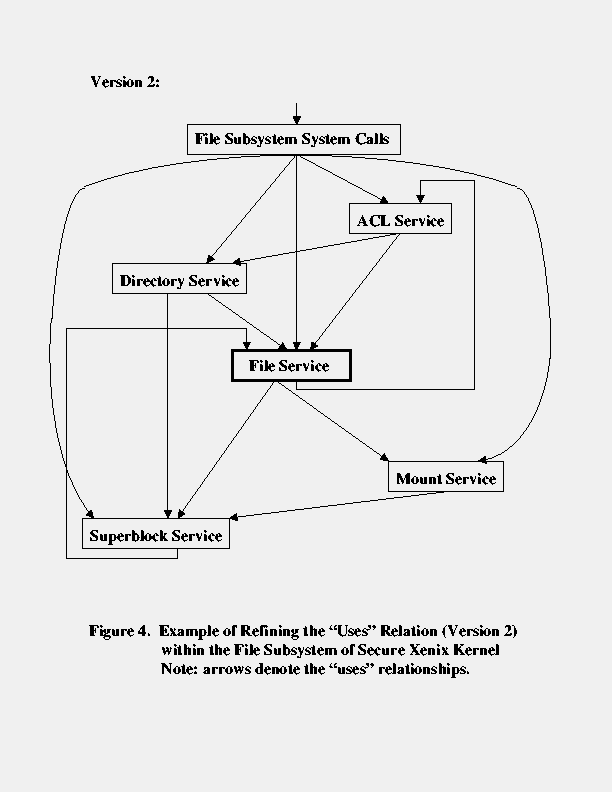

Of particular importance is Parnas's enumeration of various notions
of a uses b,
and especially the concept of
dependence [283]
embodied in the relation a depends on b for its correctness.
Appendix B elaborates on the uses relations.

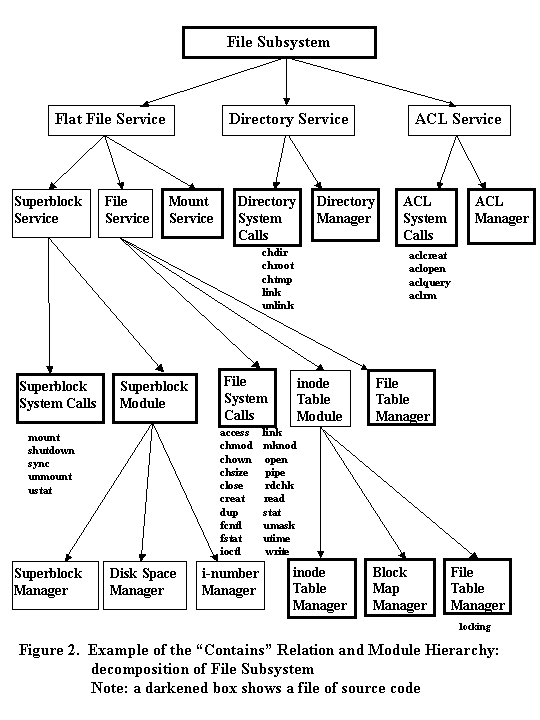

Decomposition can take on several forms.
Horizontal decomposition
(modularization) is often useful
at each design layer, identifying functionally distinct components at that
layer.
Horizontal decomposition can be achieved in various ways -- for example,
through coordination from higher layers, local message passing, or networked
interconnections. In addition, the development process entails various
temporal decompositions,
such as abstraction refinement,
in which the
representation of a particular function, module, layer, or system interface
undergoes successively increased specificity -- for example, evolving from
a requirements specification to a functional specification to an
implementation. If any, additional functionality is added along
the way, vulnerabilities may arise whenever development discipline is
not maintained.
Vertical decomposition recognizes
different layers of hierarchical abstraction and distinguishes them from one
another. A very simple layering of abstractions (from the bottom up) might
be hardware, operating system, middleware, application software, and users.
Each of these conceptual layers can in turn be split into multiple layers,
according to the needs of an architectural design, its implementation,
and its assurance considerations.
Several important examples of vertical and horizontal system decomposition
are found in Multics, the THE system, the Software Implemented
Fault-Tolerant (SIFT) system, the Provably Secure Operating System (PSOS),
the type-oriented protection of the Honeywell and Secure Computing
Corporation lineage, multilevel secure (MLS) kernel-based architectures
with trusted computing bases (TCBs), and the MLS database management
system SeaView.
These systems and others are considered in Chapter 4.
Ideally, it
should be relatively easy to remove all unneeded software from a broadly
supported general-purpose system, to achieve a minimal system configuration
that is free of bloatware and its accompanying risks. (In some of the
server-oriented architectures considered in Chapter 4, there is a
fundamental need for highly trustworthy servers that are permitted to
perform only a stark subset of the functionality of a general-purpose
system, with everything else stripped out.) In practice, monolithic
mass-market workstation software and conventional mainframe operating
systems tend to defy, or at least greatly hinder, the subsetting of
functionality. There are typically many unrecognized interdependencies --
especially in the areas of device drivers and GUIs. (Somewhat intriguingly,
real-time operating system developers seem to have done a much better job in
realizing the benefits that can be obtained from stark
subsetting,
partly for reasons of optimizing performance, partly because of
historical memory limitations, but perhaps mostly because of the
importance of reducing per-unit hardware costs. However, their systems
do not yet have adequate security for many critical applications.)
If a system has been designed to be readily composable
out of its components, then it is also likely to be readily decomposable -- either by removal of the unnecessary subsystems, or by
the generation of the minimal system directly from its constituent parts.
Thus, if composability is dealt with appropriately (e.g., in system
design, programming language
design,
and compiler design), the
decomposition problem can be solved as a by-product of composition. On
the other hand, the decomposition problem is potentially very difficult
for complex conceptual systems that are just being designed and for
legacy software that was not
designed to be either composable or decomposable.
And then we have a wonderful quote from Microsoft's Steve
Ballmer, who
said -- in his 8 February 2002 deposition relating to the nine
recalcitrant U.S. states -- that it would be impossible to get the
operating system to run properly and still meet the states' demands.
This is in contrast to a poignant e-mail quote from Cem Kaner,
April 4, 2002: "The problem with installing these [...] patches is
that, as lightly tested patches will, they can break one thing while fixing
another. Last week I installed yet another Microsoft security patch for Win
2000, along with driver patches they recommended. As a result, my modem no
longer works, my screen was screwed up until I reloaded the Dell driver, and
my sound now works differently (and less well). I accepted patches for MS
Office and Acrobat and now I get messages asking me to enable Word macros
when I exit Word, not just when I open a document. (Given the widespread
nature of Word macro viruses, I disable the feature.) It wasn't so long ago
that it was common knowledge that patching systems reflects poor engineering
and is risk prone. We should not be advocating a structure like this or
making a standard of it."
Ideally, it should be possible to constrain hardware and software subsystems
-- and their compositions -- so that the subsystems can be readily
integrated together with predictable consequences. This goal is
surprisingly difficult. However, several approaches can help improve the
likelihood that composition will not create negative effects.
(Note that Brad Cox achieved something like this in the mid-1980s
with what he called software integrated circuits; see In hardware, address relocation, segmentation, paging, multiprocessing, and
coprocessors have helped. In software, virtual memory, virtual machines,
distributed operating systems, modern software engineering and programming
languages better enforcing the principles of good software-engineering
practice, sound distributed programming, network-centered virtualized
multiprocessing,
and advancing compiler technology can contribute to
increased composability -- if they are properly used. In particular,
virtual memory techniques have considerably increased the composability of
both hardware and software. (It is lamentable that software
engineering practice is so seldom good!)
The object-oriented paradigm
(especially with meticulously
strong typing) can also contribute significantly to composability,
based on abstraction, encapsulation, subtype inheritance with respect to
specifications, and polymorphism. Note that the seeming inheritance of
implementations without strict inheritance of specification subclasses
runs counter to composability. Every subclass instance must meet the
specifications of all its superclasses, or else all verifications of uses
of the superclasses are unsupported. In any case, any internal state
(residual or otherwise) of a subsystem should be demonstrably independent
of the internal states of other subsystems with which it is to be
composed. In essence, the required analysis is somewhat similar to that
used in multilevel-security flow analysis and noninterference, as in the
work of Owicki-Gries
and Goguen-Meseguer [139, 140]. A
variant of ML,
Objective Caml is
an outstanding example of a programming language that contributes very
substantially to increasing composability; this results from
Objective Caml's module system and approach to object orientation,
in addition to the type
system, exception handling, and automatic memory management provided by ML.
(See http://caml.inria.fr and
its associated FAQ
pages http://caml.inria.fr/FAQ/general-eng.html.)
See also Bertrand Meyer's Eiffel programming by contract
(http://www.inf.ethz.ch/ meyer/). There are also some
similarities with programming-language analyses done by compilers and
debugging tools. However, although such an independence condition would
be theoretically desirable, it is also not sufficient in practice --
because of the inherent incompleteness of the specifications and the
presence of emergent
properties. Modula 3 also has a modular
system conducive to composability.
Jim Horning notes that policy
composition is an instance of the general problem of building axiomatic
systems. Consistency is difficult to demonstrate in practice (and
impossible to demonstrate in general), and surprises emerge even from the
composition of a few simple axioms. For example, the axiomatization of
rational numbers in terms of 0, 1, +, -, *, and / was incorrect in the
published versions of the Larch Shared Language Handbook, despite its
scrutiny by numerous colleagues, and despite the fact that this is an
extensively studied and axiomatized domain. Every axiom seems to make
sense in isolation, but their combination leads to a contradiction or
otherwise unacceptable conclusion.
The above approaches are in a sense all part of what should be commonly
known as good software-engineering practice. Unfortunately, system
architecture and programming development seldom observe good
software-engineering practice. However, the constructive aspects of
software engineering -- including establishment of requirements, careful
specifications, modularity and encapsulation, clean hierarchical and
vertical abstraction, separation of policy and mechanism, object
orientation, strong typing, adherence to the basic security principles
(e.g.,separation of privileges, allocation of least privilege, least common
mechanism, assumptions of open source rather than reliance on security by
obscurity), suitable choice of programming language and development
tools, and (above all) sensible programming practice -- can all make
positive contributions to composability.
The potential importance of formal methods is largely
underappreciated, including formal statements of requirements and
specifications, and formal demonstrations (e.g., rigorous proofs and model
checking) of consistency of specifications with requirements, consistency of
source code with specifications, correctness of a compiler, and so on. The
formal methods community has for many years dealt with consistency between
specifications and requirements, and with consistency between code and
specifications, although that work is seldom applied to real systems. The
specifications tend to idealize behavior by concentrating on only the
obviously relevant behavioral properties. Formal approaches can provide
enormous forcing functions on composability and system correctness, even if
applied only in limited ways -- such as model checking for certain
properties relating to composability or security. They can also be
extremely valuable in efforts to attain high assurance. However, because of
their labor-intensive nature, they should generally be applied particularly
where they can be most effective. (See Chapter 6.)
Once again, architectures that minimize the extent of necessary
trustworthiness are important.
The set of assumptions as to what threats must be defended against is itself
almost always inherently incomplete, with respect to what might actually
happen. Nominal security requirements often ignore reliability and
survivability issues (for example, see [264], which seeks to
address relevant requirements within a common and more comprehensive
architectural framework). Even detailed security requirements often tend to
ignore the effects of buffer overflows, residues, and -- even more
obscurely -- emanations such as those exploitable by Paul
Kocher's differential power
analysis [192, 193]
(whereby cryptographic keys can be
derived from the behavior of hardware devices such as smart cards) and
external interference that can result in internal state changes (or
even the ability to derive cryptographic keys, as in Dan
Boneh's
RSA fault injection attack [54] --
which resulted in a faulted version that when subtracted from the correct
version allowed a linear search instead of an exponential search for the
private key!).
Attempting to enumerate everything that is not supposed to happen is
almost always futile, although relatively comprehensive canonical checklists
of potential threats and characteristic flaws to be avoided can be very
useful to system architects and software developers. Various partial
vulnerability and threat taxonomies exist
(e.g., [201, 260, 271]), although a major
effort would be worthwhile to define broad equivalence classes that at least
give extensive coverage, and for which effective countermeasures would be
available or incorporated into new system and network architectures. It is
important in considering composability that all meaningful requirements and
functional behaviors be adequately specified and assured.
It is clear that the ideal goals of unencumbered composability and easy
interoperability are rather abstract and potentially unrealistic in many
practical applications. Indeed, much of the research on properties that
compose in some sense (e.g., strict lattice-based multilevel security) is
extremely narrow and not generally applicable to common real-world
situations. Consequently, we seek a more realistic notion that enables us
to characterize the consequences of compositions, essentially seeking to
anticipate what would otherwise be unanticipated. That is, we seek
a discipline of composition.
On one hand, we would like to be able to compose subsystems in such a way
that the resulting system does not lose any of the positive properties of
its subsystems -- in some sense, a weak compositional monotonicity property
in which trustworthiness cannot decrease with respect to certain attributes.
(We refer to this as nondecreasing-trustworthiness monotonicity.)
This is indeed theoretically possible if there is suitable independence or
isolation among the subsystems. In the literature of multilevel security,
we are familiar with an architectural abstraction hierarchy beginning with a
security kernel that enforces a basic multilevel separation property, then
trustworthy extensions that are privileged in certain respects, then
application software that need not be trusted with respect to multilevel
security, and finally user code that cannot compromise
the multilevel
security that is enforced by the underlying mechanisms. However, this
hierarchy assumes that the kernel is absolutely nonsubvertible and
nonbypassable. In the real world of conventional operating systems, such an
assumption is totally unrealistic -- because the underlying operating
system is typically easily subverted.
On the other hand, a fundamental hope in designing and implementing systems
is that it should be possible to build systems with greater trustworthiness
out of less trustworthy concepts -- that is, making the proverbial silk
purse out of the sow's ear, as noted above in the discussion on guarded
dependence in Section 3.4. This also
suggests a stronger kind of
monotonicity
property in which trustworthiness can actually increase with respect to
certain attributes under composition and layered abstraction. (We refer to
this as cumulative-trustworthiness monotonicity.) To this end, it is
in some cases possible to relax certain assumptions of noncompromisibility
of the underlying mechanisms -- assumptions that are absolutely essential
to the nondecreasing-trustworthiness monotonicity typified by multilevel
security noted in the preceding paragraph. On the other other hand,
desire for some sort of compositional monotonicity must be tempered by the
existence of emergent properties that cannot be
fully characterized in terms of lower-layer properties. That is, the
properties at one layer must be superseded by related but different
properties at higher layers.
What is perhaps most important in this context is the ability to make the
dependencies explicit
rather than
allowing them to be unidentified and latent.
Fundamentally, trustworthiness is multidimensional.
Increasing trustworthiness with respect to one set of attributes does not
necessarily imply increasing trustworthiness with respect to other
attributes. For example, increasing fault tolerance may decrease security
and performance; increasing security may decrease reliability,
interoperability, and performance. Furthermore, emergent
properties must
also be considered -- particularly those related to trustworthiness. Once
again, we must be very explicit as to the properties under consideration,
and cognizant of how those properties relate to other system properties.
Approaches to increasing
trustworthiness are explored next.
The following list is the outgrowth of earlier work by Neumann in Practical Architectures for Survivable Systems and
Networks [264], which enumerates paradigmatic mechanisms by
which trustworthiness
and the ensuing assurance
can be enhanced by horizontal compositions
at the same layer of abstraction
and by vertical compositions
from one layer of abstraction to the next. Each of these
paradigms for guarded dependence
demonstrates techniques whereby
trustworthiness can be enhanced above what can be expected of the
constituent subsystems or transmission media.
(References given in the following enumeration are suggestive, and by no
means exhaustive.)
Several quite different examples are worth mentioning to illustrate this
concept:
This enumeration is undoubtedly not exhaustive, and is intended to be
representative of a wide variety of trustworthiness-enhancing types of
mechanisms. Furthermore, these techniques do not necessarily compose with
one another, and may in fact interfere with one another -- especially if
used unwisely. On the other hand, many efforts to attain trustworthy system
for security and reliability need to rely on a combination of the above
techniques -- as is the case with IBM's concept of autonomic systems that
can continue to operate largely without system administration. (For
example, see IBM's Architectural Blueprint for Autonomic Computing,
http://www-3.ibm.com/autonomic/index.shtml.)
It is clear that reliability
enhancement is often
based on solid theoretical bases; furthermore, that enhancement is
quite tangible, but only if we assume that the underlying
infrastructures are themselves not compromisible -- for example, as a
result of security violations or uncovered hardware malfunctions.
However, in cases of mechanisms for would-be security enhancement,
the dependence on the
assumption of noncompromisibility of the underlying infrastructures is
much more obviously evident; if we are trying to create something more
secure on top of something that might be totally compromisible, we are
indeed trying to build sandcastles
in the wet sand below
the high-water mark. Thus, security enhancement may critically depend
on certain measures of noncompromisibility in the underlying hardware
and software on which the implementation of the enhancement mechanisms
depend.
So far, little has been said here about the relevance of these techniques to
open-source software. In principle, all
these techniques could be applied to closed-source proprietary software as
well as open-source software. However, in practice, relatively few of these
techniques have found their ways into commercial products --
error-correcting codes, atomic transactions, some fault tolerance,
alternative routing, cryptography, and some dynamic checking are obvious
examples. The opportunities are perhaps greater for appropriate techniques
to be incorporated into open-source systems, although the incentives may be
lacking thus far. (The relevance of open-source paradigms is considered in
Section 4.5.)
Although we suggest that the above techniques can actually enhance
trustworthiness through composition, there are still issues to be resolved
as to the embedding of these techniques into systems in the large --
for example, whether one of these trustworthiness-enhancing mechanisms
might actually compose with another such mechanism. Even more important
is the question of whether the underlying infrastructures can be compromised
from above, within, or below -- in which we have just another example of
building sandcastles in the wet sand below the high-tide level.
Several conclusions can be drawn from consideration of the paradigmatic
approaches for enhancing trustworthiness enumerated in Section 3.5.
On the other hand, quantitative assessments of security are usually highly
suspect. The assumptions on which they are based are generally not
probabilistic in nature; each of those assumptions can be vitiated by a
wide variety of circumstances -- including insider misuse, penetrations
that exploit design flaws and code bugs, and other forms of subversion, as
well as nontolerated failures in hardware and software, power failures,
interference, acts of God, and squirrelcides. As a result, measures of
security derived from questionable assumptions are extremely questionable.
Worse yet, measures derived from apparently sensible assumptions are still
questionable if any of those assumptions is violated, and the assumption
that real-time checks could ensure the continued validity of those
assumptions is itself questionable.
Thus, in our efforts to enhance trustworthiness, there are some
consequential differences between reliability and security that must be
taken into account. We believe that some of the approaches outlined in
Section 3.5 can be extremely effective when used together. In
particular, a combination of architectural techniques (1 to 18) and
real-time measures to ensure continued validity of reliability and security
assumptions (as in techniques 18 through 22) can be most effective. Above
all, security and reliability must both be considered together
architecturally. Even if composability arguments might allow them to be
implemented with some separability, there are tradeoffs that must be
addressed in architecture and system development.
Techniques 1 through 8 are aimed primarily at hardware and software
reliability, although these techniques do provide some resistance to active
threats. Technique 3 (Byzantine agreement) is applicable to certain modes
of unreliability and malicious attacks, typically if not more than k out
of 3k+1 subsystems are compromised.
(However, note paradoxically that if we could somehow verify dynamically
that at most k subsystems had been compromised, the Byzantine protocol
itself would be gratuitous! But perversely, if k of the subsystems can be
compromised -- from below or from within, or even from outside -- then it
seems highly likely that more than k subsystems -- or indeed all n --
could be compromised, thus completely undermining the effectiveness of the
Byzantine protocol.) Techniques 9 through 18 are aimed primarily at
security. Technique 10 is overkill if used merely for reliability, for
which hashing or cyclic redundancy checks may be adequate. In their stated forms, only techniques 18
through 22 have any significant potential for addressing both classes of
requirements simultaneously.
It is possible to develop hybrid techniques that combine several of these
paradigmatic techniques in combination, such as the integrated use of
encryption and error correction. In such cases, composability is once again
a critical issue. For example, although cryptography and error-correcting
coding might seem to be commutative in a perfect mathematical world, they
are not commutative in the real world. If a message were encoded for error
correction before being encrypted, then decryption would have to
precede error correction, and any errors in the transmission could then
result in errors in decrypted text that would produce totally erroneous
error correction. Even more important is the reality that error correction
before encryption adds redundancy, and thereby increases the opportunities
for cryptographic attacks. On the other hand, if a message were encoded for
error correction after being encrypted, then decryption would follow
error correction, and the decrypted message would be correct if the
transmission errors did not exceed the coverage of the error correction;
however, if the errors exceeded the coverage, the error-corrected encrypted
text would be in error, and would result in disruptions to the decryption
-- potentially long-lasting in the case of certain cipher block chaining.
Unfortunately, the use of sequential (re)synchronization techniques (as in
techniques 5 and 6 above) could further muddy the waters. In practice, it
seems advisable to compress first (to reduce the redundancy), then encrypt,
and then provide error correction!
In fact, the general situation with compositions involving cryptography is
quite complex. For example, the composition of two sound cryptographic
techniques can make the resulting system susceptible to cracking.
Similarly, the composition of a cryptographic algorithm with a random-number
generation scheme seems to be a fertile area for bad implementations.
Furthermore, embedding good cryptographic implementations into weak systems
is clearly riskful.
Overall, it seems likely that generic approaches for automated response may
not compose easily with other techniques; they run the risk of overwriting
critical data or interfering with critical software, failing to interoperate
because of versioning problems, or overreacting when only a simple
remediation is required. For example, shutting down the ARPANET to MILNET
connection in an attempt to block the 1988 Internet Worm resulted in the
MILNET not receiving the information provided by the Worm's creator on how
to defuse it. Similar self-inflicted denials of service have also occurred on various occasions since then.
Furthermore, platform-dependent effects must be considered, such as the need
to reboot in a Microsoft environment because of the interactions with DLLs
-- as opposed to the greater flexibility of shared libraries and resourcing
in Unix/Linux systems. Consequently, efforts to incorporate such approaches
are likely to need special care.
In general, the above discussion illustrates that composition -- of
different specifications, policies, subsystems, techniques, and so on
-- must be done with great care. We have begun to
characterize some of the pitfalls and some of the approaches that
might result in greater compositional predictability. However, the
problem is deceptively open ended.
Efforts to achieve much greater composability present many opportunities
for future work.
This chapter outlines various techniques for enhancing compositionality, and
for enhancing the resulting trustworthiness that can be achieved by various
forms of compositions. Interoperable composability is a pervasive problem
whose successful achievement depends on many factors throughout the entire
life cycle. It clearly requires much more consistent future efforts in
system design, language design, system development, system configuration,
and system administration. It requires a highly disciplined development
process that intelligently uses sound principles, and it cries out for the
use of good software engineering practice. Sound system architecture can
also play a huge role. Designing for composability throughout can also have
significant payoffs in simplifying system integration, maintenance, and
operations. However, seamless composability may be too much to expect in
the short term. In the absence of a major cultural revolution in the
software development communities, perhaps we must begin by establishing
techniques and processes that can provide composability sufficient to meet
the most fundamental trustworthiness requirements.
Overall, we believe that the approaches outlined here can have significant
potential benefits, in commercial software developments as well as in
open-source software -- in which the specifications and code are available
for scrutiny and evolution and in which collaborations among different
developers can benefit directly from the resulting composability.
Ultimately, however, there is no substitute for intelligent, experienced,
farsighted developers who anticipate the pitfalls and are able to surmount
them.
Many system developments have stumbled from the outset because of the lack
of a well-defined set of requirements, the lack of a well-conceived and
well-defined flexible composable architecture that is well suited
to satisfy the hoped-for requirements, the lack of adherence to principles,
and the lack of a development approach that could evolve along with changing
technologies and increased understanding of the intended system uses.
In this chapter, we draw on the principles of Chapter 2 and the
desire for predictable composability
discussed in Chapter 3.
we consider attributes of highly principled composable
architectures suitable for system and network developments, appropriately
addressing composability, trustworthiness, and assurance within the context
of the CHATS program goals.
The following goals are appropriate for truswtworthy architectures.
Thus, we seek principled composable architectures that can satisfy the
trustworthiness goals, with some meaningful assurance that the resulting
systems will behave as expected.
We next examine combinations of the principles discussed in
Chapter 2 that can be most effective in establishing robust
architectures and trustworthy implementations, and consider some priorities
among the different principles.
From the perspective of achieving a sound overall system architecture, the
principle of minimizing what must be trustworthy (Section 2.3)
should certainly be considered as a potential driving force. Security
issues are inherently widespread, especially in distributed
systems. We
are confronted with potential questions of trustworthiness relating to
processing, multiple processors, primary memory and secondary storage,
backup and recovery mechanisms, communications within and across
different systems,
power supplies, local operating environments, and network communication
facilities -- including the public carriers, private networks,
wireless,
optical, and so
on. Whereas different media have differing vulnerabilities and threats, a
trustworthy architecture must recognize those differences and accommodate
them.
As noted in Section 2.6, systems and
networks should be able to reboot or
reconstruct, reconfigure, and revalidate their soundness following arbitrary
outages without violating the trustworthiness requirements -- and, insofar
as possible, without human intervention. For example, automated and
semiautomated recovery have long been a goal of telephone network switches.
In the early Electronic Switching Systems, an elaborate diagnostic dictionary enabled rapid human-aided
recovery; the goal of automated recovery has been realistically approached
primarily only in the previous two decades. The Plan 9
directory structure provides an interesting example of the ability to
restore a local file system to its exact state as of any particular
specified time -- essentially a virtualized rollback to any desired
file-system state. In addition, two recent efforts are particularly
noteworthy: the IBM Enterprise Workload
Manager, and the
Recovery-Oriented Computing
(ROC) project of David
Patterson and John Hennessy (as an outgrowth of their earlier work on computer architectures --
e.g., [161, 298]).
There are of course serious risks that the desired autonomous operation may fail to restore a sound
local system, distributed system, or network state -- perhaps because the
design had not anticipated the particular failure mode that had resulted in
a configuration that was beyond repair. Developing systems for autonomous
operation thus seriously raises the ante on the critical importance of
system architecture, development methodology, and operational practice.
This if course works for malware as well! For example, Brian
Randell forwarded an observation from Peter
Ryan, who noted that the Lazarus
virus places two small files into the memory of any
machine that it infects. If either one of these files is manually deleted,
its partner will resurrect the missing file (ergo, the symbolism of rising
from the dead). Ryan added, "Now there's fault-tolerance and resilience
through redundancy and self-healing (and autonomic design!?)!"
A system in which essentially everything needs to be trusted (whether it is
trustworthy or not) is inherently less likely to satisfy stringent
requirements; it is also more difficult to analyze, and less likely to have
any significant assurance. With respect to security requirements, we see in
Section 4.3 that trustworthiness concerns for integrity,
confidentiality, guaranteed availability, and so on, may differ from one
subsystem to another, and even within different functions in the same
subsystem. Similarly, with respect to reliability and survivability
requirements, the trustworthiness concerns may vary. Furthermore, the
trustworthiness requirements typically will differ from one layer of
abstraction to another (e.g., [270]), depending on the objects of
interest. Trustworthiness is therefore not a monolithic concept, and is
generally context dependent in its details -- although there are many
common principles and techniques.
Many of the principles enumerated in Chapter 2 fit together
fairly nicely with the principle of minimizing the need for trustworthiness.
For example, if they are sensibly invoked, abstraction, encapsulation,
layered protection, robust dependencies, separation of policy and mechanism,
separation of privileges, allocation of least privilege, least common
mechanism, sound
authentication, and sound authorization all can contribute to reducing what
must be trusted and to increasing the trustworthiness of the overall system
or network. However, as noted in Section 2.6, we must beware of
mutually contradictory applications of those principles, or limitations in
their applicability. For example, the Saltzer-Schroeder
principle of least common mechanism is
a valuable guiding concept; however, when combined with strong typing and
polymorphism that are properly conceived and properly implemented, this
principle may be worth downplaying in the case of provably trustworthy
shared mechanisms -- except for the creation of a weak link with
respect to untrustworthy insiders. For example, sharing of authentication
information and use of single signon both create new risks. Thus, this
Saltzer-Schroeder principle could be reworded to imply avoidance of
untrustworthy or speculative common mechanisms. Similarly, use of an
object-oriented programming language may backfire if programmers are not extremely competent;
it may also slow down development and debugging, and complicate maintenance.
As a further example, separation of privilege may lead to a more trustworthy
design and implementation, but may add operational complexity -- and indeed
often leads to the uniform operational allocation of maximum privilege just
to overcome that complexity. As noted in Section 2.3, the
concept of a single sign-on certainly can
contribute to ease of use, but can actually be a colossal security disaster
waiting to happen, as a serious violation of the principles of separation of
privilege and least common mechanism (because it makes everything accessible
essentially equivalent to a single mechanism!). In general, poorly invoked
security design principles may seriously impede the user-critical principle
of psychological acceptability (e.g., ease of use). (See
Chapter 2 for discussion of further pitfalls.)
From an assurance perspective, many of the arguments relating to
trustworthiness are based on models in which inductive proofs are
applicable. One important case is that of
finite-state machines in which the initial
state is assumed to be secure (or, more precisely, consistent with the
specifications) and in which all subsequent transitions are security
preserving. This is very nice theoretically. However, there are several
practical challenges. First of all, determining the soundness of an
arbitrary initial state is not easy, and some of the assumptions may not be
explicit or even verifiable. Second, it may be difficult to force the
presence of an known secure state, especially after a malfunction or attack
that has not previously been analyzed -- and even more difficult in highly
distributed environments. Third, the transitions may not be executed
correctly, particularly in the presence of hardware faults, software flaws,
and environmental hazards. Fourth, system reboots, software upgrades,
maintenance, installation of new system versions, incompatible retrievals
from backup, and surreptitious insertion of Trojan horses are examples of
events that can invalidate the integrity of the finite-state model
assumptions. Indeed, software upgrades -- and, in particular, automated
remote upgrades -- must be looked on as serious threats. Under
malfunctions, attacks, and environmental threats, the desired assurance is
always likely to be limited by realistic considerations. In particular,
adversaries have a significant advantage in being able to identify just
those assumptions that can be maliciously compromised -- from above, from within, and from below. Above all, many
failures to comply with the assumptions of the finite-state model result
from a failure to adequately comprehend the assumptions and limitations of
the would-be assurance measures. Therefore, it is important that these
considerations be addressed within the architecture as well as throughout
the development cycle and operation, both in anticipating the pitfalls and
in detecting limitations of the inherently incomplete assurance processes.
Tony Hoare's comment is obviously somewhat facetious, especially when
confronted with complex requirements; he has chosen two extremes, whereas
the kind of realistic system designs for inherently complex system
requirements that we consider in this report obviously must lie somewhere in
between. Nevertheless, Hoare's two extremes are both prevalent --
the former in theory and the latter in practice.
We next seek to wisely apply the principles to the establishment of robust
architectures capable of satisfying such complex requirements. Our
conceptual approach is outlined roughly as follows, in a rather idealized
form.
The notion of stark subsetting relates to the paired notions of
composability and decomposability discussed in Section 3.3. The
primary motivation for stark subsetting is to achieve minimization of the
need for trustworthiness -- and, perhaps more important, minimization of
the need for unjustifiable (unassured) trust. Stark subsetting can also
dramatically simplify the effort involved in development, analysis,
evaluation, maintenance, and operation.
For a meaningfully complete stark subset to exist for a particular set of
requirements, it is desirable that the stark subset originate from a set of
composable components. As we note in Section 3.3, "If a system
has been designed to be readily composable out of its components, then it is
also likely to be readily decomposable -- either by removal of the
unnecessary subsystems,
or by the generation of the minimal system directly
from its constituent parts. Thus, if composability is attainable, the
decomposition problem can be considered as a by-product of composition ..."
One of the architectural challenges is to attempt to capture the fundamental
property of the multilevel-integrity concept, namely, that an application
must not be able to compromise
the integrity of the underlying mechanisms. However, there is an
inherent difficulty in the above five-step formulation, namely, that
satisfaction of overall system properties such as survivability and human
safety depends on application software and users, not just on the integrity
of the operating systems. Therefore, it is not enough to be concerned only
with the architecture of the underlying infrastructure; it is also necessary
to consider the entire system. (The Clark-Wilson application integrity
model [82]
is an example that requires such an analysis.)
Primarily for discussion purposes, we next consider two extreme
subspaces in a highly multidimensional space of architectures, each
with its own ranges of trustworthiness and corresponding ranges of
trustedness, and with associated ranges of assurance, composability,
evolvability, principle adherence, and so on. (Note that these
dimensions are not necessarily orthogonal, although that is
unimportant here.) Of course, there are many interesting subspaces
somewhere in between these two extremes, although it is not useful to
attempt to itemize them here. Within each subspace in the overall
multidimensional space, there are wide variations in what properties
are relevant within the concept of trustworthiness, whether the
implied trust (if any) is explicit or implicit, in what kinds of
assurance might be provided, and so on.
The two illustrative extremes are as follows:
Minimal trust is generally compatible with the notions of judicious
modularity and stark
subsetting. On
the other hand, maximal trust is usually a consequence of badly designed
systems -- in which it is very difficult to achieve trustworthy subsets,
let alone to remove large amounts of bloatware that in a well-designed
system would conceptually not have to be trustworthy. (Compare this with
the quote from Steve Ballmer given in Section 3.3.)
What might at first seem to be a hybrid minimax approach to trust and
trustworthiness is given by Byzantine agreement,
discussed in this context in Section 3.5: even if at most k out
of n subsystems may misbehave arbitrarily badly, the overall system still
behaves correctly (for suitable k and n). Byzantine agreement makes a
negative assumption that some portion of the components may be completely untrustworthy -- that is, arbitrarily bad, maliciously or
otherwise -- and a positive assumption that the remaining components must
be completely trustworthy. However, Byzantine agreement is in a
strict mathematical sense an example of minimum (rather than minimal) trust: in the case of Byzantine clocks, the basic
algorithm [198, 331, 337]
provably minimizes the number 2k+1 of trustworthy clock subsystems for any
given number k of arbitrarily untrustworthy clock subsystems, with the
resulting 3k+1 subsystems forming a trustworthy clock system. (Note that
the assumption that at most k of the clocks may be arbitrarily
untrustworthy is explicit, although the nature of the untrustworthiness can
be completely unspecified.)
Purely for purposes of discussion, we next consider two extreme alternatives
with respect to homogeneity versus heterogeneity of architecture,
centralization and decentralization of physical
configurations, logical control, trust, and trustworthiness. There are many
combinations of these aspects of centralization versus decentralization, but
for descriptive simplicity we highlight only two extreme cases. For
example, we temporarily ignore the fact that centralized control could be
exerted over highly distributed systems -- primarily because that is
generally very unrealistic in the face of events such as unexpected outages
and denial-of-service attacks. Similarly, centralized systems could have
distributed control.
Note that a collection of centralized subsystems may be coordinated into a
decentralized system, so the boundaries of our simplified descriptive
dichotomy are not always sharp. However, the trustworthiness issues in
heterogeneous systems and networks
(particularly with respect to security,
reliability, and survivability) are significantly more critical than in
homogeneous systems and networks, even though the generic problems seem to
be very similar. In fact, the vulnerabilities, threats, and risks are
greatly intensified in the presence of highly diverse heterogeneity.
With respect to the principled approach of minimizing what must be
trustworthy, the next set of bulleted items provides some motivating
concepts for structuring robust systems with noncentralized trustworthiness,
irrespective of whether the actual systems have centralized or decentralized
control. (For example, fault tolerance and multilevel security are
meaningful in centralized as well as distributed systems.)
Layered trustworthiness was also found in the THE
operating system (see Dijkstra's 1968
paper [106]), with respect
to hierarchical locking strategies, as
noted in Section 3.5. It was also used to ensure human safety
of real-time flight-control in the 1970s in SRI's
fly-by-wire Software Implemented Fault Tolerant (SIFT) [232, 247, 378]) system, with a hierarchy including
real-time scheduling, a broadcast protocol, and majority
voting. Furthermore,
layered trustworthiness is a fundamental basis of implementations of
multilevel security (MLS) in a typical system with an MLS kernel, an MLS-trusted
computing base, and MLS-untrusted applications, including the Multics kernel
retrofit [344] and
a higher-layer abstract type manager approach suggested as an alternative to
the basic PSOS architecture. Ideally, no application software should be
able to compromise the enforcement of the MLS information flow constraints
-- from above or from outside. In each of these cases, the trust
that is either explicitly or implicitly associated with each layer can also
be layered. In systems based on protection rings or MLS kernels, relatively
greater trust is given to lower layers -- which, because of the
constructive nature of the architecture, must be relatively more trustworthy
than higher layers.
In a different sense of hierarchy, trust can
also be layered with respect to policies. For example, the basic multilevel
security
policy [35] provides for lattice-ordered levels of trust for confidentiality
(e.g., a linear ordering of Top-Secret, Secret, Confidential, and
Unclassified, with associated nonlinear compartments), whereas a Biba-like
multilevel integrity (MLI)
policy [43] provides a similar partial ordering for
integrity. Briefly,
under an MLS policy, information may not
flow from one entity to another entity that has a lower (or lattice-sense
incomparable) security level; in MLI, no
entity may depend on another entity that has a lower (or lattice-sense
incomparable) integrity level (that is, is considered less trustworthy). Of
course, when we attempt to compose policies such as MLS and MLI with MLA (multilevel availability)
and MLX (multilevel survivability),
composability problems and general operational confusion may arise.
(MLA and MLX are suggested in [264].)
MLS is of course a fundamental approach to avoiding adverse information
flows, irrespective of the complexities of its implementation and operation.
On the other hand, MLI, MLA, and MLX appear to be of limited usefulness in
the real world -- although they are of considerable interest as examples of
the principled notion of trying to avoid dependence on anything less
trustworthy (with respect to integrity, availability, and survivability,
respectively), and enabling explicit analyses of soundness wherever such
dependence cannot be avoided. A possibly more useful alternative approach
is the notion of policy factoring that arises in Secure Computing
Corporation's notion of type enforcement, in which separate type-related
policies are designed to be seamlessly composable because of the essential
disjointness of the types. (This is actually a logical outgrowth of the
pervasive use of strongly typed objects throughout the hierarchical layers
of PSOS [120, 268, 269].) Incidentally, another alternative use of
compartmented MLS would be a single-level system with compartments.
(In 1982, Lipner [209] provided a discussion of how MLS and MLI
concepts might be used in commercial practice, even in compartmented
single-level environments.)
The SeaView database
system [100, 213, 214] discussed in
Section 3.5 is another example of architectural layering in
which the entire database management system is effectively multilevel secure
without the off-the-shelf DBMS itself having to be trusted for multilevel
security.
Two other forms of logical and physical separation are also worth noting --
Multiple Independent Levels of Security (MILS) and Multiple Single-Level (MSL)
systems, whose
intercommunications are carefully controlled (discussed in the following
bullet). MILS systems are expected to provide truly independent partitions
that could function at different security levels, with no information flow
across multilevel security boundaries except for perhaps some exceptions
that are carefully controlled by the underlying virtual machine monitors.
MSL systems are expected to function with each partition operating strictly
within a single level, with no exceptions. These constrained modes provide
restricted alternatives to a strict multilevel-security architecture,
although they may typically be significantly less flexible and much less
useful in general applications.
An even stronger isolation is provided by the physical airgap
approach (also referred to as sneaker-net), where there
is absolutely no direct electronic connection between hardware components
(ignoring electromagnetic interference and emanations). However, that
approach seriously impedes interoperability; although physical separation
may be exactly what is desired for extremely sensitive multilevel security
compartments, it is antithetical to widespread information sharing and
increasingly impractical except in extremely critical embedded system
applications. Besides, sneaker-nets notoriously seem to be subverted by
people carrying electronic media from one partition to another (including
games bearing malicious code!).
The same concept of placing relatively less trust on end-user systems and
much greater trustworthiness on servers is of course also applicable to
systems that do not require any multilevel security, although this
architectural concept appears to be much less widely appreciated in the
conventional single-level case. Placing strong emphasis on trustworthy
servers is a fundamental approach to minimizing the need for trustworthiness
in systems and networks. Note that the trustworthiness requirements may
differ considerably from one server to another, particularly among the
various requirements for security (e.g., integrity, confidentiality,
reliability, survivability, and
prevention of denial-of-service attacks and so-called
"man-in-the-middle attacks").
Furthermore, some of the nonserver
components may have very specific but less stringent requirements for
trustworthiness. For example, a user platform might have only a
thin-client operating system that is
auto-rebooted in a trustworthy manner from an unalterable read-only memory,
but otherwise with no long-term storage and some integrity in its networking
software. However, the essential characteristic of such architectures is
that trustworthiness with respect to certain attributes need not be
dispersed uniformly everywhere throughout a distributed system or network of
systems. This approach
can be particularly effective because in a relatively clean way it decouples
the networking abstraction (strong and supposedly robust but presumably not
necessarily secure) from the computer systems (which are separated
physically rather than virtually, except for the server software).
Each of these concepts can potentially be useful by itself or in combination
with other approaches. However, it is important to realize that one
approach by itself may be compromisible in the absence of other approaches,
and that multiple approaches may not compose properly and instead interfere
with one another. Thus, an architecture (or a family of architectures) must
have considerable effort devoted to combining elements of multiple concepts
into the effective development of trustworthy systems, with sufficiently
trustworthy networking as needed. However, although these concepts are not
necessarily disjoint and may potentially interfere with one another, each of
these concepts is generally compatible with the notion of stark
subsetting -- which of course itself benefits
greatly from extensive composability (and its consequence, facile
decomposability).
Many other system properties of course can also contribute to achieving our
desired goals. A few of these are discussed next. These items are somewhat
second-order in nature, because they rely on the trustworthiness of the
design and implementation of the architectural concepts in the above list
-- although they also can each contribute to increased trustworthiness.
Appropriate architectures are then likely to be some sort of combination of
the above approaches, encompassing (for example) heterogeneous
subsystems and subnetworks, trustworthy servers and controlled
interfaces (TS&CI) that
that ensure satisfaction of cross-domain security and integrity,
dramatic improvements in system and network-wide
authentication, trustworthy bootloads, trusted paths, traceback, trustworthy
code distribution, and other concepts included in the above enumeration,
particularly in observance of the principles of Chapters 2
and 3. Such architectures (referred to herein as the Enlightened Architecture
Concept would provide a basis for a wide class of systems, networks, and
applications that can heterogeneously accommodate high-assurance security.
This is particularly relevant concerning desires for multilevel security,
which realistically are likely to involve collections of MLS clients, MSL
clients, and MILS clients, all controllably networked together with a
combination of servers, subject to the multilevel constraints, and with a
similar assortment of assurance techniques for both conventional security
and multilevel security. In that true multilevel security is overkill
for many applications, this vision would provide that functionality
only where essential.
The pervasive nature of weak links is considered in Section 2.3.1 in
connection with principles for avoiding them, and again in
Section 3.5 in connection with the desire for reduced dependence
on trustworthiness. In concept, we like to espouse
strength in depth;
however, in practice, we find weakness in depth
in many poorly architected systems
-- where essentially every component may be a weak link.
Even well-designed systems are likely to have multiple weak links,
especially in the context of insider misuse. As a result, there is
a fundamental asymmetry between defenders and attackers. The
defenders need to avoid or protect all of the vital weak links;
on the other hand, the attackers need to find only one or just a
few of the weak links.
Several historically relevant
systems are particularly illustrative of the concept of
principled architectures that have sought to avoid weak
links in one way or another.
These are discussed next.
[This section is adapted from Neumann's paper for the 2000 IEEE Symposium on
Security and Privacy, entitled "Robust Nonproprietary
Software" [265].]
Various alternatives in a spectrum between "open" and "closed" arise
with respect to many aspects of the system development process, including
the availability of documentation, design, architecture, algorithms,
protocols, and source code. The primary differences arise among many
different licensing agreements. The relative merits of various paradigms of
open documentation, open design, open architecture, open software
development, and available source code are the source of frequent debate,
and would benefit greatly from some incontrovertible and well documented
analyses. (For example,
see [210, 227, 263, 265, 338] for a
debate on open source-code availability. See also [126] on the
many meanings of open-source.) The projects in the DARPA CHATS
program As noted throughout this report, our ultimate goal is to be able to develop
robust systems and applications that are capable of satisfying critical
requirements, not merely for security but also for reliability, fault
tolerance, human safety, survivability, interoperability, and other vital
attributes in the face of a wide range of realistic adversities --
including hardware malfunctions, software glitches, inadvertent human
actions, massive coordinated attacks, and acts of God. Also relevant are
additional operational requirements such as interoperability, evolvability
and maintainability, as well as discipline in the software development
process and assurance associated with the resulting systems.
Despite extensive past research and many years of system experience,
commercial development of computer-communication systems is decidedly
suboptimal with respect to its ability to meet stringent requirements. This
section examines the applicability of some alternative paradigms to
conventional system development.
To be precise about our terminology, we distinguish here between black-box (that is,
closed-box) systems in which source code is not available, and open-box systems
in which source code is available (although possibly only under certain
specified conditions). Black-box software is often considered as
advantageous by vendors and believers in security by
obscurity. However, black-box software makes it
much more difficult for anyone other than the original developers to
discover vulnerabilities and provide fixes therefor. It also hinders open
analysis of the development process itself (which, because of extremely bad
attention to principled development in many cases, is something developers
are often happy to hide). Overall, black-box software can be a serious
obstacle to having any objective confidence in the ability of a system to
fulfill its requirements (security, reliability, safety, interoperability,
and so on, as applicable). In contrast, our use of the term open-box
software suggests not only that the source code is visible (as in glass-box software), but also that it is possible to reach inside the box
and make modifications to the software. In some cases, such as today's
all-electronic (e.g., paperless) voting systems, in which there is no meaningful assurance that votes are
correctly recorded and counted, and no useful audit trails that can be used
for a recount in the case of errors or system failures (for example,
see [194, 233, 235]), black-box software
presents a significant obstacle to confidence in the integrity of the entire
application. On the other hand, completely open-box software would also
provide opportunities for arbitrary software changes -- and, in the case of
electronic voting systems, that enable elections to be rigged by malicious
manipulators (primarily insiders). Thus, there is a need for controls on
the provenance of the software in both open-box and
closed-box cases -- tracking the history of changes and providing evidence
as to where the code actually came from.
We also distinguish here between proprietary
and nonproprietary
software. Note that open-box software can come in various proprietary
and nonproprietary flavors, with widely varying licensing agreements
regarding copyright, its supplemental concept of
copyleft, reuse with or without the ability to
remain within the original open-source conditions, and so on.
Examples of nonproprietary open-box software are increasingly found in the
Free Software Movement
(such as the Free Software Foundation's GNU system
with Linux) and the Open Source Movement,
although discussions of the
distinctions between those two movements and their respective nonrestrictive
licensing policies are beyond the current scope. In essence,
both movements believe in and actively promote unconstrained rights to
modification and redistribution of open-box software.
(The Free Software Foundation Web site is The potential benefits of nonproprietary open-box software include the
ability of good-guy outsiders to carry out peer reviews, add new
functionality, identify flaws, and fix them rapidly -- for example, through
collaborative efforts involving geographically dispersed people. Of course,
the risks include increased opportunities for evil-doers to discover flaws
that can be exploited, or to insert Trojan horses and trap doors into the
code.
Open-box software becomes particularly interesting in the context of
developing robust systems, in light of the general flakiness of our
information system infrastructures: for example, the Internet, typically
flawed operating systems, vulnerable system embeddings of strong
cryptography, and the presence of mobile code. Our underlying question of
where to place trustworthiness in order to minimize the amount of critical
code and to achieve robustness in the presence of the specified adversities
becomes particularly relevant.
Can open-box software really improve system trustworthiness? The answer
might seem somewhat evasive, but is nevertheless realistic: Not by
itself, although the potential is considerable. Many factors must be
considered. Indeed, many of the problems of black-box software can also be
present in open-box software, and vice versa. For example, flawed
designs, the risks of mobile code, a shortage of gifted system developers
and intelligent administrators, and so on, all apply in both cases. In the
absence of significant discipline and inherently better system
architectures, opportunities may be even more widespread in open-box
software for insertion of malicious code in the development process, and for
uncontrolled subversions of the operational process. However, in essence,
many of the underlying developmental problems tend to be very similar in
both cases.
Ultimately, we face a basic conflict between (1) security by
obscurity to slow down the adversaries, and (2)
openness to allow for more thorough analysis and collaborative improvement
of critical systems -- as well as providing a forcing function to inspire
improvements in the face of discovered attack scenarios. Ideally, if a
system is meaningfully secure, open specifications and open-box source
should not be a significant benefit to attackers, and the defenders might be
able to maintain a competitive advantage! For example, this is the
principle behind using strong openly published cryptographic algorithms,
protocols, and implementations -- whose open analysis is very constructive,
and where only the private and/or secret keys need to be protected. Other
examples of obscurity include tamperproofing and obfuscation, both of which
have very serious realistic limitations. Unfortunately, many existing
systems tend to be poorly designed and poorly implemented, and often
inherently limited by incomplete and inadequately specified requirements.
Developers are then at a decided disadvantage, even with black-box systems.
Besides, research initiated in a 1956 paper by Ed Moore [241]
reminds us that purely external Gedanken experiments on black-box
systems can often determine internal state details. Furthermore, reverse
engineering is becoming quite feasible, and if done intelligently can result
in the adversaries having a much better understanding of the software than
the original developers.
Static analysis is a vital contributor to increasing assurance,
and is considered in Section 6.6.
Behavioral application requirements such as safety, survivability, and
real-time control cannot be realistically achieved unless the underlying
systems are adequately trustworthy. It is very difficult to build robust
applications on either proprietary closed-box software or nonproprietary
open-box software that is not sufficiently trustworthy -- once again this
is like building castles in the sand. However, it may be even more
difficult for closed-box proprietary systems.
Unless the fantasy of achieving security by obscurity is predominant, there seem to be some compelling arguments for
open-box software that encourages open review of requirements, designs,
specifications, and code. Even when obscurity may be deemed necessary in
certain respects, some wider-community open-box approach may be desirable.
For system software and applications in which security can be assured by
other means and is not compromisible within the application itself, the
open-box approach has particularly great appeal. In any event, it is always
unwise to rely primarily on security by obscurity.
So, what else is needed to achieve trustworthy robust systems that are
predictably dependable? The
first-level answer is the same for open-box systems as well as closed-box
systems: serious discipline throughout the
development cycle and operational practice, use of good software
engineering, rigorous repeated evaluations of systems in their entirety, and
enlightened management, for starters.
A second-level answer involves inherently robust and secure evolvable
composable interoperable architectures that avoid excessive dependence on
untrustworthy components. One such
architecture is noted in Section 4.3, namely,
thin-client user platforms with minimal
operating systems, where trustworthiness is bestowed where it is essential
-- typically, in starkly subsetted servers and firewalls, code distribution
paths, nonspoofable
provenance for critical software, cryptographic coprocessors, tamperproof
embeddings, preventing denial-of-service attacks, runtime detection of
malicious code and deviant misuse, and so on.
A third-level answer is that there is still much research yet to be done
(such as on techniques and development practice that enables realistic
predictable compositionality, inherently robust architectures, and sound
open-box business models), as well as more efforts to bring that research
into practice. Effective technology transfer seems much more likely to
happen in open-box systems.
Above all, nonproprietary open-box systems are not in themselves a panacea.
However, they have potential benefits throughout the process of developing
and operating critical systems. Nevertheless, much effort remains in
providing the necessary development discipline, adequate controls over the
integrity of the emerging software, system architectures that can satisfy
critical requirements, and well-documented demonstrations of the benefits of
open-box systems in the real world. If nothing else, open-box successes may
have an inspirational effect on commercial developers, who can rapidly adopt
the best of the results. We are already observing some of the major
commercial system developers exploring some of the alternatives for open-box
source-code distribution. The possibilities for coherent community
cooperation are almost open-ended (although ultimately limited in scale and
controllability), and offer considerable hope for nonproprietary open-box
software -- if the open-box community adopts some concepts of principled
architectures such as those discussed here.
Of course, any serious analysis of open-box versus closed-box and
proprietary versus nonproprietary must also take into account the various
business models and legal implications. The effects of the federal
Digital Millennium Copyright Act (DMCA),
the state Uniform Computer Information Transactions Act (UCITA),
shrink-wrap restrictions, and
other constraints must also be considered. However, these considerations
are beyond the present scope.
A recent report [163] of the Carnegie-Mellon Software Engineering
Institute provides a useful survey of the history and motivations for
open-source software.
In summarizing the conclusions of this chapter, we revisit and extend the
quasi-Yogi Berra quote at the beginning of Section 4.1. A
system is unlikely to be trustworthy if it does not have a sufficient supply
of good designers, good programmers, good managers, and good system
administrators. However, it is also not likely to be secure, reliable,
generally trustworthy, evolvable, interoperable, and operationally
manageable if the development does not begin with feasible requirements that
are well specified and realistically representative of what is actually
needed, and if it does not involve good specifications and good
documentation, and if it does not use good compilers, good development
tools, and lots more. Note that if a set of requirements is trivial or
seriously incomplete, the fact that a system satisfies those requirements is
of very little help in the real world.
Thus, appropriately well defined and meaningful requirements for
trustworthiness are essential. Good system and network architecture is
perhaps the most fundamental aspect of any efforts to develop trustworthy
systems, irrespective of the particular set of requirements whose
satisfaction is necessary. Wise adherence to a relevant set of principles
can be extremely helpful. Architectural composability and implementation
composability are of enormous importance, to facilitate development and
future evolution. Policy composability is also useful if multiple policies
are to be enforced. Good software engineering practice and the proper use
of suitable programming languages are also vital. The absence or
inadequacies of some of these ideals can sometimes be overcome. However,
sloppy requirements and a fundamentally deficient architecture represent
huge impediments, and will typically result in increased development costs,
increased delays, increased operational costs, and future incompatibilities.
As we note at the end of Chapter 3, seamless composability is
probably too much to expect overall, particularly in the presence of legacy
software that was not designed and implemented to be composable; instead, we
need to establish techniques that can provide composability sufficient to
meet the given requirements. If that happens to be seamless in the
particular case, so much the better.
We believe that the approaches considered in this report have almost
open-ended potential for the future of trustworthy information systems.
They are particularly well suited to the development of systems and
networking that are not hidebound by compatibility with legacy software (and,
to some extent, legacy hardware), but many of the concepts are applicable
even then. We hope that these concepts will be adopted much more widely in
the future by both open-box and closed-box communities. In any case, much
greater discipline is needed in design, development, and operation.
This chapter considers system architecture from the viewpoint of external
and internal system interfaces, and applies a principled approach to
interface design.
Interfaces exist at different layers of abstraction (hardware configuration,
operating systems, system configurations, networking, databases,
applications, control system complexes such as SCADA systems and air-traffic
control, each with both distributed and local control) and should reflect
the abstractions of those layers and any security issues peculiar to each
layer, suitable for the specific types of users. In general, security
considerations should be hidden where possible, except where it is necessary
for control and understandability of the interfaces. In addition, some sort
of automated (or at least semiautomated) intelligent assistance is
essential, according to specific user needs.
Operators, administrators, and users normally have different needs. Those
needs must be reflected in the various interfaces -- some of which must not
be accessible to unprivileged users. In particular, operators of control
systems, enterprises, and other large-system applications need to be able to
see the big picture at an easily understood layer of abstraction (e.g.,
dynamic status updates, configuration management, power-system error
messages), with the ability on demand to drill down to
arbitrarily fine-grained details. As a consequence, it is generally
necessary that greater detail must be available to certain privileged users
(for example, system and network administrators or system operators),
according to their needs -- either through a separate interface or through
a refinement mechanism associated with the standard interface.
In general, it is important that the different interfaces for different
roles at different layers be consistent with one another, except where that
is prevented by security concerns. (This is a somewhat subtle point: in
order to minimize covert channels in multilevel secure systems, it may be
deemed advisable that different, potentially inconsistent, versions of the
same information content must be accorded to users with different security
levels. This multiplicity of content for seemingly the same information is
known as polyinstantiation.) Most important
is that the interfaces truly reflect the necessary trustworthiness issues.
Requirements must address the interface needs at each layer, and
architectures must satisfy those requirements. This is very important, and
should be mirrored in the requirements and architecture statements. In
general, good requirements and good architectures can avoid many otherwise
nasty administrative and user woes -- viruses, malcode, patch management,
overdependence and potential misuse of superuser privileges. As an example,
the Trusted Xenix system requirements demanded a
partitioning of privileged administrator functions rather than allowing a
single superuser role. This illustrates the principles of separation of
duties and a corresponding separation of roles.
In attempting to simplify the roles of adminstrators and operators,
automated vendor-enforced updates are becoming popular, but represent a huge
source of security risks. Their use must be considered very carefully -
commensurate with the criticality of the intended applications. Remote
maintenance interfaces are vital, especially in unmanned environments, but
also represent considerable security risks that must be guarded against.
The rest of this chapter as well as Sections 7.6 and
8.4, and some of Section 7.11 are adapted from the body
of a self-contained report, "Perspicuous Interfaces", authored by Peter
Neumann, Drew Dean, and Virgil Gligor as part of a seedling study done for
Lee Badger at DARPA under his initiative to develop a
program relating to Visibly Controllable Computing. That seedling study was
funded as an option task associated with SRI's CHATS project. Its report
also included an appendix written by Virgil Gligor, entitled "System Modularity: Basis for the
Visibility and Control of System Structural and Correctness Properties",
which is the basis for Appendix B of this report, courtesy of
Virgil Gligor.
This chapter seeks to provide guidelines for endowing system interfaces and
their administrative environments with greater perspicuity, so that
designers, developers, debuggers, administrators, system operators, and end
users can have a much clearer understanding of system functionality and
system behavior than is typically possible today. Although the primary
concern is for interfaces that are visible at particular layers of
abstraction, the approach is immediately also applicable to internal
interfaces.
As is true with security in general, the notion of perspicuity is meaningful
primarily only with respect to well-defined criteria (assuming suitable
definitions). Some desirable perspicuity criteria and characteristics are
considered in Section 5.2.3.
The approach here considers the traditional problems of design,
implementation, operation, and analysis, and suggests ways to achieve the
basic goal of perspicuity. It spans source-code analysis, the effects of
subsystem composition, debugging, upgrades and other program enhancements,
system maintenance, code generation, and new directions. It addresses the
relevance of specification languages, programming languages, software
engineering development methodologies, and analysis tools. It is applicable
to multiple layers of abstraction, including hardware, operating systems,
networks, and applications. It considers formal methods, ad-hoc techniques,
and combinations of both. Other relevant architectural and system-oriented
considerations are characterized in Chapter 4.
The main emphasis here is on the understandability of the interfaces and the
functionality that they represent. Toward that end, we first seek
evaluation criteria for and constraints on relevant interfaces (and on
development processes themselves) that can help avoid many of the commonly
experienced problems relating to security and reliability. We then explore
a range of tools that might help detect and eliminate many of the remaining
problems and that might also improve the perspicuity of critical software.
It is clear that this problem is ultimately undecidable in a strict sense,
but nevertheless much can be done to advance the developmental and
operational processes.
This report is not intended as a detailed treatise on the subject of
perspicuous interfaces. Instead, it provides an enumeration of the basic
issues and some consideration of relative importance of possible approaches,
as well as an understanding of how interface design fits into the overall
goal of principled assuredly trustworthy composable architectures.
There are several reasons for expending efforts on enhancing perspicuity.
In addition to the above reasoning on the potential reasons for focusing on
perspicuity related to SysAdmins, numerous benefits can accrue to
system programmers, application programmers, and a wide variety of users -
particularly with respect to increased ease of use, program
understandability, debuggability, maintainability, interoperability, and
ease of integration -- and of course the ability to explain unexpected errors
and effects of malicious misuse.
The archives of the Risks Forum are replete with examples of badly conceived
and badly implemented interfaces, with consequential losses of life,
injuries, impairment of human well being, financial losses, lawsuits, and so
on. A few examples are summarized here -- for which references and further
details can be found in the RISKS archives at
http://www.risks.org, a topical index for
which is found in the ever-growing Illustrative Risks
document [267]: Neumann's Inside Risks column from the March 1991 Communications of the
ACM ("Putting Your Best Interface Forward") includes more detailed
discussions of several examples, and is the basis
for [260], pp. 206-209.
There are many other emerging applications that will have serious risks
associated with nonperspicuity of their human interfaces, especially in
systems intended to be largely autonomic. One critical application involves
adaptive automobile cruise-control that adjusts to the behavior of the
preceding car(s) (including speed and acceleration/deceleration, lane
changes, and so on). Some of this functionality is beginning to emerge in
certain new cars. For example, BMW advertises an automobile with an 802.11
access point that would enable downloading of new software (presumably by
the factory or mechanic, but perhaps even while you are driving?). The
concept of a completely automated highway in the future will create some
extraordinary dependencies on the technology, especially if the human
interfaces provide for emergency overrides. Would you be comfortable on a
completely automated networked highway system alleged to be safe, secure,
and infallible, where your cruise-control chip is supposedly tamperproof, is
supposed to be replaced only by approved dealers, is remotely reprogrammable
and upgradeable, and can be monitored and controlled remotely by law
enforcement -- which can alter its operation in a chase among many other
vehicles?
The major issues underlying our main goal require a characterization of the
requirements that must be met by system architectures and by their visible
and hidden interfaces, as well as constraints that might be considered
essential.
A popular belief is that highly trustworthy systems with nontrivial
requirements are inherently complex. However, we observe in
Chapter 4 that -- in a well-designed system -- complexity can be
addressed structurally, yielding apparent simplicity locally even when the
overall system is complex. To this end,
abstractional simplicity is
highly desirable. It can be achieved as a by-product of sound system design
(e.g., abstraction with strong typing and strong encapsulation), well
conceived external and internal interfaces, proactive control of module
interactions, and clean overall control flow. For existing legacy systems
in which abstractional simplicity may not be attainable directly, it may
still sometimes be attainable through wrappers whose interfaces provide
appropriate abstraction. In any case, aids to analysis can help
significantly. Thus, a sensible approach to perspicuous computing needs to
address the system design structure, all of the relevant interfaces (visible
or not), and the implementation. Thus, techniques for analyzing interfaces
for perspicuity and other characteristics would be very valuable.
We begin with a consideration of desirable interface characteristics:
Desired properties of specifications, architectures, and implementations are
considered in subsequent sections.
There are several different approaches to increasing perspicuity. Ideally,
a combination of some of the following might be most effective, but each by
itself can sometimes be helpful.
First, consider proactive efforts. Ideally, it would be most appropriate to
develop new systems that satisfy all of the above desirable characteristics
-- and much more. However, suppose you have an existing system that fails
to satisfy these characteristics, or is in some ways difficult to
understand. Let us assume that you have identified an interface that is
seriously confusing.
For the most part in this study, we assume that source code is available.
However, we also include some approaches that apply to object code when
source code may or may not be available on the fly.
Analytic efforts at enhancing perspicuity of software interfaces can also be
useful even if they do not require modification of either the source code or
the object code implementing those interfaces.
At the IBM Almaden Institute conference on human interfaces in autonomic
systems, on June 18, 2003, Daniel M. Russell stressed the importance of
shared experience between users and system developers. The following
speaker then continued that chain of thought:
An enormous burden thus rests on the human interfaces.
As noted in Section 5.2.1, perspicuous interfaces offer their
greatest advantage when something has gone wrong, and the system is not
working as intended. To really gain leverage from perspicuous interfaces,
we need three primary areas of support:
Together, these capabilities could revolutionize the system debugging
experience, by combining tool support with machine-usable documentation of
what is supposed to happen, enabling comparisons of theory and practice.
To establish a baseline for the investigation of system modularity as a
basis for establishing the visibility of a system's structural and
correctness properties, a brief analysis of prior art was performed by
Virgil Gligor, resulting in
an appraisal of which methodologies and tools
have and have not been effective in defining and analyzing system modularity
in the past and to what extent. That analysis is the basis for
Appendix B of this report.
Gligor's analysis investigates the following topics related to modular system
structures:
Gligor's analysis also presents the relationships between module definition
and its packaging within a programming and configuration management system,
and outlines measures (i.e., metrics) of modularity based on the extent of
replacement independence and the extent of global variable use, as well as
measures of module packaging defects.
The intent of this analysis is to identify pragmatic tools and techniques
for modularity analysis that can be used in practice. Of particular
interest are tools that can be used to produce tangible results in the short
term and that can be extended to produce incrementally more complex
dependency analyses in the future.
Virgil Gligor notes that Butler
Lampson [199] argues that module
reusability has failed and will continue to fail, and that "only giant
modules will survive." If we believe Butler's arguments (and they are
usually hard to dismiss), this means that "visibility into giants" is more
important than ever. [Thanks to Virgil Gligor for that gem.]
We summarize here the main concepts and issues relating to system
architecture, software engineering, program languages, and operational
concerns. However, no one of those areas is sufficient for ensuring
adequate perspicuity, security, reliability, and so on. Indeed, all of these
areas should be important contributors to the overall approach.
From the synthesis perspective, there are two different manifestations of
perspicuity: (1) making interfaces understandable when they are to be used
under normal operation, and (2) making the handling of exceptional
conditions understandable when remediation is required (e.g., recovery,
reconfiguration, debugging, aggressive responses). Both of these are
considered, although the most significant payoffs may relate to the second
case. Note that perspicuity can also be greatly aided during development by
the appropriate use of static analysis tools.
Issues: Hardware protection and domain isolation, software
abstraction, modularity, encapsulation, objects, types, object naming and
search strategies, multiprogramming, processes, domains, threads, context
changes, concurrency, interprocess communication, multiprocessing,
interprocessor communication, networking, wrappers, and so on. Useful historical examples: Two system architectures are noted
in which great emphasis was devoted to interface design within a
hierarchical structure.
Several aspects of Multics are particularly relevant to this discussion of
perspicuous interfaces. The hardware-enforced hierarchical ring/domain
separation meant that much greater attention had to be paid to the specific
interfaces. Symbolic naming of objects (such as virtual-memory segments and
virtualized input-output streams) plus the invisibility of paged memory
implied that machine addresses were never visible to programmers. Dynamic
linking of symbolic file names and dynamic paging provided an abstraction of
virtual memory that completely hid physical locations in memory and
secondary storage media (as well as the associative memory). There were
strict interface standards for arguments and formats. A constrained subset
(EPL) of the full PL/I language enabled almost all programming to be done in
a higher-level language. Programming styles were rigidly enforced, and
changed for the better as the compiler improved -- enabling certain
ugly language primitives to be avoided entirely. The
stack discipline inherently avoided stack buffer overflows by making the
out-of-frame stack elements nonexecutable, and reversing the direction of
stack growth (e.g., see [188, 189]). Each
of these concepts contributed to the abstraction, encapsulation, and
cleanliness of the interfaces.
Other systems also pursued various aspects that
addressed the importance of proactive interface design -- for example, some
other capability-based architectures, Secure Computing Corp.'s strongly
typed systems, and to some extent others such as SE-Linux, Plan-9, and some
of the multilevel-secure kernels. The following concepts are relevant to the development of perspicuous
interfaces.
Relevance for perspicuity: All of these issues can seriously affect
interface perspicuity.
Unfortunately, "software engineering" is a term applied to an art form,
not to an engineering discipline. Nevertheless, there are many principles
(such as those in Chapter 2) of sound architectures, good
software engineering, and good development practice, which -- if they were
followed wisely -- can result in systems with much greater security,
reliability, and so on, much greater assurance that those properties are indeed
satisfied statically, and much greater perspicuity when something goes
wrong. Issues: architecture, distributed systems, real-time systems,
requirements, specification, software development methodologies, abstract
implementations, composability, abstraction, modularity, encapsulation,
information hiding, uniform handling of objects, object-oriented approaches,
development practices, integration, debugging, testing, modeling,
simulation, fault injection, formal methods for specification and analysis
of functional and nonfunctional properties, formal verification and model
checking, performance analysis, tools for static and dynamic analysis,
software process technology, Clean Rooms, Extreme Programming, and so on.
Development environments, component technologies, and related approaches
such as the Common Object Request Broker Architecture (CORBA), CORBA
Component Model, the Component Object Model (COM), DCOM, ActiveX, Enterprise
Java Beans (EJB), Java Remote Method Invocation (RMI), and so on. For example, CORBA provides some basic help in dealing with the interface
definitions of proprietary closed-source components without having access to
the source code. CORBA defined the Interface Definition Language (IDL) as a
method to provide language-independent interface definitions. IDL types are
then mapped into corresponding types in each language; there are standard
mappings for some languages (C++, Java, Smalltalk). While greatly aiding
cross-language interoperability, to
date, it has not been widely applied to COTS software. (Note: Netscape
based much of its architecture in the mid-to-late 1990s on the
goal of being a "platform" on CORBA. There are rumors that a good
bit of custom, in-house software in large corporations uses CORBA.) In the
open-source world, its greatest success has been in the GNOME project. Like
other existing technologies, IDL does not support behavorial specifications.
While the CORBA folks discuss using IDL to structure the interfaces of a
monolithic program, this does not appear to be very popular. CORBA's
success, rather, has been in providing object-oriented RPC services, where
IDL is used as the RPC specification language. Relevance for perspicuity: All of these issues can seriously affect
interface perspicuity. In particular, bad software engineering practice can
result in systems that are extremely difficult to understand, at all layers
of abstraction (if there are any!). On the other hand, intelligently
applied good software engineering practice can greatly enhance perspicuity,
particularly for software for which human interface design is an integral
part of the system architecture. However, the best programming analysis
tools can not overcome inherently bad architectures, bad software
engineering practice, and sloppy testing.
Issues. We begin with a brief enumeration of the most relevant issues
that affect interface perspicuity. (Some of the items -- particularly
those relating to programming languages -- are merely collections of
thoughts for further discussion.)
Here are several guidelines for increasing perspicuity through good program
languages and compiler-related tools, as well as good programming practice.
Analysis tools that can aid in determining the perspicuity of interfaces are
considered in Section 5.4.
Administrative-interface issues include ease of maintenance, autonomic
system behavior and what happens when the autonomic mechanisms fail,
self-diagnosing systems, configuration consistency analysis, and
many other topics.
User-interface issues include ease of diagnosing system failures, ease
of debugging application code, analysis tools, and so on. Of particular
concern are the users who have critical responsibilities -- for example,
operators of SCADA systems and other critical infrastructure components,
control systems, financial systems, and so on. In these cases, real-time
monitoring and analysis for anomalous system behavior become part of the
interface purview.
Relevance for perspicuity: Today's system adminstrator interfaces tend
to put an enormous burden on the administrators. Simplistic would-be
solutions that attempt to interpret and explain what has gone wrong are
likely to be inadequate in critical situations that go beyond the
low-hanging fruit.
"What you see is what you get" might be considered as a basic mantra of
perspicuity -- especially if it is taken seriously enough and assuredly
implies that what you get is no more and no less than what you see.
(Recall this dictum at the beginning of Section 3.2, in the
context of the effects of composition.) The extent of typical exceptions to
no more and no less is astounding.
There are many examples of more, many of which can be very damaging:
hidden side effects, Trojan horses, undocumented and unadvertised hardware
instructions and software primitives (sometimes with powerful override
abilities), lurking race conditions and deadly embraces, blue screens of
death, frozen windows, misleading URLs (for example, a cyrillic o instead of
a roman o, or a Zero in MICROS0FT waiting to take you somewhere else), and
so on, ad infinitum. Les Lamport's definition of a distributed
system noted in
Chapter 1 suggests that what you might have expected to happen
won't.
There are also various examples of less, many of which are likely to
be frustrating or debilitating: expected resources that do not exist or are
temporarily unavailable, such as URLs that point nowhere, even though they
worked previously.
Perhaps the most insidious cases are those in which something more
and something less both occur at the same time.
Several of the system architecture approaches in Chapter 4 provide
elegant ways of achieving What you see is exactly what you get:
multilevel-secure (MLS) systems and capability-based addressing.
In particular, if a multilevel-secure object is at a higher security level
or in an inaccessible compartment to the would-be user, then the user simply
is not supposed to know of the existence of that object; any attempt to name
it or list a directory in which it exists is greeted with a single
relatively neutral undifferentiated standard exception condition such as
"no such object" that conveys no information. Note that any exception
condition indicator that provides a variety of possible context-dependent
error messages is likely to be subject to exploitable covert channels
through which information can be signaled.
Similarly in capability-based addressing, if a user does not have a proper
capability for an object, that object is logically equivalent to being
nonexistent.
In a sense, this is a very satisfactory goal in terms of perspicuity of
naming and accessing system resources. On the other hand, if anything goes
wrong, life can become quite complicated. From a user's perspective,
everything that supposedly needs to be visible is visible -- except when it
isn't. From an application developer's perspective, simply plunking a
legacy software system into the multilevel environment may cause the
application to break, perhaps as a result of short-sighted assumptions in
the legacy code or a configuration problem in the installation of that code.
From a system administrator's perspective, access across security levels may
be necessary to determine what went wrong -- unless the system is well
designed and single-level analysis tools can suffice. Otherwise, there is a
risk of violating the MLS properties. Thus, MLS and capabilities can
improve perspicuity when things go well, and can decrease it when things go
wrong -- unless the architecture and implementation are well conceived in
the first place and the analysis tools are effective. Furthermore, in the
absence of some sort of multilevel integrity in an MLS system, hidden
dependencies on untrustworthy components can undermine the integrity of the
MLS levels.
From the dynamic analysis perspective, there are again two different
manifestations of perspicuity: (1) using static and dynamic analysis of a
given interface to provide greater understandability as the interface is
being used under normal operation, and (2) interpreting real-time
exceptional conditions and making them understandable contextually-- for
example, whenever remediation is urgently required (as in the cases of
recovery, reconfiguration, debugging, and aggressive automatic responses).
Both of these cases are considered in this section, where we seek to
identify, characterize, and exploit analysis techniques for defining and
analyzing system interfaces so that the behavior of the systems and the
dependencies among those systems can be more easily understood and
controlled.
This is a multidimensional challenge. Some of the dimension are outlined
as follows.
In general, it is advantageous to address the problem of interface
perspicuity up front, and then consistently follow through. This suggests
an approach that encompasses the entire development cycle and operations,
which can make the analysis challenges much more accessible.
Issues: Methods and tools for demonstrating consistency of specifications
with requirements, and consistency of code with specifications; formal
verification and model checking; analysis tools for detecting characteristic
security flaws, buffer overflows, and so on.
Examples: HDM hierarchical abstraction, formal specifications, state
mapping functions, and abstract implementations; PVS and PVS interpretations;
CCS, pi-calculus, and so on.
Of particular recent interest are Drew Dean's PhD thesis [95], the
Wagner-Dean paper [98] on static analysis of C source code,
the work of Giffin, Jha, and Miller [130] on analyzing binaries
for mobile code (extending the Wagner-Dean approach), and Hao Chen's
effort [75, 77, 78] at formal model
checking to search for characteristic flaws. (Of course, it is much easier
to do analysis on source code, if it is available.) Also, see Mitchell and
Plotkin [240] for a highly readable paper on theoretical
foundations of abstract data types with existential types; it is of
particular interest to type theorists. See Chapter 6.
Issues: Informal methods and tools for testing for the inconsistency of
specifications with requirements and the inconsistency of code with
specifications; other tools.
Purely formal tools tend to be difficult to use for ordinary mortals.
Purely ad-hoc tools are limited in what they can achieve.
Semiformal tools may provide a bridge between these two approaches.
Examples include formally based testing (e.g., mechanically deriving test
conditions) and machine-assisted code inspections.
Some of the above existing techniques can have significant effect in the
near-term future, if applied wisely. However, in the longer-term future,
those techniques are not nearly adequate. Thus, in this section we consider
several areas in which there are serious gaps in existing approaches.
Many problems are made worse by a lack of perspicuity:
We foresee various possibilities for something that can be described
conceptually without having to do much implementation, or whose
implementation could be outlined and be pursued in detail.
Some of these examples can demonstrably enhance
perspicuity both statically and dynamically. It might also be possible to
characterize some measures of perspicuity that could be analytically
determined, although this is deemed less likely and probably less realistic.
One possible overarching approach is the following. Given a combination of
specifications, source code, and perhaps some knowledge of the possible
operating environments, statically analyze them and transform them into a
body of knowledge that can be interrogated dynamically, for example, when an
environment is under stress. A combination of dynamically interpreted pre-
and post-conditions could then directly produce analysis results that would
facilitate the understanding of attacks and malfunctions, based on which
conditions fail. Such an approach would provide help in recommending
autonomic responses and human-aided responses, as appropriate. Note that
this is not really a new concept. For example, the ESS Number 2 telephone
switching systems had a diagnostic dictionary that covered almost all
possible failure modes and suggested appropriate remedies. However, in the
context of more modern programming language and operating system
technologies, such an approach could now be significantly more effective --
albeit significantly more complicated.
Several specific examples come to mind as candidates for worked examples.
When we went looking for examples where behavioral specifications
would be useful, the BSD TCP/IP stack seemed like a logical place to
start: not only is the software open-source, but there is excellent
documentation as well [229, 382]. Unfortunately, this
plan did not succeed as originally hoped. Our first idea was to
examine the implementation of the Address Resolution Protocol (ARP).
Up through 4.3BSD, the ARP implementation was a small module with a
simple interface to the rest of the TCP/IP stack. In 4.4BSD, a new,
generalized routing table structure that integrated ARP was
introduced. The ARP implementation no longer has a simple, clean
interface to the rest of the kernel -- it is now part and parcel of
the routing code, a much larger and more complicated piece of the
TCP/IP stack. (Of course, it is conceptually nice to deal with
ARP-resolved Ethernet addresses in the routing framework, and
eliminate the special handling of Ethernet addresses for machines on
the local network.)
Our next target was the UDP implementation. UDP is a nice simple
protocol, and would appear to be an ideal example. The networking
code in the kernel uses an object-oriented design similar to that of
the file system code, although the actual implementation is in plain
C. The implementation combines both a message-passing style, à la
naïve objects in Scheme, and a record of functions style more
similar to C++. The message-passing style is used on output, and the
record of functions style on input. With better language support,
these paradigms could result in an extremely clean implementation, but
with C requiring manual implementation of all the details, some
generally difficult layering issues explicitly raise their ugly heads.
On output, the handoff from the socket layer occurs to the
udp_usrreq function, which takes as arguments a socket, a
command (i.e., message), and three mbuf chains: the data to be
sent, the address to send it to, and some control information that is
not used by UDP and will not be discussed further. If the command is
PRU_SEND, then udp_output is called. In
udp_output is where things start to get ugly, making a
behavioral specification less elegant than one would desire: either
the socket has been connected to a destination (Yes, this
makes sense for UDP!), or a destination address has been supplied -- but
not both. The code, most unfortunately, knows details about
all of the data structures, and peeks around inside them to
enforce this addressing invariant. With better language support,
including either method overloading on argument type, as in Java, or
full multiple-dispatch, as in CLOS, this could be very elegant:
whether or not a socket is connected to a destination, as well as
whether or not a destination address is supplied, could easily be
encoded in the type system. Then, there would be four separate
implementations, three of which simply signal an error, with the fourth
function prepending the UDP header, generating the UDP checksum, and
eventually calling ip_output. The main implementation
would not need explicit code to check the addressing invariant, as
everything would be guaranteed correct by the programming language.
On input, things are much simpler. The code checks various validity
conditions on the input packet, and assuming the packet is valid,
then checks whether the packet is destined for a
unicast or broad/multicast address. If the packet is destined for a
unicast address, the code searches for a socket to deliver the packet
to. Assuming that an appropriate socket is found, the data is
appended to its receive queue, and the process is woken up. For
broad/multicast packets, the data can be delivered to more than one
socket, and the appropriate process(es) are woken up. If no socket is
found, an ICMP error packet is sent back to the source of the packet.
This chapter is perhaps the most speculative in the report, based more on
hopes for the future that are less supported by the past than was the case
regarding the chapters on principles, composability, and architectures --
all of which have long histories in the research and development
communities. Interface architectures have seemingly been neglected,
relegated to an afterthought of system design and implementation.
Even if requirements and architectures have been created composably
and with serious observance of the most important principles,
questions must be considered as to the trustworthiness of the resulting
systems and their uses in applications. However, such analysis can be
extremely difficult unless assurance has been an integral consideration
throughout the development.
Thus far, we have considered how to achieve principled composable
architectures and to informally provide integrity of an architecture and its
implementation throughout the system development process, in attempting to
develop, configure, and maintain trustworthy systems and networks. In this
chapter, we consider assurance aspects associated with the development
process and with its artifacts and end products. We seek a collection of
assurance techniques and measures of assurance that can be associated with
requirements, specifications, architectures, detailed software designs,
specifications, implementations, maintenance, and operation, as appropriate.
We seek to achieve trustworthy systems and networks, with some demonstrably
sound measures of assurance -- that is, rigorously addressing the question
of how worthy really is the intended trustworthiness. Measures of assurance
can be sought in a variety of ways, throughout the development cycle
-- and thereafter as well. For example, they might involve analyses
applied to requirements, architectures and detailed system designs of
operating system and application software, compilers, hardware, and
operational practices. With respect to software developments, thorough
formal analyses throughout the development cycle can
provide some significant levels of assurance, although less formal
techniques such as code inspection, testing, and red-teaming are
complementary techniques that can also be very useful. Generally much less
satisfying if not unworthy from a serious assurance point of view are
measures of institutional goodness (as in the Capability Maturity Model) and
individual programmer competence (as in certification of software
engineers). Overall, no one assurance technique is adequate by itself; each
-- including those that are formally based -- has inherent limitations
that must be recognized and surmounted.
Perhaps the most important conclusion of this report in our efforts to
attain sound and robust systems and networks is that the assurance
associated with trustworthiness must be a pervasive and integral part of the
development cycle and the subsequent operational use and long-term evolution
of the resulting systems and networks. We repeat this conclusion
emphatically, referring to it as the notion of Pervasively Integrated
Assurance (PIA).
Attaining some nontrivial measures of assurance is seemingly a labor-intensive process, but then so is conventional software development --
including testing, debugging, integration, red-teaming, maintenance, and
evolution. Ideally, assurance techniques should be incorporated into
existing tools for software and hardware development. Furthermore, new
tools for enhancing assurance should also be added to the development
process. On the other hand, there are grave dangers in believing in the
infallibility of development tools. Once again, we must depend on the
intelligence, training, and experience of our system architects, designers,
implementers, application system operators, administrators, and -- in
many cases -- end users themselves.
Typically, there are enormous benefits from techniques that can be applied
upfront in the development process, such as formal
specifications for
critical requirements, principled architectures, and formal or semiformal
design specifications. It is clearly
preferable to prevent flaws early that would otherwise be detected only
later on in the development. However, there are many flaws that cannot be
detected early -- for example, those introduced during implementation,
debugging, and maintenance that can nullify earlier assurance techniques.
Consequently, assurance must be a distributed and temporal concept
throughout development, maintenance, and operation, where constituent
assurance techniques and isolated analyses must themselves be consistent,
composable, and carefully coordinated. For example, careful documentation,
disciplined development methodologies, coding standards, and thoughtful code
inspection all have a place in helping increase assurance -- as well as
having secondary effects such as reducing downstream remediation costs, and
improving interoperability, system flexibility, and maintainability.
However, when it comes to providing meaningful assurance, the usual dictum
applies: There are no easy answers.
Several basic issues immediately come to mind in seeking increased
assurance. (See also a report by Rushby [326] on providing
assurance relating to reliability and safety in airborne systems, whose
conclusions are also applicable here.)
Continuing on the subject of composition (see the fourth previous item),
horizontal (modular) composition and
vertical (hierarchical abstraction)
composition (discussed in Section 3.3) are both important
subjects of analysis for the purpose of increasing assurance. Various past
efforts are of considerable theoretical and practical interest, such as
proving consistency within a successive refinement thread throughout the
development effort, and proving consistency from top-level requirements
through detailed design specifications to software implementation, and
perhaps even subsequent operation and evolution, particularly when applied
to large and complex systems. Similarly, when dealing with vertical and
horizontal abstractions, efforts such as that of
Robinson-Levitt [316]
and the Boyer-Moore-Hunt-Young CLInc
stack [244, 245] (including five
papers, [41, 42, 170, 243, 385])
enable the
functionality of higher-layer abstractions to be explicitly related to the
functionality of lower-layer abstractions, iteratively across all layers as
desired -- for example, from applications to hardware -- as well as the
relationships among different modules at the same layer. However, those
efforts must be considered as overkill unless it can be demonstrated that
all the relevant critical paths can thus be encompassed and that no serious
vulnerabilities can exist in other threads. Then, the comprehensive
analysis can be very compelling, even if labor intensive.
There have been many advances in assurance techniques, and particularly in
formal methods, over the past thirty years. However, major successes are
still awaited in the fruitful application of these methods. We conclude
that, whereas considerable potential remains untapped for formal methods
applied to security, we are now actually much closer to realizing that
potential than previously. Many of the pieces of the puzzle -- theory,
methods, and tools -- are now in place. It is unwise to put all your eggs
in one basket (such as testing or penetrate-and-patch efforts). Thus, a
more comprehensive combination of approaches is recommended, especially if
the desired paradigm shifts are taken and if the considerations of the
following section are observed.
Providing meaningful assurance of trustworthiness is itself a very complex
problem, and needs to be spread out across the development process as well
as into operational practice. Various approaches can be used in
combination with one another to enhance assurance.
Judicious use of formalisms and formal methods can
add significantly to development and operation, but also can add complexity,
delays, and cost overruns if not used wisely. Although formal models and
formal specifications may seem to complicate the design process (with
delays, increased costs, and greater intellectual demands), they can also
substantively improve assurance, and also lead to earlier identification of
problems that might otherwise be uncovered only in late stages of the
development and use cycles. However, they need to be used with considerable
care, primarily where they can accomplish things that design reviews,
testing, and operational discipline cannot. In that errors in requirements
formulation, design, and specification are perhaps the most difficult and
costly to repair, formalisms can be particularly valuable in the early
stages of development. Although some readers will consider assurance issues
to be pie in the sky and unrealistic from the perspective of increased
costs, project delays, and increased needs for education and training, the
spectrum of assurance techniques does have something for everyone.
Historically, early examples of the use of formalism in system design and
implementation are found in two SRI efforts during the 1970s. These rather
early instances of uses of formal methods are reconsidered here for yet
another visit because they represent some significant advances in the
ability to analyze systems in the large that seem to have been otherwise
ignored in recent years. (Please excuse a little duplication for contextual
ease of reading.)
A general argument against such efforts seems to
be that it is too difficult to deal with big-system issues, and much easier
to focus on components. However, it is often the analysis of compositions
and system integration that in the long run can be most revealing.
Incidentally, HDM's
1970s ability to analyze vertical compositions of
hierarchical abstractions has been incorporated in SRI's PVS (beginning with
version 3.0), in the form of PVS theory
interpretations [278]. See http://pvs.csl.sri.com
for PVS documentation, status, software downloads, FAQ, etc.
See also http://fm.csl.sri.com for
further background on SRI's formal methods work, including
SAL (the Symbolic Analysis Laboratory,
which includes three model checkers) and ICS (the Integrated Canonizer
and Solver, a decision procedure). Symbolic analysis involves automated
deduction on abstract models of systems couched in formal logic, and
is the basis for much of CSL's formal methods work.
Some further early work on formal methods and verification applied to
security is summarized in the proceedings of three
VERkshops [275, 276, 205], from 1980, 1981, and
1985, respectively. (The titles of all of the papers in those three VERkshop
proceedings are given in the appendix of [259].)
Considerable benefit can accrue from rigorous specifications -- even if
they are not formally checked, although clearly much better if they are.
Specifications of what is and is not needed are generally more succinct than
literal descriptions of how something should be implemented. Specifications
can provide an abstraction between requirements and code that enable early
identification of inconsistencies -- between specifications and
requirements, and between code and specifications. Furthermore,
specifications can be more readable and understandable than code, especially
if they can be shown to mirror the requirements explicitly early in the
development process, before any code is written.
The long history of fault-tolerant computing has put significant
effort on fault prevention (relative to whatever scope of faults was
intended -- from hardware to software faults to faults that included
security misuse). Clearly, all of those assurance efforts relating to
the avoidance of bad designs and bad implementations are relevant
here, including the assurance that can result from inherently sound
system and network architectures and good software-engineering
practice.
With respect to the importance of programming languages in security, see
Drew Dean's paper on The Impact of Programming Language Theory on Computer
Security [96]. As a further useful reference, Chander, Dean, and
Mitchell [69, 70] have some interesting recent work on
formalizing the modeling and analysis of access-control lists, capabilities,
and trust management.
The HDM approach noted in Section 6.4 is one methodology in
which formal proofs could be carried out demonstrating
the consistency of a software component with its formal specifications. The
intent is that such proofs would be carried out only after proofs had shown
that the specifications were consistent with the stated requirements
(possibly subject to certain exceptions that would have to be tolerated or
monitored, as in the case of unavoidable covert channels).
Ideally, the up-front philosophy suggests that discipline embededded in the
software development process can have considerable payoff. For example,
programming languages that inherently enforce greater discipline would be
very beneficial. Compilers and related pre- and post-processor tools that
provide rigorous checking would also be useful. However, the integrity that
can be provided by the best methodologies, programming languages, and
compiler tools is potentially compromisible by people involved in design
and implementation, debugging, integration, maintenance, and evolution.
Early efforts in the 1970s by Abbott [5] and the ISI team of Bisbey,
Carlstedt, Hollingworth, and
Popek [44, 45, 46, 67, 68, 165]
attempted to identify a few characteristic flaws noted in Section 2.4
and to devise means of
detecting their presence in source code. The conclusions at that time were
generally rather discouraging, except in very constrained circumstances.
Contemporary analytic techniques and tools are much more
promising. They are particularly appropriate for open-box source code,
but of course also applicable to closed-box software -- even
if only by the proprietors. Examples include (among
others), with varying degrees of effectiveness and coverage: There has also been some effort on formally based testing. (This work is
particularly interesting when applied to hardware implementations.)
However, the early results of Boyer, Elspas, and Levitt [57]
suggest that formal testing is in some sense
essentially equivalent to theorem proving in complexity. Nothing since that
paper has fundamentally altered their conclusion, although formal derivation
of test cases can be extremely effective in increasing the assurance that
testing will cover a realistic span of cases. In particular, formal
test-case generation has become
increasingly popular in the past few years. (As just one example,
see [49].)
There has been relatively little exploitation of
formalism relating to real-time analysis in
the past, but this area represents a potentially fertile ground for the
future. One example might involve run-time checks derived from formally
based analyses of potential vulnerabilities in source code, above and beyond
what might take place in a compiler, or in a preprocessor -- such as
buffer-overflow checks and Trojan-horse scans that cannot be done prior to
execution. Proof-carrying code [250]
and checking of cryptographic integrity seals are two specific examples.
Many other concepts remain to be considered.
In order to have any concrete measures of assurance, it is necessary to
establish well-defined metrics against which requirements, architectures,
specifications, software, tools, and operational practice can be measured.
This is a very complicated area. We believe that it is unwise to do
research on metrics for the sake of the metrics themselves, although it is
important to establish parameterizable metrics with general applicability.
The various metrics then need to be tailored specifically to the development
stage in which they are invoked, and applied explicitly to those development
efforts.
The assurance techniques summarized in the previous sections of this chapter
can have significant effects in reducing risks, particularly with respect to
the extent to which critical system requirements are likely to be satisfied
by system designs and implementations. These techniques may be applicable
in many different ways, all of which are potentially relevant here. In
particular, analysis at all development stages and all layers of abstraction
within a development can contribute. (See Section 6.3.)
Several examples may help to illustrate how assurance techniques might be
applied. In particular, we examine some of the cases summarized in
Section 2.2 and Section 5.2.2, and consider what
might have been done to prevent the effects that actually resulted. This is
intended not as an exercise in hindsight, but rather as an explicit
representation of what types of assurance might be applicable in future
developments of a similar nature.
The above illustrative enumeration suggests that, among the wide variety of
assurance techniques (some almost obvious, some more subtle), each potential
system risk can benefit from the application of some subset of the total
collection of approaches to increasing assurance. Establishment of
sound requirements, sensible architectures, and good software development
practice would undoubtedly avoid many of the problems discussed throughout
this report, and could be significantly aided by formal or even semiformal
requirements analysis, model-based design, model checking, formal
test-case generation, static analysis, and so on. Of course,
there is no one size that fits all; the particular techniques must
be used in various coherent combinations, according to the circumstances,
the development challenges and risks, and the competence of the developers
and analysts.
Once again, it is clear that there is a significant need for pervasively
integrated assurance,
throughout development and operation. However, the
amount of resources and effort to be devoted to assurance needs to be
commensurate with the overall long-term and nonlocal
risks. Unfortunately, most
risk assessments relating to how much effort to devote to assurance tend to
be short-term and local. (The risks of short-sighted optimization are
considered further in Section 7.1, and the importance of up-front
efforts are discussed in Section 7.2.)
Opportunities for seriously increasing the assurance associated with
software development and system operations are abundant, but largely
unfulfilled. Much greater commitment is needed to providing assurance of
trustworthiness. Assurance techniques seem to have greater use and greater
payoffs in hardware development than in software development, with heavier
emphasis on the use of formalisms. However, assurance applied to
operational practice lags far behind either hardware or software assurance.
The potential benefits of formal methods remain undiminished, particularly with respect to hardware and
software, but perhaps also integrated into operational practice. The need
for formal methods in the specification and analysis of critical systems and
system components remains enormous. In the light of past events --
including rampant system flaws and detected vulnerabilities, system
failures, experienced penetrations, and flagrant system misuses -- formal
methods remain a potentially important part of the system development and
assurance process. Their systematic use at appropriate places throughout
the system life cycle can be extremely productive, if used wisely.
Recommendations for future research and development encompassing increased
assurance for trustworthy systems and networks are discussed in
Chapter 8.
The previous chapters pursue approaches that have significant potential to
enable the development and operation of useful meaningfully trustworthy
systems -- if these approaches are applied wisely. This chapter considers
various potential obstacles to the application of these approaches, and
explores how they might be overcome. Some of the apparent obstacles are
merely perceived problems, and can be readily avoided. Other potential
obstacles present genuine concerns that can be circumvented with some degree
of knowledge, experience, discipline, and commitment.
In this chapter, we address such topics as how an architecture can
accommodate its relevant requirements (including requirements to be able to
adapt to changing requirements!); whether inherently robust architectures
are possible given today's mainstream hardware platforms and
computer-communications infrastructures; the extent to which discipline can
be effectively and pervasively introduced into the development process --
for example, through methodologies, programming languages, and supporting
tools; the relative effectiveness of various methodologies; problems
peculiar to legacy systems; the practical applicability of formal methods;
various alternative paradigms; management issues; relevant pros and cons of
outsourcing and offshoring; and so on.
Many people (for example, system procurers, developers, implementers, and
managers) continue to ignore the long-term implications of decisions made
for short-term gains, often based on overly optimistic or fallacious
assumptions. In principle, much greater benefits can result from
far-sighted vision based on realistic assumptions. For example, serious
environmental effects (including global warming, water and air pollution,
pesticide toxicity, and adverse genetic engineering) are generally ignored
in pursuit of short-term profits. However, conservation, alternative energy
sources, and environmental protection appear more relevant when considered
in the context of long-term costs and benefits. Similarly, the long-term
consequences of dumbed-down education are typically ignored -- such as
diminution of scientific, engineering, and general technical expertise, poor
system development practices, and many social consequences such as higher
crime rates, increased reliance on incarceration, and so on. Governments
tend to be besieged by intense short-sighted lobbying from special-interest
groups. Insider financial manipulations have serious long-term economic
effects. Research funding has been increasingly focusing on short-term
returns, seemingly to the detriment of the future. Overall,
short-sightedness is a widespread problem.
Conventional computer system development is a particularly frustrating
example of this problem. Most system developers are unable or unwilling to
confront life-cycle issues up front and in the large, although it should by
now be obvious to experienced system developers that up-front investments
can yield enormous benefits later in the life cycle. As described in
earlier chapters, defining requirements carefully and wisely at the
beginning of a development effort can greatly enhance the entire subsequent
life cycle and reduce its costs. This process should ideally anticipate all
essential requirements explicitly, including (for example) security,
reliability, scalability, and relevant application-specific needs such as
enterprise survivability, evolvability, maintainability, usability, and
interoperability. Many such requirements are typically extremely difficult
to satisfy once system development is far advanced, unless they have been
included in early planning. Furthermore, requirements tend to change; thus,
system architectures and interfaces should be designed to be relatively
flaw-free and inherently adaptable without introducing further flaws.
Insisting on principled software engineering (such as modular abstraction,
encapsulation, and type safety), sensible use of sound programming
languages, and use of appropriate support tools can significantly reduce the
frequency of software bugs. All of these up-front investments can also
reduce the subsequent costs of debugging, integration, system
administration, and long-term evolution -- if sensibly invoked. (Note that
a few of the current crop of software development methodologies do address
the entire software life cycle fairly comprehensively, such as the Unified
Software Development Process (USDP) [174], whose three basic
principles are use-case driven, architecture centric, and iterative and
incremental; USDP is based on the Unified Modeling Language
(UML).)
Although the potential fruitfulness of up-front efforts and long-term
optimization is a decades-old concept, a fundamental question remains: Why
has the sagest system development wisdom of the past half-century not been
more widely and effectively used in practice? Would-be answers are very
diverse, but generally unsatisfactory. These concepts are often ignored or
poorly observed, for a variety of offered reasons -- such as short-term
profitability while ignoring the long-term; rush to market for competitive
reasons; the forcing functions of legacy system compatibility; lack of
commitment to quality, because developers can get away with it, and because
customers either don't know any better or are not sufficiently organized to
demand it; lack of liability concerns, because developers are not
accountable (shrink-wrap license agreements typically waiver all liability,
and in some cases warn against using the product for critical applications);
ability to shift late lifecycle costs to customers; inadequate education,
experience, and training; and unwillingness to pursue anything other than
seemingly easy answers. Other reasons are also offered, as well.
Overly optimistic development plans that ignore these issues tend to win out
over more realistic plans, but can lead to difficulties later on -- for
developers, system users, and even innocent bystanders. The annals of the
Risks Forum (http://www.risks.org;
see [267]) are replete with examples of systems that did
not work properly and people who did not perform according to the
assumptions embedded in the development and operational life-cycles. (One
illustration of this is seen in the mad rush to paperless electronic voting
systems with essentially no operational accountability and no real
assurances of system integrity.) The lessons of past failures and
unresolved problems are widely ignored. Instead, we have a caveat
emptor culture, with developers and vendors disclaiming all warranties and
liability, and users who are at risk. (In the case of electronic voting
systems, the users include election officials and voters.)
We need better incentives to optimize over the long term (see
Section 7.2) and over whole-system contexts (see
Section 7.3), with realistic assumptions, appropriate
architectural flexibility to adapt to changing requirements
(Chapter 4), and sufficient attention paid to assurance
(Section 6.9).
Achieving this will require some substantive
changes in our research and development agendas, our software and system
development cultures, our educational programs, our laws, our economies, our
commitments, and perhaps most important -- in obtaining well documented
success stories to show the way for others. Particularly in critical
applications, if it's not worth doing right, perhaps it's not worth doing at
all -- or at least not worth doing without rethinking whatever might be
problematic with the requirements, architecture, implementation, and/or
operational practice. As an example, the essence of Extreme Programming
(Section 2.3.6) seems interesting in achieving working partial systems
throughout development, but would be applicable to critical systems only if
it converges on products that truly satisfy the critical requirements. Once
again, the emphasis must be on having well-defined requirements.
David Parnas has said, let's not just
preach motherhood -- let's teach people how to be good mothers. Indeed,
the report you are reading seems to be preaching applicable motherhood.
(Although the author of the report you are reading wrote in 1969 about the
risks of overly narrow optimization and the importance of diligently
applying generally accepted motherhood principles [255], the
basic problems still remain today.)
One of the most ambitious efforts currently in progress is the
U.S. Department of Defense Global Information Grid
(GIG),
which envisions a
globally interconnected completely integrated large-scale fully interoperable
end-to-end multilevel-secure networking of computer systems by
2020, and capable of providing certain measures of
guaranteed services despite malicious adversaries, unintentional human
errors, and malfunctions.
The planning and development necessary to attain
the desired requirements suggest the need for long-term vision, nonlocal
optimization, and whole-system perspectives (see Sections 7.1,
7.2, and 7.3, respectively) -- without which you
realistically cannot get there from where we are today.
The desirability of observing the principled and disciplined developments
described in this report becomes almost self-evident, but still not easy
to satisfy, especially with the desire to use extensive legacy software.
However, the Enlightened
Architecture concept noted at the end of Section 4.3 is fundamental
to the success of any environment with the ambitious goals of the GIG.
Perhaps the most important observation here is that if systems and
applications are developed without an up-front commitment to and investment in the principles discussed here, very little that is discussed
in this report is likely to be applied effectively. The commitment and
investment must be both intellectual and tangible -- in terms of people,
funding, and perseverance. Looking at the recommended approaches as an
investment is a vital notion, as opposed to merely relying on the
expenditure of money as a would-be solution. Admittedly, the long-term
arguments for up-front investment are not well understood and not well
documented in successful developments -- for example, with respect to the
positive return on investment of such efforts compared with the adverse
back-end costs of not doing it better in the first place: budget overruns,
schedule delays, inadequacy of resulting system behavior, lack of
interoperability, and lack of evolvability, to cite just a few deleterious
results.
It would seem completely self-evident that the long history of system
failures would suggest the need for some radical changes in the development
culture. For example, this report strongly advocates realistically taking
advantages of the potential benefits of up-front efforts (e.g., careful a priori establishment of requirements, architectures, and specifications).
Certainly, this is not a new message. It was a fundamental part of the
Multics development beginning in
1965 [84, 85], and it was fundamental to the
PSOS design
specifications from 1973 to 1980 [268, 269].
Nevertheless, it is a message that is still valid today, as for example in a
new series of articles in the IEEE Security & Privacy [228]
on building security into the development process, edited by Gary McGraw.
Unfortunately, the fact that this is not a new message is in part a
condemnation of our education and development processes, and in part a sign
that our marketplace is not fulfilling certain fundamental needs.
A recent global survey of software development practices (Cusumano et
al. [90]) strongly supports the wisdom and cost benefits of
up-front development. Their survey includes some rather startling
conclusions based on a sampling of software projects. For example, detailed
design specifications were reportedly used in only 32% of the U.S. projects
studied, as opposed to 100% of the projects in India. Furthermore, 100%
of the Indian projects reported doing design reviews, and all but one of
those projects did code reviews; this was characteristically untrue of the
U.S. projects studied. Although it is unwise to draw sweeping
generalizations from this survey, the issues considered and the results
drawn therefrom are extremely relevant to our report. Besides, if the
effectiveness of resulting foreign software developments is actually
significantly better, then the rush to outsource software development might
in some cases also be motivated by quality considerations, not just cost
savings. This has very significant long-term implications -- for the
U.S. and for other nations with rapidly developing technology bases.
Unfortunately, up-front effort is not enough by itself. Perhaps equally
important is a system-oriented perspective that considers all of the pieces
and their interactions in the large, with respect to the necessary
requirements. Such a perspective should include (for example) the ability
to have an overall conceptual understanding of all relevant requirements and
how they relate to particular operational needs; an overall view of the
entire development process and how it demands the ability to carry out
cyclical iterations; and an overall view of any particular system-network
architecture as representing a single virtual system in the large as well as
being a composition of systems with predictable properties relating to their
interconnections and interoperability. The challenge from the perspective
of composability is then to understand the big picture as well as to
understand the components and their interrelationships, and to be able to
reason from the small to the large -- and from the large to the small.
Purely top-down developments are typically limited by inadequate
anticipation of the underlying mechanisms, and purely bottom-up developments
are typically limited by inadequate anticipation of the big picture.
There are many would-be short-term "solutions" that emerge in part from
the lack of big-picture understanding, but that then take on lives of their
own. For example, trusted guards, firewalls, virus checkers, spam filters,
and cryptography all have benefits, but also have many problems (some
intrinsic, some operational).
The quote at the beginning of this section is symptomatic of the problem
that the best cryptography in the world can still be compromised if not
properly embedded and properly used. This entire section can be summed up
by polymorphizing the quote at the beginning of this section, as symptomatic
of the risks of overly simplistic solutions: for many different
instantiations of X, If you believe that X is the answer to your
problems, then you don't understand X and you don't understand your
problems.
On the other hand, total systems awareness is a very rare phenomenon. It is
not taught in most universities. Perhaps systems are considered to be
lacking in theory, or uninteresting, or unwieldy, or dirty, or too difficult
to teach, or perhaps just frustrating, or a combination of all of these and
other excuses. As a result, system-oriented perspectives are slow to find
their way into practice.
As a historical note, Edsger Dijkstra provides
an example of a true pioneer who apparently lost interest in trying to deal
with the big picture. In his earlier years, he was particularly concerned
with the scalability of his elegant analytic methods to larger systems (for
example, his work on structured programming [107],
CSP [105], and the THE system [106] noted in
previous chapters). Perhaps out of frustration that practitioners were not
heeding his advice, he later became increasingly focused only on very
elegant small examples (cf. [121]), trying to teach his
beliefs from those examples in the hopes that others would try to
extrapolate them to systems in the large. The essential thrust of this
report is that systems in the large can be effectively developed and
analyzed as compositions of smaller components, but only if you can see and
comprehend the big picture.
One of the frequently heard arguments against spending more effort up front
and optimizing over a longer term relates to situations in which there has
never previously been an attack of such a magnitude that the need for
extraordinary actions became totally obvious. This is the mentality that
suggests that because we have not had a Pearl-Harbor or 9/11 equivalent in
cybersecurity, there is no real urgency to take proactive action against
hypothetical possibilities. This mentality is compounded by the use of
statistical arguments that attempt to demonstrate that everything is just
fine. Unfortunately, events that seemingly might occur with very low
probabilities but with extremely serious consequences tend to be very
difficult to comprehend. In such cases, quantitative risk assessments are
particularly riskful, because of the uncertainty of the assumptions. For
example, see Neumann's Computer-Related Risks
book [260]. The entire book suggests a much greater need
for realistic risk assessments and corresponding proactive actions. More
specifically, pages 255-257 of the book provide a discussion of the risks
of risk analysis (contributed by Robert N. Charette), and pages 257-259
consider the importance of considering risks in the large.
Returning once again to the Einstein quote
at the beginning of
Section 2.1, we note that
the common tendency to oversimplify complex entities is perverse and
usually counterproductive.
The ability to clearly represent complexity in a simpler way
is an art form, and usually very instructive -- but difficult
to achieve.
This section considers perceived and real difficulties with trying to use
the concepts of the previous chapters, relating to requirements,
architectures, and implementation. It suggests how the development process
can be made much more effective, and how it can give the appearance of local
simplicity while dealing with complexity more globally.
Well-understood and well-defined requirements are absolutely vital to any
system development, and most particularly to those systems that must satisfy
critical requirements such as security, reliability, safety, and
survivability. They are also useful in evaluating the effects of would-be
subsequent changes. Unfortunately, such requirements are seldom precisely
defined a priori. Even more difficult are somewhat more subtle
requirements, such as pervasive ease of use, interoperability,
maintainability, and long-term evolvability -- of the requirements as well as of the architectures and
implementations. Jim Horning suggests that evolvability is to requirements as specification
is to code, although at a higher level of abstraction. That is, if you
don't delineate the space of possible future changes to requirements, you
are likely to wind up with requirements that are as difficult to evolve as
is code for which there are no specifications or specifications that do not
anticipate change. However, well-understood and well-defined requirements
are not common.
Even less common are explicit requirements for required software engineering
sophistication, operational constraints, and specified assurance (such as
the EAL levels of the Common Criteria).
Requirements engineering should play a more
prominent role in computer system development, which would necessarily
entail adding discipline to both the process of defining requirements and to
the statement of requirements themselves.
For example, the archives of the Risks Forum are littered with cases
attributable to requirements problems that propagated throughout the
development process into operational use. (See particularly the items
denoted by the descriptor r in the Illustrative Risks compendium
index [267]. Noteworthy examples include the Vincennes
Aegis system shootdown of an Iranian Airbus, the Patriot missile clock-drift
problem, and even the Yorktown Aegis missile cruiser dead in the water.
See Section 6.9 for these and other cases.)
Many lessons need to be learned from those cases. It is generally agreed
that efforts to define and systematically enforce meaningful requirements
early in system developments can have enormous practical payoffs; however,
there seems to be enormous resistance to carrying that out in practice,
because it increases up-front costs and requires greater understanding (as
noted in Section 7.1).
The material in the foregoing chapters is basic to sound system architectures
for trustworthy systems and their implementation. As a reminder of what
we have thus far,
Section 2.6 summarizes some of the primary caveats that
must be observed in applying the principles of Chapter 2;
these principles are not absolute, and must be used intelligently.
Chapter 3 discusses constraints on subsystems and other
components that can enhance composability, with Section 3.2
outlining obstacles that must be avoided.
Chapter 4 considers further directions that can contribute
to principled composable architectures.
Chapter 5 stresses the importance of interface design.
Chapter 6 discusses techniques for achieving higher assurance.
In this section we consider how to apply the approaches of the previous
chapters into architectures that are inherently more likely to lead to
trustworthy implementations. For example, realistic architectures should
proactively avoid many problems such as the following:
Topics whose consideration might make critical system developments more
realistic include the following.
From a practical point of view, it may seem unrealistic to
expect rigorous specifications -- especially formal specifications -- to
be used in developments that are not considered to have critical
requirements. However, even the informal English-language specification
documents that were required in the Multics development (for example) had a
very significant effect on the security, reliability, modular
interoperability, and maintainability of the software -- and indeed
on the discipline of the implementation.
Many security flaws that typically arise in design and/or implementation
(such as those enumerated in Section 2.4) lend themselves to
exploitation. Indeed, each of the enumerated problem areas tends to
represent opportunities for design flaws and for implementation bugs (in
hardware just as well as software). Buffer overflows represent just one
very common example. For some additional background on buffer overflows and
how to prevent them, see the discussion in the Risks Forum, volume 21,
numbers 83 through 86, culminating in Earl Boebert's provocative contributions in volume 21, numbers 87 and 89.
Boebert refers to Richard Kain's 1988 book
on software and hardware architecture [185], which provides
considerable discussion of unconventional system architectures for security
-- including the need for unconventional hardware platforms. Furthermore,
the Multics operating system architecture constructively avoided most stack
buffer overflows. The
combination of hardware, the PL/I language subset, the language runtime
environment, the stack discipline (nonexecutable stack frames; also, the
stack grew to higher addresses, making the overflow of a buffer unlikely to
clobber the return address in the stack frame), and good software
engineering discipline helped prevent most buffer overflows in Multics.
(See Tom Van Vleck's comments in the Risks Forum, volume 23, issues 20 and a
follow-up in issue 22.) For other background, see also Bass [31]
for architecture generally, Gong [145, 146] for the Java JDK
architecture intended to provide secure virtual machines, and
Neumann [264] for survivable architectures.
Many implementation issues create serious problems. Establishing sensible
policies and sound configurations is an enormously complicated task, and the
consequences to security, reliability, functionality, and trustworthiness
generally are very difficult to predict. We need better abstractions to
control and monitor these policies and configurations, and to understand them
better.
Various popular myths need to be considered and debunked -- for example,
the fantasy that a perfect programming language would be able to prevent
security bugs. Another myth is that precompile and postcompile tools can
detect and remove many classes of bugs. In general, for nontrivial
programming languages, both of these myths can be true in principle only for
certain types of bugs, although even the best programmers still seem to be
able to write buggy code.
Principled composable architectures can contribute not only to trustworthy
implementation (as noted at the beginning of Section 7.4.3), but also
to sound operational practice -- particularly if considerable attention is
paid to system interface design that addresses the needs of system
administrators. However, for existing (e.g., legacy) systems that have
resulted from inadequate attention to human operational interfaces, other
approaches must be taken -- even if only better education and training.
Operational issues represent enormous potential problems, such as
considerable operational costs, shortages of readily available in-house
staff, risks of excessive complexity, poorly defined human interfaces, and
typically systems that require an ever-present demand for system
administrators -- especially in crisis situations. This last concern may
be escalated by increasing pressures to oursource operations and
administration personnel.
One concept that in principle would greatly improve operational practice and
operational assurance would be the notion of automatic
recovery, mentioned in
Section 4.2. The ability to recover from most deleterious
state-altering events (whether malicious or accidental) without human
intervention would be an enormous benefit. Autorecovery requirements
have serious implications for system
architectures, and would be greatly simplified by the principle of
minimizing the need for trustworthiness. Assurance associated with that
recovery (e.g., based on the soundness of the architecture itself and on
real-time revalidation of the soundness of the system state) would also be
valuable. However, making autonomic systems realistic will require
further research and extremely disciplined development.
Mass-market software as delivered in the past and in the present tends to
have many flaws that can compromise the trustworthiness of systems,
networks, and applications. As a result, system purveyors and system
administrators are heavily dependent on patch management -- that is,
developers must continually identify vulnerabilities, create would-be fixes,
test them, make those fixes available, and hope that further flaws will not
be created thereby. Operational installations must install the patches in
the correct order in a timely fashion, at the risk of breaking or otherwise
affecting existing applications.
Patch management is an example of a slippery-slope rathole. Systems should
be designed much more carefully and implemented with much greater care and
attention to good software engineering practice, easily usable operational
and system administration interfaces, and composable upgrade procedures that
are integral to the architecture, applications, and user software. Better
design and implementation must also be coupled with comprehensive testing,
evaluations, and other analyses such as advanced tools to detect serious
vulnerabilities; developers should do this before release, rather than
simply foisting buggy software on unsuspecting customers who become the Beta
testers. However, in the commercial rush to marketplace, essentially none
of this happens. Thus, pouring palliative efforts into improving patch
management completely misses the much more fundamental point that patches
should ideally be minimized through better design and implementation, so
that they become rare exceptions rather than frequent necessities. Putting
the burden on patch management is somewhat akin to believing in better
management of fixed reusable passwords -- that merely increasing password
length, including nonalphabetic characters, and changing passwords often
will improve authentication; such simplistic approaches totally ignore the
risks of fixed passwords that transit networks unencrypted or are otherwise
exposed and the risks of exploitable vulnerabilities in systems that allow
the password system to be completely bypassed. A better solution for
authentication is of course not to rely on conventional fixed
passwords as the primary means of authentication, and instead to move to
trustworthy systems and trustworthy networking, cryptographically protected
tokens or smartcards within the context of trustworthy systems, combined
with layered protection, separation of privileges, and judicious observance
of the applicable principles noted in Chapter 2, plus a much
greater commitment to better system security and reliability throughout
development and operation.
Although it may be necessary evil, dependence on patch management as a major
component of security defenses seems too much like micromanaging the
rearranging of deckchairs on the Titanic. The barn door is already wide
open, and the barn is empty of more fundamental ideas.
See [375] for another view of patch management.
Clearly alternative approaches are needed that simplify system
administration and minimize the downsides of patch management. Perhaps we
need not just better software engineering in general, but also a methodology
that encompasses "design for patching" when "design for avoiding
patches" fails -- just as hardware vendors have moved to "design for
test" and "design for verification" methodologies.
Design for patching should encompass system architecture (e.g., modularity
and encapsulation) as well as operational characteristics (e.g., bilateral
trusted paths for
upgrades). Inherently sound architectures can minimize the
need for patching -- as for example in carefully designed autonomic systems
and fault-tolerant systems that anticipate the need for rollback, hot
standbys, or other alternative measures in response to detected anomalies.
Greater attention to the human interfaces (see Chapter 5 and
the next section) is also essential.
According to some reports, patch management is on the order of a $5-billion
dollar problem per year. It is probably responsible for much more than that
if hidden costs are included, such as down-time and lost work resulting from
failed patches. Jim Horning notes that all
automobile drivers once had to know how to patch an inner tube (or at least
how to change a tire to drive someplace and get one patched). Today inner
tubes are gone, and we go years between flat tires. That seems preferable
to a highly efficient patching system.
Returning to the notion of perspicuous interfaces considered in
Chapter 5, this section considers some of the practical
issues relating to interface design. Given the range of material addressed
in this report, one important question that remains to be addressed is this:
Where are the biggest potential payoffs, and what priorities should be
allocated to possible future efforts, with respect to dramatically
increasing the understandability of systems and their interfaces --
especially under crisis conditions. The same question also applies to
subsystem interfaces that may be invisible to end users but vital to
application developers, integrators, and debuggers. It is important to note
that good interface design is essential not only to human users, but also
internally to systems themselves -- especially autonomic
systems.
One of the most important challenges relates to the roles that
administrators play in configuring and maintaining operating systems,
application software, networks, control systems, and so on. Even
with the hoped-for advent of autonomic systems and networks, significant
burdens will rest on admins when something fails or is under attack.
Thus, perspicuity for admins must be a high-priority concern. This
concern must be twofold: (1) System interfaces must be better designed with
admins in mind. (2) Analysis tools must greatly facilitate the critical
roles of admins. The potential payoffs for better perspicuity for
admins are enormous, in terms of reducing operational costs, increasing
speed of remediation, minimizing dependence on critical human resources,
increasing job satisfaction, and -- above all -- improving system security
and survivability.
A second challenge has to do with dealing with legacy systems that were not
designed with adequate security, reliability, robustness, and interface
perspicuity, and that therefore cannot be easily retrofitted with such
facilities. This is an unfortunate consequence of many factors, including
the inability of the marketplace to drive needed progress,
generally suboptimal software development practices, and constraints
inherent in closed-source proprietary software -- such as a desire on the
part of system developers to keep internal interfaces hidden and making it
more difficult for competitors to build compatible applications. In this
situation, much more perceptive analysis methods and tools are needed,
although those tools would be applicable to closed-source as well as
source-available software. To the extent that analysis tools can be applied
to available source code (whether proprietary or not) rather than object
code, the more effective they are likely to be.
A third challenge is that, whichever approaches are taken, they must include
criteria and techniques for measuring and evaluating their effectiveness.
This again suggests the need for better analysis methods, but in the long
run also necessitates system developments that anticipate the needs of
improved measurability of success.
Thus, our suggestions for realistic priorities are as follows, in several
dimensions: Prioritized Approaches for Achieving Greater Perspicuity
Prioritized Human Targets for Enhanced Perspicuity
Potential System Targets for Enhancing Perspicuity
The whole is significantly less than the sum of its parts. This can
be true whenever there is inadequate attention devoted to architecture,
interface design, principled development, assurance, or foresight -- for
example, resulting in serious integration difficulties and the lack of
interoperability, delays, cost overruns, design flaws, implementation bugs,
overly complex operations, deadly embraces, race conditions, hazards,
inadequate security and reliability, and so on. In this case, emergent
properties tend to be negative, providing evidence of untrustworthiness.
This section reassesses the approaches of Chapter 6
with respect to the practical thrust of the present chapter.
In particular,
Section 7.7.1 considers assurance related to the establishment
and analysis of requirements.
Section 7.7.2 reconsiders assurance related to system development,
for example, potentially fruitful techniques for
assuring the consistency of software and hardware with their respective
specifications (Section 6.5).
Section 7.8 then considers the practicality
of assurance techniques applied to operational practice.
It is a common misconception that establishing requirements carefully is
generally not worth the effort. Nevertheless, further evidence would be
useful in dispelling that myth, especially concerning formal requirements
and formal analyses thereof, and particularly in cases of critical systems
and outsourcing/offshoring of software development (see
Section 7.10.2).
From a practical point of view, it is immediately obvious that the
disciplined use of formal or semiformal analysis methods and supporting
tools would have a significant up-front effect that would greatly reduce the
subsequent costs of software development, debugging, integration, and
continual upgrades. There is a slowly growing literature of such
approaches, although there are still relatively few demonstrated successes.
One example is provided by the use of formal methods for NASA Space Shuttle
requirements [109] -- where the mission is critical and
the implications of failure are considerable.
Existing analysis techniques and supporting tools for system architectures
and for software and hardware implementations tend to be fairly narrowly
focused on specific attributes, certain types of design flaws, and specific
classes of source-code and object-code bugs (the U.C. Berkeley MOPS
analyzer, purify, trace tools, debuggers), security vulnerabilities
(e.g., attack graph analysis using symbolic model
checking [180, 352]), and hardware mask layout
properties. Most of these approaches are limited to static analysis --
although they may sometimes be helpful in understanding dynamic problems.
One of the most important problems raised in this report is the ability to
determine analytically the extent to which systems, modules, and other
components can be composed -- that is, identifying all possible deleterious
interactions. As discussed in Section 6.2, providing a set of
analytic tools to support the practical analysis of the composability of
requirements, specifications, protocols, and subsystems would be extremely
valuable. For example, analysis should
consider the interference effects of improper compositions, or else
demonstrate the invariance of basic properties and the appropriateness of
emergent properties under composition.
Static checking tools along the lines of lint, splint, ESC, Aspect,
Alloy [173] (and, in general, what are referred to as
"80/20 verifiers") can be extremely helpful. However, their
infallibility and completeness should never be overendowed.
Although all low-hanging fruit should certainly be harvested,
what is harder to reach may have even more devastating effects.
A set of tools for the analysis of safety specifications [311]
has been sponsored by NASA Langley, and is also worth considering --
not only for safety, but for its potential application to other elements
of trustworthiness.
Operational practice -- for example, system administration, routine
maintenance, and long-term system evolution -- represents an area in which
assurance techniques have not been used much in the past. There are various
approaches that might be taken, some fairly ad hoc, and some formally based.
In addition, there are also many system architectural concepts that can
contribute to assurance aspects of operations.
Significant effort is needed to harness existing analysis tools and to
pursue new analysis techniques and tools, to accommodate dynamic
understandability of systems in execution. For example, such effort would
be valuable in responding to anomalous real-time system behavior and to
evaluate the would-be effects of possible system changes, particularly
regarding flawed systems and complications in operation and administration.
Configuring security policies into applicable mechanisms is a particularly
important problem. To this end, Deborah Shands et al. are developing the SPiCE translation
system[350] at McAfee Research. SPiCE automatically translates
high-level access policies to configurations of low-level enforcers,
Certification is generally considered as the process of applying a kind
of blessing to a system or application, implying some kind of seal of
approval. The meaning of that certification varies wildly from one
environment to another, as noted in the following two paragraphs (which
are adapted from [262], along with the definitions
noted above).
There is a fundamental difference between certification (which is intended
to give you the feeling that someone or something is doing the right
thing) and trustworthiness (for which you would need to have some well-founded reasons for trusting that someone or something is doing the
right thing -- always interpreted with respect to appropriate definitions
of what is right). Certification is typically nowhere near enough; an
estimate of trustworthiness is somewhat closer to what is needed, although
ideal trustworthiness is generally unattainable in the large -- that is,
with respect to the entire system in operation. Formal demonstrations that
something is consistent with expectations are potentially much more valuable
than loosely based certification. (Recall the discussion of consistency
versus correctness in Section 6.2.) So, a challenge confronting
us here is to endow the process and the meaning of certification -- of
systems and possibly of people (see below) -- with a greater sense of rigor
and credibility.
Numerous system failures (e.g., [260]) demonstrate the
vital importance of people. Many cases are clearly attributable to human
shortsightedness, incompetence, ignorance, carelessness, or other foibles.
Ironically, accidents resulting from badly designed human interfaces are
often blamed on operators (e.g., pilots, system administrators, and users)
rather than developers. Unfortunately, software engineering as
practiced in much of the world is merely a buzzword rather than an
engineering profession [288, 289]. This is
particularly painful with respect to systems with life-critical,
mission-critical, or otherwise stringent requirements. Consequently, some
of the alternatives discussed in this report deserve extensive exploration,
such as these:
Software certification is a slippery slope that can raise false hopes.
However, its usefulness can be greatly enhanced somewhat if all of the
following are present: (a) well-defined detailed requirements; (b)
architectures that anticipate the full set of requirements and that can be
predictably composed out of
well-conceived subsystems; (c) highly principled development techniques,
including good software engineering disciplines, serious observance of
important principles such as layered abstraction with encapsulation, least
privilege, defensive analytic tools, and so on;
(d) judiciously applied assurance
measures, pervasively invoked throughout development and evolution,
including formal methods where applicable and effective; (e) meaningful
evaluations such as consistency between specifications and requirements,
consistency between software and specifications, and dynamic operational
sanity checks. In this way, certification might have some real value.
However, in practice, certification is far short of implying
trustworthiness.
One horrible example of the inadequacy of certification in practice is
provided by the currently marketed fully electronic voting machines without
a voter-verified audit trail (for example, a paper record of the ballot
choices, which remains within the system and is not kept by the voter); all
of today's all-electronic paperless voting machines lack any meaningful
trustworthiness with respect to system integrity, accountability,
auditability, or assurance that your vote goes in correctly. These
proprietary closed-source systems are certified against very weak voluntary
criteria by a closed process that is funded by the developers. In addition,
recent disclosures demonstrate that software used in the 2002 and 2003
elections was not the software that was certified; in many cases,
potentially significant changes were introduced subsequent to
certification.
However, simplistic strategies for institutional certification (such as the
Capability Maturity Model) and personnel certification (such as the
Certified Information Systems Security Professional -- CISSP --
examination and personal designation) are also slippery slopes. Reviews by
Rob Slade of numerous books on the limitations of the CISSP exam can be
found in the Risks Forum
athttp://www.risks.org; for example, see
volume 21, issues 79 and 90, and volume 22, issues 08, 10, 36, 49, and 57
(the last of these covering four different books!). (Note: The Risks Forum
moderator stopped running Slade's reviews on this subject after all of the
above-mentioned books seemed to have similar flaws reflecting difficulties
inherent in the CISSP process itself; there are many other books on CISSP
than these.)
Although there is some merit in raising the bar, unmitigated belief in these
simplistic approaches is likely to induce a false sense of security --
particularly in the absence of principled development and operation. In the
case of the CMM, the highest-rated institutions can still develop very bad
systems. In the case of the CISSP, the most experienced programmers can
write bad code, and sometimes the least experienced programmers can write
good code.
Some of the biggest practical problems relate to the role of Corporate
Information Officers (CIOs) in corporate institutions, and their equivalents
in government institutions. (Note: There is still no Federal CIO for the
U.S. Government, which is increasingly causing certain problems.)
CIOs are generally business driven, wherein cost is often considered to
represent the primary, secondary, and tertiary motivating forces. The
advice of Corporate Technical Officers (CTOs) is often considered as close
to irrelevant. The business issues generally motivate everything, and may
override sound technological arguments. This has some unfortunate effects
on the development and procurement of trustworthy systems and networks,
which tend to be reinforced by short-sighted optimation and bottom-up
implementations.
Outsourcing is a real double-edged sword, with many benefits and risks, and
with many problems that result from trying to optimize costs and
productivity -- both in the short term and in the long term (e.g., as
suggested by the last paragraph of Section 7.2). It is seemingly
particularly cost-advantageous where cheaper labor can be effectively
employed without adverse consequences -- for example, for software
development, hardware fabrication, operations and administration,
maintenance, documentation, business process work, and other labor-intensive
services (such as call centers). However, there are many hidden costs;
indeed, several recent studies suggest that the case for overall cost
savings is much less clear-cut. Furthermore, other considerations may also
be important, such as the ability to innovate compatibly, integrated
workforce development, planning, coordination, intellectual property,
security, and privacy. These tend to be less tangible and less easily
represented in cost metrics.
From the perspective of a would-be controlling enterprise, we consider two
orthogonal dimensions that relate to the extent of outsourcing and
offshoring. Outsourcing typically involves contracts, subcontracts,
or other forms of agreements for work performed by entities outside of the
immediate controlling enterprise. Offshoring involves some degree of work
performed by nondomestic organizational entities such as foreign
subsidiaries, foreign companies, or foreign individuals. Thus, we can have
widely varying degrees of both outsourcing and offshoring, with a wide range
of hybrid strategies. The situation is simplified here by considering four
basic cases:
Table 4 outlines some of the issues that arise in
each of these four cases.
The left half of the table represents In-house top-level
control (I), and
the right half represents some degree of Outsourcing (O).
The upper half of the table represents wholly
Domestic efforts (D), and
the lower half involves some degree of Foreign offshoring (F).
The pros and cons summarized in the table are intended to be suggestive of
concerns that should be raised before engaging in outsourcing and/or
offshoring, rather than being dichotomous black-and-white alternatives.
Indeed, the pros and cons for all quadrants other than the upper left tend
to vary depending on the degree of outsourcing and/or offshoring, as well
as such factors as relative physical locations, ease of communications,
language barriers, standard-of-living differentials, job marketplaces,
government regulation, and so on. Even the upper-left quadrant has
variations that depend on management strength, centralization versus
distributed control, employee abilities, and so on.
Several conclusions are suggested by the table.
In the same way in which the quote at the beginning of Section 7.3
can be parameterized to apply to many narrow would-be "solutions" for
complex problems, the above polymorphic Pandoran multiply-mixed metaphor
can be variously applied to cryptography, export controls,
viruses, spam, terrorism, outsourcing, and many other issues.
Over the past forty years, many important research and development results
have been specifically aimed at achieving trustworthy systems and networks.
However, from the perspective of applications and enterprises in need of
high trustworthiness, those results have mostly not been finding their way
into commercial developments. Reasons given variously include increased
development costs, longer delays in development, extreme complexity of
adding significant levels of assurance, lack of customer interest, and so
on. Perhaps even more important are factors such as the inadequacy of
educational curricula and training programs that minimize or ignore
altogether such issues as highly principled system engineering and system
development, software engineering, system architecture, security,
reliability, safety, survivability, formal methods, and so on. A lack of
knowledge and experience among educators fosters a similar lack in their
students, and is particularly riskful when also found among managers,
contracting agents, legislators, and system developers. Perhaps the most
important challenge raised by this report is finding ways of bringing the
concepts discussed here realistically and practically into mainstream
developments.
A strong sense of history is not inconsequential, particularly in
understanding how badly computer software development has slid down a
slippery slope away from perspicuity. Much of the work done in the 1960s to
1980s still has great relevance today, although that work is largely ignored
by commercial developments and by quite a few contemporary researchers.
Hence, we conclude that awareness of much of the work done in the 1960s to
1980s related to trustworthiness is potentially useful today.
Voltaire's famous quotation (see Dictionaire
Philosophique: Art Dramatique), "Le mieux est l'ennemi du bien." is
customarily translated as "The best is the enemy of the good."
(However, the French language uses mieux for both of the
corresponding English words, best and better;
thus, in a choice between just two alternatives, a correct English translation
might be "The better is the enemy of the good.")
This quotation is often popularly cited as a justification for avoiding
attempts to create trustworthy systems. However, that reasoning seems to
represent another nasty slippery slope. Whenever what is accepted as merely good is in reality not good enough, the situation may be
untenable. Realistically speaking, the best we can do is seldom ever close
to the theoretical best. Perfect security and perfect reliability are
inherently unattainable in the real world, although they can occasionally be
postulated in the abstract under very tightly constrained environments in
which all possible threats can be completely enumerated and prevented (which
is almost always unrealistic), or else simply assumed out of existence (as
in supposedly perfect cryptographic solutions that are implemented on top of
an unsecure operating system, through which the integrity of those solutions
can be completely compromised from below). Thus, we come full circle back
to the definition of trustworthiness in the abstract at the beginning of
this report. In critical applications, the generally accepted "good" may
well be nowhere good enough, and "better" is certainly not the enemy. In
this case of short-sighted thinking, we quote Walt Kelley's Pogo: "We have
met the enemy, and he is us."
The need for Information Assurance in the Global Information Grid
(GIG) (noted
at the end of Section 7.1) -- for example, see [52]
-- provides a fascinating example of an environment with a very large
collection of critical needs, and extremely difficult challenges
for the long-term development of an enormous
extensively interoperable trustworthy
network environment that far transcends today's Internet.
Considerable effort remains to flesh
out the GIG requirements and architectural concepts. The principled and
disciplined approach of this report would seem to be highly relevant to the
GIG effort.
In this chapter, we consider some potentially important areas for future
research, development, and system operation, with direct relevance to
CHATS-like efforts, to DoD more broadly, and to various information-system
communities at large. The recommendations concern the critical needs for
high-assurance trustworthy systems, networks, and distributed application
environments that can be substantially more secure, more reliable, and more
survivable than those that are commercially available today or that are
likely to become available in the foreseeable future (given the present
trajectories).
One of the biggest challenges results from the reality that the best R&D
efforts have been very slow to find their way into commercial practice and
into production systems. Unfortunately, corporate demands for short-term
profits seem to have stifled progress in trustworthiness, in favor of
rush-to-market featuritis. Furthermore, government incentives for
commercial development have been of limited help, although research funding
has been a very important contributor to the potential state of the art. We
need to find ways to improve that unfortunate history.
This section provides a collection of broad recommendations for future R&D
applicable to the development, operation, maintenance, and evolution of
trustworthy systems and networks, relating to composability, assurance,
system architectures, software engineering practice, and metrics. It also
addresses the use of formal methods applicable to system and network
architectures intended to satisfy critical security requirements. These
recommendations take an overall system approach, and typically have both
short-term and long-term manifestations. Each recommendation would benefit
considerably from observance of the previous chapters.
Hardware architectural
issues are also relevant. Although existing
processor architectures do include some mechanisms for increased
system security (e.g., more than two processor states, and coprocessors),
those facilities
are seldom used in mass-market operating systems. It seems obvious
that those operating systems are not demanding increasing hardware
mechanisms for security. However, that does not mean that research
in hardware should not be pursued. Indeed, there are many hardware
directions that could be useful, such as domain support,
type-based addressing, certain aspects of capability-based
addressing, dynamic checking, greater error detection and correction,
parallelism and pipelining that do not add new security vulnerabilities,
and
special-purpose coprocessors (e.g., for cryptography, multilevel security,
type-based addressing as in the Secure Computing Corporation LOCK
architecture, and highly trustworthy servers).
The issues discussed in Section 6.2 and the general
recommendations of Section 8.2 suggest various opportunities
for the future. Each typically has both short-term and long-term
implications, although some require greater vision and farsight than others.
The typical myopia of short-term efforts almost always seems to hinder
long-term evolvability, as discussed in Section 7.1. Incremental
attempts to make relatively small changes to systems that are already poorly
designed are less likely to converge acceptably in the long term.
We suggest in this report that considerable gains can be achieved by taking
a fresh view of secure-system architectures, while also applying formal
methods selectively -- particularly up front, where the potential payoffs
are thought to be greatest. We also suggest that the choices of
methodologies, formal methods, and languages are important, but somewhat
less so than the architectures and the emphasis on up-front uses of common
sense, knowledge, experience, and even formal methods, if appropriate.
However, there is still much worthwhile long-term research to be done,
particularly where it can reduce the risks of system developments
(which include cost overruns, schedule slippages, and in some cases
total project failure) and increase the overall chances of success.
An ambitious system might involve a stem-to-stern specification and analysis
of a distributed system, encompassing all of the necessary assumptions on
the infrastructure and end-user systems, including all relevant properties
of the operating systems, servers, crypto encapsulations, and people
involved in operations (including people in the key-management loop and
key-escrow retrievals). However, such an effort should not be attempted all
at once; rather, it should use an incremental approach whereby the pieces
can emerge separately and then be combined. (Some readers may be annoyed at
our frequent mention of formal methods and their potential benefits. Formal
methods are clearly not for everyone. However, for certain highly critical
system developments, they can be extremely effective when used wisely.)
Here are examples of a few potential problem areas and would-be approaches
for which specific R&D efforts might be particularly valuable.
In those efforts, an appropriate mix of experienced is recommended --
such as systems, development, formal methods, and analysis tools.
Section 5.4.5 lists several gaps in existing analysis
techniques and tools. Each of those gaps suggests various research and
development areas in which new techniques and significant enhancements of
existing techniques could advantageously be pursued, developed, and explored
experimentally, with the goal of achieving analysis aids that can
significantly improve the understandability of interfaces and system
behavior.
Fundamentally, a combination of techniques is essential, encompassing better
system architectures, better use of good software engineering practice,
better choices of programming languages, better analysis techniques for
identifying deficient perspicuity, a willingness to iterate through the
development cycle to improve perspicuity, and greater discipline throughout
development and operation. Here are a few specific suggestions.
The recommendations of the previous sections focus primarily on
research and development with potential impact on the development,
operation, and maintenance of trustworthy systems and networks.
Some other issues with less R&D content could also be extremely effective.
The unfortunate lack of a more ubiquitous systems perspective in educational
curricula represents a fundamental problem in education and training
at many universities. Undergraduate and graduate computer science and
computer engineering programs desperately need to have requirements
engineering, system and network architecture, good software engineering
practices, security, reliability, survivability, and other related concepts
pervasively integrated into course curricula.
Computer-science curricula are for the most part sorely out of touch with
the needs of developers of critical systems and complex applications.
Programming and formal methods are generally taught in the small, which
implies that students tend to develop very little system sense. Good
software engineering (as opposed to overly simplistic panaceas) is rarely
emphasized -- especially from any rigorous basis -- and seems to be
considered more or less irrelevant in favor of a predilection toward
programming in the small. (There are of course some exceptions.) Security,
reliability, survivability, human safety, and other critical-system issues
seem to be widely underrepresented. Unfortunately, the practical needs of
system developers seem to be the tail trying to wag the dog. Our
universities must embody more diversities (or even multiversities), teaching
much more than just C, Unix, Windows, HTML, and XML. The situation in
industry is generally not much better than in universities, the result being
that complex systems and networks are often poorly conceived and poorly
developed by people with steadily narrowing rather than broadening
experiences. A greater appreciation of the need for system perspectives
should permeate education at all levels.
All in all, the existence of systems and networks that are inherently more
trustworthy -- through sound architectures, better development practice, and
other approaches discussed in this report -- would greatly simplify the
vicissitudes of system operation and administration. By reducing the
labor-intensive efforts required today, we could thereby greatly improve the
overall trustworthiness of our operational systems and networks.
A very useful recent assessment of future research
directions [339] has been compiled for DARPA by Fred Schneider
on behalf of Jay Lala,
as a set of nicely annotated slides.
It provides a complementary view to that presented here,
although there are (not surprisingly) many areas of overlap.
In particular, it outlines several approaches to robustness:
runtime diversity (as opposed to computational monocultures),
scalable redundancy (especially asynchronous),
self-stabilization,
and natural inherent robustness (as is found in various
biological metaphors).
This report addresses the main elements of the DARPA CHATS program --
composable high-assurance trustworthy systems -- with emphasis on providing
a fundamental basis for new and ongoing developments having stringent
requirements for trustworthiness. We believe that significant benefits can
result by emphasizing the importance of the judicious use of principles, the
fundamental need for inherently composable architectures as the basis for
development, and the underlying need for a highly principled development
process. We believe that principled development can also contribute to
improved operation, maintenance, and long-term evolution. However, these
benefits depend largely on the education, training, and experience of its
practitioners, and on a continuing flow of relevant research and development
that is suitably motivated by well-defined and realistic requirements.
Chapter 8 summarizes some of the potentially far-reaching areas
for future R&D, at a relatively high layer of abstraction. Of these
recommendations, the most important are perhaps the following.
There are many risks that need to be considered.
Some risks are intrinsic in the development process,
while others arise during operation and administration.
Some relate to technology, whereas many others arise as a result
of human action or inaction, and even environmental causes in some cases.
Some involve risks of systems that fail to do what they are expected to
do, whereas others involve risks that arise because an entirely
unexpected behavior has occurred that transcends the normal expectations.
The Bernstein book quoted above is slanted largely toward a perspective of
financial risk management, but an understanding of the nearly
millennium-long historical evolution that it presents is also quite
appropriate in the context of trustworthy systems and networks. Indeed, that
quote echoes our view of the importance of carefully stated
comprehensive requirements, sound architectures, principled developments,
and disciplined operations as strong approaches to avoiding risks that can
be avoided, and to better managing those that cannot.
Neumann's book, Computer-Related Risks [260],
provides a complementary view of the origins of those risks and some
constructive ways on how to combat them. Various articles in the ACM Risks
Forum, the IEEE Spectrum, and the Communications of the ACM
monthly Inside Risks columns have documented selected failures and a few
successes. However, Henry Petroski has often
remarked that we seldom learn much from what appear to be successes, and
that we have a better opportunity to learn from our mistakes -- if we are
willing to do so. This report attempts to do exactly that -- learn from
past mistakes and dig more deeply into approaches that can reduce the risks
related to trustworthiness in critical systems and networks.
There are many lessons to be learned from our past attempts to
confront the obstacles to developing and consistently operating
systems with stringent requirements for trustworthiness. This
report is yet another step in that direction, in the hopes
that it is time for constructive action.
We began Chapter 1 of this report quoting Ovid:
We began Chapter 4 on principled architectures quoting Juvenal:
We began Chapter 9 quoting Cicero:
Each of these three two-millennium-old quotes is still extremely apt today.
With regard to Ovid, the design, development, operation, and maintenance of
trustworthy systems and networks represent some incredibly difficult tasks;
however, we really must more assiduously confront those tasks, rather
urgently. Today's commercially available systems, subsystems, and
applications fall significantly short -- for example, with respect to
trustworthiness, predictable composability and facile interoperability,
assurance, ease of maintenance and operation, and long-term evolvability.
With regard to Juvenal, it is easy to pay lip service to virtuous principles
and good development methodologies, but those principles are seldom
observed seriously in today's system and network developments.
With regard to Cicero, we recognize that it is extremely challenging to
practice what we preach here. For example,
incompatibility problems with legacy
systems tend to make exceedingly
difficult the kind of cultural revolution that is likely to be necessary
to achieve trustworthy systems in the future.
However, it is our sincere hope that this
report will help consolidate some of its readers into action toward much
more disciplined and principled design and development of composable
trustworthy systems and networks, with nontrivial measures of assurance.
The alternatives of not doing so are likely to resemble something
conceptually approaching the decline and fall of the Roman Empire.
The U.S. DoD Global Information Grid (GIG), (discussed briefly at the end of
Section 7.1) is a work in progress that illustrates the
importance of far-sighted thinking, principles, predictable
composability, and a viable system-network architecture concept.
As noted earlier, the planning and development necessary to attain
the desired requirements also strongly
suggest the need for long-term vision, nonlocal
optimization, and whole-system perspectives (see Sections 7.1,
7.2, and 7.3, respectively).
Considering the very considerable
difficulties in achieving high-assurance trustworthiness over the past four
decades, and the dismal record noted in this report, the challenges of
finally overcoming the lurking hurdles in the next 16 years are indeed
daunting. As noted at the end of Section 7.1, the content
of this report is fundamental to such efforts as the GIG.
Once again, we reiterate a mantra that implicitly and explicitly runs
through this report: In attempting to deal with complex requirements and
complex operational environments, there are no easy answers. Those
who put their faith in supposedly simple solutions to complex problems are
doomed to be disappointed, and -- worse yet -- are likely to seriously
disrupt the lives of others as well. If the principles discussed here are
judiciously applied with a pervasive sense of discipline, systems and
networks can be developed, administered, and operated that are significantly
more robust and secure than today's commercial proprietary mass-market
software and large-scale custom applications. Perhaps most important,
complexity must be addressed through architectures that are composed of
well-understood components whose interactions are well understood, and also
through compositions that demonstrably do not compromise trustworthiness in
the presence of certain untrustworthy components. The approaches offered
herein are particularly relevant to developers of open-source software,
although they are equally important to mass-market developments. Those
approaches may seem to be difficult to follow, but selective application
of whatever may be appropriate for given developments should be considered.
In concluding this report on how we might develop systems and networks that
are practical and realistically more trustworthy, the author recognizes that
he has given his readers a considerable amount of seemingly repetitive
evangelizing. Although such arguments by many authors seem to have fallen
on deaf ears in the past, hope springs eternal. Besides, the risks of not
taking this report to heart are greater now than they ever have been.
I am especially grateful to Doug Maughan, who
sponsored the CHATS program and was its Program Manager for the first two
years of our project (when he was at DARPA). His vision and determination
made the CHATS program possible, and his inspiration and encouragement
have been instrumental in this project. In addition, Lee Badger (also at
DARPA) provided the impetus for the work on perspicuous interfaces on which
Chapter 5 is based.
I enormously appreciate various suggestions from members of our project
advisory group (Blaine Burnham,
Fernando Corbató (Corby),
Drew Dean,
George Dinolt,
Virgil Gligor,
Jim Horning,
Cliff Jones,
Brian Randell,
John Rushby,
Jerry Saltzer,
Sami Saydjari,
Olin Sibert,
David Wagner)
and other individuals whose comments have been very helpful directly
or indirectly in guiding the progress of this report.
In particular,
Drew Dean suggested several examples of conflicts within
and among the principles, and exposed me to Extreme Programming; we had
many ongoing discussions on composability, architecture, and other
subjects. He was instrumental in our joint work on perspicuous interfaces
(Chapter 5).
Virgil Gligor early on reminded me of several
important papers of his on composability; his contributions to the
seedling effort on
visible interfaces for Lee Badger strongly resonated with that of Drew
Dean and me.
Virgil also generously contributed the material on which Appendix B
is based.
Sami Saydjari offered numerous valuable
comments during the first year of the project.
Blaine Burnham drew
my attention to the documents on composability from the 1992 time frame noted
in the bulleted item on other past research on composition in
Section 3.4.
Jim Horning offered wonderful suggestions based on
his long experience -- including the quote from Butler Lampson
at the beginning of Section 2.3, and profound thoughts on
Chapter 7, which I gladly incorporated.
Eugene Miya offered the quote from Gordon
Bell at the beginning of Section 3.7.
Tom Van Vleck expressed various
doubts as to the efficacy of the object-oriented paradigm. Many years of
interactions with Brian Randell have resulted in our
pursuing similar research directions; his insights have influenced this
report both directly and indirectly. Some detailed comments from Fred
Cohen on an early draft of the composability chapter gave
me considerable food for thought.
I am delighted with the results of the subcontract to the University of
California at Berkeley and thankful to David Wagner for
his excellent leadership, to Hao Chen for carrying out most
of the work, and to Drew Dean for his vital
participation in that effort. The material in Appendix A
summarizes the results of the Berkeley subcontract, plus some further work
by Hao Chen conducted during the summer of 2003 at SRI and subsequently at
Berkeley. Appropriately, Chen's work uses an approach to static analysis of
would-be robust programs that itself contributes significantly to the
composability of the analysis tool components.
Formally Based Static Analysis for Detecting Flaws This appendix summarizes the results of the first-year project subcontract
to the University of California at Berkeley and some subsequent related
work, culminating in the thesis work of Hao Chen.
In this project, our goal was to help reduce the incidence of
implementation vulnerabilities in open source software by developing
an automated tool to warn when programmers violate these implicit
rules of thumb. We have done so. Our hypothesis was that new ideas in
software model checking could prove very helpful in this problem, and our
research goal was to experimentally assess the utility of our methods.
Our studies give strong evidence in favor of the benefits of this style
of automated vulnerability detection and avoidance. This project was
undeniably a high-risk, high-payoff, novel combination of theory and
practice, but we feel that it has already been very successful.
In this appendix, we give some details on our progress during the year.
We have also written research
papers [77, 78] on our work,
which provide further technical details. Here we give a high-level overview
of our results and experimental methodology.
First, we developed a general platform for automatically scanning C
source code and verifying whether it follows these rules. We developed
new techniques, based on model checking of pushdown automata, for this
problem, and we built a prototype implementation of our algorithms.
Our tool, called MOPS, supports compile-time checking of large C programs
against temporal safety properties. Please note that the latter two
sentences hide a significant amount of investment and implementation work
to achieve this goal, but as we will argue next, it has paid off nicely.
Next, we selected several examples of implicit rules of defensive coding.
Several of our rules studied proper usage of the privilege management API
in Unix, namely, the setuid()-like calls, and several rules associated
with this API. The specific guidelines selected were as follows:
This is by no means an exhaustive list. Rather, the rules listed
above were selected to be representative, of interest to open-source
practitioners, and theoretically challenging to automatically check.
Then, we devoted effort to experimentally assessing the power of our
technique. We chose several large, security-critical programs of interest
to the open source community as a target for our analysis. In several
cases, we were able to find older versions of these programs that contained
security vulnerabilities arising from violations of the above rules. The
selected programs include wu-ftpd, sendmail, and OpenSSH. We
set out to apply our tool to check the above rules to these programs.
We started by codifying the above rules in a form understandable by our
modelchecker, MOPS. We described them as finite state automata on the
traces of the program. Along the way, we discovered that we needed to solve
an unanticipated research challenge: What are the exact semantics of the
Unix setuid()-like system calls? We realized that these semantics are
complex, poorly documented, and yet critical to our effort. To reason about
the privileges an application might acquire, we must be able to predict how
these system calls will affect the application's state. We spent some time
working on this problem, because it does not seem to have been addressed
before.
We also developed new techniques for automatically
constructing a formal model of the operating system's semantics with respect
to the setuid()-like system calls. In particular, our algorithm
extracts a finite-state automaton (FSA) model of the relevant part of the
OS. This FSA enables us to answer questions like "If a process calls setuid(100) while its effective userid is root, how will this affect
its userids?" and "For a process in such-and-such a state, can seteuid(0) ever fail?".
Our new techniques, and the FSA models they produce, are useful in
several ways. First, they form one of the foundations of our tool for
static analysis of applications. Because we have an accurate model of
both the application and the operating system, we can now predict how
the application will behave when run on that operating system. Second,
they enable us to document precisely the semantics of the setuid API
on various operating systems, which we expect will help open-source
programmers as they develop new applications. Third, they enable us to
pinpoint potential portability issues: we have constructed FSA models
for Linux, Solaris, and FreeBSD, and each difference in the respective
FSAs indicates nonportable behavior of the setuid API that application
programmers should be aware of.
Our paper [78] on constructing formal models of the
operating system also documents several subtle pitfalls associated with
privilege management. We expect that this work will help developers of
open-source applications and maintainers of open-source operating systems to
improve the quality and security of their software.
With this research challenge tackled, we were now able to encode rules
(1) to (4) in a form readable by MOPS, and we used MOPS to check whether
the applications we selected follow the rules. MOPS found several
(previously known) security vulnerabilities in these programs, as follows:
In each case, MOPS ran efficiently, taking at most a minute or two to
scan the source code. Since each of these application programs is of
nontrivial size, this is a very positive result.
This experimental evidence indicates that MOPS is a powerful tool for
finding security bugs, for verifying their absence, and for ensuring
that various principles of good coding practice are observed.
We have publicly released the MOPS tool under the GPL license at Along the way, we developed several theoretical and algorithmic
techniques that may be of general interest. First, we extended known
modelchecking algorithms to allow backtracking: when the modelchecker
finds a violation of the rule, our algorithm allows finding an explicit
path where the rule is violated, to help the programmer understand where
she went wrong.
Second, we developed a compaction algorithm for speeding up
modelchecking. Our observation is that, if we focus on any one rule,
most of the program is usually irrelevant to the rule. Our compaction
algorithm prunes away irrelevant parts of the program -- our experience
is that compaction reduces the size of the program by a factor of 50x
to 500x -- and this makes modelchecking run much more efficiently.
Our compaction algorithm gives MOPS very good scalability properties.
In principle, the time complexity of pushdown modelchecking scales as
the cube of the size of the program (expressed as a pushdown automaton)
and the square of the size of the rule (expressed as a finite state
automaton). However, in practice, the running time is much better than
this would indicate, because our compaction eliminates all irrelevant
states of the program. With compaction, the running time now depends
only on the cube of the size of the relevant parts of the program,
and as argued above, this is generally a very small figure.
As a result, MOPS is expected to scale well to very large programs.
We have already shown that it runs very fast on fairly large programs
(on programs with 50,000 lines of code or so, modelchecking runs faster
than parsing). Moreover, MOPS enables programmers to verify global
properties on the entire system, even though each programmer may know
only local information about one part of the system. Thus, our approach
is very friendly to composition of large systems from smaller modules.
In summary, we have developed, implemented, and validated new techniques
for improving the quality of security-critical software. Our tool is
freely available. This points the way to improvements in security for
a broad array of open-source applications.
The relevant papers are "Setuid Demystified" [78],
by Hao Chen, David Wagner, and Drew Dean: Subsequent to the first-year subcontract,
Hao Chen continued to work on MOPS and its applications for his Berkeley
doctoral dissertation. MOPS acquired its
first external user, the Extremely Reliable Operating System (EROS) project
at Johns Hopkins University [351]. The EROS project has
already uncovered multiple, previously unknown coding errors
by using MOPS to analyze the EROS kernel. Based on user feedback,
we are working on tuning the performance of the tool. Work has focused on
some minor modifications to key data structures to reduce memory pressure on
the garbage collector (MOPS is implemented in Java). A small amount of work
produces a very large payback: our initial tests indicate a 300%-400%
speed improvement over the earlier version. This improvement has recently
been completed, and was shipped to Johns Hopkins. These results
enhance MOPS's already impressive scalability for analyzing real-world
software such as Sendmail and OpenSSH.
Hao Chen spent the summer of 2003 at SRI, funded by SRI project 11679, under
Contract N00014-02-1-0109 from the Office of Naval Research. Building on
the prior work on modeling the setuid family of system calls in Unix-like
operating systems, the above-mentioned programs were examined for security
problems relating to uid handling, concentrating on global properties of the
programs. The concentration on global properties was chosen for two
reasons: (1) Local properties can easily be checked with less sophisticated
tools. Why swat a fly with a sledgehammer? (2) Global properties, being
more difficult to check, for both humans and machines, have had poorer tool
support, so the probability of interesting discoveries is higher. The
experience gained using MOPS to check more properties of more software also
uncovered areas in which MOPS needed further improvement.
In addition to the above mentioned improvements in MOPS, Hao Chen applied
MOPS to study selected security properties of widely used open source
software. The programs studied included BIND, Sendmail, Postfix,
Apache, and OpenSSH. To demonstrate the power and utility of MOPS, these
programs were model checked for each of five properties, (a) proper dropping
of privileges, (b) secure creation of chroot jails, (c) avoidance of
file system race conditions, (d) avoiding attacks on standard error file
descriptors, and (e) secure creation of temporary files.
Hao Chen's work at SRI during the summer 2003, under the guidance of Drew
Dean, resulted in the discovery of several hitherto undetected security
problems in these programs, as well as the identification of other flaws
that had been previously discovered elsewhere. The results of this
application of MOPS to real programs are summarized
in [75].
This work provides key capabilities for progress in information assurance.
It provides a principled foundation for analyzing the behavior of programs
based on traces of system calls, or, for that matter, any functions of
interest. This approach to program analysis can directly take advantage of
research in both model checking and static analysis to become more precise
over time, something that is not directly true of ad-hoc approaches to
analyzing programs for security vulnerabilities. Future improvements to
underlying technology, in addition to more engineering improvements to MOPS,
should allow MOPS to scale from today's ability to handle 100KLOC
comfortably (substantially more than competing tools), to 1MLOC. Such
scalability will be necessary for DARPA to provide an assured future for the
network-centric warfighter. Hao Chen's doctoral thesis [74]
is now finished and available. Also,
a recent paper by Hao Chen and Jonathan
Shapiro [76] describes their experience running MOPS on
EROS. In addition,
a group of students in Professor Wagner's group ran MOPS on all 839 packages
in RedHat Linux 9 and found many security bugs and weaknesses, being
described in a new paper.
It is useful to contemplate how the software developments of the Berkeley
effort could subsequently be integrated into an anomaly and misuse detection
system such as provided by the EMERALD framework and its successor
technologies. Several different approaches are potentially of interest:
Basis for the Visibility and Control of System This appendix is based on material written by Virgil D. Gligor under DARPA
Contract number MDA 972-03-P-0012 through VDG Inc, 6009 Brookside Drive,
Chevy Chase, MD. 20815, telephone 1-301-657-1959, fax 1-301-657-9021, in
connection with Lee Badger's Visibly Controllable Computing initiative at
DARPA. Gligor's original text appeared as the appendix to an unpublished
report, "Perspicuous Interfaces", written by Peter Neumann, Drew Dean, and
Virgil Gligor, as part of a seedling study for Lee Badger; it is adapted as
an appendix to this report with the permission of Virgil Gligor, with the
explicit intent of increasing its availability to the R&D and academic
communities. The earlier work of David Parnas on module
decomposition [281] and on
module dependence [283] (e.g.,
the various forms of the uses relation) is particularly relevant
here.
The study of Visibly Controllable Computing has the goals of reducing systems
complexity and applying automated reasoning and learning techniques to create
systems that can not only explain their current state but also adapt to new
environments by
(1) Connecting their self-knowledge to knowledge of external-environment
entities and constraints.
(2) Warning users if new mission demands cannot be satisfied.
(3) Exploring alternative configurations and reconfiguring to fit changing
needs.
In general, by establishing the visibility of a system's structural and
correctness properties we mean the identification of a system's components and
their relationships, and the reasoning about properties like the correctness,
fault tolerance, and performance. A first step toward this goal is that of
investigating system modularity. This step is necessary if knowledge of system
structure and state need to be gained and if systems need to reconfigure
on-the-fly to satisfy changing mission requirements. Of particular interest is
the investigation of properties that help (1) reconfigure systems by module
replacement, and (2) establish causal correctness dependencies among modules
(e.g., correctness of module interface A implies correctness of module
interface B) in addition to structural visibility and reconfigurability. Of
additional interest is the investigation of the properties that help reuse
extant modules for different missions. Finally, of significant interest is the
identification of a set of simple, practical tools for establishing and
verifying system modularity.
Software systems that employ modular design, and use data abstraction and
information hiding to achieve layering [179] offer the following
advantages:
(a) Allow an incremental, divide-and-conquer approach to reasoning about
correctness and other important system properties (e.g., fault tolerance,
performance).
(b) Support replacement independence of system components based on
well-defined interfaces and uniform reference (i.e., references to
modules need not change when the modules change).
(c) Provide an intuitive packaging of system components with ease of
navigation through the system, layer by layer, module by module.
(d) Allow an incremental, divide-and-conquer approach to system
development, with many individuals per development team possible.
(e) Enable the reuse of software modules in different environments.
Note that Clark [81], and later Atkins [22], suggest
that layering may sometimes be a potentially undesirable form of system
structuring because it can lead to poor performance. Also, Nelson suggests
the use of protocol "delayering" (i.e., combining protocol layers) to
achieve an efficient remote procedure call mechanism [251]. Thus,
while layering is a generally useful technique for system structuring, the
extent of system layering depends on specific criteria, such as correctness,
fault tolerance, and performance. Lampson [199] argues that the
reuse of software modules is and will remain an unrealistic goal, in
practice.
Early uses of layered abstraction include
Multics [91, 92, 277] (with rings of
protection, layering of system survivability and recovery, and directory
hierarchies), Dijkstra's THE system [106] (with layers of object
locking), and SRI's Provably Secure Operating
System [120, 268, 269]. The PSOS hardware-software
architecture provided numerous layers of abstraction for different types of
objects, and distinguished between objects and their type managers. The
architecture explicitly contradicts the above-mentioned Clark and Atkins
claim that layering inherently leads to poor performance. For example, the
PSOS layering enabled user-process operations (layer 12) to execute as
single capability hardware instructions (layer 0) whenever appropriate
dynamic linkage of symbolically named objects had been previously
established. (The bottom 7 layers were conceived to be implemented directly
in hardware, although the hardware could also encompass all or part of
higher layers as well.) Thus, repeated layers of nested interpretation are
not necessarily a consequence of layered abstraction, given a suitable
architecture. (Also, see Section 3.4 for further background on
PSOS relevant to composability.)
In this section we define the term "module," illustrate system
decomposition into modules, and present several correctness dependencies
among modules. The following key notions are required to define and
implement modular systems:
* Module and module synonyms
* Interface versus implementation
* Replacement independence
* Reusability
* "Contains" relation
* Module hierarchy
* "Uses" relation
* Correctness dependency among modules
In general, a module is a system component (part, unit, building block).
Synonyms for "module" include "system," "platform," "layer,"
"subsystem," "submodule," "service," and "(abstract) type manager."
A software module is part of a software system and has the following six
properties:
P1. Role. A module has a well-defined unique purpose or role
(responsibility, contract) that describes its effect as a relation among
inputs, outputs, and retained state.
P2. Set of Related Functions. A module contains all and only the
functions (procedures, subroutines) necessary to satisfy its role. Each
function has well-defined inputs, outputs, and effects.
P3. Well-Defined Interface. A module has an interface (external
specification) that consists of the public (visible) items that the module
exports:
* declarations of its public functions (i.e., those invocable
from outside the module) and their formal parameters;
* definitions of its exported types and exported manifest constants;
* declarations of global variables associated with the module;
* declarations of its signaled exceptions and handled exceptions;
* definition of the necessary resources and privileges;
* rules (discipline, restrictions) for using the above public
functions, types, constants, and global variables.
P4. Implementation. A module has an implementation (internal design)
that details how its interface is satisfied. It should be possible to
understand the interface (and role) of a module without understanding its
implementation.
P5. Replacement Independence. A module implementation can be replaced
without also replacing any other module implementation in the system.
P6. Reusability. A module implementation can be reused in different
software systems with little or no added code.
The role of a module describes its effects or behavior on inputs. The
effects of a module can be reflected in the values of outputs, the state of
the module, or the state of the system. With software, for example, the
state of the module or system can be represented by a set of variables
(e.g., simple variables, structures). A well-defined role should have a
short and clear description, preferably one sentence. A module should have
a simple name that reflects its role. Typically, module roles are system
unique; no two modules in a system have the same role (no duplication of
role). However, the system may intentionally duplicate modules to achieve
other system goals (e.g., performance, reliability).
For a module function to be well-defined, its inputs and outputs and effects
should be well-defined. The name of a function should reflect its purpose.
Functions should, but need not, be named. In software, for example, some
functions are expanded in-line for performance reasons; also, the
programming language may not have a way to express in-line expansion of
named functions. Continuing the software example, the inputs and outputs of
a function can be formal parameters or informal (global, environment)
parameters or (request-response) messages. It should be simple to
distinguish the public from the private functions (if any) in a module. It
is desirable, but not necessary, that the functions of a module be
nonredundant; function redundancy is undesirable but at the discretion of
the designer of the system or module. Regarding the all and only nature of
a module's functions, certain functions typically have a complementary twin:
get-set, read-write, lock-unlock, do-undo, reserve-unreserve,
allocate-deallocate, and so on.
A module interface is well-defined if it contains all and only the module
assumptions that a module user needs to know. The discipline of an
interface, if any, may explain a legal order in which to use the public
functions. For software, a well-defined interface contains declarations of
exported (public) functions, data, types, manifest constants, exceptions
raised, exceptions handled, exception handlers, and, the associated
restrictions or discipline [387]. It may be inappropriate or
impossible to capture certain programming restrictions or discipline within
programming language constructs, in which case they should be provided in
associated specification or commentary. Note that a module interface
includes variables that are global to that module.
A module implementation contains module-construction assumptions and
programming details that a module user should not have to know; for example,
order of resource use, algorithms employed.
The typical notion of replacement independence for a module is that, if the
module breaks or no longer functions correctly, then if a new module with
the same interface is available, we can replace the original module with the
new one without replacing any other modules. However, in software systems,
the notion of replacement independence has a somewhat different
meaning. While replacement independence is implied by "information
hiding," [281, 59] and information hiding disallows global
variables, replacement independence does not necessarily rule out the use of
global variables in modules provided that the global variables are
explicitly defined in the module's interface, and that the dependencies
among the modules using those global variables are known.
The typical notion of module reuse requires that a module be (1) general in
its purpose or role, so that it is useful to users other than the few people
working on the same project; (2) fully specified, so that others can use it;
(3) tested, so that general expectations of quality are met; and (4) stable,
in the sense that the module's behavior remains unchanged for the lifetime
of the user system [199]. Other related properties of module
reusability include simplicity of interface (i.e., foreign users should
understand the module's interface with little effort), and customization
(i.e., foreign users should be able to tailor module use by using
special parameters or special-purpose programming
language [199].
The decomposition of any system into modules relies on two intermodule
relations, namely, (1) the "contains" relation, and (2) the "uses" relation.
These relations imply certain correctness dependencies among modules that are
fundamental to the defining the module structure of a system.
Internally, a module may (but need not) contain component submodules. If it
is necessary or desirable to identify a set of component parts of a module
as submodules, then that set of submodules partitions (i.e., is collectively
exhaustive and mutually exclusive) the parent module. The decision as to
when to stop partitioning a system into modules is generally based on
designer discretion and economics -- when it is no longer necessary nor
desirable economically to identify and to package and to replace that
subpart. Other than this, no generally accepted criterion exists for when
to stop partitioning a software system into additional modules.
Applied system-wide, the "contains" relation yields a module hierarchy
(i.e., tree). Nodes of the tree represent modules; arc (A, B) means that
module A directly contains submodule B. The root of the tree, the whole
system, is the 0-th level of the tree. The system itself should be
considered as the 0-th level module. The (n+1)-th level consists of the
children (direct submodules) of the n-th level. Modules with no submodules
are called leaf modules. We can define a part hierarchy system as modular if
the system itself, and recursively each of its subparts that we identify as
should-be-modules, satisfies the definition of module.
In software, if a module uses another module, then the using module
imports (all or part of) the interface of the used module to obtain
needed declarations and definitions. We define the "uses" relation between
functions and modules as follows. Function A uses function B if and
only if (a) A invokes B and uses results or side effects of that invocation
and (b) there must be a correct version of B present for A to work
(run, operate) correctly. A function uses a module if and only if
it uses at least one function from that module. A module uses another
module if and only if at least one function uses that module. The
"uses" relation is well-defined. From the "uses" relation we can
draw a directed graph for a given level, where the nodes are same-level
modules, and arc (A, B) means that module A uses module B. Also,
we can draw a "uses" graph of the leaf modules.
Correctness dependencies between modules are basic to describing,
evaluating, and simplifying the connectivity of modules, and thus
basic to system restructuring and evolution. For modules P and Q, P
depends on Q, or P has a correctness dependency on Q (or "the
correctness of P depends on the correctness of Q"), if and only if
there must be a correct version of Q present for P to work correctly.
Based on earlier work by Parnas, Janson et al. [344, 179]
identify several types of correctness dependencies, which were
later combined into the following three classes by Snider and
Hays [358]: service, data, and environmental dependencies.
Service Dependency: "P invokes a service in Q and uses results or
side effects of that service. The service may be invoked through a function
call, message, or signal (e.g., a semaphore operation), or through hardware,
such as via a trap." [358]
It is important to point out that not all invocations are service
dependencies. "Note that if P transfers control or sends a message to Q
and neither expects to regain control, nor counts on observing consequences
or results from its interaction with Q, then P does not depend on Q. It is
said simply to notify Q of an event (without caring about what Q does once
it is notified)" [179]. In layered systems, certain
upcalls [81] that provide advice or notifications can be viewed as
not violating the downcall-only layering discipline if such upcalls do not
correspond to correctness dependencies.
Data Dependency: "P shares a data structure with Q and relies upon Q
to maintain the integrity of that structure." [358]
Modules that are either readers or writers of shared data depend on
other modules that are writers of the same shared data. Thus, shared
data with multiple writer modules produce mutual dependencies and
increase module connectivity.
Environmental Dependency: "P does not directly invoke Q and does not
share a data structure with Q but nevertheless depends upon Q's correct
functioning." [358]
"One example is the dependency of most of the system on the interrupt
handling subsystem. Although this is not generally called directly
from the kernel, much of the kernel depends on its correct operation
(e.g., properly restoring processor state at the end of an interrupt
service routine) in order for the kernel to fulfill its specifications.
... In practice, we did not find that environmental dependencies presented
many structural problems." [358]
Service dependencies are more desirable than data dependencies because
service dependencies are explicit; if all dependencies are service
dependencies, then the system call graph (the graph of what invokes what),
which is usually explicit and easy to compute, represents all dependencies.
By introducing information-hiding modules [281, 286, 59]
throughout a system, where system data is partitioned among modules and
accessed only via function (subroutine, procedure) calls, each data
dependency can be converted into a service dependency.
For structural analysis, it is desirable to represent correctness
dependencies between system modules with the "contains" and the "uses"
relations (and graphs). As seen above the "contains" relation among
modules is unambiguously defined by syntactic analysis. In contrast,
the "uses" relations can be defined in three possible ways: (1) as
representing all correctness dependencies; or (2) as representing only
service and data dependencies; or (3) as representing only service
dependencies.
Fundamentally, there is no difference between service
and data dependencies since both are correctness dependencies. Further,
data dependencies can (and should) be converted to service dependencies
if we drive the structure toward desirable information hiding. To
simplify system structure, we need to minimize correctness dependencies
and eliminate all circular dependencies. To do this, we first minimize
data dependencies, because they contribute to circular dependencies,
then we remove other circular dependencies. The resulting measurable
goal is that of eliminating global variables and acyclic structure,
and minimizing the cardinality of the "uses" relation. If this "uses"
relation represents all system correctness dependencies and if its
graph is cycle-free, then showing correctness of the system parts
in a bottom-up order (the reverse of a topological sort of the "uses"
graph) leads to correctness of the system.
In practice, it is not necessarily possible, nor desirable [22],
to eliminate all structural imperfection (i.e., all globals, some
cyclic structure). Cycle-freedom of the "uses" graph is not a
precondition of system correctness; we can scrutinize each cycle on a
case-by-case basis to understand and explain correctness, rather than
removing cycles by rethinking system structure or by duplicating certain
code (e.g., by "sandwiching"). Also, explicit function calls may not
represent all correctness dependencies. Implicit correctness dependencies,
which include shared memory and sharing through globals and timing
dependencies, may or may not be problematical.
A module is separable from the whole and packageable. We distinguish
between "module" and "package"; a module is a logical container of
a system part, whereas a package is a physical container of a system
part. If there is not a strong reason to the contrary, each module
should have a separate package. The modules of a system should be
manifest (i.e., obvious) from the packaging. For a software system,
the module interface and module implementation should be in separate
packages, or there should be a well-defined reason why not.
EXAMPLE: Packaging the Secure Xenix(TM) Kernel
To make the nature of each function in the Secure XENIX kernel more
conspicuous, one can add the following adjectives before function
names:
SYSTEM_CALL,
PUBLIC, and
PRIVATE.
Also, to make more explicit the modules of the Secure Xenix(TM) kernel,
one can add a subsystem-identifying prefix to each module name, for
example, fs_dir.c would indicate that the directory manager is
part of the File Subsystem ("fs"). Another way to make more explicit
the modules of a kernel is to represent each major module (or subsystem)
as a subdirectory. For example, the modules of the Secure Xenix(TM) kernel
can be packaged as subdirectories of the directory kernel/, as follows:
* kernel/conf Configuration Subsystem
* kernel/dd Device Drivers (part of I/O Subsystem)
* kernel/fp Floating Point Support
* kernel/file File Subsystem
* kernel/i Interfaces (.i files) to Kernel Modules
* kernel/init Initialization Subsystem
* kernel/io Low-Level I/O Support (part of I/O Subsystem)
* kernel/ipc IPC Subsystem
* kernel/memory Memory (Management) Subsystem
* kernel/misc Miscellaneous Functions Subsystem
* kernel/process Process Subsystem
* kernel/syscall System Call (Processing) Subsystem
* kernel/security Security Subsystem
Examples of Modularity and System Packaging Defects
The definition of a module of Section B.2.1 allows us to derive certain
measures of modularity, or of modularity defects. Most modularity defects
arise from unrestricted use of global variables. This makes both the
understanding of system structure difficult [383] and module
replacement dependent on other modules.
System modular structure also becomes visible by examining (1) the design
abstractions used within would-be modules, (2) the hiding of information
(i.e., data) within the would-be modules, and (3) the use of the would-be
modules within systems layers.
Data abstraction, together with the use of other design abstractions, such
as functional and control abstractions, significantly enhances the ability
to identify a system's modules and to structure a system into sets of
(ordered) layers. As a result, the visibility of system properties and their
formal analysis become possible.
For illustration, we differentiate six forms of abstraction that
are typically implemented by a system's modules:
* functional abstraction,
* data abstraction,
* control abstraction,
* synchronization abstraction,
* interface abstraction, and
* implementation abstraction.
A module implements a functional abstraction if the output of the
module is a pure mapping of the input to the module. That is, the
module maintains no state. The module always produces the same output,
if given identical input. The primary secret of a functional abstraction
is the algorithm used to compute the mapping.
A data abstraction is "a description of a set of objects that applies
equally well to any one of them. Each object is an instance of the
abstraction" (cf. Britton and Parnas [59]). A module implements a
data abstraction if it hides properties of an internal data structure. The
interface of a data abstraction module can export a transparent type or an
opaque type. A transparent type allows visibility (reading) of its internal
fields, whereas an opaque type does not. A transparent type is typically
represented as a dereferenceable pointer to the object, whereas an opaque
type is typically represented by a "handle" on the object, a
nondereferenceable "pointer" like a row number in a private table or a
"capability."
A module implements a control abstraction if it hides the order in
which events occur. The primary secret of a control abstraction is
the order in which events occur and the algorithms used to determine
the order (e.g., scheduling algorithms).
A module implements a synchronization abstraction if it encapsulates all
synchronization primitives necessary for its concurrent
execution [164]. The primary role of the module as a
synchronization abstraction is to hide the details of these primitives
(e.g., mutual exclusion, conditional wait, signals) from the module user and
to restrict the scope of correctness proofs to the module definition (to the
largest possible extent).
A module implements an interface abstraction if, by [59], it
"represents more than one interface; it consists of the assumptions that
are included in all of the interfaces that it represents." An operating
system may contain an X-interface table, where each row is an interface
(e.g., pointers to public functions) to a type X interface. As
examples, the operating system may have an I/O device-interface table, a
communication protocol-interface table, and a filesystem-interface table.
A module includes an implementation abstraction if it represents
the implementation of more than one module. For example, if an operating
system contains a number of similarly structured tables with similar
public functions, then it may be possible to represent all such tables
with one implementation schema (or abstract program).
In [179], Janson defines the concept of "type extension" as a
hierarchy of data abstractions. The idea is to build abstract data types atop
one another by defining the operations of a higher-level type in terms
of the operations of lower-level types.
Information hiding [59, 281] is a software decomposition
criterion. Britton and Parnas in [59] give the following description
of information hiding.
"According to this principle, system details that are likely to
change independently should be the secrets of separate modules; the
only assumptions that should appear in the interfaces between modules
are those that are considered unlikely to change. Every data structure
is private to one module; it may be directly accessed by one or more
programs within the module but not by programs outside the module.
Any other [external] program that requires information stored in a
module's data structures must obtain it by calling module programs
[public functions]." ...
"Three ways to describe a module structure based on information-hiding
are (1) by the roles played by the individual modules in the overall
system operation; (2) by the secrets associated with each module;
and (3) by the facilities [public functions] provided by each module.
..."
"For some modules we find it useful to distinguish between a primary
secret, which is hidden information that was specified to the software
designer, and a secondary secret, which refers to implementation decisions
made by the designer when implementing the module designed to hide
the primary secret."
In general, each module should hide an independent system-design decision.
If a table (with related data) is involved, for example, a table manager
module mediates all access to that table and it hides the representation of
that table. The module secrets are the facts about the module that are not
included in its interface -- that is, the assumptions that client programs
are not allowed to make about the module. The correctness of other modules
must not depend on these facts.
Note that a system entirely based on "information hiding" is always
modular.
A layer is a module.
We say that a system is layered if
the "uses" graph of its leaf modules is a linear order
(a reflexive, transitive, and asymmetric relation).
(If the layer is actually a collection of modules, then the
linear order is on the layer rather than on the individual
modules, although a lattice ordering could be used instead.)
Pictorially, we represent a layered system with horizontal stripes or bands,
with one stripe per layer. Also, we typically show only the transitive
reduction (i.e., remove all transitively implied arcs) of the "uses" graph.
"Traditionally, a layer is thought of as providing services to the layer
above, or the user layer. The user has some mechanism for invoking the
layer, such a procedure call. The layer performs the service for its user
and then returns. In other words, service invocation occurs from the top
down." [81] We define layering as a system structuring
(organizing) principle in which system modules are partitioned into groups
such that the "uses" graph of the system module groups (the layers) is a
linear order (although it could also be viewed as a partial order, e.g., in
the form of a lattice). Classical layering permits only downcalls, not
upcalls. Some experience suggests that upcalls can be valuable (as long as
security and integrity are not violated).
"In classical layering, a lower layer performs a service without
much knowledge of the way in which that service is being used by the
layers above. Excessive contamination of the lower layers with knowledge
about upper layers is considered inappropriate, because it can create
the upward dependency which layering is attempting to eliminate. ...
It is our experience, both with Swift and in other upcall experiments
that we have done, that the ability to upcall in order to ask advice
permits a substantial simplification in the internal algorithms implemented
by each layer." [81]
We understand the phrase layers of abstraction as just type
extension where the hierarchy is a layering.
Two popular types of layering in an operating system are policy/mechanism
layering and hardware-independent / hardware-dependent (HI/HD) layering -
also called device-independent / device-dependent (DI/DD). This was a
fundamental part of the Multics input-output system architecture. Also,
see [358]. The idea of policy/mechanism layering is that design
decisions about system policies (or mechanisms) should tend to reside in
higher (or lower) layers. The rationale for HI/HD layering, with the HI
layer above the HD layer, is to localize machine dependent modules to
simplify porting. In practice, these two layering criteria may not be
compatible, since "some design decisions which one would be tempted to
label as policies rather than mechanisms can be machine
dependent" [358].
The goal of identifying simple and practical tools for establishing and
verifying modularity properties requires that we define simple and
practical measures for modularity. Below we define four classes of such
measures, namely, for (1) replacement dependence, (2) global variables, (3)
module reusability, and (4) component packaging. While we believe that
these classes are important for modularity assessments, the specific
examples of measures are provided only for illustrative purposes. Other
specific measures may be equally acceptable in each class.
One way to define a modularity defect is by replacement dependence,
a violation of our property P5 of a module. We define two replacement
dependence measures below.
Measure M1. We define modularity measure M1 on an "almost-module" m
(satisfying properties P1-P4 but not P5 of the module definition of Section
B.21.1) as the number of files that must be edited to replace the
implementation of module m, less one (the minimum).
Measure M2. We define modularity measure M2 on an "almost-module" m
as the number of lines of source code, not in the "primary" implementation
file, that must be edited to replace the implementation of module m.
Although global variables can be useful for system performance, they
should be avoided whenever they can produce replacement dependence
and extra-module correctness dependencies not represented by explicit
service dependencies. It is tempting, if inconsequential, to argue
that correctness should be determined only from explicit service dependencies
and thus from module interfaces, and not from data dependencies, and to conclude
that all globals should be eliminated.
We have defined two software modules as data dependent if they share a
common global variable. A data dependency can sometimes be harmless, or
safe or easy to understand, and sometimes it is harmful, or unsafe or
difficult to understand [383]. We can define a hierarchy of module
dependency (coupling) from very safe to very unsafe with the following
types of variables:
(a) local to a function,
(b) formal of a function,
(c) global (but private) to one module,
(d) global with one writer module (and many reader modules),
(e) global with a few writer modules (and many reader modules)
and a well-defined use discipline,
(f) global with many writer modules (and many reader modules)
and a well-defined use discipline, and
(g) global with many writer modules (and many reader modules)
and an ill-defined (or undefined) use discipline.
Both types of global variables (a) and (b) are safe, while a global variable
of type (g) is unsafe. In general, (a) is safer than (b), which in turn is
safer than (c), and so on, and (g) is the most unsafe. In general, module
independence is valuable because one can understand (thus, replace, fix,
evolve) the module by understanding only its interface and what it uses. On
the other hand, a module dependency is undesirable when one cannot
understand (thus, replace, fix, evolve) a module without understanding the
implementations of other modules. In this sense, a module including global
variables of type (d) is easier to understand than a module including a
global variable of type (e); a module including global variables of type
(e) is easier to understand than one including a global variable of type
(f); a module including global variables of type (g) is virtually
impossible to understand. By "use discipline" we mean "correctness rule."
If a global variable can and should be converted to either a local
of one module, or a formal of one or more public functions, or
a local of a public function, then this new scope is generally
better than its old scope as a global. In general, use of formals
is a better programming discipline than use of informals (globals,
environment variables). As one reason, it makes the function
parameters more explicit; this makes the functions simpler to
understand, and simpler to evolve (e.g., as a remote procedure call).
As another reason, for recursion, use of formals is a less error prone
programming discipline than use of informals; care must be taken to
save current informal parameters before a recursive call and to
restore them after the call.
Measure M3. We define measure M3 on an "almost-module" m as the
number of globals that it writes that are also written by other modules or
almost-modules.
Another way to define a modularity defect is as a reuse impediment, or a
violation of our property P6 of a module. The major technical source of
module-reuse impediments is the violation of compatibility [134] between a module's interface and its new
environment of use. Whenever this impediment materializes, we say that the
module cannot be composed within its environment of use. In
particular, we are interested in the amount of extra (correct) code that has
to be written and the amount of administrative effort that has to be
expanded to remove interface incompatibility. We define four measures of
reuse impediments below. These measures can also be viewed as simple
estimates of ability to compose modules.
For all the measures below we assume the module being reused satisfies
properties P1-P5 but not P6 of the module definition in Section B.2.1.1.
Measure M4. We define modularity measure M4 on an "almost-reusable"
module m as the number of exception handlers that must be written to
cover all the exceptions signaled by the reused module.
Measure M5. We define modularity measure M5 on an "almost-reusable"
module m as the number of resource allocation and deallocation
instructions that must be written to enable the execution of the reused
module, less two (the minimum).
Measure M6. We define modularity measure M6 on an "almost-reusable"
module m as the number of lines of code that must be written to
satisfy the module invocation discipline (i.e., type matching and coercion,
if necessary, setting constants and global variables) to enable the
execution of the reused module, less than the number of formal parameters
(the minimum).
Measure M7. We define modularity measure M6 on an "almost-reusable"
module m as the number of permissions/system privileges that must be granted
to enable the execution of the reused module, less one (the minimum required to
invoke the module).
Clearly, zero extra code or administrative effort is best for all measures,
but a small number (e.g., one to three) of extra programs and administrative
effort is acceptable, provided that this is a one-time requirement.
Component-packaging defects can also be evaluated using measures of how
closely the module package reflects the module definition. Since packaging
is not a modularity property by our definition, packaging-defect measures
are not necessarily modularity measures. However, packaging-defect measures
are useful in evaluating visibility of system structures by standard tools
(e.g., browsers). The examples of packaging-defect measures provided below
are only for illustrative purposes. Other measures may be equally
acceptable.
Measure M8: Assume that a leaf module has one implementation file and
one interface file. We define packaging measure M8 to be the number of files
(e.g., .c, assuming C) over which the implementation of a leaf module
is spread, plus the number of files over which the interface of a leaf
module is spread, then subtracting two (the minimum).
M8 is a measure of packaging defects with granularity of a per-file
count. For a module m with exactly one implementation file and exactly
one interface file, M8(m) = 0. In general, for system s, and measure
M, M(s) is the summation of M(m) for each leaf module m.
Measure M9: We define packaging measure M9 as similar to Measure
M8 except that we count the number of lines of source code (SLOC)
not in "the primary" implementation file plus not in "the
primary" interface file.
As a class of approximate measures of modularity, additional packaging defect
measures can be defined.
Different system designers may argue over the specific costs of
different features of modular design, but few would disagree with
the following "less expensive than" (<) and "included in" (<<)
orders:
"Just Code It," < Module with Properties P1-P4 < Replacement
Independence (P5) < Reusability (P6); and
"Just Code It," << Module with Properties P1-P4 << Replacement
Independence (P5) << Reusability (P6).
In fact, the first seven modularity measures presented above illustrate the
different types of complexity involved in modular design and provide
intuition for the above cost and feature-inclusion ordering. Specific cost
figures for modularity are hard to come by, as insufficient experience is
available with systems designs where modularity is an important requirement.
However, based on (1) experience with Secure Xenix(tm) [115] (aka
Trusted Xenix(tm)), the only Unix(tm) system to achieve a security level
where modularity was required (i.e., TCSEC level B2), and (2) experience
reported by Lampson [199], we can estimate the relative costs
using a "Just Code It" (JCI) unit of modularity currency.
Lampson estimates the costs for a "good module for your system" and
"reusable component." We approximate a "good module for your system"
with modularity properties P1-P4 and "reusable component" with
property P6. Using these estimates and our approximation, we obtain
the following cost ranges: Cost of Module with Properties P1-P4 (i.e.,
"good module for your system") = 0.5 JCI - 2 JCI, Cost of Module Reusability (P6) = 3 JCI - 5 JCI.
For the purposes of this study, it seems important to be able to estimate
the cost of the module "replacement independence" property (P5). The
cost ordering presented above allows us to interpolate the cost
estimate for this property. Since Module with Properties P1-P4 < Replacement Independence (P5)
< Reusability (P6), Cost of a Module's Replacement Independence (P5) = 2 JCI - 3 JCI.
However, is our approximation of a "good module for your system" with
module properties P1 - P4 valid? We attempt to validate this approximation
using cost estimates of Secure Xenix(tm), where modularity properties P1-P4
were satisfied. The Secure Xenix(tm) estimates can be split roughly as
follows: 1/3 design cost (including modularity properties P1 - P4, but
excluding that of testing and documentation required for P6), 1/3
assurance cost (including testing to the level required for P6), and 1/3
documentation (including everything that a user and an evaluator might want
for level B2, and hence including documentation required for P6). These
estimates suggest the following approximate relationships: Cost of Module with Properties P1-P4 =
0.33 of Cost of Module with Properties P1-P6. Cost of a Module with Properties P1 - P4 = 1 JCI - 1.67 JCI, "good module for your system" = 0.5 JCI - 2 JCI.
We stress that the above estimates of modularity costs are very rough.
However, they appear to be consistent with each other for modularity
properties P1 - P4. Further, the requirements of property P6 seem to be
consistent with modularity requirements of TCSEC level B2-B3. Hence these
cost estimates could be further validated using examples of systems
rated at those levels.
A variety of tools (e.g., algorithms, methods, programs) for modular
system decomposition have been proposed during the past dozen years. The
motivation for the development of these tools has been driven primarily by
the need to improve the understandability and maintainability of legacy
software, and to a lesser extent to enable module reusability. Few of these
tools were motivated directly by concerns of module replacement independence
and correctness, and consequently few support formal dependency analyses
among identified modules.
In general, most tools for modularization can be divided into two
broad classes, namely those based on (1) clustering functions and data
structures based on different modularity criteria, and (2) concept analysis
- an application of a lattice-theoretical notion to groups of functions and
function attributes (e.g., access to global variables, formal parameters and
types returned). The primary difference between the two classes is that
approaches used by the former use metrics of function cohesion and coupling
directly whereas those used by the latter rely mostly on semantic grouping of
functions that share a set of attributes. Both approaches have advantages and
disadvantages. For example, although clustering is based on well-defined metrics
(which overlap but are not necessarily identical with M1-M7 above) and always
produces modular structures, it does not necessarily
provide a semantic characterization of the modules produced and often reveals
only few module-design characteristics. In contrast, concept analysis helps
characterize the modules recovered from source code semantically, but does
not always lead to easily identifiable modules (e.g., nonoverlapping and
groupings of program entities covering all functions of a program).
Neither approach is designed to characterize correctness dependencies
among modules (e.g., systems analysis) and neither is intended to address
the properties of systems obtained by modular composition
(e.g., systems synthesis). We note that metrics M1-M7 suggested above
could be applied equally well to the modular structures produced by
either approach. In the balance of this appendix, we provide representative
examples of tools developed for modularity analysis using each approach.
The first class of clustering tools is that developed for the
identification of abstract types and objects and their modules in
source code written in a non-object-oriented language, such as C.
The modular structure produced by these tools is partial as it represents
only the use of data abstractions in source code. Other
modularity structures manifest in the use of other abstractions
(e.g., functional, control, synchronization) are not addressed.
All tools of this class recognize abstract-object instances by clustering
functions that access function-global variables, formal parameters, returned
[211] or received [65]. Relations among the
identified components (e.g., call and type relations [65],
relations of procedures to internal fields of structures [384]) are used
to build dominance trees or graphs, and dominance analysis is used to
hierarchically organize the abstract type/object modules into
subsystems [132]. A typical problem that appears with this class of
tools is that of "coincidental links," which is caused by procedures
that implement more than one function, and "spurious links," which is caused
by functions that access data structures implementing more than one object
type. Both types of links lead to larger-than-desirable clusterings of functions.
A second class of clustering tools is that based on measuring high internal
cohesion and low external coupling (e.g., few inter-module global variables
and functions). Tools of this class define cohesion principles and derive
metrics based on those principles. For example, the measure of "similarity"
among procedures defined for the ARCH tool [346] is derived from the
"information hiding" principle and used to extract modules with internal cohesion
and low external coupling. Further, genetic algorithms have been used by other
tools (e.g., BUNCH [217]) to produce hierarchical clustering of modules
identified using cohesion and coupling metrics [216]. Clustering
techniques have also been used to group module interconnections into "tube edges"
between multiple modules that form subsystems [215].
The notion of concept analysis is defined in lattice theory as follows. Let
X be a set of objects, or an extent, and Y a set of attributes, or
an intent, and R a binary relation between objects and attributes.
A concept is the maximal collection of objects sharing common attributes.
Formally, a concept is the pair of sets (X,Y) such that X = tau(Y) and
Y = sigma(X), where sigma and tau are anti-monotone and
extensive mappings in R (i.e., they form a Galois connection).
A mapping, say, sigma is said to be anti-monotone if
X1 c X2 => sigma(X2) c sigma(X1). Mappings
sigma, tau are said to be extensive if X c tau(sigma(X)) and
Y c sigma(tau(Y)). Further, a concept (X0, Y0) is a
subconcept of concept (X1, Y1), if X0 c X1
or, equivalently, Y1 c Y0. The subconcept relation forms
a partial order over the set of concepts leading to the notion of
concept (Galois) lattice, once an appropriate top and bottom
are defined. A fundamental theorem of concept
lattices relates subconcepts and superconcepts and allows the least
common superconcept of a set of concepts to be computed by intersecting
the intents and finding the common objects of the resulting intersection.
Concept lattices have been used in tools that identify conflicts in
software-configuration information (e.g., as in the RECS tool [356]).
During the past half a dozen years, they have been used to analyze modularity
structures of programs written in programming languages that do not support
a syntactic notion of a module (e.g., Fortran, Cobol, C) [206, 353].
More recently, they have also been used to identify hierarchical relationships
among classes in object-oriented programming [136, 137, 357].
The use of concept analysis in identifying modular structures of source code
requires (1) the selection of an object set (i.e., function set) and
attribute set (i.e., function characteristics such as a function's access to
global variables, formal parameters returned, types, and so on); (2) the
construction of the concept lattice, and (3) the definition of concept
partitions and subpartitions as nonoverlapping groupings of program entities
(that is, functions and attributes). Note that if concept partitions are used
to represent modules, they must be complete; that is, they must cover
the entire object (i.e., function) set [353]. The notion of
subpartitions was introduced to remove the completeness restriction that
sometimes leads to module overlaps caused by artificial module enlargements
(to cover the function set) [366].
Concept analysis applied to modularity analysis has the advantage of
flexible determination of modules. That is, if the proposed modularization
is too fine-grained, moving up the (sub)partition lattice allows a
coarser granularity of modules to be found. Conversely, if the proposed
modularization is too coarse, additional attributes can be added to
identify finer-granularity modules. Similar flexibility in clustering
can be achieved in a more complex manner, namely, by adding and removing
metrics to the set used by clustering analysis. Concept analysis also
has the advantage that the resulting modularity has a fairly precise
semantic characterization.
Much of my understanding of "modularity" is based on joint work with
Matthew S. Hecht on defining practical requirements for modular structuring
of Trusted Computing Bases in the late 1980s. Figures 1-5 were generated by
the Secure Xenix modularity study led by Matthew. Virgil D. Gligor
Contents
Preface
Abstract
Executive Summary
Anyone will renovate his science who will steadily look after
the irregular phenomena. And when the science is renewed, its new formulas
often have more of the voice of the exceptions in them than of what were
supposed to be the rules.
William James
Roadmap of This Report
1 The Foundations of This Report
We essay a difficult task; but there is no merit save in
difficult tasks.
Ovid
2 Fundamental Principles of Trustworthiness
Synopsis
2.1 Introduction
Everything should be made as simple as possible -- but no simpler.
Albert Einstein
2.2 Risks Resulting from Untrustworthiness
2.3 Trustworthiness Principles
Willpower is always more efficient than mechanical enforcement,
when it works. But there is always a size of system beyond
which willpower will be inadequate.
Butler Lampson
2.3.1 Saltzer-Schroeder Security Principles, 1975
*
Economy of mechanism: Seek design simplicity (wherever and
to whatever extent it is effective).
*
Fail-safe defaults: Deny accesses unless explicitly authorized
(rather than permitting accesses unless explicitly denied).
*
Complete mediation: Check every access, without exception.
*
Open design: Do not assume that design secrecy will enhance security.
*
Separation of privileges: Use separate privileges or even
multiparty authorization (e.g., two keys) to reduce misplaced trust.
*
Least privilege: Allocate
minimal (separate) privileges according to
need-to-know, need-to-modify, need-to-delete, need-to-use, and so on. The
existence of overly powerful mechanisms such as superuser is inherently dangerous.
*
Least common mechanism:
Minimize the amount of mechanism common to more than one user
and depended on by all users.
Avoid sharing of trusted multipurpose
mechanisms, including executables and data
-- in particular, minimizing the need for and
use of overly powerful mechanisms such as superuser
and FORTRAN common. As one
example of the flaunting of this principle,
exhaustion of shared resources provides a huge source of covert
storage channels,
whereas the natural sharing of real calendar-clock time provides
a source of covert timing channels.
*
Psychological acceptability: Strive for ease of use and operation --
for example, with easily understandable and forgiving interfaces.
*
Work factor: Make cost-to-protect commensurate with threats
and expected risks.
*
Recording of compromises:
Provide nonbypassable tamperproof trails of evidence.
Principle Composability Trustworthiness Assurance
Economy of Beneficial within a sound Vital aid to sound Can simplify
mechanism architecture; requires design; exceptions must analysis
proactive design effort be completely handled
Fail-safe Some help, but not Simplifies design, Can simplify
defaults fundamental use, operation analysis
Complete Very beneficial with Vital, but hard Can simplify
mediation disjoint object types to achieve with no analysis
compromisibility
Open design Design documentation is Secrecy of design is, Assurance is mostly
very beneficial among a bad assumption; irrelevant in badly
multiple developers open design requires designed systems;
strong system security open design enables
open analysis (+/-)
Separation of Very beneficial if Avoids many Focuses analysis
privileges preserved by composition common flaws more precisely
Least Very beneficial if Limits flaw effects; Focuses analysis
privilege preserved by composition simplifies operation more precisely
Least common Beneficial unless there is Finesses some Modularizes
mechanism natural polymorphism common flaws analysis
Psychological Could help a little -- Affects mostly usability Ease of use
acceptability if not subvertible and operations can contribute
Work factor Relevant especially for Misguided if system Gives false sense
crypto algorithms, but not easily compromised of security under
their implementations; from below, spoofed, nonalgorithmic
may not be composable bypassed, etc. compromises
Compromise Not an impediment After-the-fact, Not primary
recording if distributed; real-time but useful contributor
detection/response needs
must be anticipated
http://www.cl.cam.ac.uk/users/rja14/
2.3.2 Related Principles, 1969 and Later
At this point in our analysis, it should be no surprise that all of these
principles can contribute in varying ways to security, reliability,
survivability, and other -ilities. Furthermore, many of the principles and
-ilities are linked. We cite just a few of the interdependencies that must
be considered.
Principle Composability Trustworthiness Assurance
Sound Can considerably Can greatly increase Can increase assurance
architecture facilitate composition trustworthiness of design and simplify
implementation analysis
Minimization of Beneficial, but not Very beneficial with Simplifies design and
trustworthiness fundamental sound architecture implementation analysis
Abstraction Very beneficial with Very beneficial Simplifies analysis
suitable independence if composable by decoupling it
Encapsulation Very beneficial Very beneficial if Localizes analysis to
if properly done, composable, avoids abstractions and
enhances integration certain types of bugs their interactions
Modularity Very beneficial Very beneficial Simplifies analysis
if interfaces and if well specified; by decoupling it
specifications overmodularization and if modules are
well defined impairs performance well specified
Layered protection Very beneficial, but Very beneficial if Structures analysis
may impair noncompromisible from according to layers
performance above/within/below and their interactions
Robust dependency Beneficial: can Beneficial: can obviate Robust
architectural
avoid compositional design flaws based on structure simplifies
conflicts misplaced trust analysis
Object orientation Beneficial, but Can be beneficial, but Can simplify analysis
labor-intensive; complicates coding of design, possibly
can be inefficient and debugging implementation also
Separation of Beneficial, but Increases flexibility Simplifies analysis
policy/mechanism both must compose and evolution
Separation of Helpful indirectly Beneficial if Can simplify analysis
duties as a precursor well defined if well defined
Separation of Beneficial if roles Beneficial if Partitions analysis
roles nonoverlapping properly enforced of design and operation
Separation of Can simplify Allows finer-grain Partitions analysis
domains composition and enforcement and of implementation
reduce side effects self-protection and operation
Sound Helps if uniformly Huge security benefits, Can simplify analysis,
authentication invoked aids accountability improve assurance
Sound Helps if uniformly Controls use, Can simplify analysis,
authorization invoked aids accountability improve assurance
Administrative Composability helps Good architecture Control enhances
controllability controllability helps controllability operational assurance
Comprehensive Composability helps Beneficial for Can provide feedback
accountability accountability post-hoc analysis for improved assurance
2.3.3 Principles of Secure Design (NSA, 1993)
2.3.4 Generally Accepted Systems Security Principles (I2F, 1997)
Pervasive Principles
* PP-1. Accountability
* PP-2. Awareness
* PP-3. Ethics
* PP-4. Multidisciplinary
* PP-5. Proportionality
* PP-6. Integration
* PP-7. Timeliness
* PP-8. Assessment
* PP-9. Equity
Broad Functional Principles
* BFP-1. Information Security
* BFP-2. Education and Awareness
* BFP-3. Accountability
* BFP-4. Information Management
* BFP-5. Environmental Management
* BFP-6. Personnel Qualifications
* BFP-7. System Integrity
* BFP-8. Information Systems Life Cycle
* BFP-9. Access Control
* BFP-10. Operational Continuity and Contingency Planning
* BFP-11. Information Risk Management
* BFP-12. Network and Infrastructure Security
* BFP-13. Legal, Regulatory, and Contractual Requirements of Info Security
* BFP-14. Ethical Practices
PP: PP-1 PP-2 PP-3 PP-4 PP-5 PP-6 PP-7 PP-8 PP-9
BFP-1 X X X X X X X X X
BFP-2 X X X X X
BFP-3 X X X X X
BFP-4 X X X X
BFP-5 X X X X X X
BFP-6 X X X X
BFP-7 X X X X X X
BFP-8 X X X X X X
BFP-9 X X X X X X
BFP-10 X X X X X
BFP-11 X X X X X X X
BFP-12 X X X X X
BFP-13 X X X X X
BFP-14 X X X X
2.3.5 TCSEC, ITSEC, CTCPEC, and the Common Criteria (1985 to date)
2.3.6 Extreme Programming, 1999
2.3.7 Other Approaches to Principled Development
2.4 Design and Implementation Flaws, and Their
Avoidance
Nothing is as simple as we hope it will be. Jim Horning
2.5 Roles of Assurance and Formalism
In principle, everything should be simple.
In reality, things are typically not so simple.
(Note: The SRI CSL Principal Scientist is evidently both a
Principle Scientist and a Principled Scientist,
as well as Principal Scientist. PGN)
2.6 Caveats on Applying the Principles
For every complex problem, there is a simple solution.
And it's always wrong.
H.L. Mencken
2.7 Summary
In theory, there is no difference between theory and practice.
In practice, there is an enormous difference. (Many variants of this
concept are attributed to various people. This is a personal adaptation.)
3 Realistic Composability
Synopsis
3.1 Introduction
3.2 Obstacles to Seamless Composability
A modular system is one that falls apart easily! E.L. (Ted) Glaser, 1965
3.3 System Decomposition
Decomposition into smaller pieces is a fundamental approach to mastering
complexity. The trick is to decompose a system in such a way that the
globally important decisions can be made at the abstract level, and the
pieces can be implemented separately with confidence that they will
collectively achieve the intended result. (Much of the art of system design
is captured by the bumper sticker "Think globally, act locally.")
Jim Horning [259]
"That's the way good software gets designed. So if you pull out a piece,
it won't run." Steve Ballmer, Reuters, 4 March 2002.
(Modular, schmodular. That might
be why many people consider "software engineering" to be an oxymoron.
But what is missing from much mass-market software is not modularity,
but rather clean abstraction and encapsulation.)
3.4 Attaining Facile Composability
Ideally, we would like the development of
complex hardware/software systems to be like
snapping Lego
pieces together! Instead, we have a situation in which each component
piece can transmogrify its modular interface and its physical appearance --
thereby continually disrupting the existing structure and hindering
future composability. An appropriate analog would be if
civil engineering were as undisciplined as software engineering. PGN
http://en.wikipedia.org/wiki/Software_component.)
3.5 Paradigmatic Mechanisms for Enhancing Trustworthiness
You can't make a silk purse out of a sow's ear.
But in a sense, maybe we can -- in certain cases!
3.6 Enhancing Trustworthiness in Real Systems
Bad software lives forever. Good software gets
updated until it goes bad, in which form it lives forever.
Casey Schaufler
3.7 Challenges
The components that are cheapest, lightest, and most reliable
are the ones that are not there.
Gordon Bell
3.8 Summary
4 Principled Composable Trustworthy Architectures
Synopsis
Virtue is praised, but is left to starve.
Juvenal, Satires, i.74.
(Note: The original Latin is Probitas laudatur et alget;
"probitas" (probity) is literally rendered as
"adherence to the highest principles and ideals".)
4.1 Introduction
It ain't gonna be trustworthy if it don't have a sensible architecture.
(With kudos to Yogi Berra's good sense of large systems)
4.2 Realistic Application of
Principles
A system is not likely to be trustworthy if its
development and operation are not based on well-defined expectations
and sound principles.
4.3 Principled Architecture
There are two ways of constructing a software design: one way is
to make it so simple that there are obviously no deficiencies,
and the other way is to make it so complicated that there are no
obvious deficiencies.
Sir Charles Anthony Robert Hoare
4.4 Examples of Principled Architectures
In our experience, software exhibits weak-link behavior; failures in
even the unimportant parts of the code can have unexpected
repercussions elsewhere.
David Parnas et al. [292]
4.5 Openness Paradigms
Closed-source paradigms often result in accidental open-sesames.
Can open kimonas inspire better software?
(http://www.darpa.mil/ipto/research/chats/index.html)
provided some strong justifications for not only the possibilities of
openness paradigms, but also some realistic successes.
http://www.gnu.org
, and
contains software, projects, licensing procedures, and background
information. The Open
Source Movement Web site is
http://www.opensource.org/
, which includes
Eric Raymond's "The Cathedral and the Bazaar" and the Open Source
Definition.)
4.6 Summary
If carpenters built the way programmers program, the arrival of
the first woodpecker would mean the end of civilization as we know it.
Gerald Weinberg
5 Principled Interface Design
Perspicuous: plain to the understanding, especially because of
clarity and precision of presentation. (Webster's International Dictionary)
Synopsis
5.1 Introduction
5.2 Fundamentals
The Internet is arguably the largest man-made information system
ever deployed, as measured by the number of users and the amount
of data sent over it, as well as in terms of the heterogeneity it
accommodates, the number of state transitions that are possible,
and the number of autonomous domains it permits. What's more,
it is only going to grow in size and coverage as sensors,
embedded devices, and consumer electronics equipment become
connected. Although there have certainly been stresses on the
architecture, in every case so far the keepers of the Internet
have been able to change the implementation while leaving the
architecture and interfaces virtually unchanged. This is a
testament to the soundness of the architecture, which at its core
defines a "universal network machine". By locking down the
right interfaces, but leaving the rest of the requirements
underspecified, the Internet has evolved in ways never imagined.
Larry Peterson and David Clark [301]
5.2.1 Motivations for Focusing on Perspicuity
5.2.2 Risks of Bad
Interfaces
http://www.csl.sri.com/neumann/illustrative.html.
(Some of the pre-1994 incidents are also described
in [260].)
5.2.3 Desirable Characteristics of Perspicuous Interfaces
5.2.4 Basic Approaches
5.2.5 Perspicuity Based on Behavioral Specifications
People and systems are not separate, but are interwoven into a distributed
system that performs cognitive work in context. David D. Woods
5.2.6 System Modularity, Visibility, Control, and Correctness
5.3 Perspicuity through Synthesis
5.3.1 System Architecture
5.3.2 Software Engineering
5.3.3 Programming Languages and Compilers
http://www.csl.sri.com/~millen/capsl for further background) at SRI.
5.3.4 Administration and System Operation
5.3.5 No More and No Less
5.3.6 Multilevel Security and Capabilities
5.4 Perspicuity through Analysis
5.4.1 General Needs
5.4.2 Formal Methods
5.4.3 Ad-Hoc Methods
5.4.4 Hybrid Approaches
5.4.5 Inadequacies of Existing Techniques
5.5 Pragmatics
5.5.1 Illustrative Worked Examples
5.5.2 Contemplation of a Specific Example
5.6 Conclusions
6 Assurance
Synopsis
6.1 Introduction
Regarding trustworthiness of critical systems,
assurance is in the eye of the beholder.
However, it is better to depend on systems worthy of being trusted
rather than to be beholden to seriously flawed software
and unknown components.
PGN
6.2 Foundations of Assurance
"If a program has not been specified, it cannot be incorrect; it can
only be surprising."
W.D. Young, W.E. Boebert, and R.Y. Kain [386]
6.3 Approaches to Increasing Assurance
6.4 Formalizing System Design and Development
6.5 Implementation Consistency with Design
6.6 Static Code Analysis
*
Crispin Cowan's StackGuard (http://immunix.org
)
*
David Wagner's buffer overflow analyzer
(http://www.cs.berkeley.edu/~daw/papers/
)
*
@Stake's L0pht security review analyzer slint
*
Cigital's ITS4 function-call analyzer for C and C++ code (http://www.cigital.com/its4/
)
*
Ken Ashcraft and Dawson Engler's system-specific
approach [20]
*
Brian Chess's extended static checking [79]
* Purify
*
Yuan Yu and Tom Rodeheffer's RaceTrack,
for detecting race conditions in multi-threaded code (Microsoft Research)
*
Hao Chen's MOPS (with some assistance from
Dave Wagner and Drew Dean,
whose earlier joint work [98, 371] provided a
starting point);
MOPS takes a formally based,
approach to static code analysis (see Appendix A),
in which formal models of undesirable vulnerability characteristics
are the basis for formal model checking of the software, thus
identifying software flaws.
6.7 Real-Time Code Analysis
6.8 Metrics for Assurance
6.9 Assurance-Based Risk
Reduction
6.10 Conclusions on Assurance
7 Practical Considerations
Synopsis
There's many a road 'twixt the need and the code.
(It's an especially rough road
in the absence of requirements, design specifications,
careful programming, sensible use of good development tools,
documentation, and so on!)
7.1 Risks of Short-Sighted Optimization
7.2 The Importance of Up-Front Efforts
7.3 The Importance of Whole-System Perspectives
If you believe that cryptography is the answer to your problems,
then you don't understand cryptography and you don't understand your
problems.
Attributed by Butler Lampson
to Roger Needham and by Roger Needham
to Butler Lampson
7.4 The Development Process
I would not give a fig for the simplicity this side of complexity,
but I would give my life for the simplicity on the other side of
complexity. Oliver Wendell Holmes
7.4.1 Disciplined Requirements
7.4.2 Disciplined Architectures
7.4.3 Disciplined Implementation
Technique is a means, not an end, but a means that is
indispensable. Maurice Allard, renowned French bassoonist
in the Paris Opera from 1949-1983
The best architectures and the best system designs are of little value if
they are not properly implemented. Furthermore, properly implemented
systems are of little value if they are not properly administered. In each
case, "proper" is a term that implies that the relevant requirements are
satisfied. Thus, risks abound throughout development and operation.
However, the notion of principled composable architectures espoused here can
contribute significantly to proper implementation and administration. The
notion of stark subsetting discussed in previous chapters can aid significantly in
simplifying implementation, configuration, and administration.
7.5 Disciplined Operational Practice
System programming is like mountain climbing: It's not a good idea to
react to surprises by jumping -- that might not improve the situation.
Jim Morris
7.5.1 Today's Overreliance on Patch Management
Dilbert: We still have too many software faults. We'll miss
our ship date.
Pointy-Haired Manager: Move the list of faults to the "future
development" column and ship it.
PHM, aside: 90% of this job is figuring out what to call stuff.
Scott Adams, three-panel Dilbert comic strip, 4 May 2004
7.5.2 Architecturally Motivated System Administration
7.6 Practical Priorities for Perspicuity
7.7 Assurance Throughout Development
The whole is greater than the sum of its parts. This
can be true particularly in the presence of effort devoted to sensible
architectures, interface design, principled development, pervasive attention
to assurance, and generally wise adherence to the contents of this
report. In this case, emergent properties tend to be positive, providing
evidence of trustworthiness.
7.7.1 Disciplined Analysis of Requirements
7.7.2 Disciplined Analysis of Design and Implementation
7.8 Assurance in Operational Practice
7.9 Certification
Cer.ti.tude: the state of being or feeling certain;
Rec.ti.tude: correctness of judgment or procedure
(Abstracted from Webster's International Dictionary)
7.10 Management Practice
7.10.1 Leadership Issues
7.10.2 Pros and Cons of Outsourcing
DI: Domestic In-House Control DO: Domestic Outsourcing
Pros: Pros:
Closer access to business knowledge Resource balancing
Tighter reins on intellectual property Potential cost savings,
Tighter control of employees and particularly for labor
development efforts Offloading less desirable jobs
Cons: Cons:
U.S. education often inadequate Loss of business sense
for system engineering, security, Increased burden on contracting
reliability, and trustworthiness Potential loss of control
Bad Government records Bad records in managing
in managing developments contracted procurements
(Large corporations are sometimes Possible hidden offshore subcontracts
not much better!) (as in the ATC Y2K remediation)
Greater security/privacy concerns
FI: Foreign Subsidiaries FO: Foreign (Offshore) Outsourcing
Pros: Pros:
Potential cost savings (esp. labor) Potential cost savings (esp. labor),
In-house control largely retained at least in the short term
Resource/labor balancing Resource/labor balancing
Choices exist for well-educated Potential pockets of good education
and disciplined labor. and disciplined labor in some cases
Up-front emphasis on requirements/ Up-front emphasis on requirements/
specs can increase product quality. specs can increase product quality.
Cons: Cons:
Some loss of direct control Considerable loss of direct control
More difficult to change Even more difficult to change
requirements/specs/code/operations requirements/specs/code/operations
More risks of Trojan horses Greater risks of Trojan horses
Possible language problems Possibly severer language problems
Hidden long-term costs Possibly more hidden long-term costs
Domestic job losses Domestic job losses
Loss of GNP and tax revenues Loss of GNP and tax revenues
Foreign laws generally apply, Foreign laws may cause conflicts with
in addition to domestic laws. domestic laws.
Potential political risks Greater potential political risks
Privacy problems and other risks More privacy problems and other risks
Risks of hidden subcontracts Further loss of control of subcontracts
Some intellectual property concerns Intellectual property control degradation
Hidden indirected (nth-party) outsourcing
7.11 A Forward-Looking Retrospective
Pandora's cat is out of the barn, and the genie won't go back in the
closet.
Peter G. Neumann
8 Recommendations for the Future
The future isn't what it used to be.
Arthur Clarke
8.1 Introduction
8.2 General R&D Recommendations
The whole of science is nothing more than the refinement
of everyday thinking. Albert Einstein,
Ideas and Opinions, page 290
8.3 Some Specific Recommendations
8.4 Architectures with Perspicuous Interfaces
8.5 Other Recommendations
9 Conclusions
The merit of virtue is consolidated in action.
Cicero
9.1 Summary of This Report
9.2 Summary of R&D Recommendations
If the road to hell is paved with good intentions, then
by duality, the road to heaven must be paved with bad intentions.
However, the road to good systems development and good management
practice is evidently infinitely precarious, no matter which route
is taken. PGN
9.3 Risks
"The essence of risk management lies in maximizing the areas where
we have some control over the outcome while minimizing the areas in
which we have absolutely no control over the outcome and the linkage
between effect and cause is hidden from us."
Peter L. Bernstein [38],
p. 197
9.4 Concluding Remarks
Hindsight is useful only when it improves our foresight.
William Safire (The New York Times, 6 June 2002)
We essay a difficult task; but there is no merit save in
difficult tasks.
Virtue is praised, but is left to starve.
The merit of virtue is consolidated in action.
Acknowledgments
A Formally Based Static Analysis (Hao Chen)
A.1 Goals of the Berkeley Subcontract
The one-year CHATS project subcontract task involved a short-term
potentially high-payoff approach, with static analysis capable of detecting
fundamental characteristic common security vulnerabilities in source code.
The approach combines models of the vulnerabilities with model checking
related to the source code. The approach is intentionally open-ended, with
linearly increasing complexity of composability as various new vulnerability
types are accommodated. The team for this task includes Professor David
Wagner and his graduate student Hao Chen in the Computer Science Department at the University of California at
Berkeley, with participation of Drew Dean at SRI and
supervision of Peter Neumann.
A.2 Results of the Berkeley Subcontract
One of the things that makes computer security challenging is that
there are many unwritten rules of prudent programming: "Don't do X
when running with root privileges." "Always call Z after any call
to Y." And so on. These issues contribute to the prevalence of
implementation errors in security-critical systems.
open("/etc/passwd", O_RDWR)
and then calls
printf() to display some output to the user, it may be possible
for an attacker to corrupt the password file by calling the
setuid program with file descriptor 1 closed, so that the
open() call binds the password file to fd 1
and the printf()
unintentionally writes to the password file rather than to the
screen.
http://www.cs.berkeley.edu/~daw/mops/. Our current prototype includes
the compiler front end, the modelchecker, and a primitive user interface.
However, we should warn that there are several known limitations: the
current release does not include an extensive database of rules to check;
also, the user interface is rather primitive, and intended primarily for
the expert programmer rather than for the novice. We hope to address
these limitations in the future.
http://www.cs.berkeley.edu/~daw/papers/setuid-usenix02.ps.
and "MOPS: An Infrastructure for Examining
Security Properties of Software" [77],
by Hao Chen and David Wagner:
http://www.cs.berkeley.edu/~daw/papers/draft-mops.ps.
A.3 Recent Results
A.4 Integration of Static Checking into EMERALD
B System Modularity (Virgil Gligor)
Structural and Correctness Properties
B.1 Introduction
B.2 Modularity
B.2.1 A Definition of "Module" for a Software System
B.2.2 System Decomposition into Modules
B.2.3 The "Contains" Relation
EXAMPLE. The UNIX kernel is a software module; the system calls compose its
set of related functions. The manual pages for the system calls describe
the role, set of functions, and interface of the kernel. Figure B.1 shows an
example of the "contains" relation, the major subsystems of the Unix
kernel.
EXAMPLE. Figure B.2 shows another example of the "contains" relation, a
decomposition of the File Subsystem of the Secure XENIX
kernel [115] into a module hierarchy. In Figure B.2, ACL means
Access Control List. The darkened boxes identify the files of source code
in this design. The Superblock Service manages the attributes of a file
system as a whole object. In this decomposition, the Mount Service is part
of Flat File Service and not part of Directory (pathname) Service. The
Mount Service maintains a short association list for substituting one
(device, i-node number) pair, a "file handle," for another. The mounted
handle represents a file system, and the mounted-on handle represents a
directory. The Mount Service knows nothing about directories and pathnames;
it knows about pairs of file handles.
B.2.4 The "Uses" Relation
EXAMPLE. Figures 3, 4, and 5 show an example of an intrasubsystem
"uses" graph for the File Subsystem of the Secure XENIX kernel.
They shows a progression of versions of a "uses" graph. Version
0 (Figure B.3) shows the entire subsystem. Version 1 (Figure B.3)
shows all File Subsystem system calls in one box to simplify the
picture, and shows how this layer uses all three top level services
of the File Subsystem. The lines from the Flat File Service to the
ACL Service (and back) show a "circular dependency" between the two;
each uses the other. Version 2 (Figure B.4) replaces the Flat File
Service with its three component services. Version 3 (Figure B.5)
shows another level of detail of the "uses" graph. (Note the circular
dependencies in Figure B.5. For approaches that help eliminate
such dependencies see the PSOS abstraction
hierarchy [120, 268, 269] and [179].
PSOS inherently removed such circular dependencies as a fundamental
part of the architectural abstraction hierarchy.)
B.2.5 Correctness Dependencies Among System Modules
B.2.6 Using Dependencies for Structural Analysis of Software Systems
B.3 Module Packaging
B.4 Visibility of System Structure Using Modules
B.4.1 Design Abstractions within Modules
B.4.2 Information Hiding as a Design Abstraction for Modules
B.4.3 Layering as a Design Abstraction Using Modules
B.5 Measures of Modularity and Module Packaging
B.5.1 Replacement Dependence Measures
B.5.2 Global Variable Measures
B.5.3 Module Reusability Measures
B.5.4 Component-Packaging Measures
B.6 Cost Estimates for Modular Design
depending on how many of the properties P1 - P4 are desired (or "how
lucky you are" [199]) and
the above estimates suggest that
Hence, using the above cost estimates, we obtain:
which is consistent with Lampson's estimate that B.7 Tools for Modular Decomposition and Evaluation
B.7.1 Modularity Analysis Tools Based on Clustering
B.7.2 Modularity Analysis Tools based on Concept Analysis
B.8 Virgil Gligor's Acknowledgments
References
(http://www.sei.cmu.edu/publications/pubweb.html).
http://www.csl.sri.com/neumann/arl-one.html
, also available in
.ps and .pdf form.
Index
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Abstraction
Abstraction
Abstraction!excessive
Abstraction!refinement
Abstraction!TCP/IP
Accountability
Administration
Administration
Administration!controllability
Administration!operational assurance
Administration!system
Airgaps
Anderson, Ross
Anderson, Ross!exploitations of vulnerabilities
Arbaugh, William
Architecture
Architecture!assurance
Architecture!autonomous
Architecture!centralized
Architecture!composable
Architecture!composable
Architecture!conceptual approach
Architecture!decentralized
Architecture!enlightened
Architecture!enlightened
Architecture!enlightened
Architecture!heterogeneous
Architecture!heterogeneous
Architecture!heterogeneous
Architecture!homogeneous
Architecture!network-centric
Architecture!network-oriented
Architecture!openness paradigms
Architecture!practical considerations
Architecture!principled
Architecture!principled
Architecture!principled
Architecture!principled!examples
Architecture!stark subsetting
Architecture!stark subsetting
Architecture!stark subsetting
Architecture!stark subsetting
Architecture!stark subsetting
Architecture!trustworthy
Architecture!TS&CI
Architecture!TS&CI
Architecture!TS&CI
Architecture!TS&CI
Architecture!TS&CI
Architecture!TS&CI
Architecture|(bold
Architecture|)
ARPANET!1980 collapse
ARPANET!1980 collapse
ARPANET!1980 collapse
Ashcraft-Engler!static analysis
Assurance
Assurance!analytic tools for
Assurance!code inspection
Assurance!composability analysis
Assurance!composability of
Assurance!correctness versus consistency
Assurance!debugging
Assurance!dependency analysis
Assurance!dynamic analysis
Assurance!enhancement
Assurance!in architecture
Assurance!in design
Assurance!in development
Assurance!in implementation
Assurance!in interfaces
Assurance!methodologies
Assurance!metrics for
Assurance!operational
Assurance!operational
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!Pervasively Integrated (PIA)
Assurance!preserved by transformations
Assurance!principles for
Assurance!principles for
Assurance!red-teaming
Assurance!requirements
Assurance!risk mitigation
Assurance!role of development tools
Assurance!software engineering
Assurance!static analysis
Assurance!static analysis
Assurance!testing
Assurance!voting systems
Assurance!vulnerability detection
Assurance!vulnerability elimination
Assurance|(bold
Assurance|)
Attacks!denial-of-service
Attacks!denial-of-service!prevention
Attacks!denial-of-service!prevention of
Attacks!denial-of-service!traceback
Attacks!spoofing
Attacks¡`man-in-the-middle"
Attacks¡`man-in-the-middle"
Attacks¡`man-in-the-middle"
AT&T!1990 long-distance collapse
AT&T!1990 long-distance collapse
AT&T!1990 long-distance collapse
Authentication!Byzantine
Authentication!cryptographic
Authentication!cryptographic
Authentication!cryptographic
Authentication!in subnetworks
Authentication!inadequacy of fixed passwords
Authentication!message
Authentication!multicast
Authentication!need for authorization
Authentication!nonbypassable
Authentication!nonspoofable
Authentication!servers
Authentication!vulnerabilities
Authorization
Authorization!fine-grained
Authorization!need for authentication
Authorization!vulnerabilities
Autonomous operation
Autonomous operation
Autonomous operation
Autonomous operation
Autonomous operation
Autonomous operation!interface design
Autonomous operation!risks in administration
Autonomous operation!risks of failure
Availability!assurance
Availability!multilevel
Availability!risks
Availability!risks
Ballmer, Steve
Baran, Paul
Bell and LaPadula!multilevel security
Bell, Gordon
Bell, Gordon
Bernstein, Peter L.
Biba, Ken!multilevel integrity (MLI)
Biba, Ken!multilevel integrity (MLI)
Biba, Ken!multilevel integrity (MLI)
Bishop, Matt
Bishop, Matt
Blade computers
Boebert, W.E.
Boebert, W.E.!on buffer overflows
Boneh, Dan!fault injection
Bootload!trustworthy
Bootload!trustworthy
Burnham, Blaine
Burnham, Blaine
Byzantine!agreement
Byzantine!authentication protocols
Byzantine!digital signature
Byzantine!fault tolerance
Byzantine!faults
Byzantine!key escrow
Byzantine!protocols
Capabilities
Capabilities!and perspicuity
Capabilities!modeling
Capabilities!PSOS
Certification
Certification!composability
Chaum, David
Chen, Hao
Chen, Hao
Chen, Hao!MOPS
Chen, Hao!MOPS
Chess, Brian!static analysis
Cicero
Cicero
Clark-Wilson integrity model
Clarke, Arthur
Clean-Room development
Clean-Room development
CLInc stack
Cohen, Fred
Commitment!nonblocking
Commitment!two-phase
Common Criteria
Common Criteria
Common Criteria!assurance
Common Criteria!composite evaluation
Communications!optical
Communications!wireless
Compatibility
Compatibility
Compatibility
Compatibility!among requirements
Compatibility!among policies
Compatibility!in heterogeneous systems
Compatibility!of legacy software
Compatibility!structural
Compilers!correctness of
Compilers!dynamic checking
Compilers!object-oriented
Compilers!research directions
Compilers!risks of optimization
Compilers!role in security
Compilers!static analysis
Compilers!static checking
Compilers!subversion of by Trojan horse
Complexity!and simplicity
Complexity!Einstein quote
Complexity!Einstein quote
Complexity!interfaces masking ...
Complexity!managing ...
Complexity!O.W. Holmes quote
Composability
Composability!analysis
Composability!and stark subsetting
Composability!approaches
Composability!decomposition
Composability!future challenges
Composability!horizontal
Composability!horizontal
Composability!horizontal
Composability!independence
Composability!information hiding
Composability!interoperability
Composability!noncomposability
Composability!noncomposability
Composability!obstacles to|(
Composability!obstacles to|)
Composability!of assurance measures
Composability!of certification
Composability!of evaluations
Composability!of policies
Composability!of proofs
Composability!of protocols
Composability!predictable
Composability!predictable
Composability!reasoning about
Composability!reasoning about
Composability!reasoning about
Composability!reasoning about
Composability!reasoning about
Composability!seamless
Composability!statelessness
Composability!vertical
Composability!vertical
Composability!vertical
Composability|(bold
Composability|)
Composable High-Assurance Trustworthy Systems (CHATS)
Compromise!accidental
Compromise!by adversaries
Compromise!Byzantine avoidance
Compromise!emergency
Compromise!from below
Compromise!from below
Compromise!from below
Compromise!from below
Compromise!from below
Compromise!from below
Compromise!from outside
Compromise!from outside
Compromise!from outside
Compromise!from outside
Compromise!from outside
Compromise!from within
Compromise!from within
Compromise!from within
Compromise!from within
Compromise!malicious
Compromise!of compositions
Compromise!of MLS
Compromise!of security
Compromise!of trustworthiness enhancement
Compromise!total
Concurrency Workbench
Configuration control
Configuration control!analysis of changes
Configuration control!assurance
Configuration control!discipline
Configuration control!of networks
Consistency!of code
Consistency!of hardware
Consistency!of interface specs
Consistency!of software
Consistency!of specifications
Contains relation
Control!centralized
Control!decentralized
Copyleft
Corbató, Fernando
Corbató, Fernando!Turing lecture
Correctness!...-preserving transformations
Correctness!deprecated
Covert channels!avoidance
Covert channels!storage
Covert channels!timing
Cowan, Crispin!StackGuard
Crnkovic, Ivica
Cross-domain mechanisms
Cryptography!attacks
Cryptography!embedding
Cryptography!fair public-key
Cryptography!for authentication
Cryptography!for integrity
Cryptography!for secrecy
Cryptography!multikey
Cryptography!secret-sharing
Cryptography!threshold
Cryptography!trustworthy embeddings
CTCPEC
CTCPEC
Dean, Drew
Dean, Drew
Dean, Drew
Dean, Drew
Dean, Drew!MOPS
Dean, Drew!MOPS
Debuggability
Decomposability
Decomposition!Dijkstra
Decomposition!horizontal
Decomposition!Parnas
Decomposition!temporal
Decomposition!vertical
Denials of service
Denials of service!prevention
Denials of service!prevention!in distributed systems
Denials of service!prevention!role of hierarchy
Denials of service!remediation
Denials of service!self-induced
Denials of service!self-induced
Dependability
Dependence!generalized
Dependence!guarded
Dependence!guarded
Dependence!guarded
Dependence!Parnas
Dependencies!among principles
Dependencies!among specifications
Dependencies!analysis
Dependencies!analysis of
Dependencies!analysis of
Dependencies!causing vulnerabilities
Dependencies!constrained
Dependencies!constrained
Dependencies!explicit
Dependencies!explicit!interlayer ... in LOCK
Dependencies!explicit!interlayer ... in PSOS
Dependencies!on less trustworthiness
Dependencies!order
Dependencies!reduced ... on trustworthiness
Dependencies!timing
Dependencies!timing
Detection!of anomalies
Detection!of misuse
Development methodology!Clean-Room
Development methodology!HDM
Development methodology!USDP
Development methodology!XP
Development!discipline
Development!discipline
Development!discipline
Development!of trustworthy systems
Development!principles
Differential power analysis
Differential power analysis
Digital Distributed System Security Architecture (DDSA)
Dijkstra, Edsger W.
Dijkstra, Edsger W.
Dijkstra, Edsger W.
Dijkstra, Edsger W.!Discipline of programming
Dijkstra, Edsger W.!THE system
Dijkstra, Edsger W.!THE system
Dijkstra, Edsger W.!THE system
Dijkstra, Edsger W.!THE system
Dinolt, George
Discipline!in development
Discipline!in development
Discipline!in methodology
Discipline!in Multics
Discipline!in XP
Discipline!lack of
Discipline!needed for open-box software
Discipline!of composition
Distributed systems!composable trustworthiness
Distributed systems!denials of service
Distributed systems!distributed protection
Distributed systems!distributed trustworthiness
Distributed systems!Lamport's definition
Distributed systems!Lamport's definition
Distributed systems!MLS in
Distributed systems!network oriented
Distributed systems!networked trustworthiness
Distributed systems!parameterizable
Distributed systems!reduced need for trustworthiness
Distributed systems!reduced need for trustworthiness
Distributed systems!reduced need for trustworthiness
Distributed systems!reduced need for trustworthiness
Distributed systems!risks of weak links
Distributed systems!trustworthiness
Distributed systems!trustworthiness
Diversity!in heterogeneous systems
Diversity!of design
DMCA
Domains!enforcement
Domains!for constraining software
Domains!Multics
Domains!separation
Domains!separation
Einstein, Albert!science
Einstein, Albert!simplicity
Einstein, Albert!simplicity
Einstein, Albert!simplicity
Electronic Switching Systems (ESSs)
EMERALD
EMERALD
EMERALD!integration of static checking
Emergent properties
Emergent properties
Emergent properties
Emergent properties
Emergent properties
Emergent properties
Emergent properties
Emergent properties
Emergent properties!reasoning about
Empowered E-Mail Environment (Tripoli)
Encapsulation
Encapsulation
Encapsulation
Encapsulation!vulnerabilities
Enclaves
Enlightened Architecture Concept
Enlightened Architecture Concept
Enlightened Architecture Concept
Enlightened Architecture Concept!needed for the GIG
Error!correction
Error!correction!for human errors
Error!correction!Guruswami-Sudan
Error!correction!Kuijper-Polderman
Error!correction!Reed-Solomon
Error!detection
Error!detection!for human errors
Euclid
Evaluations!composability of
Evaluations!continuity despite changes
Evolvability!of architectures
Evolvability!of implementations
Evolvability!of requirements
Exokernel Operating System
Extreme Programming
Extreme Programming
Fault!injection
Fault!prevention
Fault!removal
Fault!tolerance
Fault!tolerance
Fault!tolerance
Fault!tolerance!hierarchical
Fault!tolerance!literature
Finalization!vulnerabilities
Firewalls
Firewalls
Flaws!design
Flaws!implementation
Formal!analysis
Formal!analysis!of changes
Formal!basis of languages
Formal!basis of static checking
Formal!basis of tools
Formal!development
Formal!mappings
Formal!mappings
Formal!mappings
Formal!methods
Formal!methods
Formal!methods
Formal!methods
Formal!methods!for hardware
Formal!methods!potential benefits
Formal!operational practice
Formal!proofs
Formal!proofs
Formal!real-time analysis
Formal!requirements
Formal!specifications
Formal!specifications
Formal!specifications!for JVM
Formal!specifications!in HDM
Formal!specifications!in HDM
Formal!specifications!Parnas
Formal!static analysis
Formal!test-case generation
Formal!testing
GASSP
GASSP
Generalized!dependence
Generally Accepted Systems Security Principles (GASSP)
Gibson, Tim
GIG!see Global Information Grid
Gilb, Tom!Project Management Rules
Glaser, Edward L.!modularity
Glaser, Edward L.!principles
Gligor, Virgil
Gligor, Virgil
Gligor, Virgil
Gligor, Virgil!composability
Gligor, Virgil!system modularity
Gligor, Virgil!system modularity|(bold
Gligor, Virgil!system modularity|)
Global Information Grid (GIG)
Global Information Grid (GIG)!assurance
Global Information Grid (GIG)!development
Global Information Grid (GIG)!vision
GLU
GLU
GNU system with Linux
Goguen-Meseguer
Gong, Li!enclaves
GOVNET
Guarded!dependence
Guarded!dependence
Guards
Guards
Guards!trusted
Guruswami-Sudan decoding
Handheld devices!constrained
Handheld devices!unconstrained
Hardware!research directions
Hennessy, John L.
Hierarchical Development Methodology (HDM)
Hierarchical Development Methodology (HDM)
Hierarchical Development Methodology (HDM)
Hierarchical Development Methodology (HDM)
Hierarchical Development Methodology (HDM)!hierarchical abstractions
Hierarchy!for correlation in misuse detection
Hierarchy!HDM mapping functions
Hierarchy!HDM mapping functions
Hierarchy!of abstractions
Hierarchy!of directories
Hierarchy!of locking protocols
Hierarchy!of locking protocols
Hierarchy!of locking protocols
Hierarchy!of locking protocols
Hierarchy!of policies
Hierarchy!of PSOS layers
Hierarchy!of PSOS layers
Hierarchy!of PSOS layers
Hierarchy!of SeaView
Hierarchy!of SIFT layers
Hierarchy!of trustworthiness
Holmes, Oliver Wendell
Horning, Jim
Horning, Jim
Horning, Jim!decomposition
Horning, Jim!evolvability and requirements
Horning, Jim!last gassp
Horning, Jim!object orientation
Horning, Jim!partial specifications
Horning, Jim!patching
Horning, Jim!policy composition
Horning, Jim!simplicity
HP!blade computers
IBM!Enterprise Workload Manager
ICS: Integrated Canonizer and Solver
Illustrative Risks
Implementation!analysis of
Implementation!practical considerations
Initialization!vulnerabilities
Integrity!checks for
Integrity!multilevel
Integrity!multilevel!Biba
Intel!LaGrande
Interfaces!assurance
Interfaces!constrained
Interfaces!human
Interfaces!human
Interfaces!human
Interfaces!human!assurance
Interfaces!human!risks
Interfaces!incompatibility
Interfaces!perspicuous
Interfaces!perspicuous
Interfaces!perspicuous|(bold
Interfaces!perspicuous|)
Interfaces!risks
Interfaces!RISSC architectures
Interoperability
Interoperability
Interoperability
Interoperability
Interoperability
Interoperability!cross-language
Interoperability!impairments
Interoperability!in composability
Interoperability!of tools
IP Version 6 (IPv6)
IPSEC
ITS4
ITSEC
ITSEC
Java
Java!... Virtual Machine (JVM)
Jones, Cliff
Juvenal
Juvenal
Kain, R.Y.!on architecture
Kaner, Cem
Karger, Paul A.!composite evaluation intercommunication
Karger, Paul A.!Multics security evaluation
Karpinski, Richard
Kernel!MLS
Kernel!operating system ...
Kernel!separation
Kernel!separation
Kernel!separation
Kocher, Paul
Kurth, Helmut!composite evaluation intercommunication
Lala, Jay
Lamport, Leslie!distributed systems
Lamport, Leslie!liveness
Lamport, Leslie!safety
Lampson, Butler!capability systems
Lampson, Butler!cryptography
Lampson, Butler!reusability of components
Lampson, Butler!willpower
Lampson, Butler!willpower
Larsson, Magnus
Lazarus virus
Least privilege
Least privilege!David Wheeler
Legacy software!incompatibility
Legacy software!incompatibility
Legacy software!incompatibility
Lego modularity
Liveness (Lamport)
Locking!hierarchical
LOgical Coprocessor Kernel (LOCK)
LOgical Coprocessor Kernel (LOCK)
LOgical Coprocessor Kernel (LOCK)
Longhorn
Lynch, Nancy!protocol composability
Maintenance
Maintenance
Mantel, Heiko
Mapping!between layers
Mapping!between layers
Mapping!between layers
Mapping!between layers
Maughan, Douglas
Maughan, Douglas
Medical!assurance
Medical!risks
Medical!risks
Mencken, H.L.
Mercuri, Rebecca
Methodology!for development!Clean-Room
Methodology!for development!HDM
Methodology!for development!USDP
Methodology!for development!XP
Metrics
Microsoft!Longhorn
Mills, Harlan!Clean-Room
Mills, Harlan!Clean-Room
MILS!see multiple independent levels of security
MISSI!security policy
Misuse!real-time detection
Misuse!real-time detection
Mitchell, John
Miya, Eugene
ML
ML
MLA: see multilevel availability
MLI: see multilevel integrity
MLS: see multilevel security
MLX: see multilevel survivability
Modula 3
Modularity
Modularity
Modularity
Modularity
Modularity
Modularity!and interoperability
Modularity!and stark subsetting
Modularity!as in Lego piecesa
Modularity!Cem Kaner quote
Modularity!compiler enforced
Modularity!excessive
Modularity!facilitates evaluation
Modularity!of requirements
Modularity!of tools
Modularity!programming-language driven
Modularity!Steve Ballmer quote
Modularity!system|(bold
Modularity!system|)
Modularity!Ted Glaser quote
Modularity!with abstraction and encapsulation
Modularity!with abstraction and encapsulation
Modularity!with abstraction and encapsulation
Modularity!with abstraction and encapsulation
Monitoring!real-time
Monotonicity!compositional!stronger
Monotonicity!compositional!weak
Monotonicity!cumulative-trustworthiness
Monotonicity!nondecreasing-trustworthiness
Moore, Edward F.
MOPS!recent results
MOPS|(bold
MOPS|)
MSL!see multiple single-level security
MSL!see multiple single-level security
Multics
Multics!architecture
Multics!avoiding stack buffer overflows
Multics!development
Multics!development
Multics!directory hierarchy
Multics!discipline
Multics!domains
Multics!dynamic linking
Multics!dynamic linking
Multics!interfaces
Multics!multilevel security retrofit
Multics!multilevel security retrofit
Multics!principles
Multics!principles
Multics!ring structure
Multics!ring structure
Multics!security evaluation
Multics!virtual input-output
Multics!virtual memory
Multics!virtual memory
Multics!virtual multiprogramming
Multilevel availability
Multilevel integrity
Multilevel integrity!policy
Multilevel security
Multilevel security
Multilevel security!and perspicuity
Multilevel security!Distributed Secure System (DSS)
Multilevel security!noncompromisibility from above
Multilevel security!policy
Multilevel security!Proctor-Neumann
Multilevel security!TS&CI architectures
Multilevel security!TS&CI architectures
Multilevel security!TS&CI architectures
Multilevel security!TS&CI architectures
Multilevel survivability
Multiple!independent levels of security (MILS)
Multiple!single-level security (MSL)
Multiple!single-level security (MSL)
Multiprocessing!network-centric
Multiprocessing!network-centric
Multiprocessing!virtual
Mutual suspicion
Mutual suspicion
Navy Marine Corp Intranet (NMCI)
Needham, Roger!cryptography
NetTop
Network-centric!architecture
Networks!alternative routing
Networks!as backplanes
Networks!authentication
Networks!Byzantine protocols
Networks!configuration management
Networks!dependable
Networks!firewalls
Networks!guards
Networks!heterogeneous
Networks!multilevel secure
Networks!packet authentication
Networks!protocols
Networks!reliable despite unreliable nodes
Networks!subnetworks
Networks!survivable
Networks!testbeds
Networks!trustworthy
Networks!trustworthy
Networks!trustworthy interface units
Networks!virtualized multiprocessing
Networks!with traceback
Next Generation Secure Computing Base (NGSCB)
NGSCB!see Next Generation Secure Computing Base
NMCI!see Navy Marine Corp Intranet
Object-oriented paradigm
Object-oriented paradigm!domain enforcement
Object-oriented paradigm!downsides
Object-oriented paradigm!in PSOS
Object-oriented paradigm!in PSOS
Object-oriented paradigm!Objective Caml
Object-oriented paradigm!strong typing
Objective Caml
Offshoring!pros and cons|(bold
Offshoring!pros and cons|)
Openness!and perspicuity
Openness!composability in
Openness!Free Software Foundation
Openness!licensing agreements
Openness!Open Source Movement
Openness!open-box software
Openness!open-box software
Openness!open-box software
OpenSSH
Operations
Operations
Operations!analysis of changes
Operations!practical considerations
Operations!privacy implications
Optical communications
Optimization!code translation validation
Optimization!deferred, in Extreme Programming
Optimization!nonlocal
Optimization!nonlocal
Optimization!risks of short-sighted ...
Optimization!risks of short-sighted ...
Optimization!risks of short-sighted ...
Optimization!risks of short-sighted ...|(bold
Optimization!risks of short-sighted ...|)
Orthogonality theorem
Outsourcing!pros and cons|(bold
Outsourcing!pros and cons|)
Outsourcing!system administration
Outsourcing!system administration
Ovid
Ovid
Owicki-Gries
Parnas, David L.
Parnas, David L.!decomposition
Parnas, David L.!decomposition
Parnas, David L.!dependence
Parnas, David L.!motherhood
Parnas, David L.!specifications
Parnas, David L.!weak-link quote
Patch management|
Patch management|(bold
Patterson, David A.
Pavlovic, Dushko
Performance
Performance!acceptable degradation
Perspicuity
Perspicuity!risks of bad interfaces
Perspicuity!through analysis
Perspicuity!through synthesis
Perspicuity|(bold
Perspicuity|)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Pervasively Integrated Assurance (PIA)
Petroski, Henry
Pfleeger, Charles
Plan 9
Polyinstantiation
Portals
Practical Considerations|(bold
Practical Considerations|)
Predictability!for certification
Predictability!of assurance
Predictability!of composition
Predictability!of composition
Predictability!of composition
Predictability!of composition
Predictability!of composition
Predictability!of composition
Predictability!of evolvability
Predictability!of trustworthiness
Predictability!of trustworthiness
Principles
Principles!abstraction
Principles!architectural
Principles!constrained dependency
Principles!encapsulation
Principles!for security
Principles!for system development|
Principles!for system development|(bold
Principles!for trustworthiness|(bold
Principles!for trustworthiness|)
Principles!layered protection
Principles!modularity
Principles!motherhood as of 1969
Principles!object orientation
Principles!of secure design (NSA)
Principles!reduced need for trustworthiness
Principles!Saltzer-Schroeder
Principles!Saltzer-Schroeder
Principles!Saltzer-Schroeder
Principles!separation of domains
Principles!separation of duties
Principles!separation of policy/mechanism
Principles!separation of roles
Principles!throughout R&D
Privacy!in conflict with monitoring
Privacy!policies
Privacy!risks
Programming languages!and composability
Programming languages!enhancing modularity
Programming languages!enhancing modularity
Programming languages!for system development
Programming languages!for trustworthiness
Programming languages!object-oriented
Programming languages!research directions
Programming languages!static checking
Programming languages!supporting software engineering
Proof-carrying code
Proof-carrying code
Proofs!composability
Propagation of errors
Protocols!ARPANET routing
Protocols!Byzantine
Protocols!trustworthy
Provably Secure Operating System (PSOS)
Provably Secure Operating System (PSOS)
Provably Secure Operating System (PSOS)!alternative MLS hierarchy
Provably Secure Operating System (PSOS)!architecture
Provably Secure Operating System (PSOS)!composability
Provably Secure Operating System (PSOS)!HDM methodology
Provably Secure Operating System (PSOS)!hierarchy
Provably Secure Operating System (PSOS)!hierarchy
Provably Secure Operating System (PSOS)!hierarchy
Provably Secure Operating System (PSOS)!interface design
Provably Secure Operating System (PSOS)!object-oriented
Provably Secure Operating System (PSOS)!reduced need for trustworthiness
Provably Secure Operating System (PSOS)!types
Provably Secure Operating System (PSOS)!types
Provenance
Provenance
Provenance!nonspoofable
Proxies
PSOS (see Provably Secure Operating System)
Purify
PVS
PVS!theory interpretations
Randell, Brian
Randell, Brian
Randell, Brian
Randell, Brian!Distributed Secure System
Randell, Brian!Distributed Secure System
Randell, Brian!location of checking
Recovery!... Blocks
Recovery!...-Oriented Computing (ROC)
Recovery!automatic
Recovery!automatic
Recovery!automatic
Recovery!automatic
Recovery!semiautomatic
Redundancy!cyclic ... checks
Redundancy!for error correction
Redundancy!for fault tolerance
Redundancy!for integrity
Redundancy!for reliability
Redundancy!not needed for resynchronization
Refinement
Reliability
Reliability!and security
Reliability!assurance
Reliability!out of unreliable components
Reliability!risks
Reliability!risks
Requirements!analysis of
Requirements!critical
Requirements!engineering
Requirements!for autorecovery
Requirements!for composition
Requirements!for decomposition
Requirements!for decomposition
Requirements!for reliability
Requirements!for security
Requirements!for trustworthiness
Requirements!formal
Requirements!increasing assurance
Requirements!increasing assurance
Requirements!lack of attention to
Requirements!practical considerations
Response!automated
Response!automated
Response!automated
Response!automated
Response!real-time
Reusability!of architectures
Reusability!of components
Reusability!of components!Butler Lampson
Reusability!of components!with high assurance
Reusability!of requirements
Risk
Risks
Risks!reduction via assurance
Risks!reduction via assurance|(bold
Risks!reduction via assurance|)
Risks|(bold
Risks|(bold
Risks|)
Risks|)
Robinson-Levitt hierarchies
Robinson-Levitt hierarchies
Robinson-Levitt hierarchies
Robinson-Levitt hierarchies
Routers!trustworthy
Routing!alternative
Runtime checks
Rushby, John M.
Rushby, John M.!Distributed Secure System
Rushby, John M.!Distributed Secure System
Rushby, John M.!separation kernels
Rushby, John M.!separation kernels
Rushby, John M.!separation kernels
Rushby-Randell
Rushby-Randell
Ryan, Peter!self-healing example
Safety!human!assurance
Safety!human!risks
Safety!human!risks
Safety!Lamport-style
Safire, William!hindsight and foresight
SAL: Symbolic Analysis Laboratory
Saltzer, Jerome H.
Saltzer, Jerome H.!principles
Saltzer-Schroeder principles
Saltzer-Schroeder principles
Saltzer-Schroeder principles
Saltzer-Schroeder principles
Saltzer-Schroeder principles
Sandcastles
Saydjari, Sami
Saydjari, Sami
Schaufler, Casey
Schell, Roger R.!Multics security evaluation
Schneider, Fred B.
Schroeder, Michael D.!mutual suspicion
Schroeder, Michael D.!mutual suspicion
Schroeder, Michael D.!principles
SDSI/SPKI
SDSI/SPKI
SeaView
SeaView
Security
Security!and reliability
Security!by obscurity
Security!by obscurity
Security!by obscurity
Security!in distributed systems
Security!in distributed systems
Security!in distributed systems
Security!in distributed systems!MLS
Security!kernels
Security!multilevel
Security!multilevel!Bell and LaPadula
Security!multilevel!compartments
Security!multilevel!databases
Security!principles|(bold
Security!principles|)
Security!risks
Security!risks
Security!Trusted Computing Bases (TCBs)
Self-diagnosing
Self-diagnosing
Self-healing
Self-healing!key distribution
Self-optimizing
Self-reconfiguring
Self-reconfiguring
Self-recovering
Self-reprotecting
Self-stabilizing
Self-stabilizing
Self-synchronizing
Separation!kernels
Separation!kernels
Separation!kernels
Separation!of domains
Separation!of duties
Separation!of policy and mechanism
Separation!of policy and mechanism
Separation!of roles
setuid
Shands, Deborah!SPiCE
Shannon, Claude
Shannon, Claude
Sibert, Olin
SIFT (see Software-Implemented Fault-Tolerant System)
Simplicity
Simplicity
Simplicity
Simplicity!abstractional
Simplicity!Einstein quote
Simplicity!Einstein quote
Simplicity!Einstein quote
Simplicity!Horning quote
Simplicity!Mencken quote
Simplicity!O.W. Holmes quote
Simplicity!Saltzer-Schroeder
Single sign-on!risks of
Single sign-on!risks of
slint
Sneaker-net
Software!black-box
Software!closed-box
Software!nonproprietary
Software!open-box
Software!proprietary
Software-Implemented Fault-Tolerant System (SIFT)
Software-Implemented Fault-Tolerant System (SIFT)
Software-Implemented Fault-Tolerant System (SIFT)
Software-Implemented Fault-Tolerant System (SIFT)
Software-Implemented Fault-Tolerant System (SIFT)
Spam!filters
Spam!Tripoli: defense against
SPARK
SPECIfication and Assertion Language (SPECIAL)
SPiCE
ssh
StackGuard
Stark subsetting
Stark subsetting
Stark subsetting
Stark subsetting
Stark subsetting
Stark subsetting
Stark subsetting!in real-time operating systems
Strength in depth
Subnetworks
Subnetworks
Subnetworks!trustworthy
Subnetworks!trustworthy!virtual
Subsystems!composability!assurance
Subsystems!composability!functionality
Subsystems!decomposability
Subsystems!diversity among
Subsystems!parameterizable
Subsystems!trustworthiness!enhancement
Survivability
Survivability!multilevel
Survivability!risks
Synchronization!robust
Synchronization!self-...
Synchronization!vulnerabilities
System!administration
System!administration
System!administration!assurance
System!administration!assurance
System!composed of subsystems
System!composed of subsystems
System!distributed ... trustworthiness
System!distributed ... trustworthiness
System!distributed ... trustworthiness
System!handheld
System!heterogeneous
System!wireless
TCSEC
TCSEC
TCSEC
Testbeds
THE system
THE system
THE system
Thin-client!architectures
Thin-client!user systems
Thin-client!user systems
Thin-client!user systems
Time-of-check to time-of-use flaws (TOCTTOU)
TOCTTOU flaws
Traceback
Traceback
Traceback
Traceback
Traceback
Transactions!fulfillment
Tripoli: Empowered E-Mail Environment
Trust
Trust!layered
Trust!maximal
Trust!minimal
Trust!partitioned
Trusted (i.e., Trustworthy) Paths
Trusted (i.e., Trustworthy) Paths
Trusted (i.e., Trustworthy) Paths
Trusted (i.e., Trustworthy) Paths!for upgrades
Trusted Computer System Evaluation Criteria (TCSEC)
Trusted Computing Group (TCG)
Trusted Xenix
Trusted Xenix
Trustworthiness
Trustworthiness
Trustworthiness
Trustworthiness
Trustworthiness!enhancement of
Trustworthiness!enhancement of|(bold
Trustworthiness!enhancement of|)
Trustworthiness!enhancement!paradigms
Trustworthiness!enhancement!reliability
Trustworthiness!enhancement!sandcastles
Trustworthiness!enhancement!security
Trustworthiness!in distributed systems
Trustworthiness!in distributed systems
Trustworthiness!in distributed systems
Trustworthiness!in distributed systems
Trustworthiness!in distributed systems!reduced dependence
Trustworthiness!layered
Trustworthiness!need for discipline
Trustworthiness!of bootloads
Trustworthiness!of bootloads
Trustworthiness!of bootloads
Trustworthiness!of code distribution
Trustworthiness!of code distribution
Trustworthiness!of code distribution
Trustworthiness!of code provenance
Trustworthiness!of networks
Trustworthiness!of protocols
Trustworthiness!of servers
Trustworthiness!of servers
Trustworthiness!of subnetworks
Trustworthiness!of traceback
Trustworthiness!of "trusted paths"
Trustworthiness!partitioned
Trustworthiness!principles for|(bold
Trustworthiness!principles for|)
Trustworthiness!system development
Trustworthiness!where needed
Trustworthy Servers and Controlled Interfaces (see TS&CI)
TS&CI
TS&CI
TS&CI
TS&CI
TS&CI
TS&CI
TS&CI!in heterogeneous architectures
TS&CI: Trustworthy Servers and Controlled Interfaces
Type!enforcement
Type!enforcement!PSOS
Type!enforcement!SCC
Unified Modeling Language (UML)
Unified Modeling Language (UML)
Unified Software Development Process (USDP)
Uses relation
Van Vleck, Tom
Venema, Wietse
VERkshops
Virtual!input-output
Virtual!machine
Virtual!machine monitors
Virtual!memory
Virtual!multiprocessing
Virtual!multiprocessing!in GLU
Virtual!Private Networks (VPNs)
Visibility|(bold
Visibility|(bold
Visibility|)
Visibility|)
VMWare
Voltaire
von Neumann, John
Voting!electronic systems
Voting!electronic systems!assurance
Voting!electronic systems!assurance
Voting!electronic systems!assurance
Voting!electronic systems!Chaum
Voting!electronic systems!integrity
Voting!electronic systems!Mercuri
Voting!electronic systems!privacy problems
Voting!electronic systems!security problems
Voting!majority ... for enhancing reliability
Vulnerabilities!security|(bold
Vulnerabilities!security|)
Wagner, David
Wagner, David
Wagner, David!buffer overflow analyzer
Wagner, David!MOPS
Wagner, David!MOPS
Weak-link!avoidance
Weak-link!avoidance
Weak-link!hindering trustworthiness
Weak-link!phenomena
Weak-link!phenomena
Weak-link!targets
Weakness in depth
Web portal
Web services!universal
Wheeler, David A.!least privilege
Wheeler, David A.!secure programming
Wireless!communications
Wireless!devices
Wireless!networks
Wrappers
Wrappers
